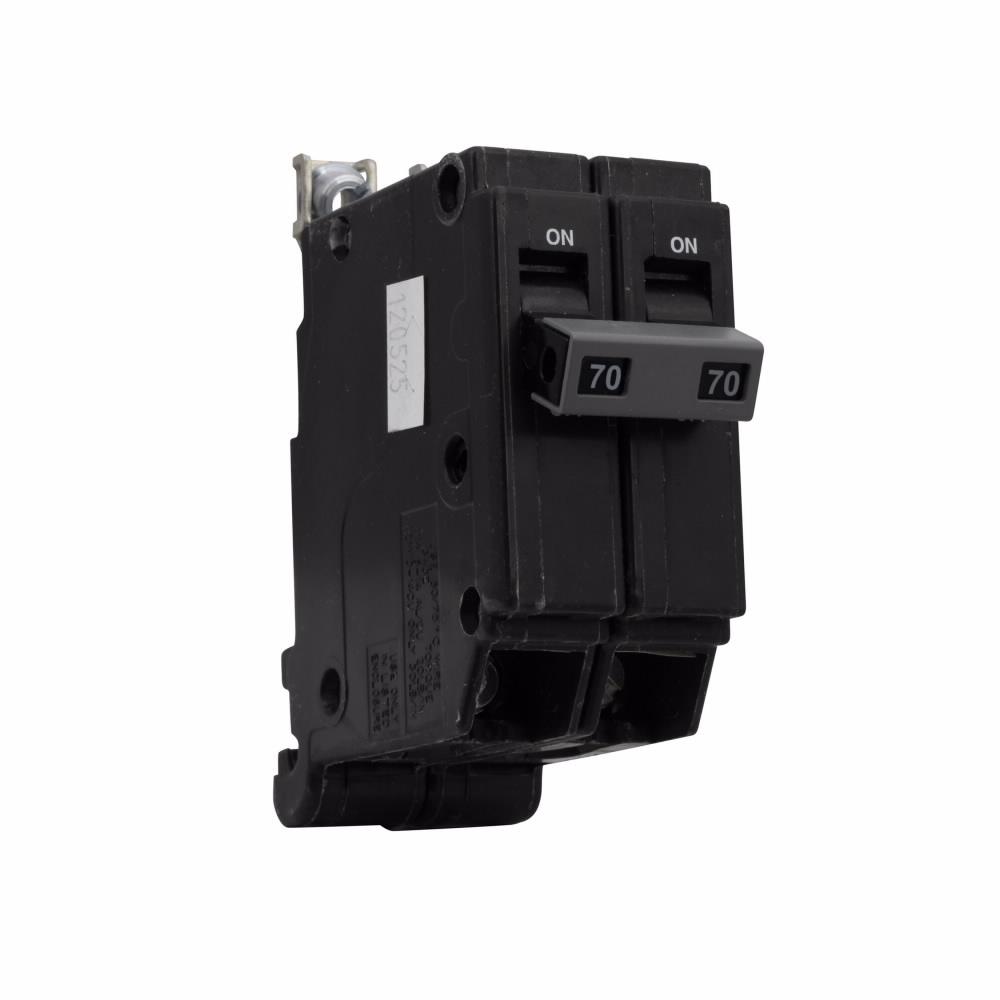

Cutler Hammer CHB270 - Molded Case Circuit Breaker 70A 2-Pole
Cutler Hammer CHB270 - Molded Case Circuit Breaker 70A 2-Pole
Cutler Hammer CHB270 - Molded Case Circuit Breaker 70A 2-Pole
Cutler Hammer CHB270 - Molded Case Circuit Breaker 70A 2-Pole
Cutler Hammer CHB270 - Molded Case Circuit Breaker 70A 2-Pole
Cutler Hammer CHB270 - Molded Case Circuit Breaker 70A 2-Pole

Cutler Hammer CHB270 - Molded Case Circuit Breaker 70A 2-Pole

Cutler Hammer
Price
Save $96.57
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

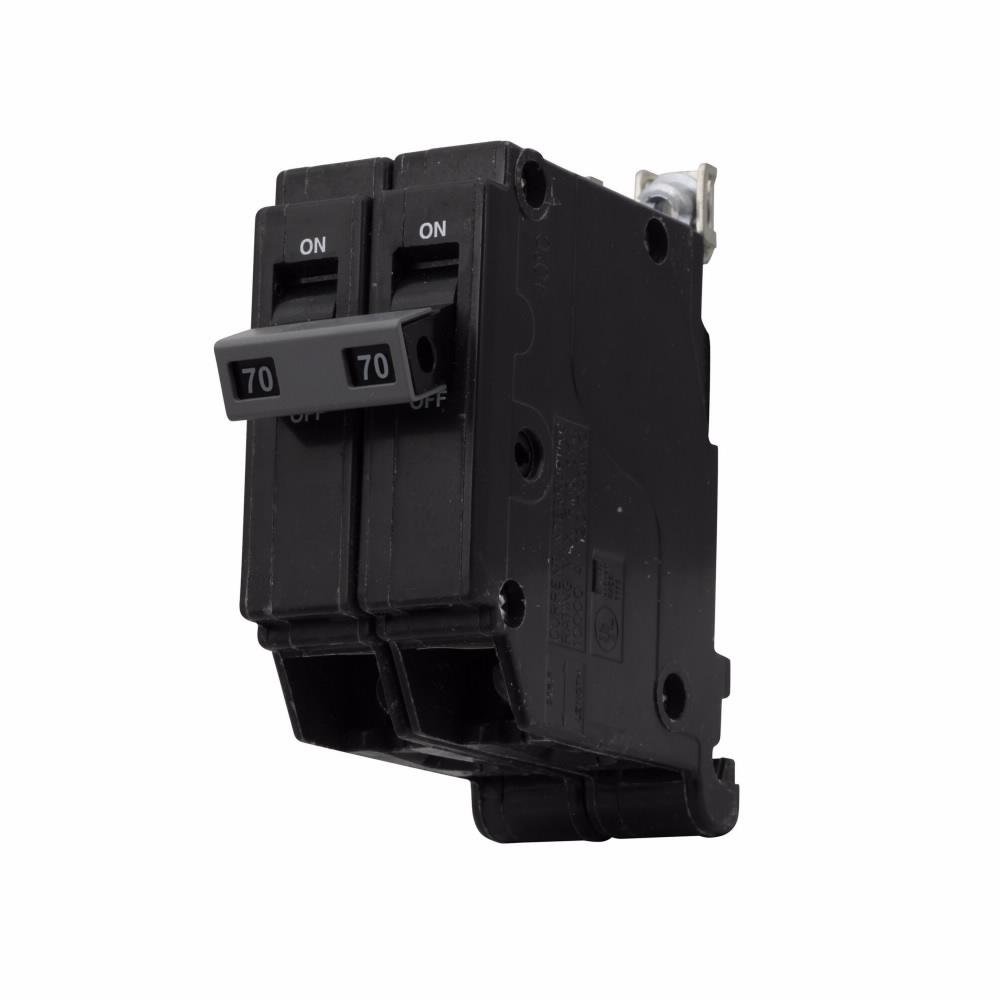

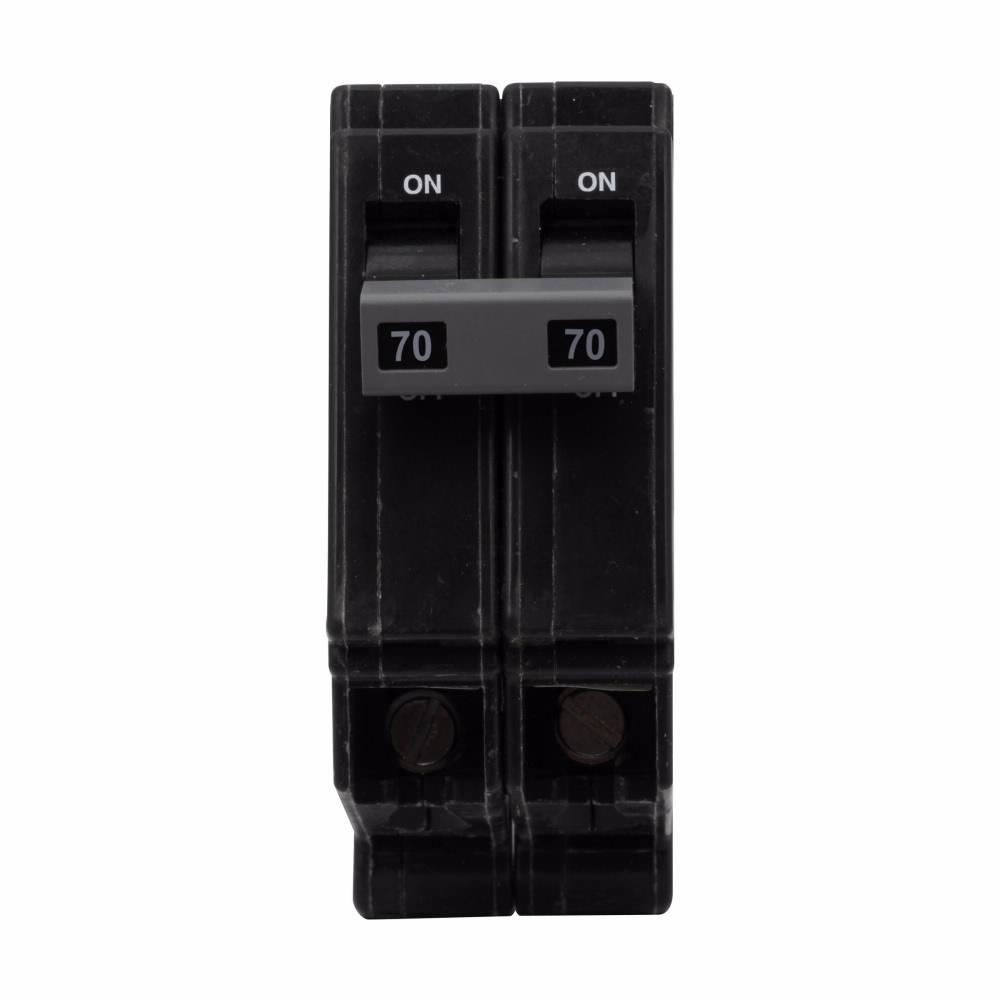

Cutler Hammer CHB270 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 70A current rating and a 240V AC voltage rating, housed in a compact, bolt-on configuration measuring 3.7" x 3.2" x 2.2" (L x H x W) and weighing 0.9 lb. This two-pole, single-phase breaker is UL 489 listed and employs a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions for coordinated protection, offering a 10kA interrupting capacity at 240V. It is engineered for a wide operating temperature range of -25°C to 70°C (-13°F to 158°F) and is suitable for protecting feeder and branch circuits utilizing conductors from AWG 8 to AWG 2.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 70A
  • Dimensions: 3.7 in (L) x 3.2 in (H) x 2.2 in (W)
  • Standards: UL 489
  • Applications: Industrial & Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • Amperage: 70A
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Wire Size: AWG 8 to AWG 2
  • Certification: UL 489
  • Family: CHB Series
  • Weight: 0.9 lb


Product Identification
  • UPC: 782113112541
  • GTIN: 00782113112541
