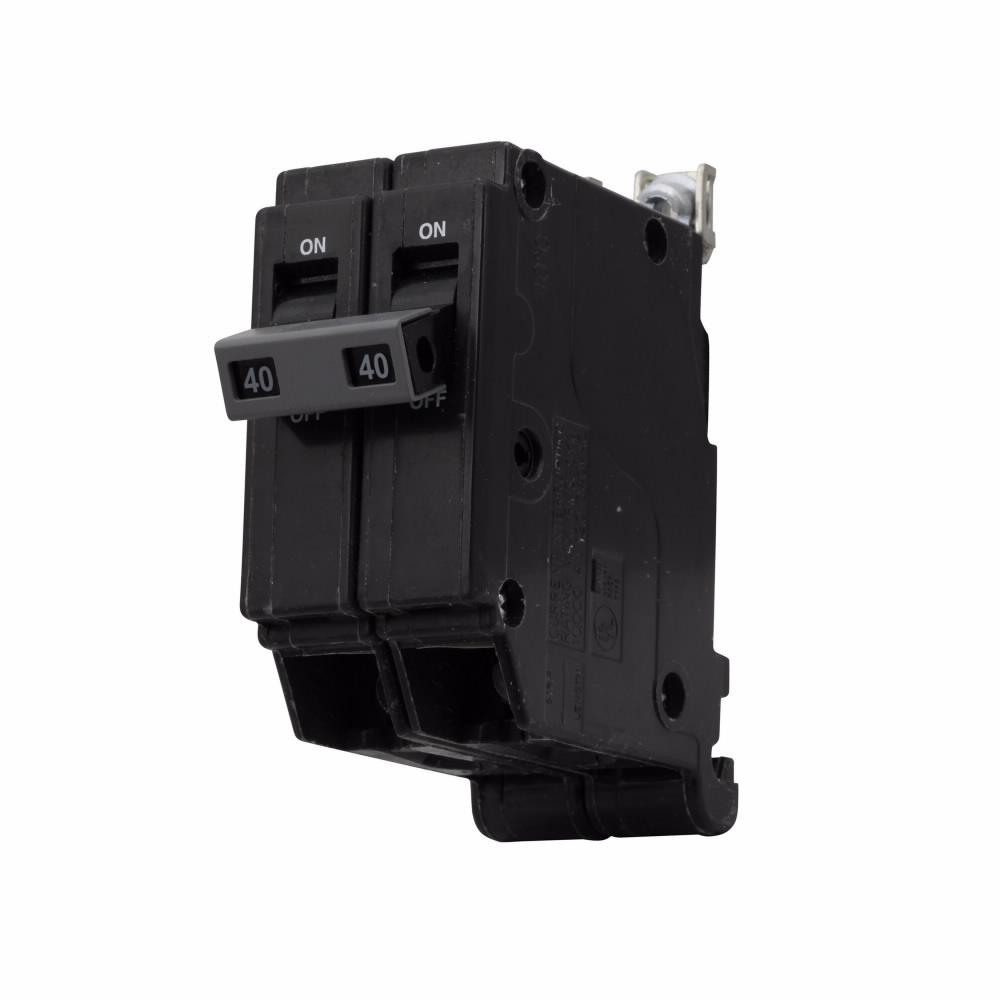

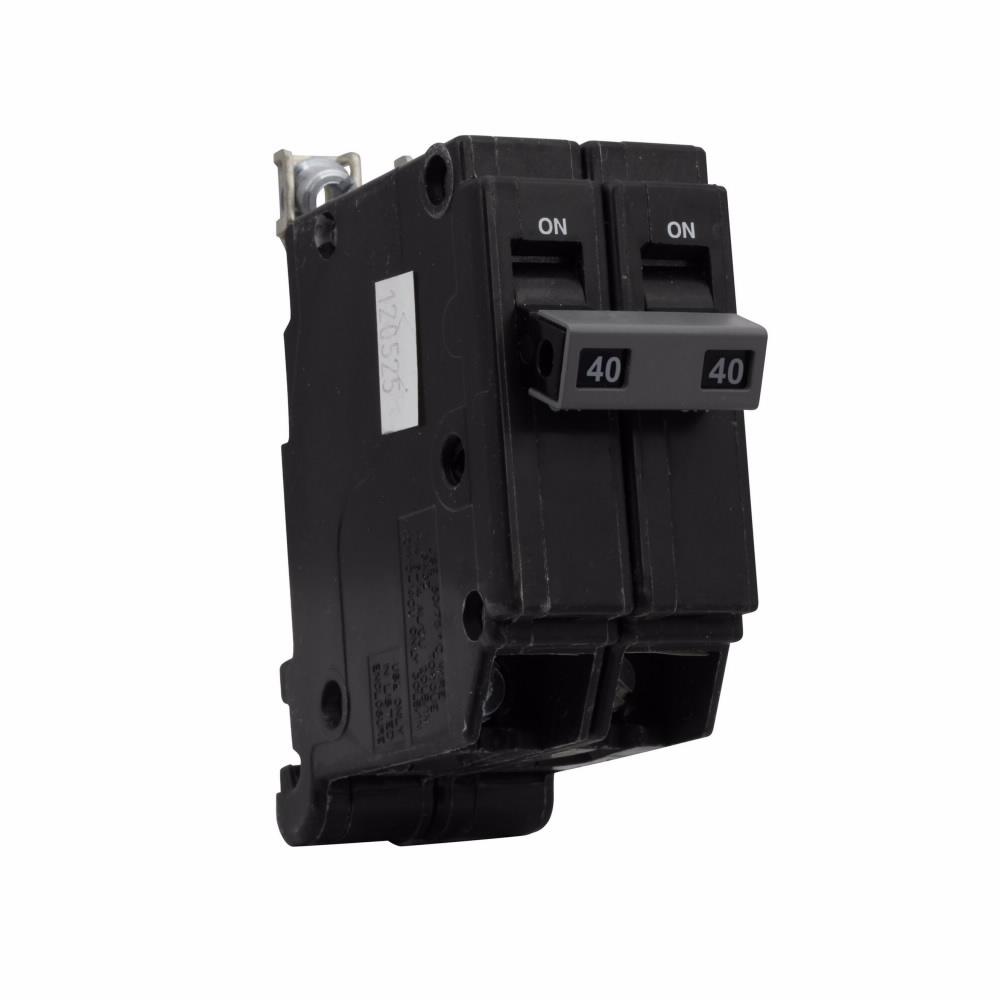

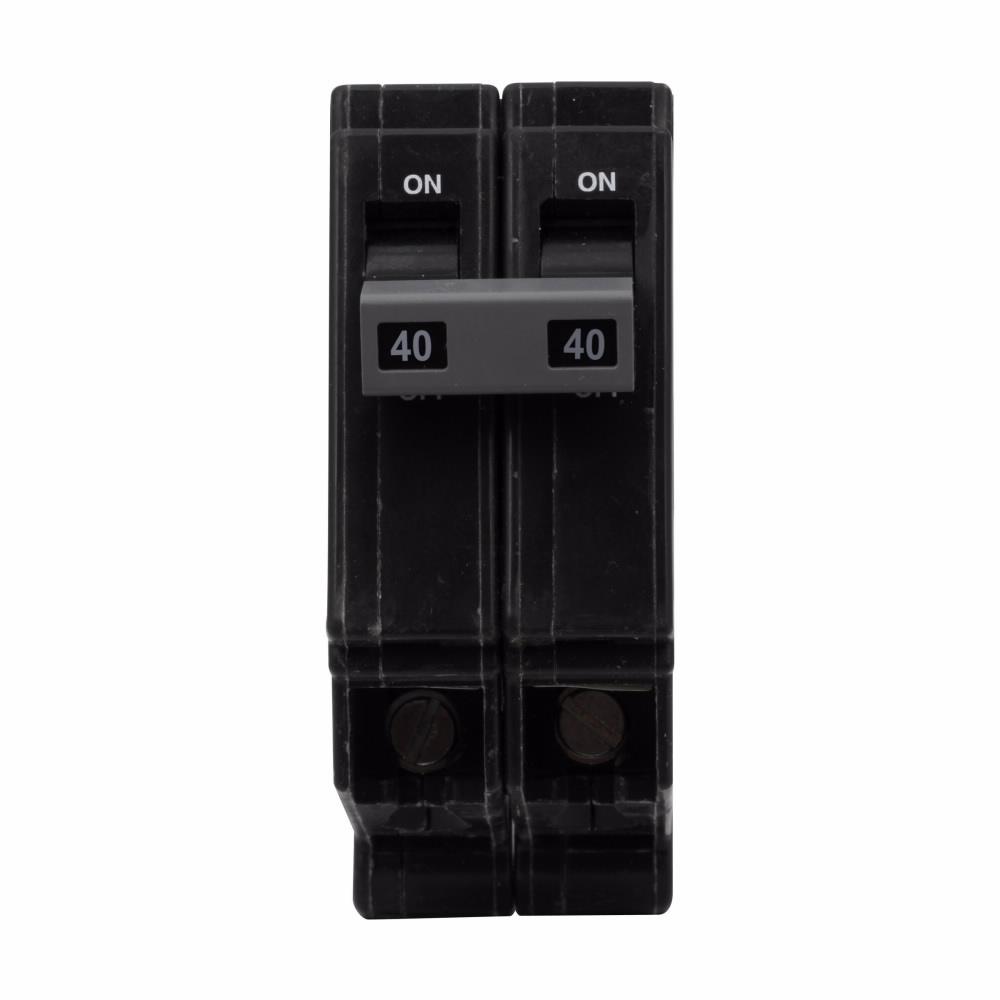

Cutler Hammer CHB240 - Molded Case Breaker 40A 240V 2-Pole
Cutler Hammer CHB240 - Molded Case Breaker 40A 240V 2-Pole
Cutler Hammer CHB240 - Molded Case Breaker 40A 240V 2-Pole
Cutler Hammer CHB240 - Molded Case Breaker 40A 240V 2-Pole
Cutler Hammer CHB240 - Molded Case Breaker 40A 240V 2-Pole
Cutler Hammer CHB240 - Molded Case Breaker 40A 240V 2-Pole

Cutler Hammer CHB240 - Molded Case Breaker 40A 240V 2-Pole

Cutler Hammer
Price
Save $141.16
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer CHB240 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 40A current rating and a 240V AC voltage rating, housed within a compact, bolt-on configuration measuring 2.3 in (D) x 3.4 in (H) x 3.7 in (W) and weighing 0.9 lb. This two-pole, single-phase breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection, is certified to UL 489 standards, and offers a 10kA interrupting capacity at 240V. Its robust construction supports operation in temperatures from -25°C to 70°C (-13°F to 158°F) and is typically applied in panelboards, switchboards, and motor control centers for branch circuit and feeder protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 40A
  • Dimensions: 2.3 in (Depth) x 3.4 in (Height) x 3.7 in (Width)
  • Weight: 0.9 lb
  • Standards: UL 489 Listed
  • Applications: Industrial/Commercial Panelboards, Switchboards, Motor Control Centers
  • Phase: 1
  • Poles: 2
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Wire Size: #8 AWG to #4 AWG
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Family: CHB Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 782113112480
  • GTIN: 00782113112480
