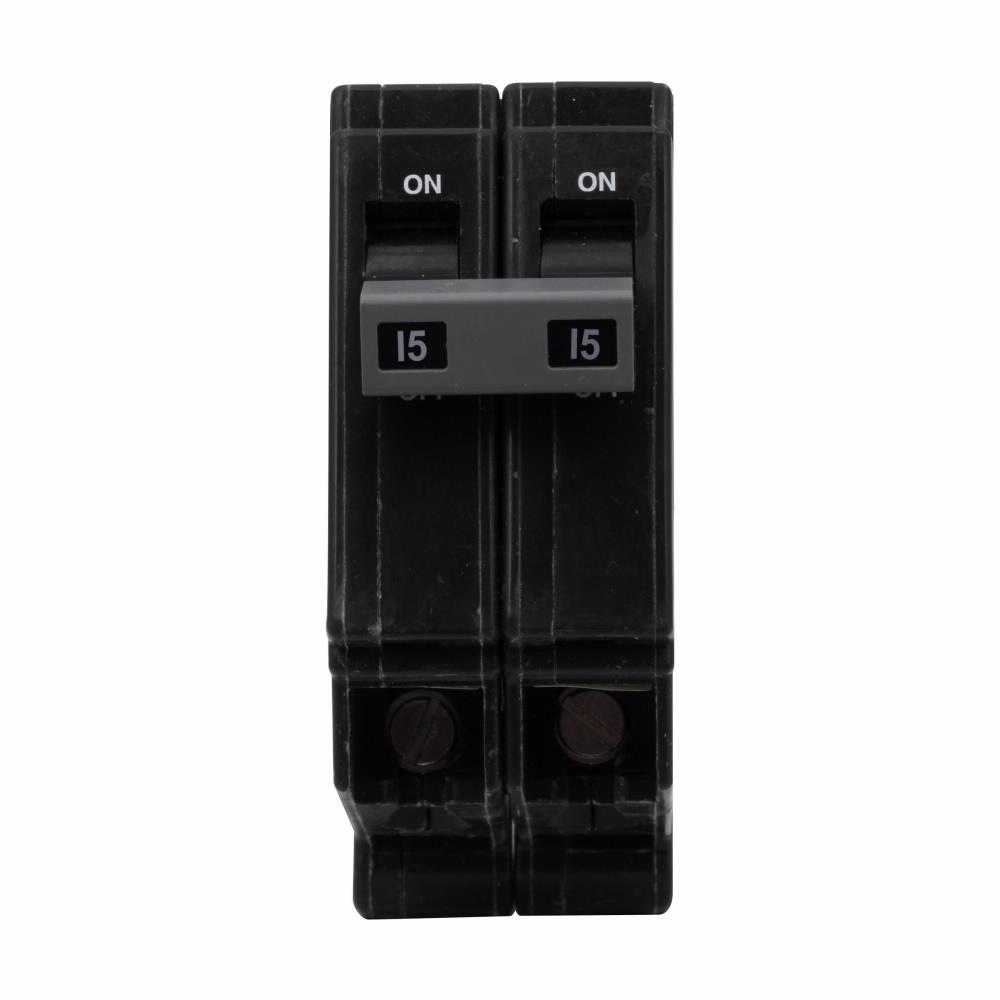

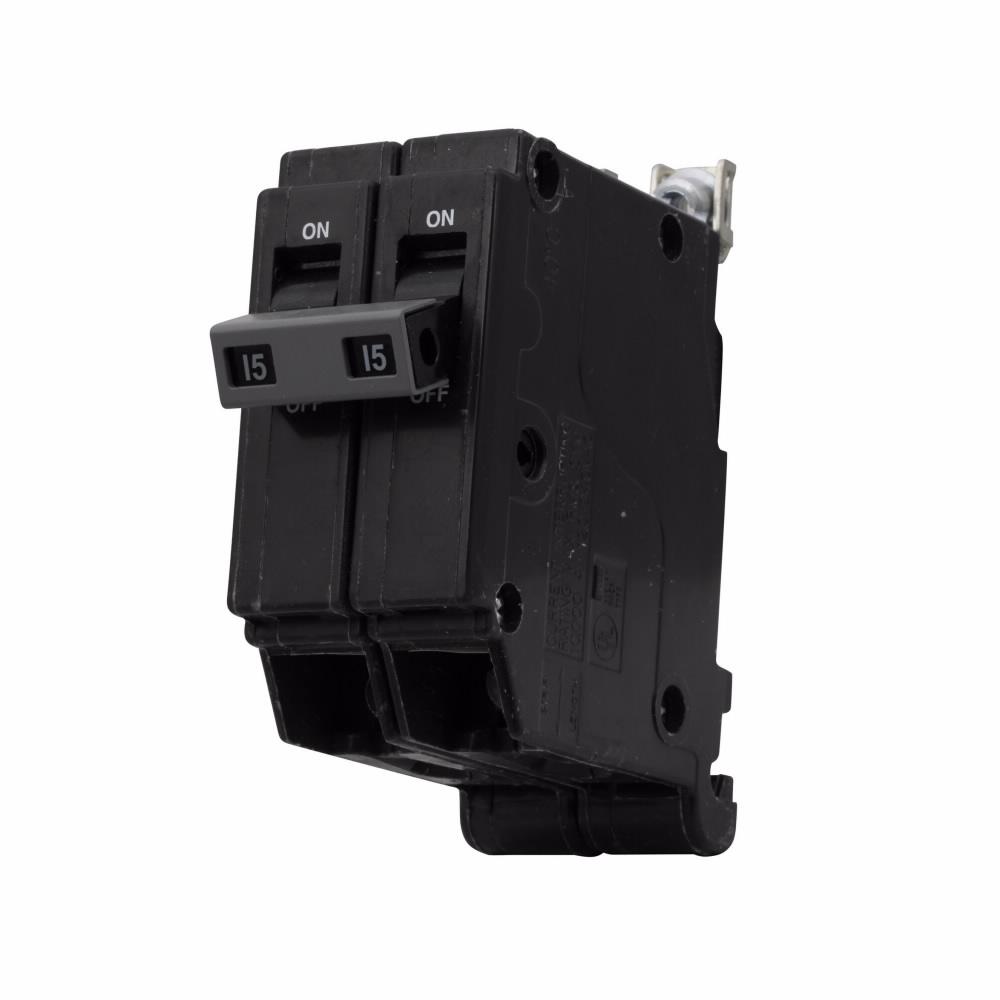

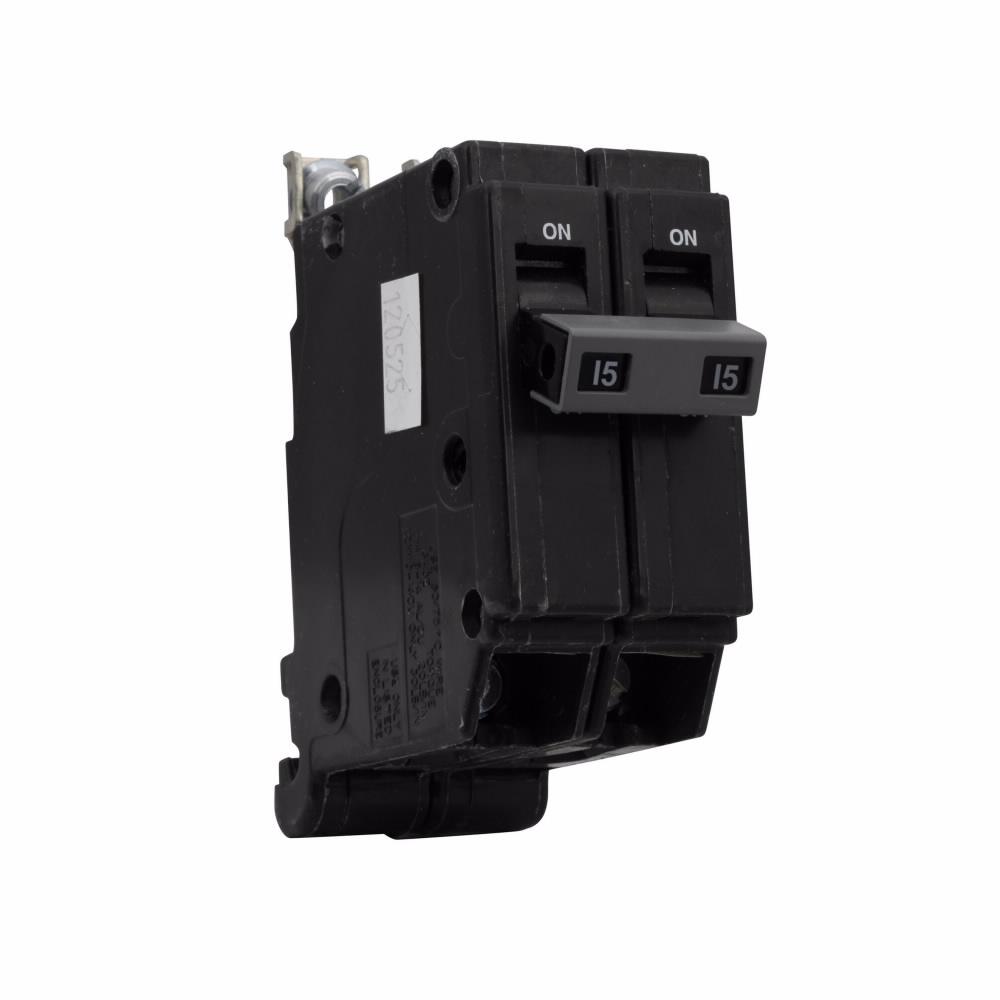

Cutler Hammer CHB215 - Molded Case Breaker 15A 2-Pole
Cutler Hammer CHB215 - Molded Case Breaker 15A 2-Pole
Cutler Hammer CHB215 - Molded Case Breaker 15A 2-Pole
Cutler Hammer CHB215 - Molded Case Breaker 15A 2-Pole
Cutler Hammer CHB215 - Molded Case Breaker 15A 2-Pole
Cutler Hammer CHB215 - Molded Case Breaker 15A 2-Pole

Cutler Hammer CHB215 - Molded Case Breaker 15A 2-Pole

Cutler Hammer
Price
Save $139.16
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer CHB215 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 15A current rating and a 240V AC voltage rating, with a compact bolt-on configuration measuring 3.75 in x 3.5 in x 1.5 in and a weight of 0.62 lb. The breaker is constructed for durability with a thermal-magnetic trip mechanism providing both long-time and instantaneous (LI) protection, and it operates within a temperature range of -25 to 70 °C. It complies with the UL 489 standard and offers an interrupting capacity of 10kA at 240V AC. This unit is typically applied in industrial control panels, HVAC systems, and machinery where protection for #14 to #8 AWG wire is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 15A
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V AC
  • Protection Functions: Long-Time and Instantaneous Trip (LI)
  • Trip Type: Thermal Magnetic
  • Wire Size: #14 to #8 AWG
  • Connection: Bolt-On
  • Frame: CHB Series
  • Dimensions: 3.75 in L x 3.5 in H x 1.5 in W (95.3 mm x 88.9 mm x 38.1 mm)
  • Weight: 0.62 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Certification: UL 489
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 782113112404
  • GTIN: 00782113112404
