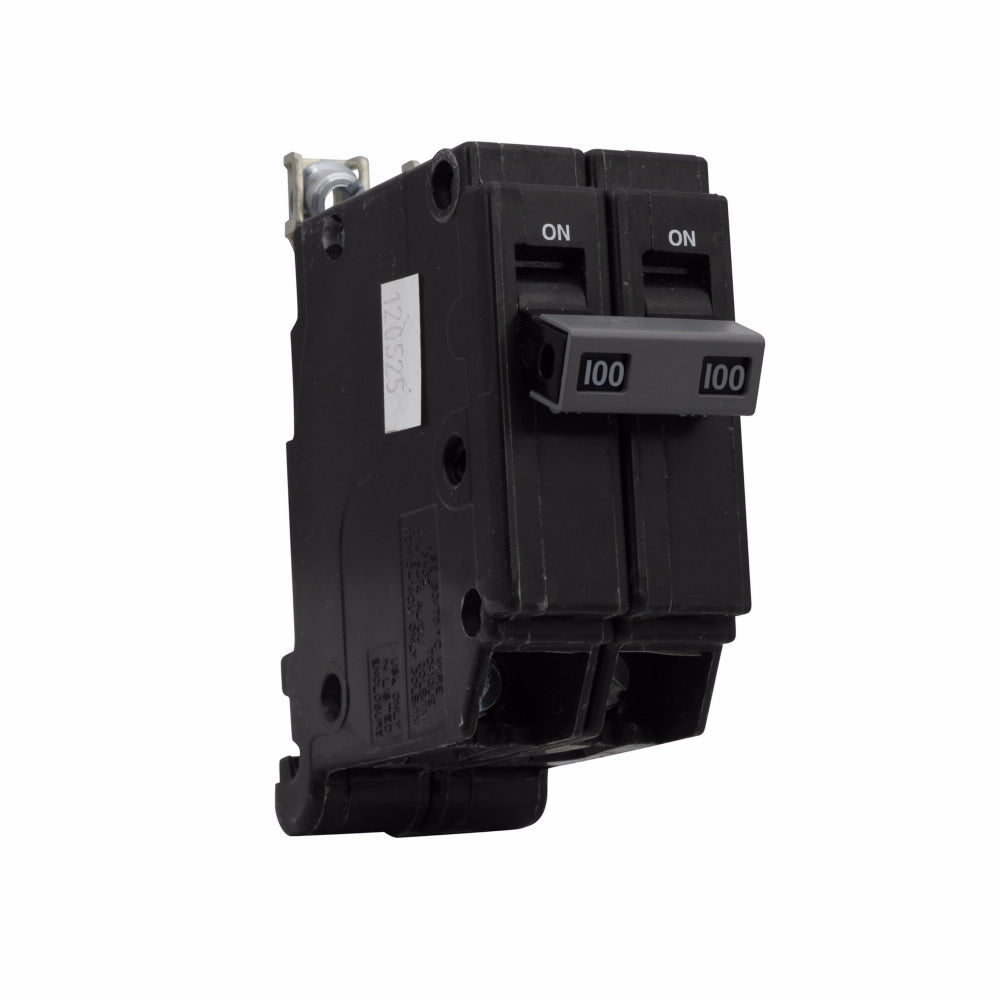

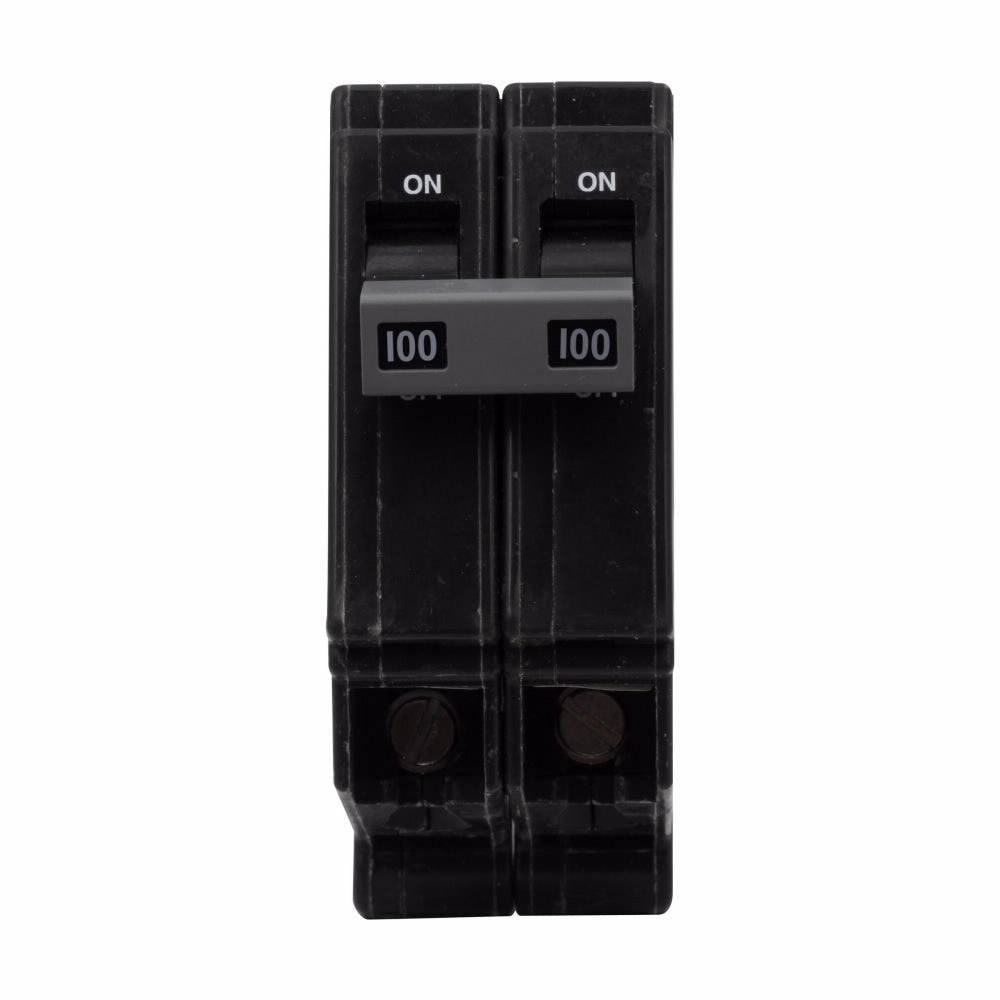

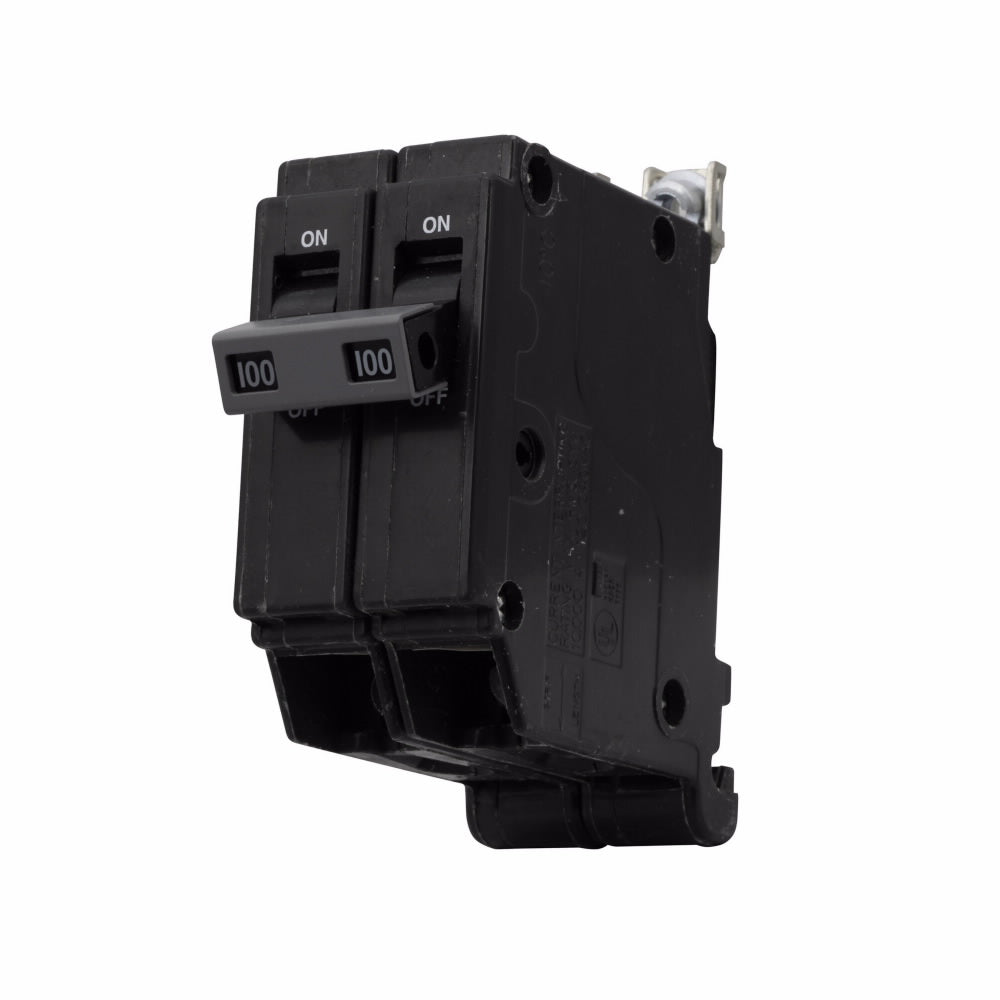

Cutler Hammer CHB2100 - Molded Case Circuit Breaker 100A 2-Pole

Price
Regular price $398.87
Regular price $746.65 Sale price $398.87
Save $347.78
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Cutler Hammer CHB2100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 100A current rating and a 240V AC voltage rating, housed within a compact, durable frame measuring 3.6" x 3.5" x 1.5" and weighing 0.55 lb. This thermal-magnetic breaker is UL 489 certified and operates effectively across a temperature range of -25 to 70 °C, offering a 10kA interrupting capacity at 240V. Its two-pole, bolt-on configuration with long-time and instantaneous (LI) trip functions makes it suitable for protecting feeders and branch circuits in panelboards and switchgear.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 3.6 in (L) x 3.5 in (H) x 1.5 in (W)
  • Standards: UL 489
  • Applications: Industrial & Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Wire Size: AWG 4 to AWG 1/0
  • Certification: UL 489
  • Family: CHB Series
  • Country of Origin: Dominican Republic
  • Weight: 0.55 lb


Product Identification
  • UPC: 782113112671
  • GTIN: 00782113112671
