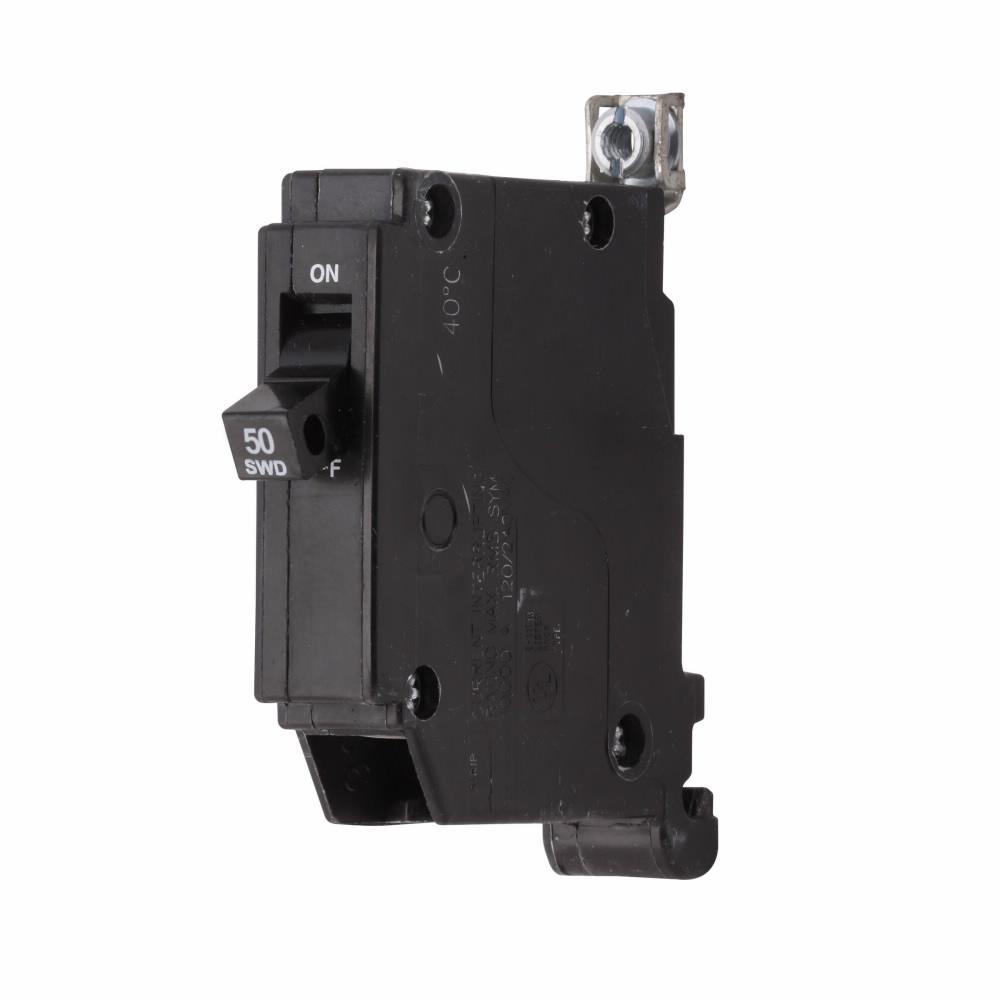

Cutler Hammer CHB150 - Molded Case 50A Circuit Breaker (10kA AIC)
Cutler Hammer CHB150 - Molded Case 50A Circuit Breaker (10kA AIC)
Cutler Hammer CHB150 - Molded Case 50A Circuit Breaker (10kA AIC)
Cutler Hammer CHB150 - Molded Case 50A Circuit Breaker (10kA AIC)
Cutler Hammer CHB150 - Molded Case 50A Circuit Breaker (10kA AIC)
Cutler Hammer CHB150 - Molded Case 50A Circuit Breaker (10kA AIC)

Cutler Hammer CHB150 - Molded Case 50A Circuit Breaker (10kA AIC)

Cutler Hammer
Price
Save $30.74
/
Condition
  • Low stock - 9 items left
  • Backordered, shipping soon
Call for Price
Cutler Hammer CHB150 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 50A current rating and a 120V AC voltage rating, housed within a compact, bolt-on configuration measuring 3.3 in (L) x 1.5 in (H) x 2.8 in (W) and weighing 0.59 lb. The breaker is UL 489 listed and operates effectively across a temperature range of -25 to 70 °C, utilizing a thermal-magnetic trip unit with long-time and instantaneous (LI) functions to ensure coordinated protection. Its 10kA interrupting rating at 120V makes it suitable for safeguarding branch circuits and equipment in panelboards and switchboards, compatible with conductors from AWG 8 to AWG 4.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 120V AC
  • Current Rating: 50A
  • Dimensions: 3.3 in x 1.5 in x 2.8 in (L x H x W)
  • Weight: 0.59 lb
  • Standards: UL 489
  • Applications: Industrial & Commercial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole (1 Pole)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Wire Size: AWG 8 to AWG 4
  • Certification: UL 489
  • Family: CHB Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 782113112398
  • GTIN: 00782113112398
