Cutler Hammer CHB130 - Molded Case Breaker 30A 1P (10kA AIC)
Cutler Hammer CHB130 - Molded Case Breaker 30A 1P (10kA AIC)
Cutler Hammer CHB130 - Molded Case Breaker 30A 1P (10kA AIC)
Cutler Hammer CHB130 - Molded Case Breaker 30A 1P (10kA AIC)
Cutler Hammer CHB130 - Molded Case Breaker 30A 1P (10kA AIC)
Cutler Hammer CHB130 - Molded Case Breaker 30A 1P (10kA AIC)

Cutler Hammer CHB130 - Molded Case Breaker 30A 1P (10kA AIC)

Cutler Hammer
Price
Save $66.83
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

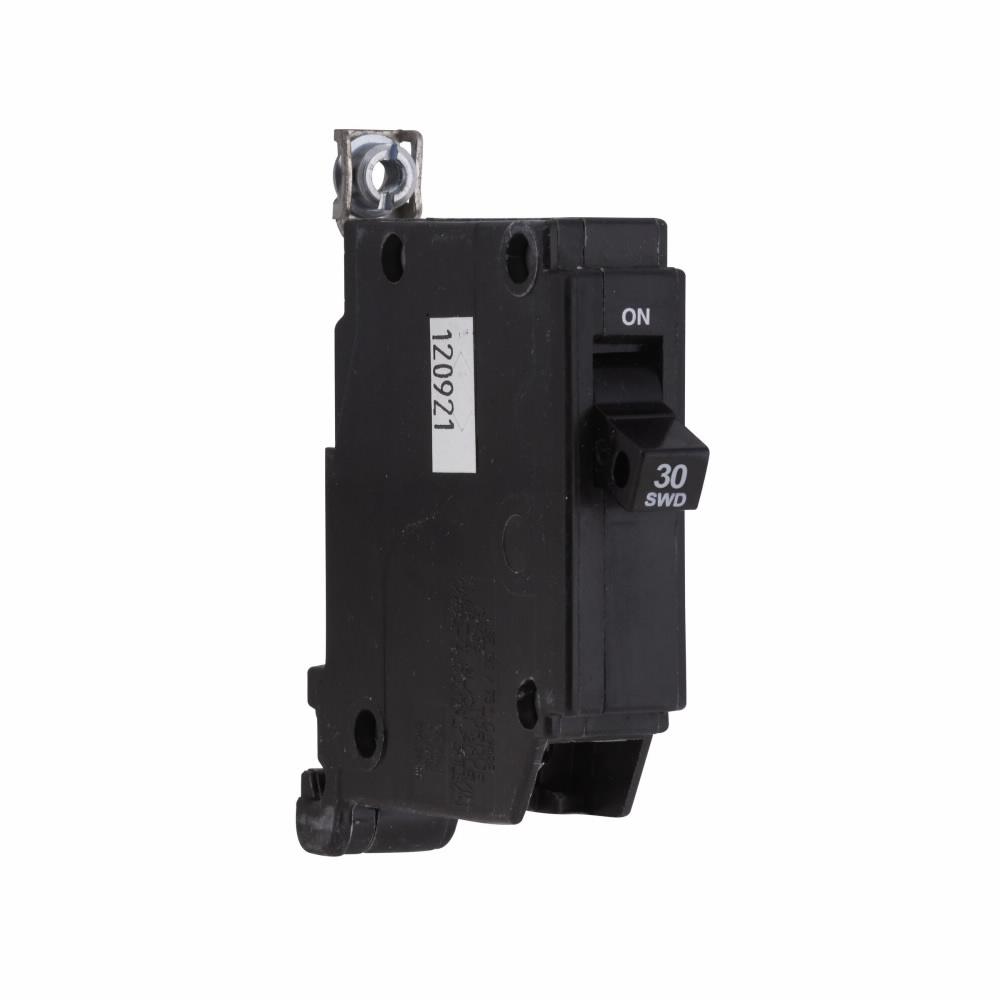

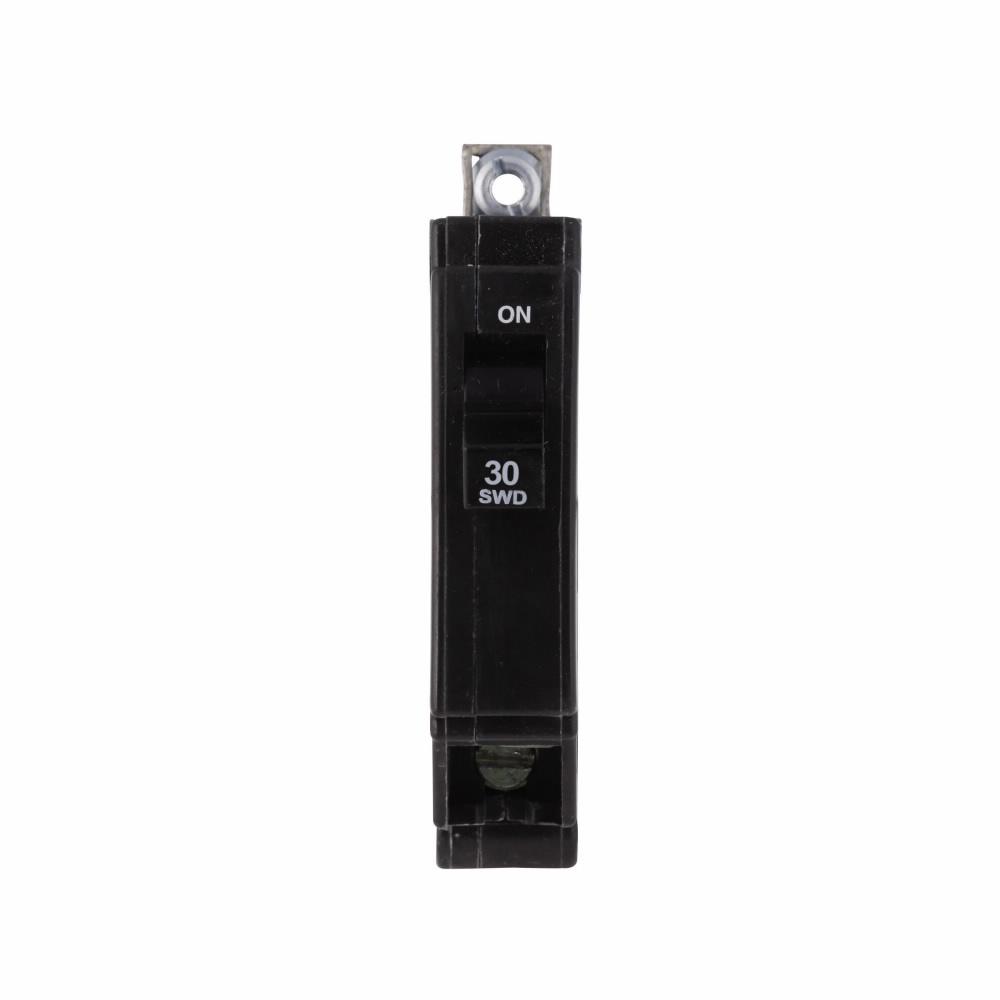

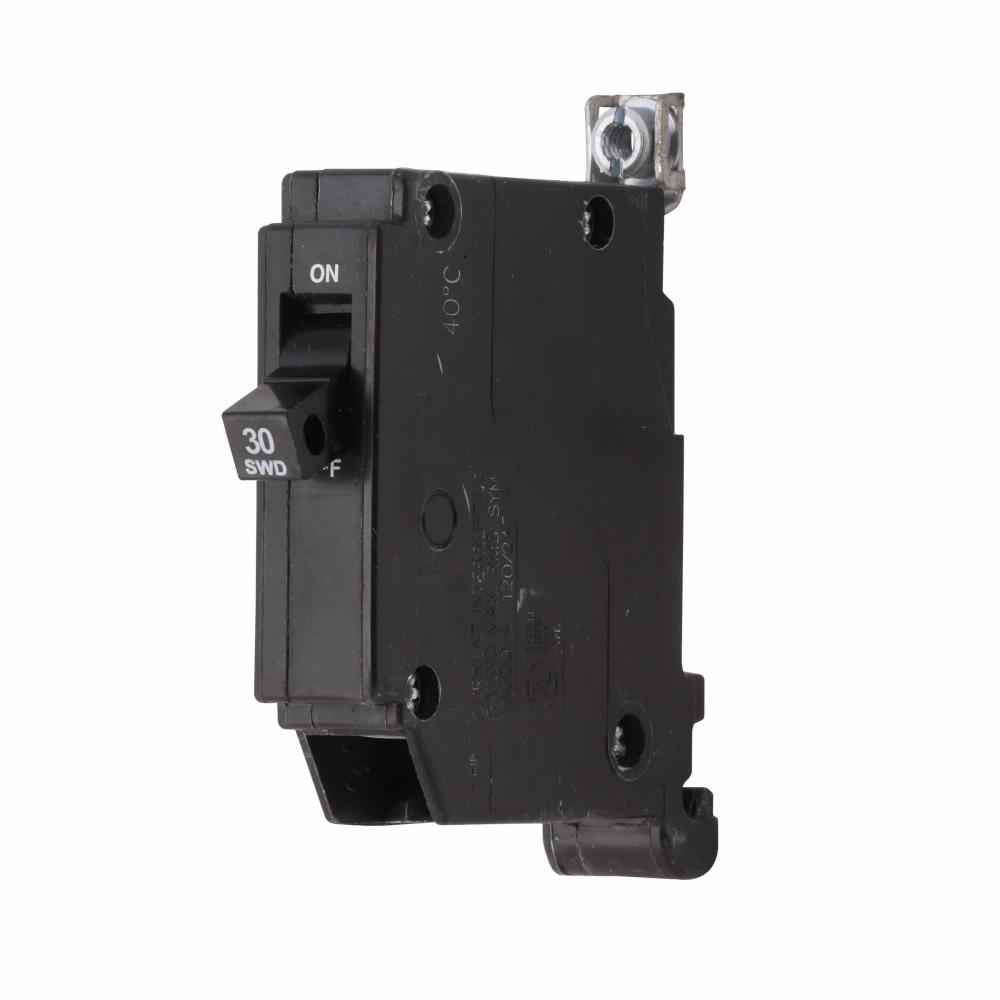

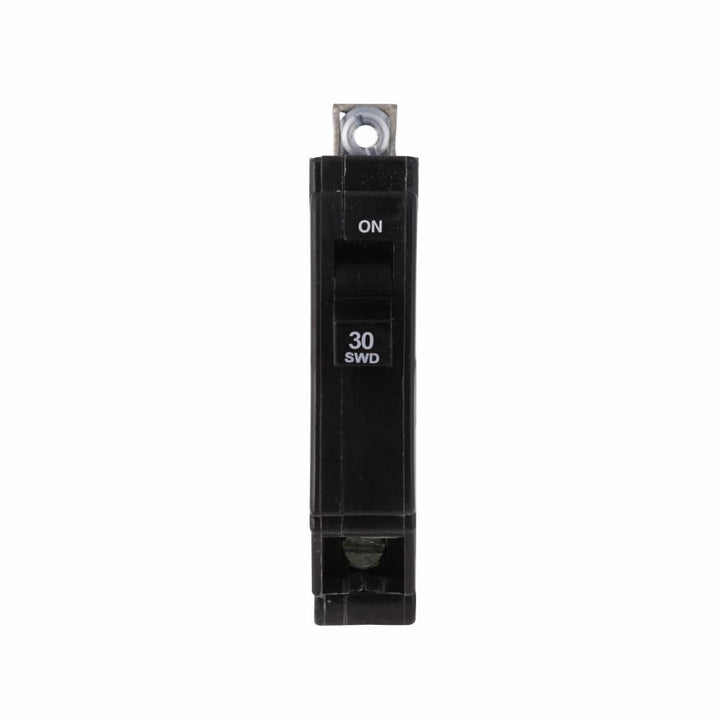

Cutler Hammer CHB130 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 30A current rating and 120V voltage rating, housed in a compact 3.3" x 3.2" x 0.7" (L/D x H x W) bolt-on unit weighing 0.25 lb. The breaker is UL 489 certified and offers thermal-magnetic protection with long-time and instantaneous (LI) trip functions, ensuring compliance with industry safety standards for a 10kA interrupting capacity at 120V. Its operational temperature range of -25 to 70 °C (-13 to 158 °F) and compatibility with wire sizes from AWG 14 to AWG 8 make it suitable for a variety of single-phase branch circuit applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 120V AC
  • Current Rating: 30A
  • Dimensions: 3.3 in (L/D) x 3.2 in (H) x 0.7 in (W)
  • Standards: UL 489 Certified
  • Applications: Industrial and Commercial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Single Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Wire Size: AWG 14 to AWG 8
  • Certification: UL 489
  • Weight: 0.25 lb


Product Identification
  • UPC: 782113112374
  • GTIN: 00782113112374
