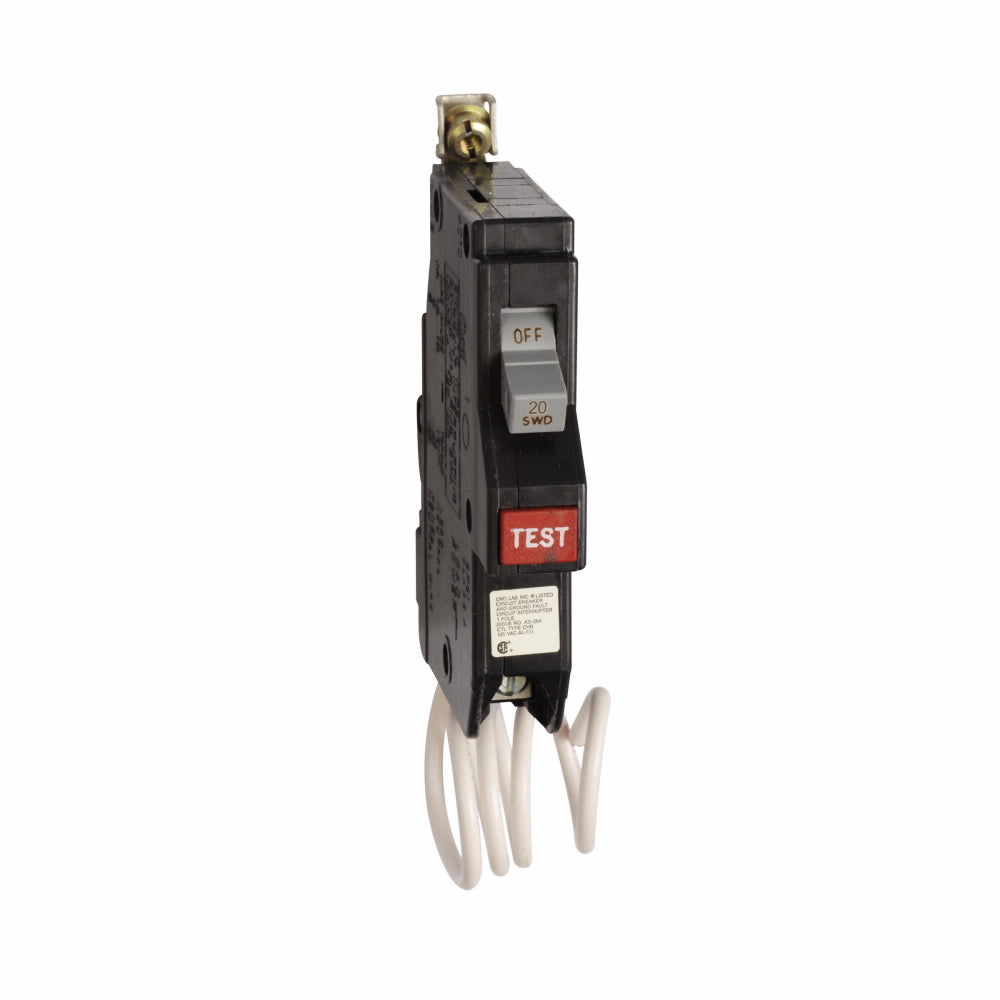

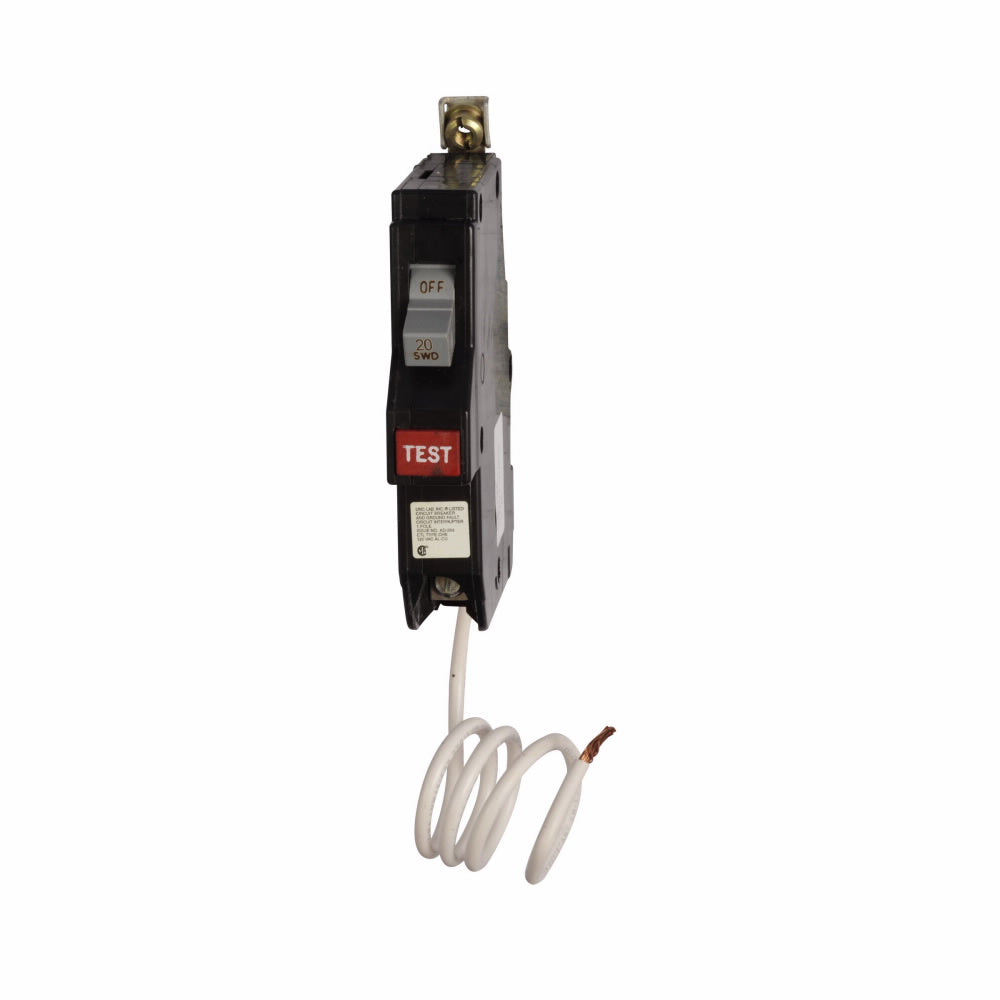

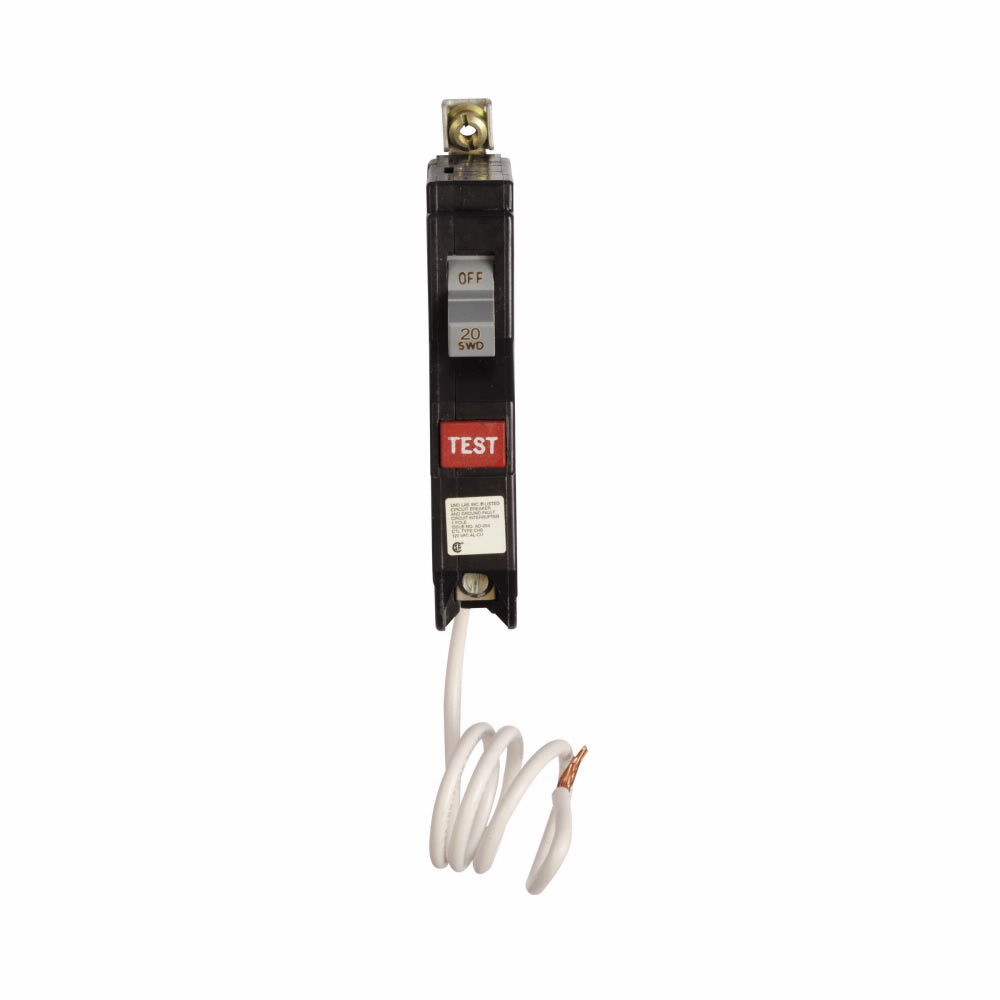

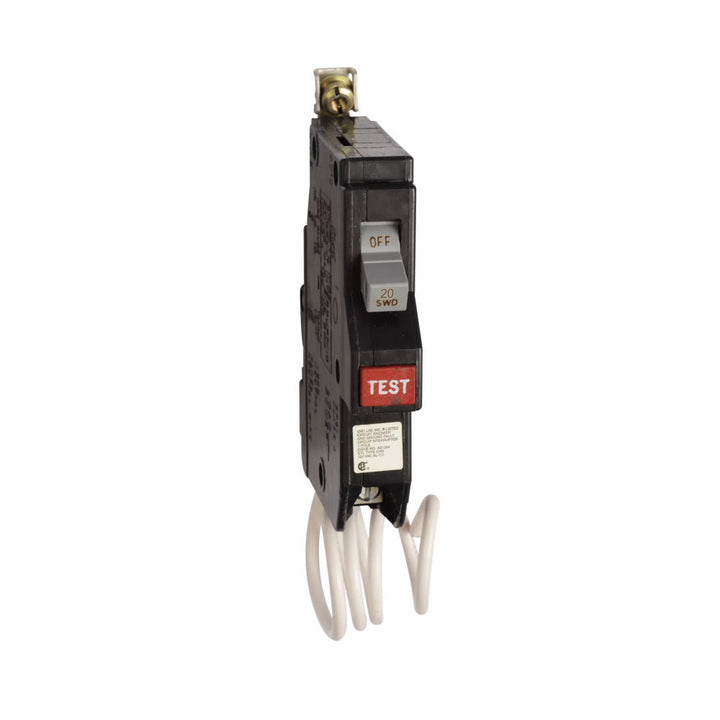

Cutler Hammer CHB120GF - Molded Case Breaker 20A 1P 10kA
Cutler Hammer CHB120GF - Molded Case Breaker 20A 1P 10kA
Cutler Hammer CHB120GF - Molded Case Breaker 20A 1P 10kA
Cutler Hammer CHB120GF - Molded Case Breaker 20A 1P 10kA
Cutler Hammer CHB120GF - Molded Case Breaker 20A 1P 10kA
Cutler Hammer CHB120GF - Molded Case Breaker 20A 1P 10kA

Cutler Hammer CHB120GF - Molded Case Breaker 20A 1P 10kA

Cutler Hammer
Price
Save $436.67
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Cutler Hammer CHB120GF is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in 120V AC single-phase electrical systems. It features a 20A current rating and a 10kA interrupting capacity at 120V, housed within a compact, bolt-on configuration measuring 3.6 in x 2.7 in x 0.7 in and weighing 0.25 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection, is rated for operation from -25 to 70 °C, and accepts wire sizes from #14 to 8 AWG. This industrial-grade component is engineered for integration into panelboards and switchgear requiring dependable circuit isolation and protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 3.6 in (L) x 2.7 in (H) x 0.7 in (W)
  • Standards: Designed to meet applicable industry standards for circuit protection
  • Applications: Panelboards, Switchgear, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole (1P)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • Amperage: 20A
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: #14 to 8 AWG
  • Weight: 0.25 lb


Product Identification
  • UPC: 782113270616
  • GTIN: 00782113270616
