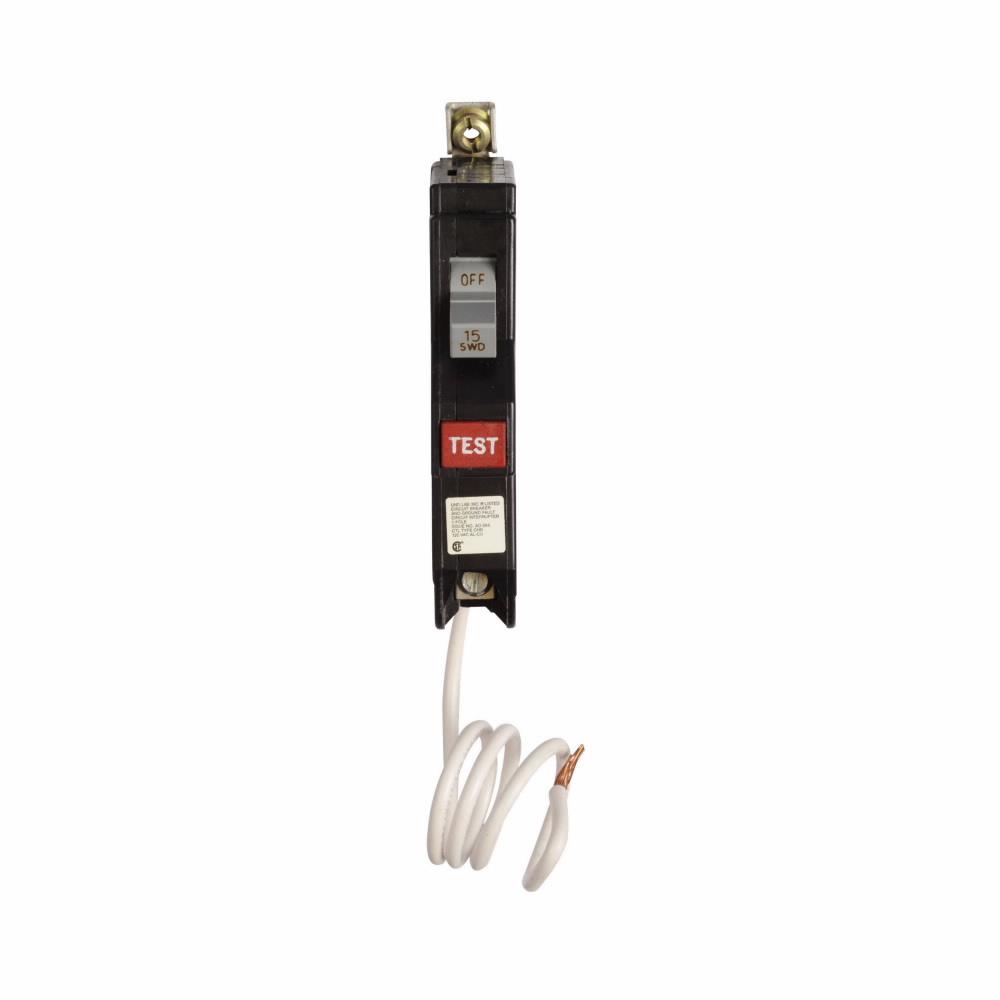

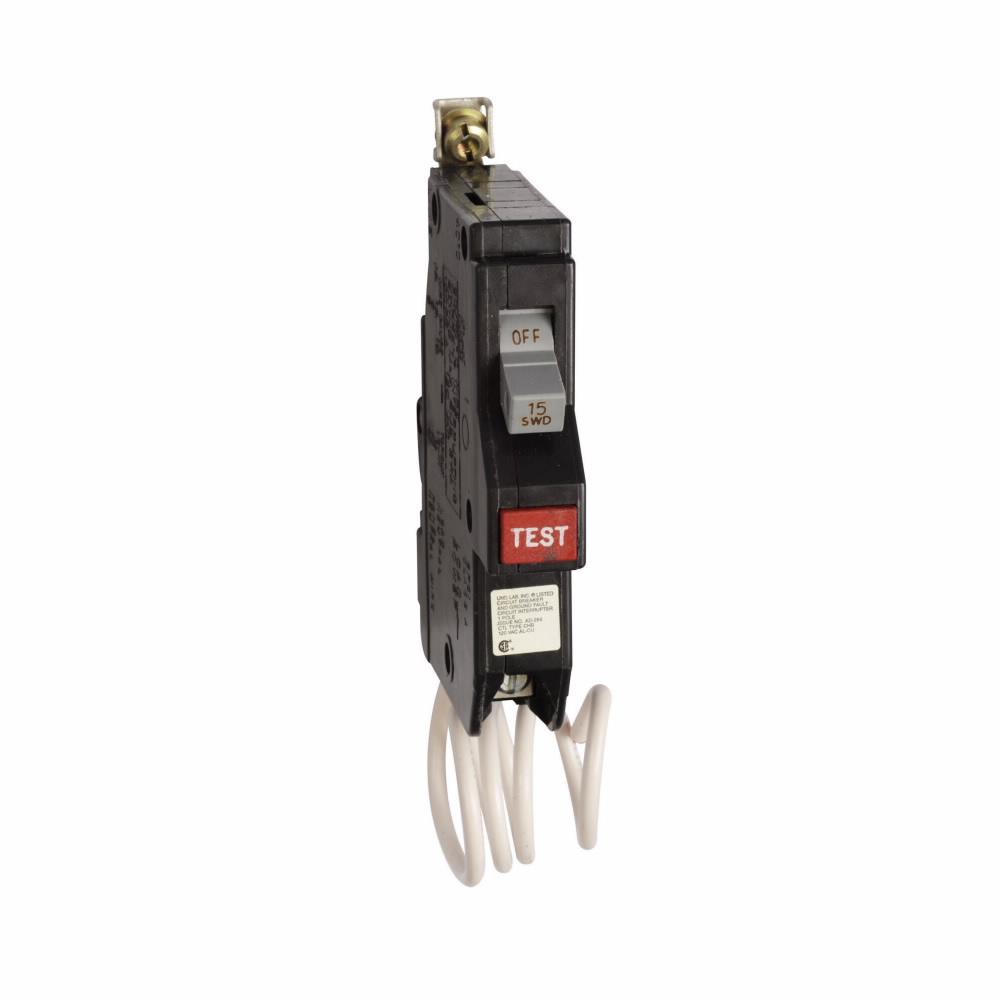

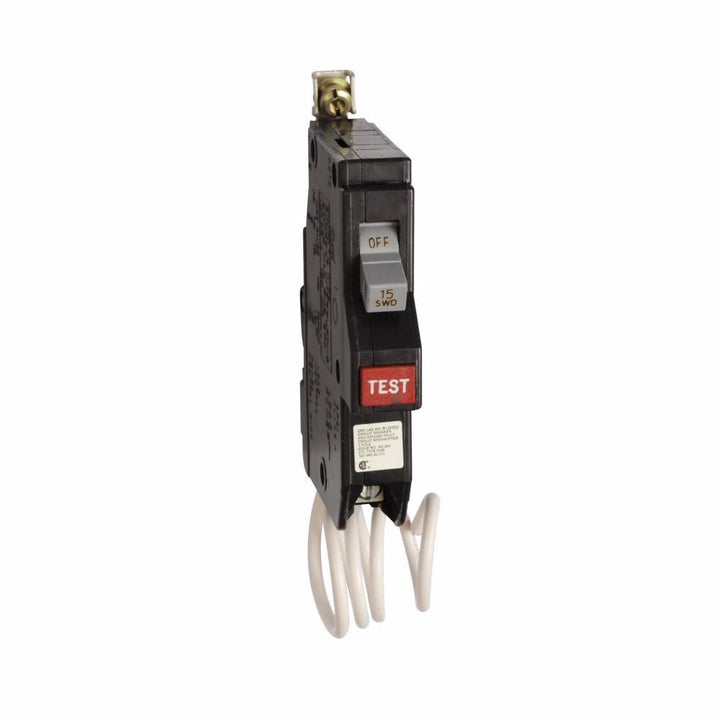

Cutler Hammer CHB115GF - Molded Case Breaker 15A 1P 120V
Cutler Hammer CHB115GF - Molded Case Breaker 15A 1P 120V
Cutler Hammer CHB115GF - Molded Case Breaker 15A 1P 120V
Cutler Hammer CHB115GF - Molded Case Breaker 15A 1P 120V
Cutler Hammer CHB115GF - Molded Case Breaker 15A 1P 120V
Cutler Hammer CHB115GF - Molded Case Breaker 15A 1P 120V

Cutler Hammer CHB115GF - Molded Case Breaker 15A 1P 120V

Cutler Hammer
Price
Save $520.78
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer CHB115GF is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 15A current rating and a 120V voltage rating, with a 10kA interrupting capacity at 120V to safely clear faults. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous protection, is constructed with a compact, bolt-on connection design measuring 14.4" x 39" x 4.6", and operates within a temperature range of -25°C to 70°C (-13°F to 158°F). This unit is engineered for compliance with industry standards and is typically applied in industrial control panels, HVAC systems, and machinery where dependable branch circuit protection is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Dimensions: 14.4 in (Depth) x 39 in (Height) x 4.6 in (Width)
  • Standards: Industry Standard
  • Applications: Industrial Control Panels, HVAC, Machinery
  • Switch Type: Circuit Breaker
  • Configuration: Single Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • Amperage: 15A
  • AIC rating: 10kA @ 120V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: #14 to 8 AWG
  • Weight: 0.2 lb


Product Identification
  • UPC: 782113286358
  • GTIN: 00782113286358
