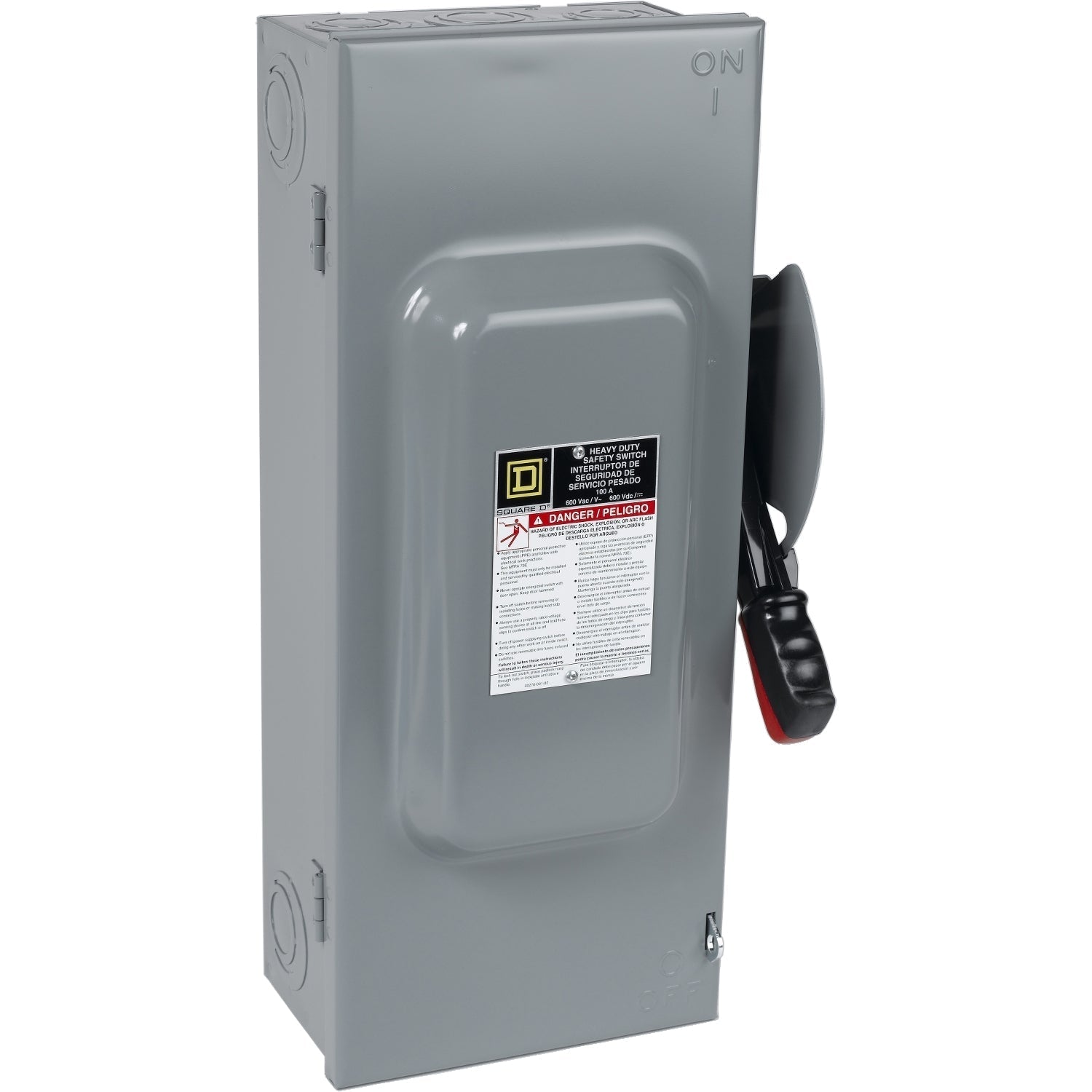

Square D CH363 - Fusible Safety Switch 100A 600V 3-Pole
CH363 Square D Series F Disconnect 600V 100A Fusible Switch - Essential Electric Supply
Square D CH363 - Fusible Safety Switch 100A 600V 3-Pole

Square D CH363 - Fusible Safety Switch 100A 600V 3-Pole

Square D
Price
Save $8,400.41
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
The Square D CH363 is a heavy-duty fusible safety switch designed for providing reliable disconnect and circuit protection in industrial power distribution. It is rated for 600V AC systems and handles a continuous current of 100A across its three-pole, single-configuration design. The unit is constructed with a robust NEMA 1 enclosure, measuring 539.75 mm H x 260.35 mm W x 162.05 mm D and weighing 17.56 lb, and is engineered for use with Class J or R fuses to achieve an interrupting rating of 200kA at 600V. This disconnect switch complies with industry standards for safety and is typically applied in three-phase motor control and feeder circuit applications where high-fault current protection is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, CH Type
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 539.75 mm H x 260.35 mm W x 162.05 mm D (21.25 in x 10.25 in x 6.38 in)
  • Weight: 17.56 lb
  • Standards: NEMA 1 Enclosure Rating
  • Applications: Industrial three-phase motor control and feeder disconnecting
  • Switch Type: Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: J, R
  • Compatible Frames: RJF


Product Identification
  • UPC: 078590199531
  • GTIN: 00785901995319
