Square D CH362DS - Fusible Disconnect Switch 60A 600V 3-Pole
Square D CH362DS Disconnect Switch (Fusible) - Essential Electric Supply
Square D CH362DS - Fusible Disconnect Switch 60A 600V 3-Pole

Square D CH362DS - Fusible Disconnect Switch 60A 600V 3-Pole

Square D
Price
Save $-1,363.78
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

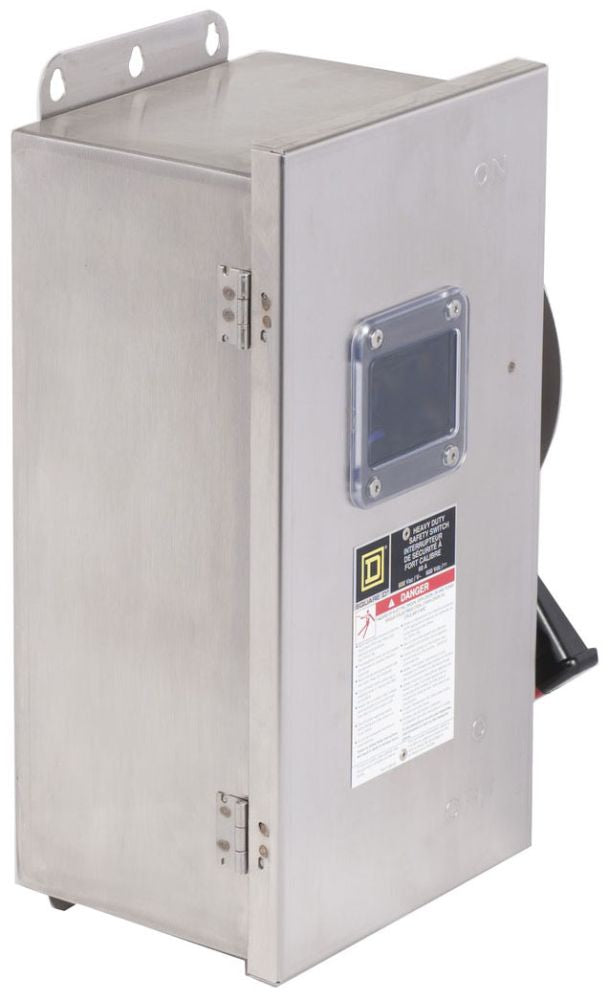

Square D CH362DS is a heavy-duty industrial disconnect switch designed for circuit isolation and protection in demanding three-phase applications. It provides a 600V voltage rating and a 60A current rating for robust electrical control within a compact, rugged enclosure measuring 428.5 mm H x 274.6 mm W x 177.0 mm D and weighing 19.65 lb. The switch is constructed as a fusible disconnect compatible with Class J or R fuses, featuring a 200kA interrupting capacity at 600V and a NEMA 4/4X rating for protection against water and corrosion. It is engineered for compliance with industrial standards and is typically applied in motor control centers, industrial machinery, and power distribution panels requiring reliable disconnection and short-circuit protection.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, Series F, CH Type
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 428.5 mm H x 274.6 mm W x 177.0 mm D (16.87 in x 10.81 in x 6.97 in)
  • Standards: NEMA 4/4X Enclosure Rating
  • Applications: Motor Control Centers, Industrial Machinery, Power Distribution
  • Switch Type: Fusible Disconnect
  • Configuration: Single Unit
  • Poles: 3
  • Phase: 3-Phase
  • AIC Rating: 200kA @ 600V
  • Fuse Class: J, R
  • Compatible Frames: RJF
  • Weight: 19.65 lb


Product Identification
  • UPC: 078590199525
  • GTIN: 00785901995258
