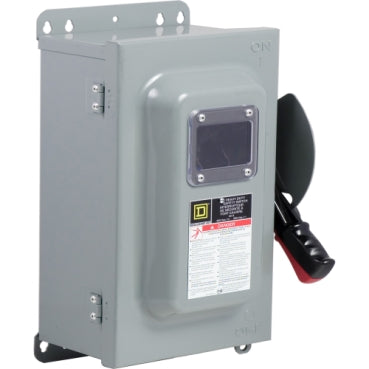

Square D CH362AWK - Fusible Safety Switch 60A 600V (200kA AIC)

Square D
Price
Save $-699.98
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D CH362AWK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 60A in a 3-phase configuration, featuring a robust NEMA 3R/12 enclosure measuring 419.1 mm H x 266.7 mm W x 177.8 mm D and weighing 17.88 lb. The switch is constructed for high-fault current applications with an interrupting rating of 200kA at 600V and is compatible with Class J and R fuses. It is engineered for compliance with industrial safety standards and is typically applied in motor control centers, panelboards, and machinery requiring a reliable, fused disconnect for maintenance and protection.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type CH
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 419.1 mm H x 266.7 mm W x 177.8 mm D (16.5 in x 10.5 in x 7 in)
  • Standards: NEMA 3R/12
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC rating: 200kA@600V
  • Fuse Class: J, R
  • Compatible Frames: RJF
  • Weight: 17.88 lb


Product Identification
  • UPC: 078590199524
  • GTIN: 00785901995241
