Square D CH362 - Fusible Safety Switch 60A 600V (200kA AIC)
Square D CH362 - Fusible Safety Switch 60A 600V (200kA AIC)
Square D CH362 - Fusible Safety Switch 60A 600V (200kA AIC)
CH362 Square D Series F Disconnect 600V 60A Fusible Switch - Essential Electric Supply
Square D CH362 - Fusible Safety Switch 60A 600V (200kA AIC)
Square D CH362 - Fusible Safety Switch 60A 600V (200kA AIC)
Square D CH362 - Fusible Safety Switch 60A 600V (200kA AIC)

Square D CH362 - Fusible Safety Switch 60A 600V (200kA AIC)

Square D
Price
Save $1,820
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

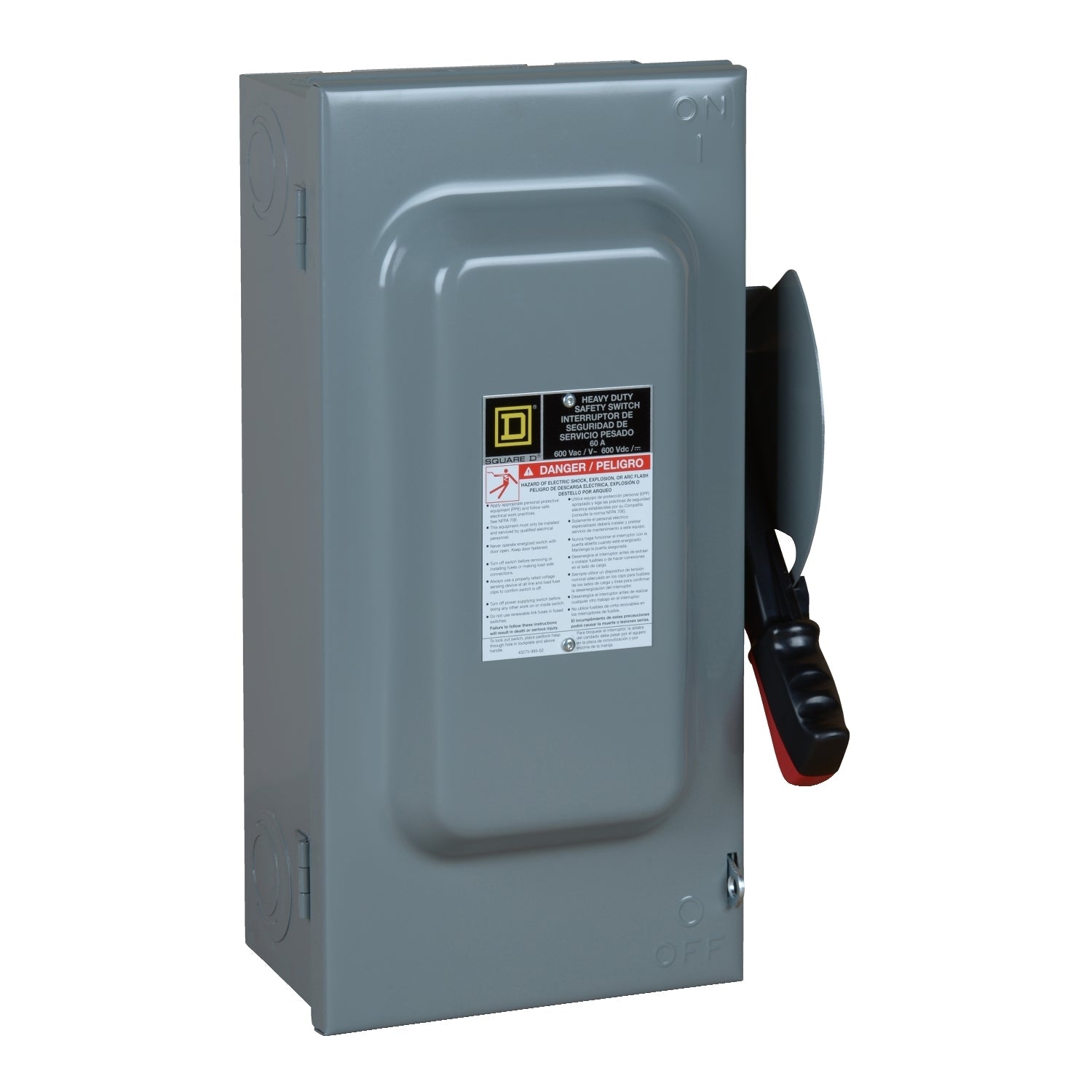

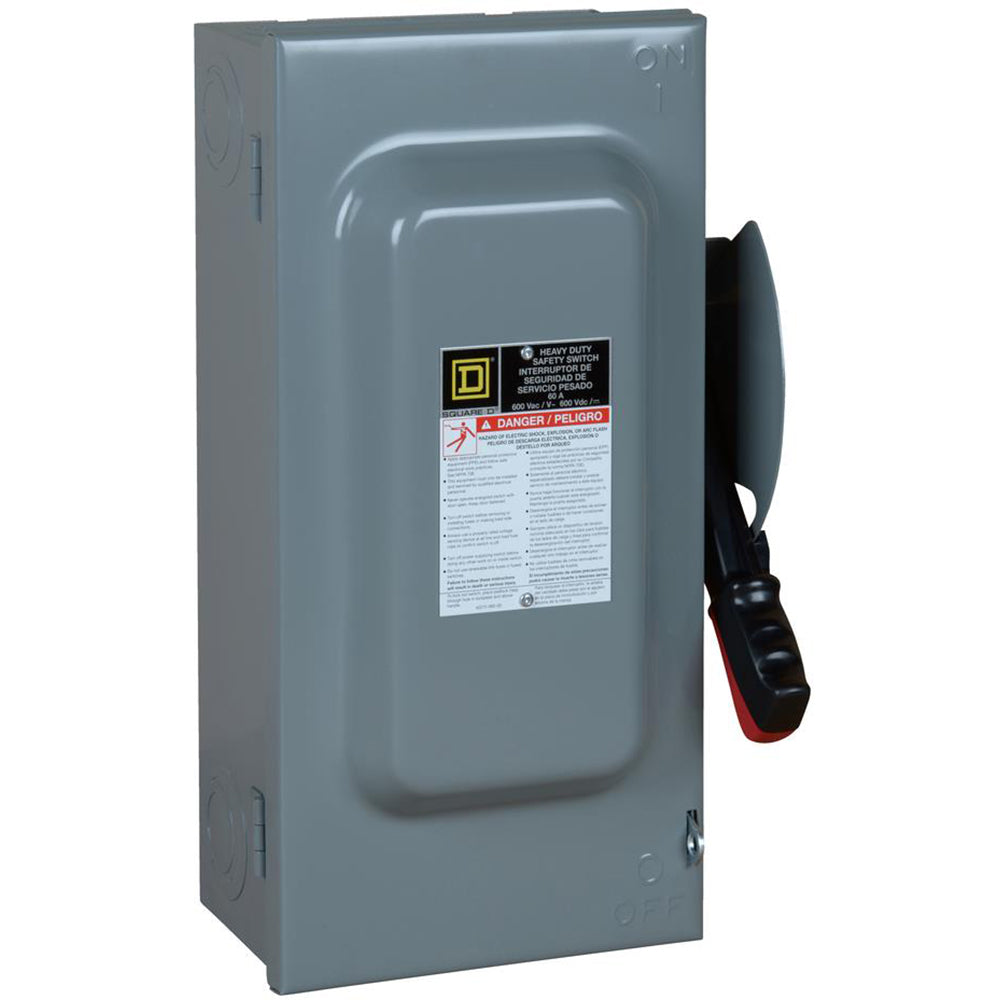

Square D CH362 is a fusible safety switch designed for providing visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 60A in a 3-phase configuration, featuring a robust NEMA 1 enclosure with dimensions of 444.5 mm H x 266.7 mm W x 162.05 mm D and a weight of 15.32 lb. The switch is UL listed and complies with industry standards, offering a high 200kA interrupting capacity at 600V for reliable circuit protection. Its design is suitable for use with Class J and R fuses in motor control centers, panelboards, and other industrial equipment requiring a secure disconnect.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, CH Type
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: J, R
  • Compatible Frames: RJF
  • Switch Style: Fusible
  • NEMA Rating: 1
  • Dimensions: 444.5 mm H x 266.7 mm W x 162.05 mm D (17.5 in x 10.5 in x 6.38 in)
  • Weight: 15.32 lb
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Country of Origin: United States
  • Family: Series F


Product Identification
  • UPC: 785901995227
  • GTIN: 00785901995227
