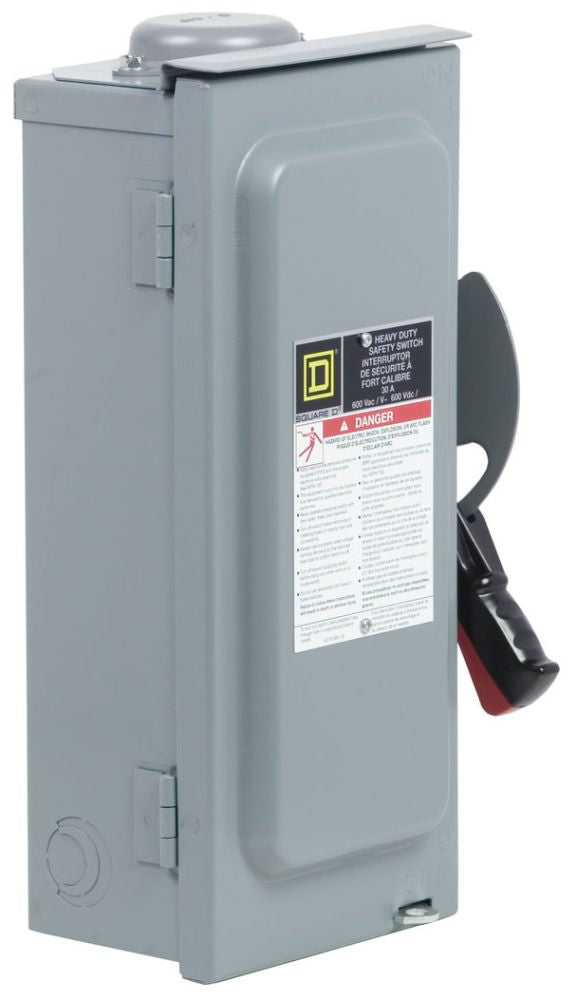

Square D CH361RB - Fusible Safety Switch 30A 600V 3-Pole

Square D
Price
Save $1,303.53
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D CH361RB is a fusible safety switch designed for providing reliable circuit isolation and protection in industrial power distribution systems. It is rated for 600V AC and 30A, featuring a three-pole, single-configuration design with a high 200kA interrupting capacity at 600V for robust fault protection. The unit is constructed with a NEMA 3R-rated enclosure measuring 377.95 mm H x 191.77 mm W x 123.44 mm D and weighing 8.589 lb, ensuring durability for indoor and outdoor use where exposed to rain. It complies with industry standards as part of the Series F family and is compatible with Class J and R fuses for coordinated protection. This disconnect is typically applied in three-phase industrial panels, motor control centers, and main feeder circuits requiring a visible break and fuse protection.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, CH Type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 377.95 mm H x 191.77 mm W x 123.44 mm D (14.88 in x 7.55 in x 4.86 in)
  • Weight: 8.589 lb
  • Standards: NEMA 3R Enclosure Rating
  • Applications: Industrial power distribution, main feeder disconnects, motor control centers
  • Switch Style: Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: J, R
  • Compatible Frames: RJF


Product Identification
  • UPC: 078590199521
  • GTIN: 00786679775240
