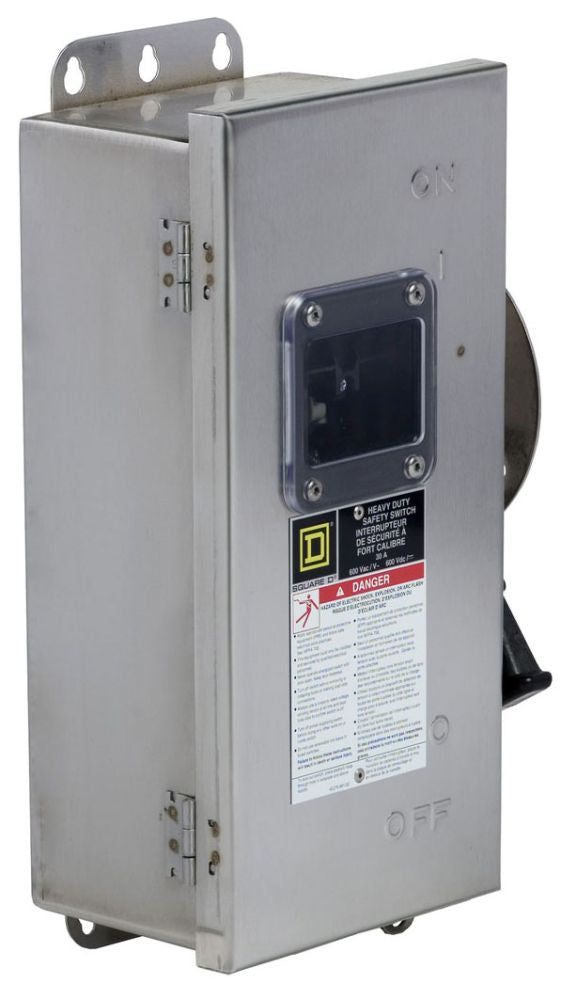

Square D CH361DS - Fusible Safety Switch, 30A 600V 3P (NEMA 4/4X)

Square D
Price
Save $1,820
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D CH361DS is a fusible safety switch designed for providing visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 30A in a 3-phase configuration, featuring a robust NEMA 4/4X enclosure with dimensions of 14.93 in (379.22 mm) H x 8.67 in (220.22 mm) W x 5.11 in (129.79 mm) D and a weight of 13.781 lb. The switch complies with industry standards for safety disconnects and offers a high interrupting capacity of 200kA at 600V. It is typically applied in industrial panels and machinery where reliable isolation and protection for J or R class fuses are required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, CH Type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 14.93 in H x 8.67 in W x 5.11 in D (379.22 mm x 220.22 mm x 129.79 mm)
  • Standards: NEMA 4/4X Enclosure Rating
  • Applications: Industrial power distribution, machinery disconnect, panel protection
  • Switch Type: Fusible
  • Configuration: Single
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Poles: 3
  • Fuse Class: J, R
  • Compatible Frames: NSE
  • Weight: 13.781 lb


Product Identification
  • UPC: 078590199516
  • GTIN: 00782113206165
