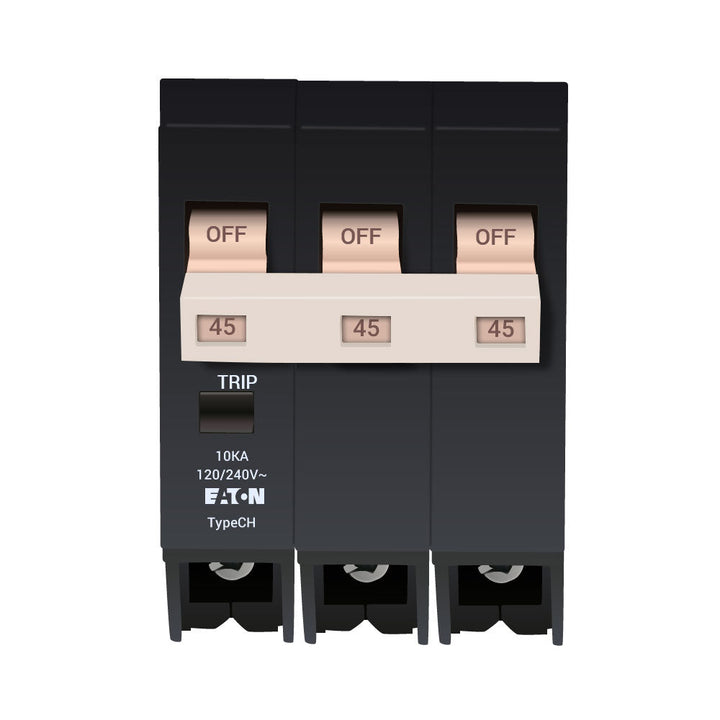

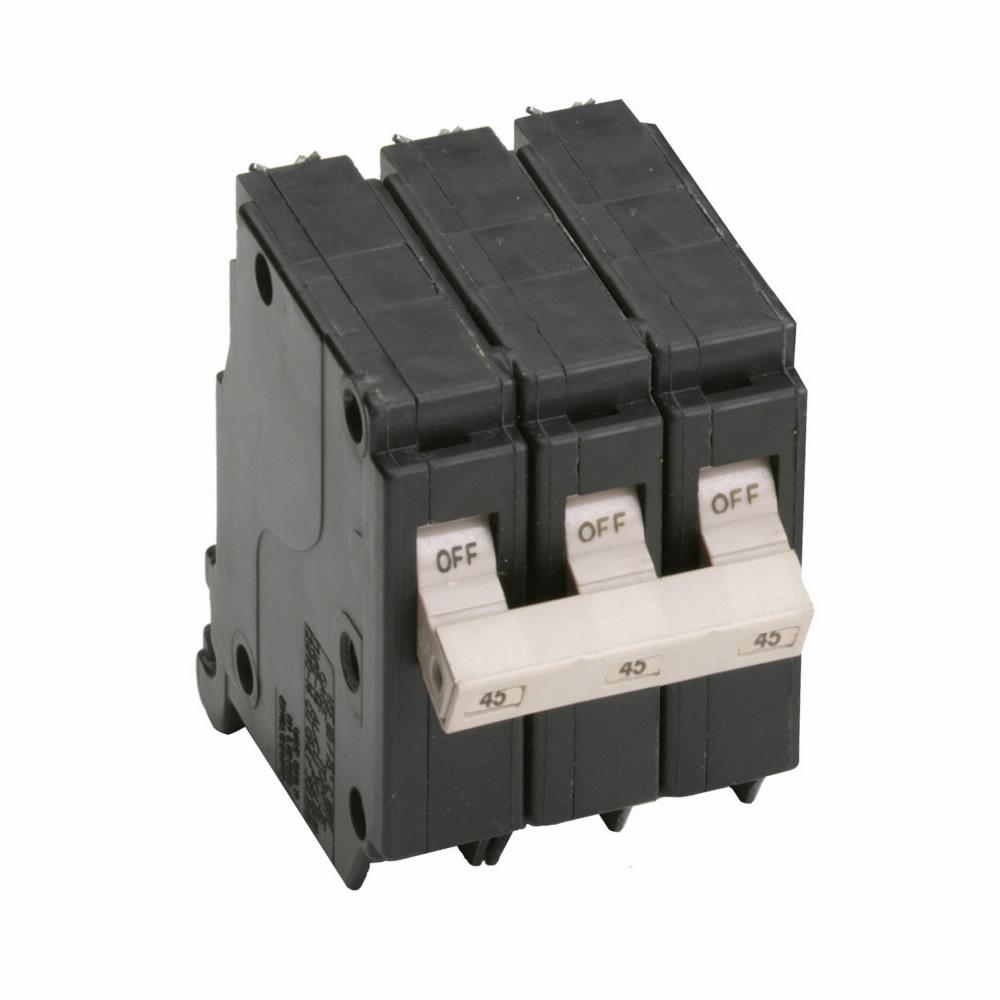

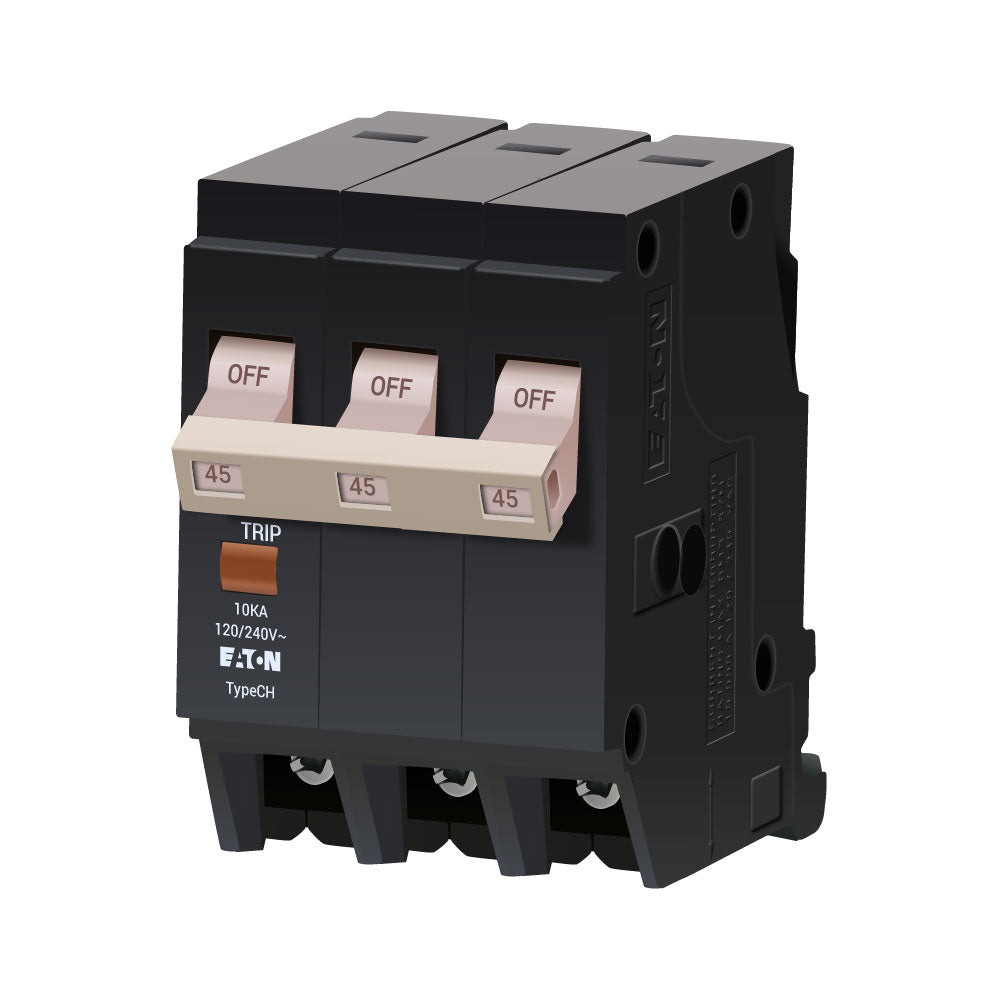

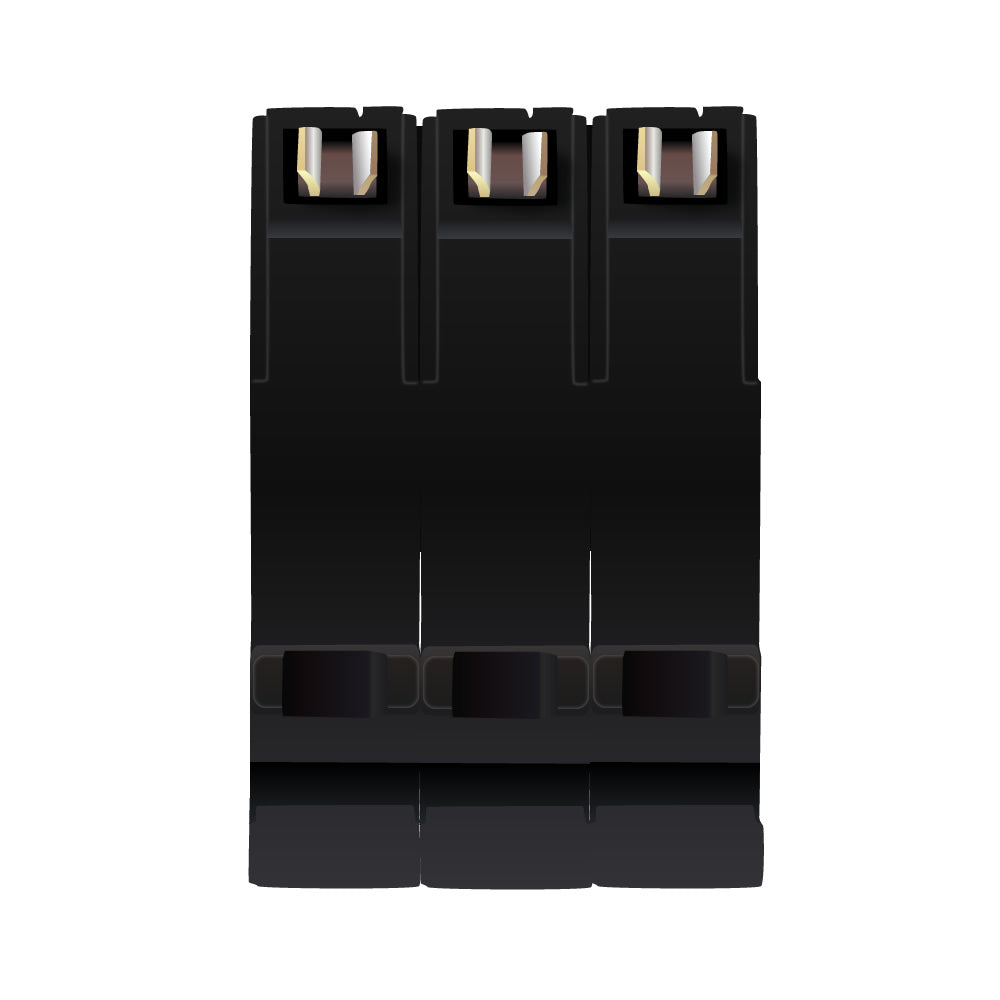

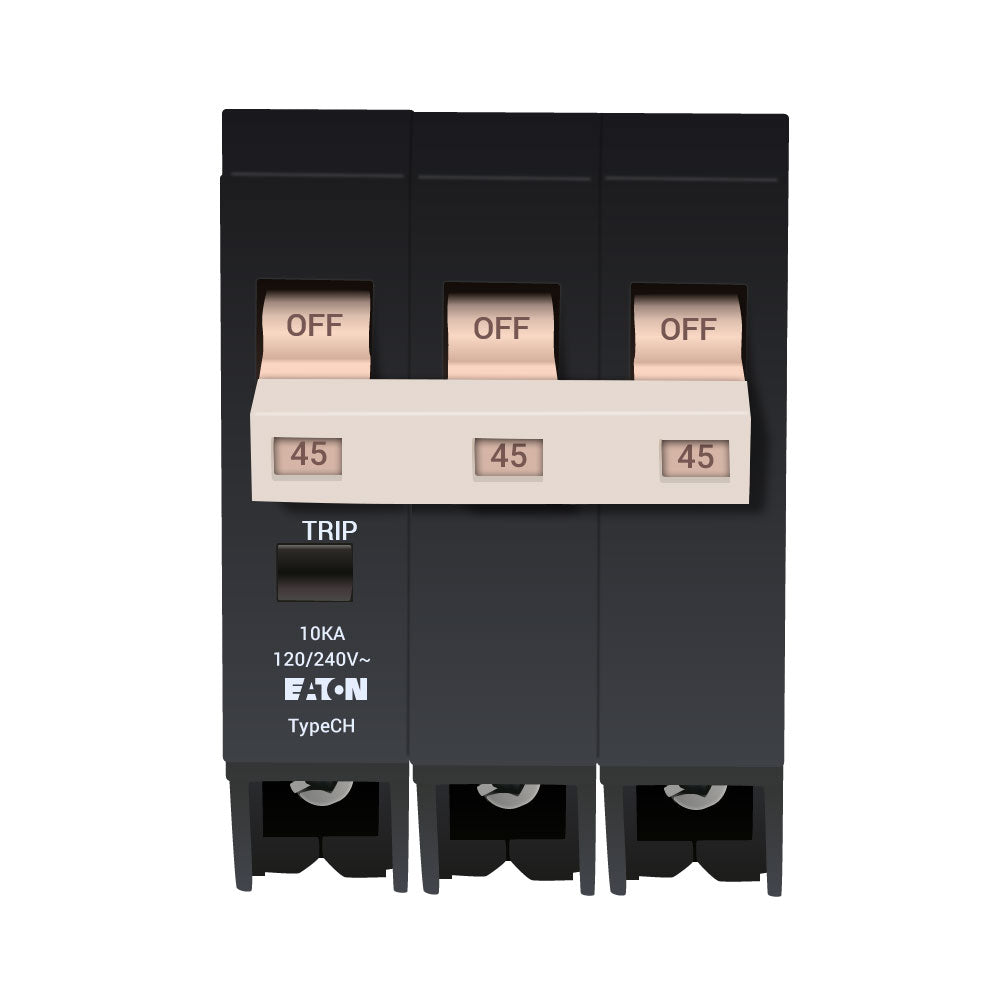

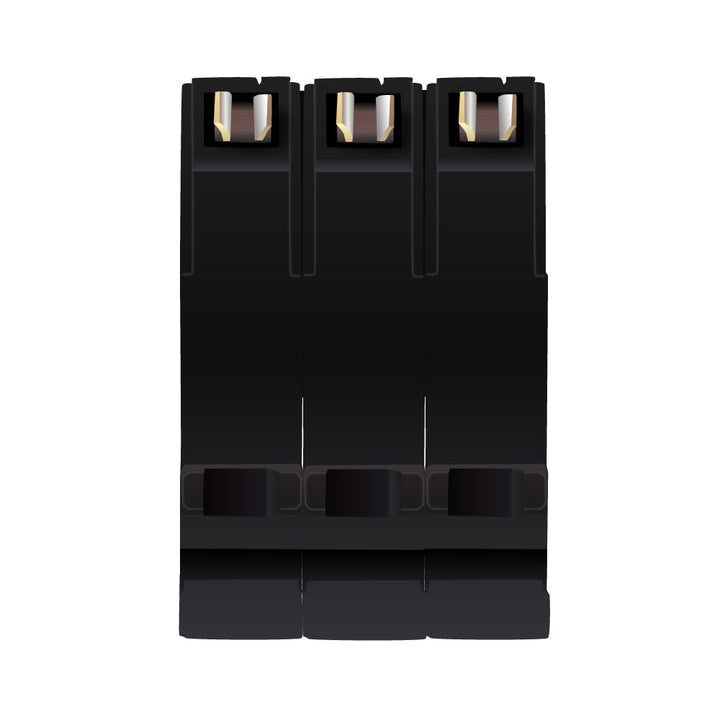

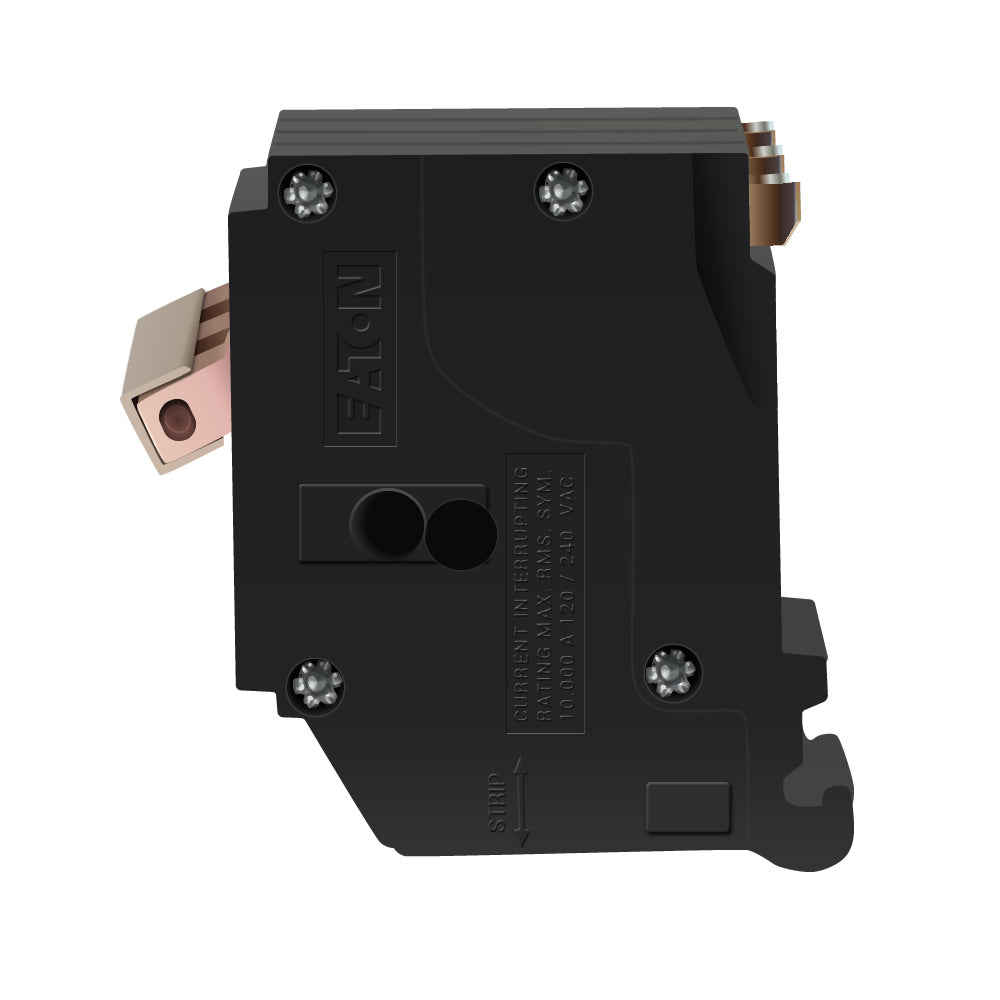

Cutler Hammer CH345 - 3-Pole Molded Case Breaker 45A 240V

Price
Regular price $111.98
Regular price $627.56 Sale price $111.98
Save $515.58
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Cutler Hammer CH345 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 45A current rating and a 240V AC voltage rating, housed in a compact plug-in unit measuring 3.5" x 3.5" x 2.25" (L/D x H x W) and weighing 0.8 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection, is UL 489 listed, and operates effectively within a temperature range of -25°C to 70°C (-13°F to 158°F). Its 10kA interrupting rating at 240V and compatibility with #10 to 1/0 AWG copper or aluminum conductors make it suitable for a variety of commercial and industrial panelboard applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 45A
  • Dimensions: 3.5 in x 3.5 in x 2.25 in (Length/Depth x Height x Width)
  • Standards: UL 489
  • Applications: Industrial Panelboards, Commercial Electrical Distribution
  • Poles: 3
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: #10 to 1/0 AWG Copper/Aluminum
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 0.8 lb
  • Family: CH Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 782113356266
  • GTIN: 00782113356266
