Cutler Hammer
Price
Save $524.62
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

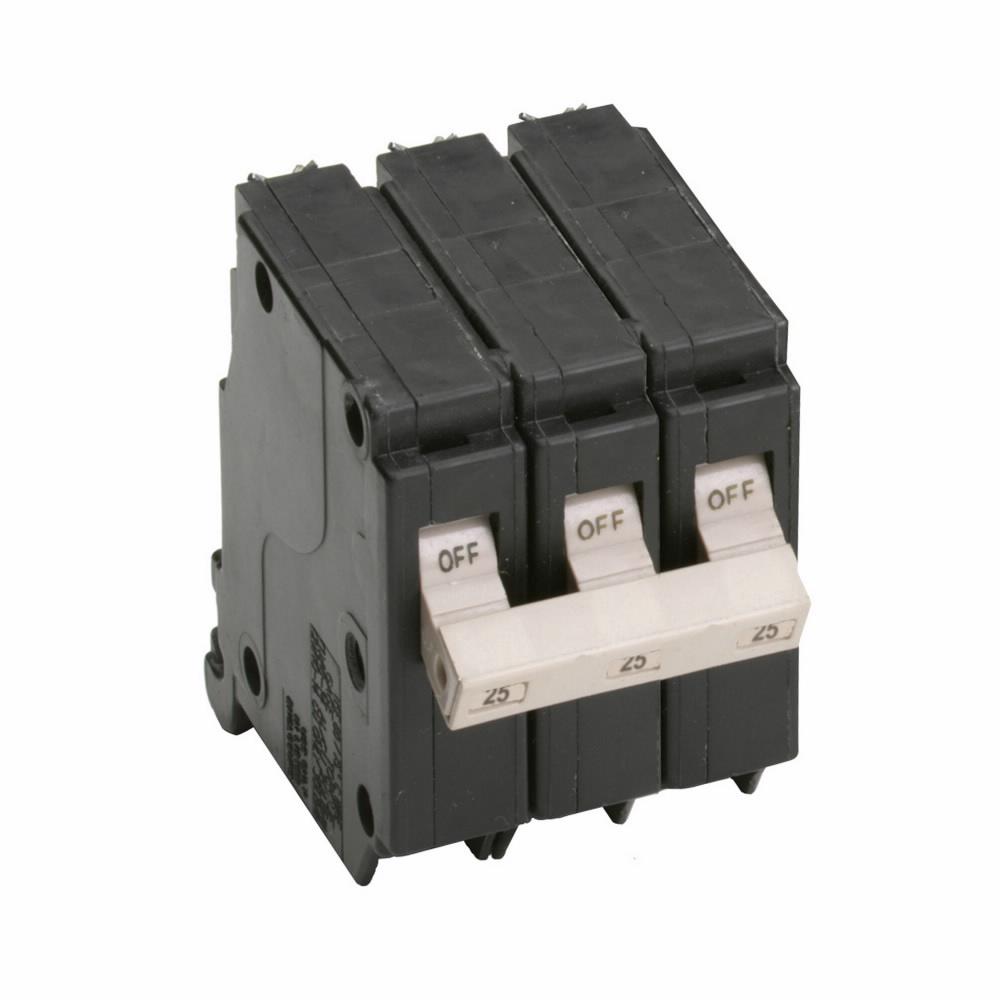

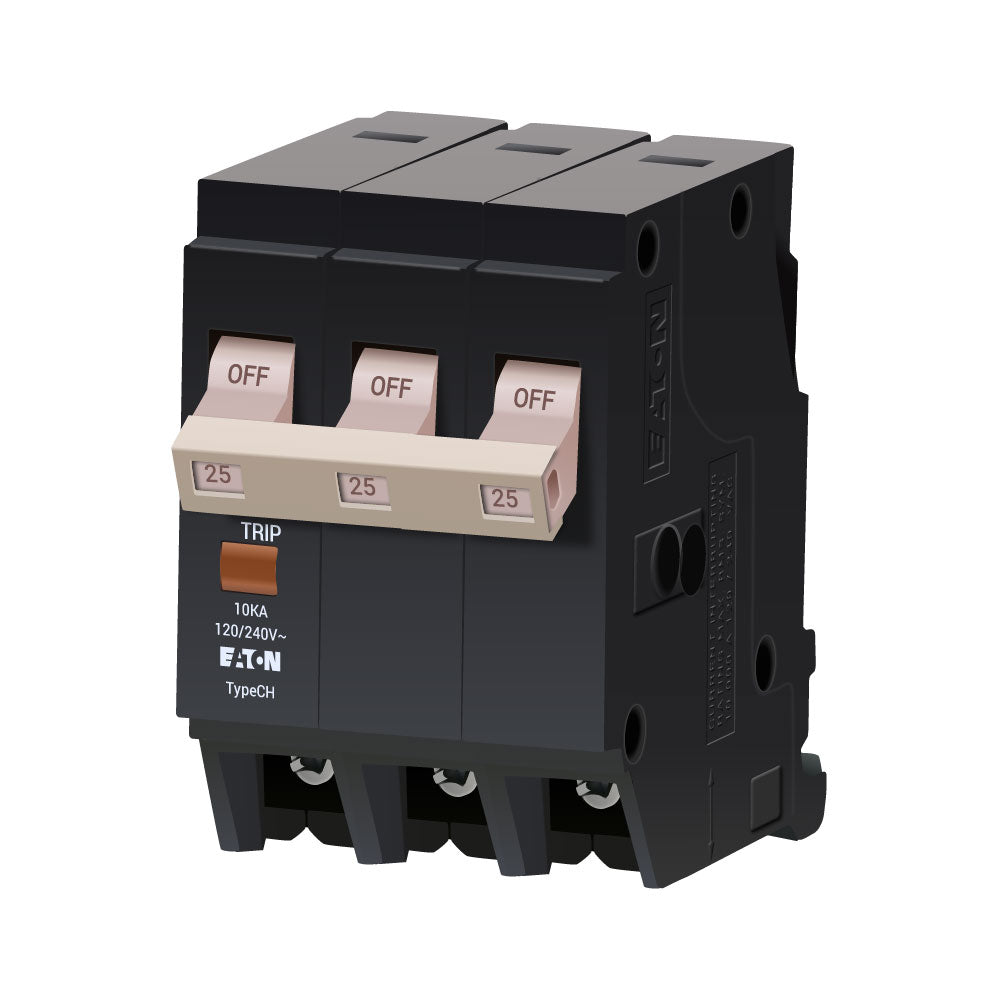

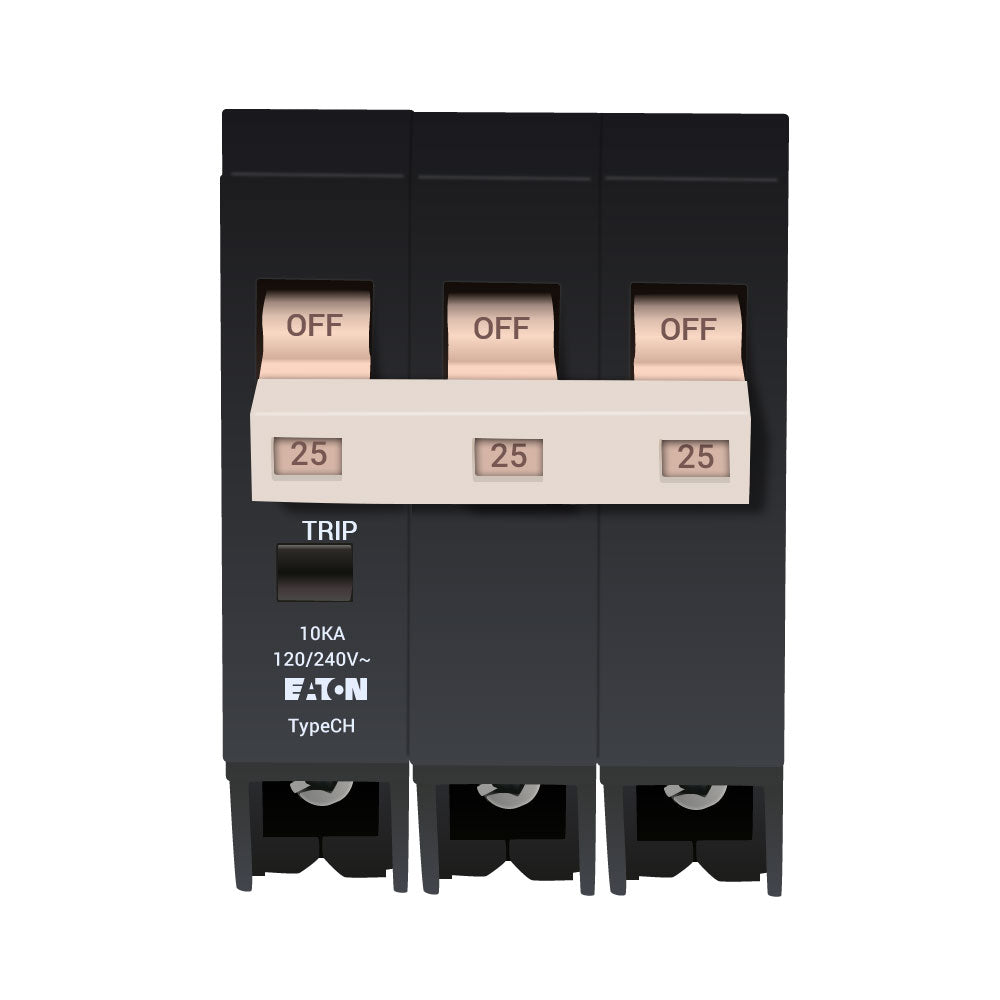

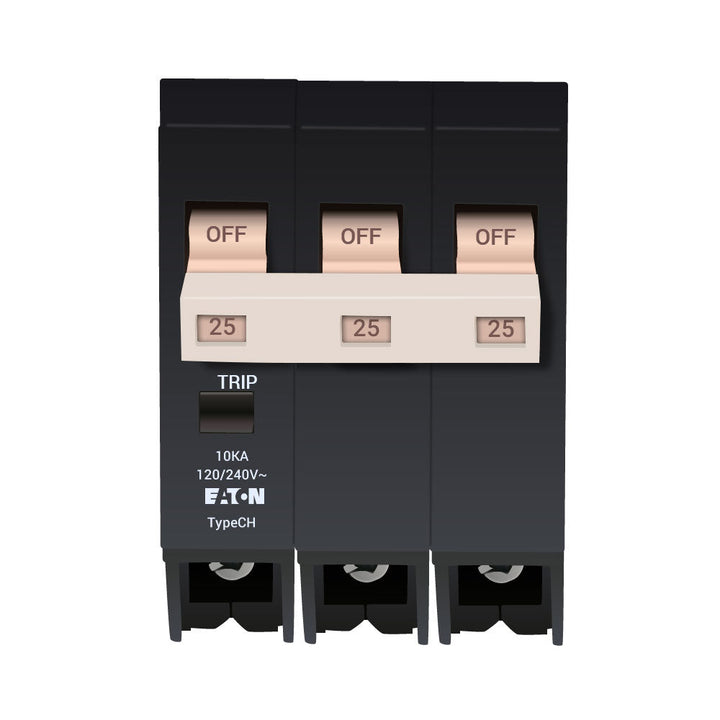

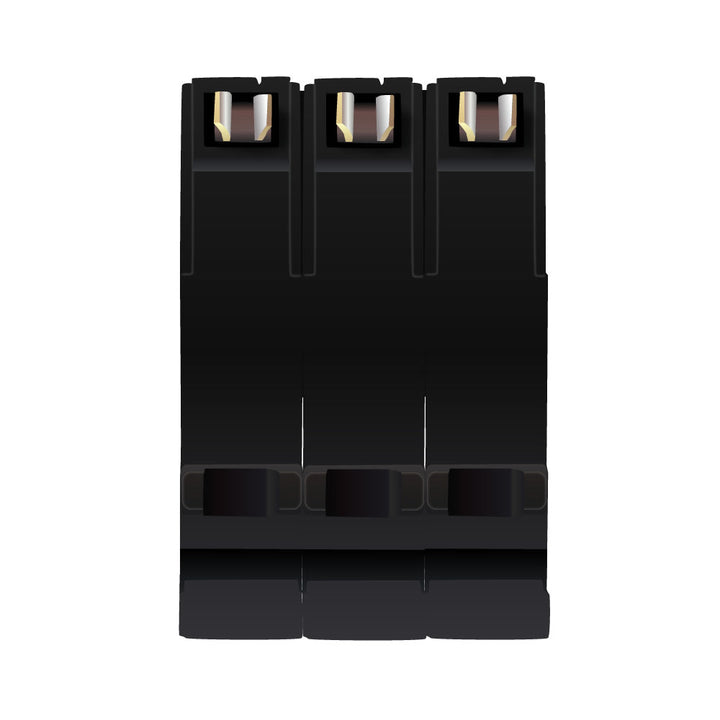

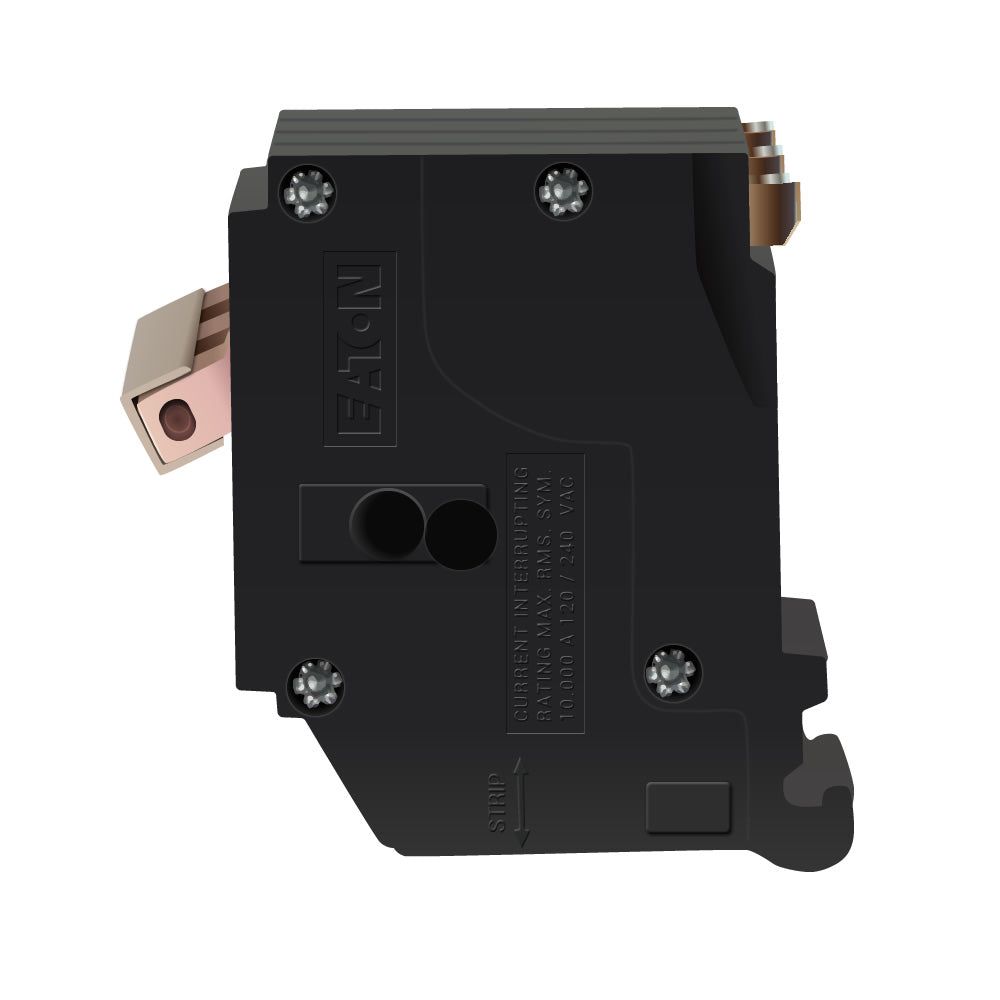

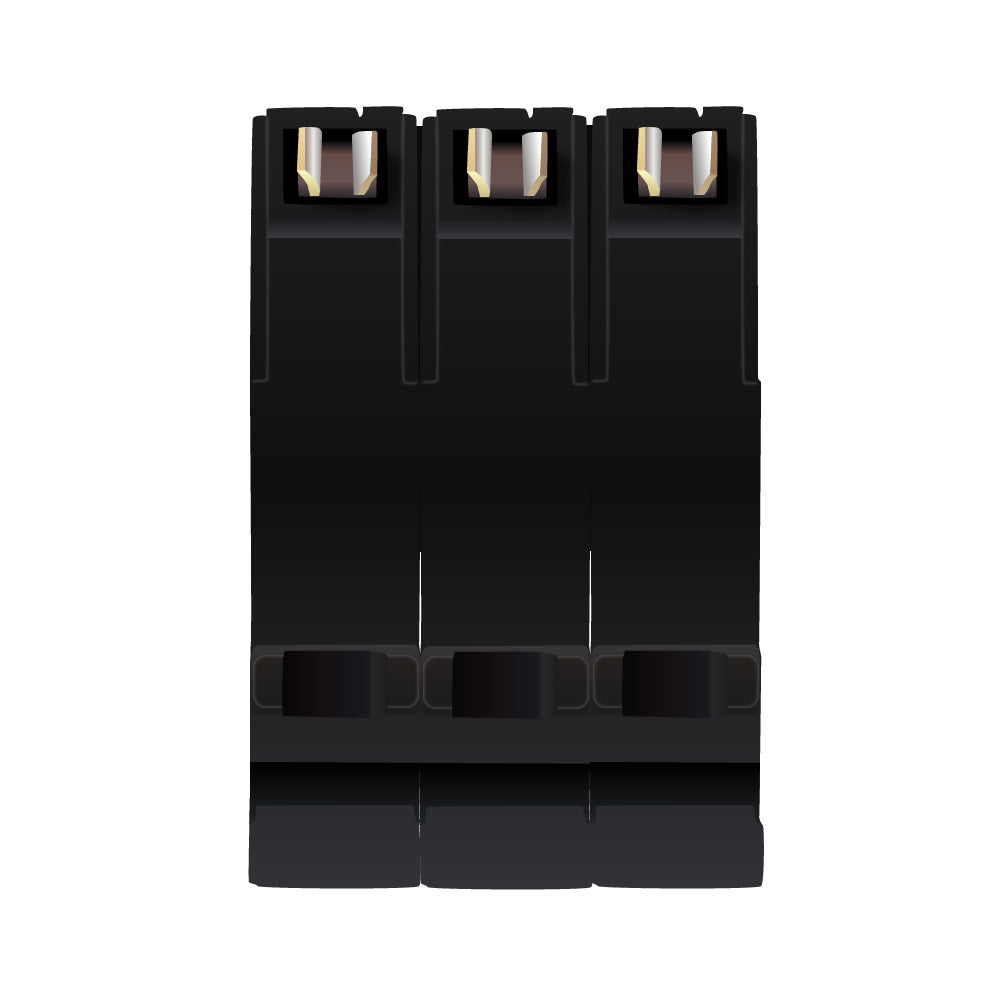

Cutler Hammer CH325 is a three-pole molded case circuit breaker designed to provide reliable overcurrent protection for three-phase 240VAC industrial applications. It features a 25A current rating and a 10kA interrupting capacity at 240V, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection functions. The compact plug-in unit measures 3.5" x 3.5" x 2.25" (LxHxW) and weighs 0.86 lb, constructed with a durable molded case for robust performance. This breaker is UL 489 listed, ensuring compliance with industry safety standards for circuit breaker enclosures, making it suitable for use in panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Three-pole, molded case, thermal-magnetic circuit breaker with plug-in connection
  • Voltage Rating: 240V AC
  • Current Rating: 25A
  • Dimensions: 3.5 in (Depth) x 3.5 in (Height) x 2.25 in (Width)
  • Standards: UL 489 Listed
  • Applications: Panelboards, switchboards, industrial control panels
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 3
  • Amperage: 25A
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Certification: UL 489
  • Weight: 0.86 lb


Product Identification
  • UPC: 782113121482
  • GTIN: 00782113121482
