Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)
Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)
Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)
Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)
Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)
Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)
Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)
Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)
Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)
Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)

Cutler Hammer CH270 - 70A Circuit Breaker (240V, 10kA AIC)

Eaton
Price
Save $274.33
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

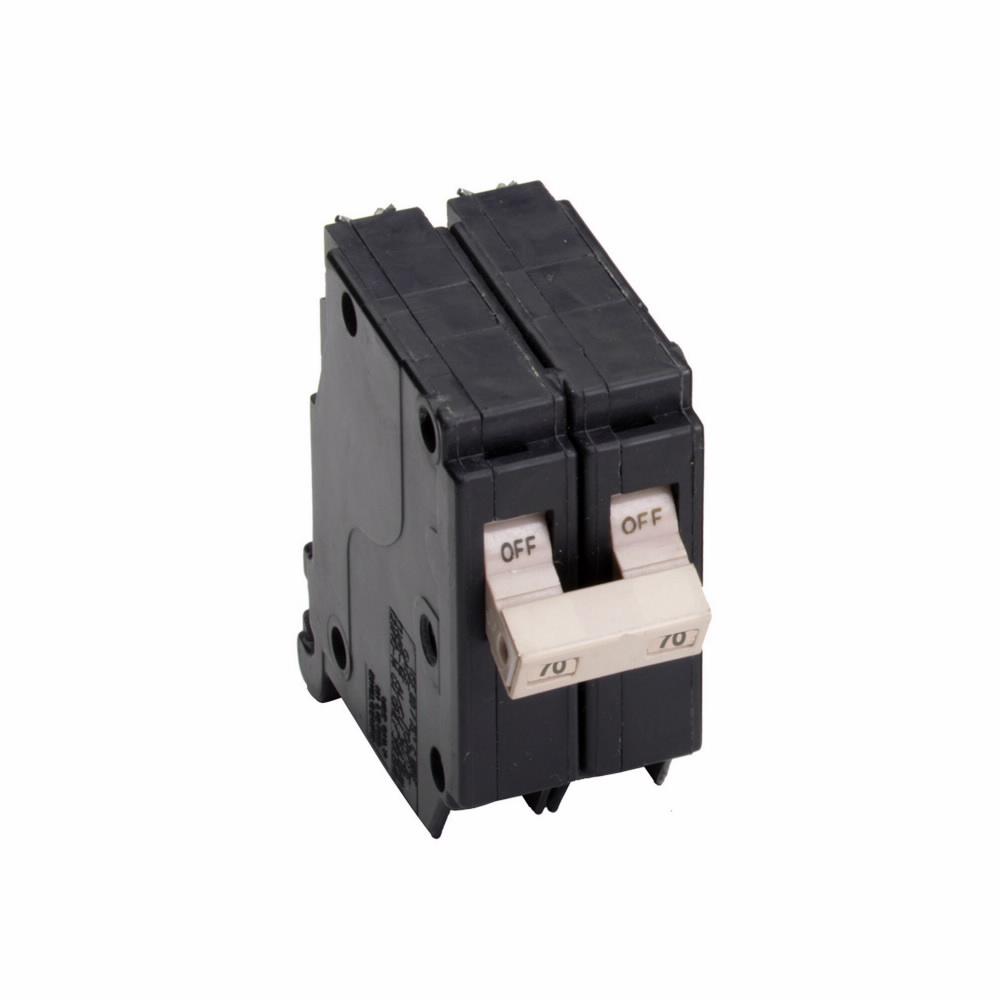

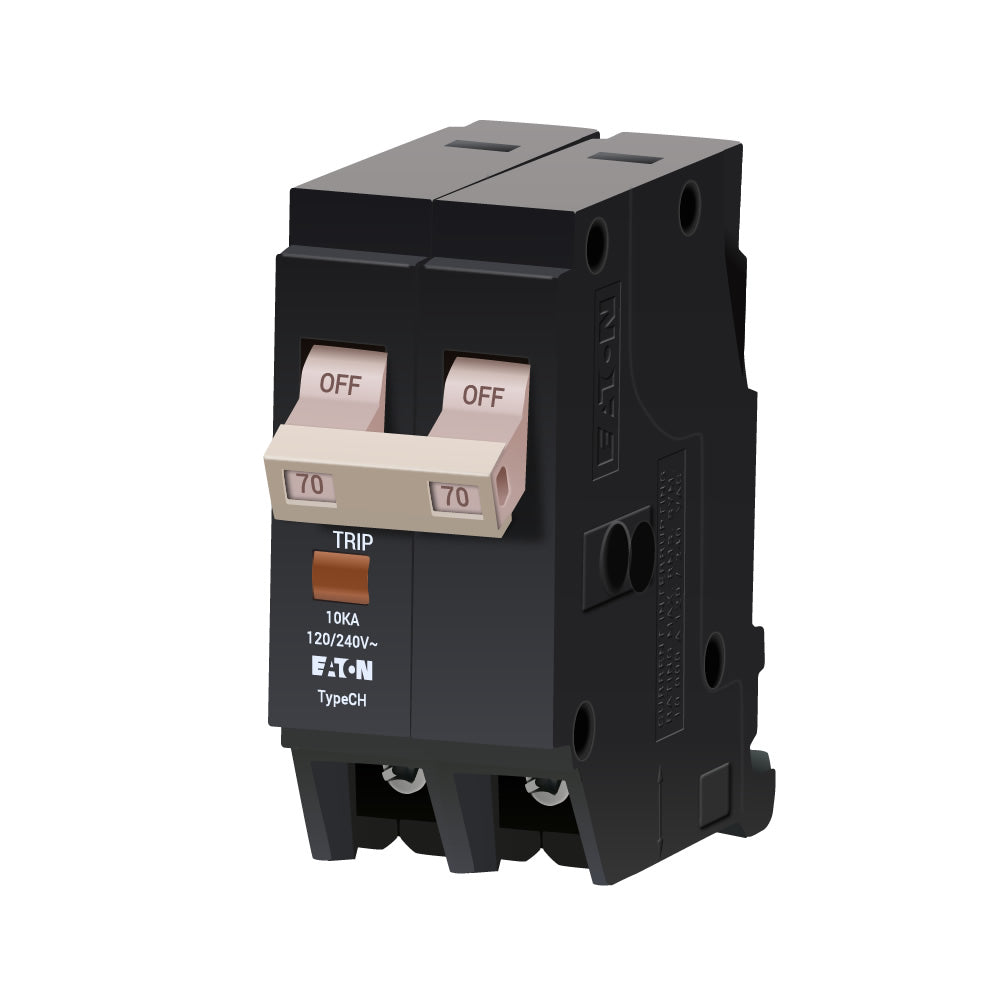

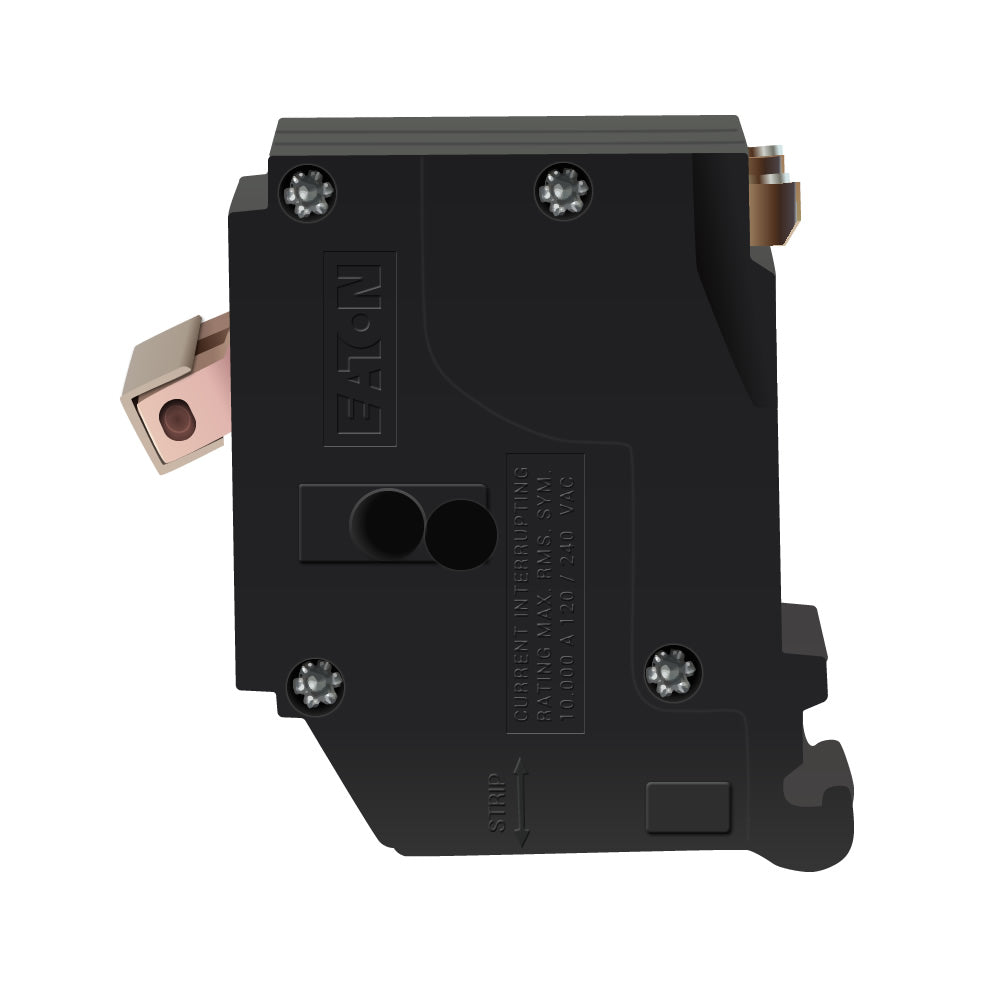

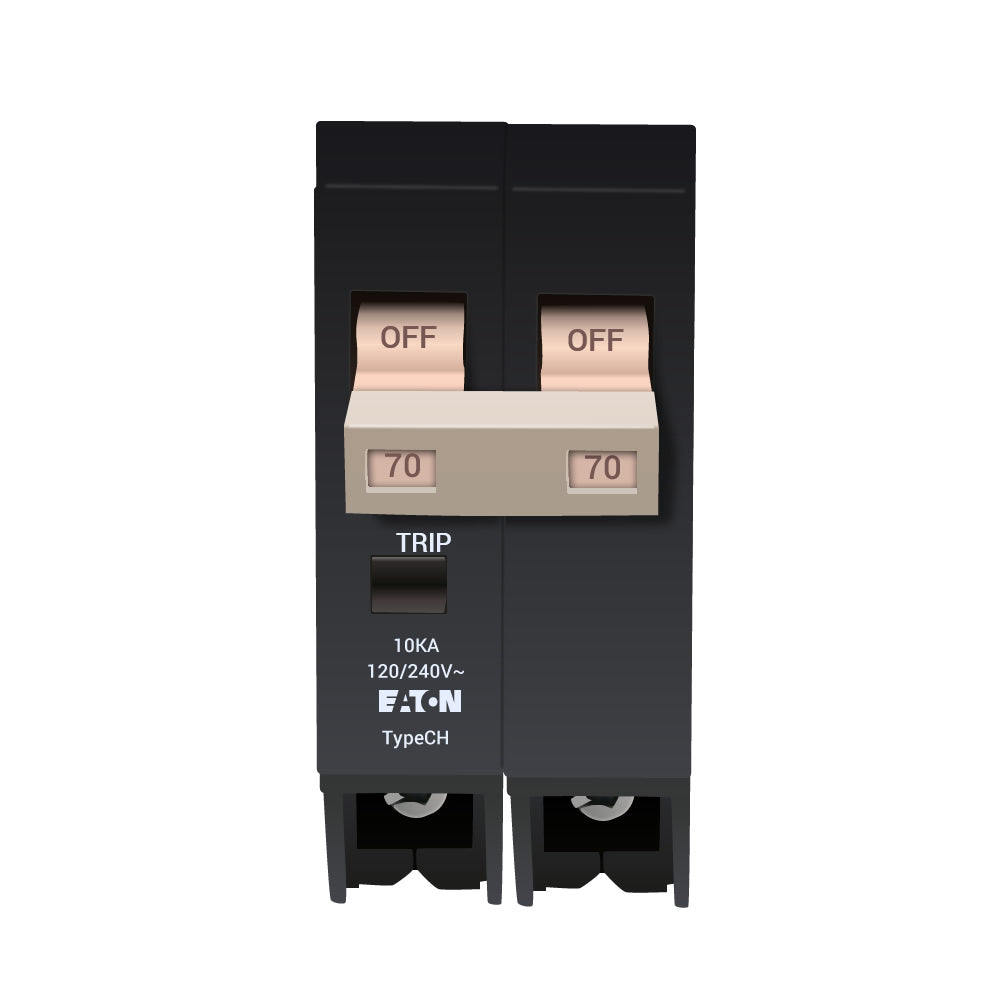

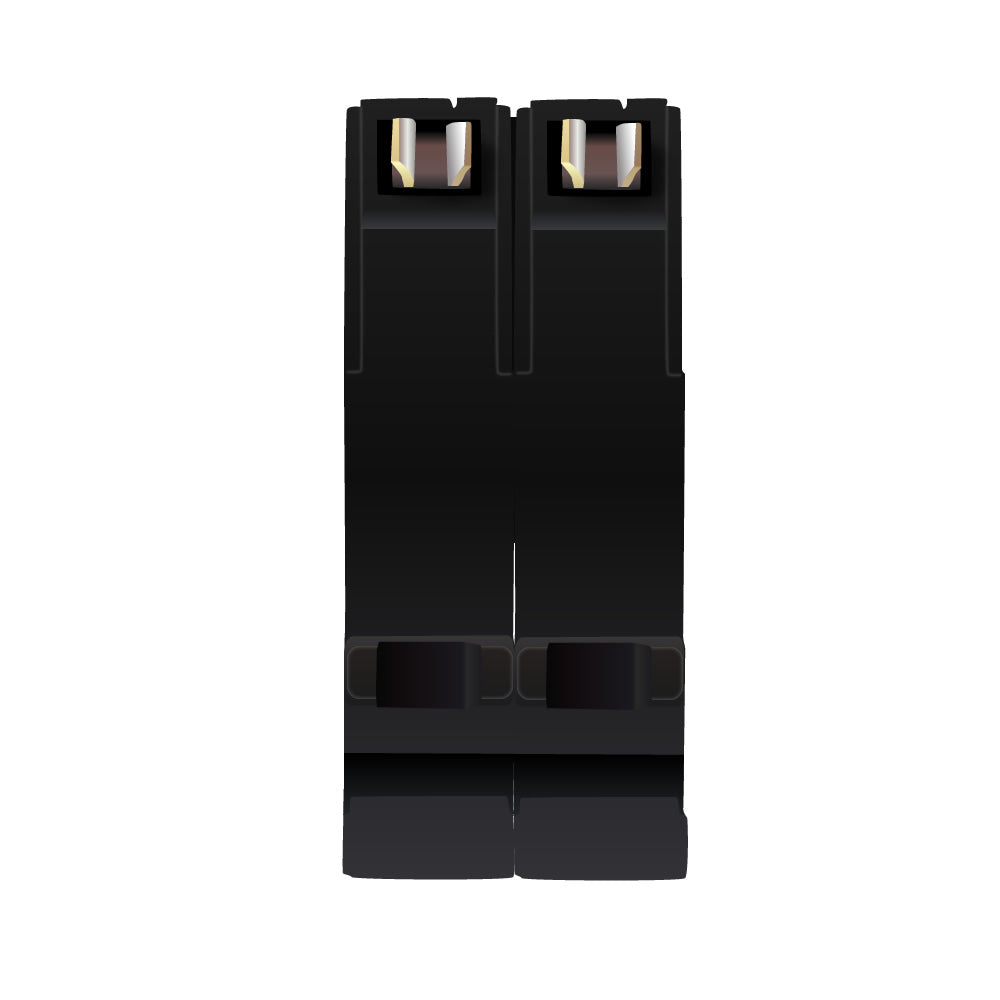

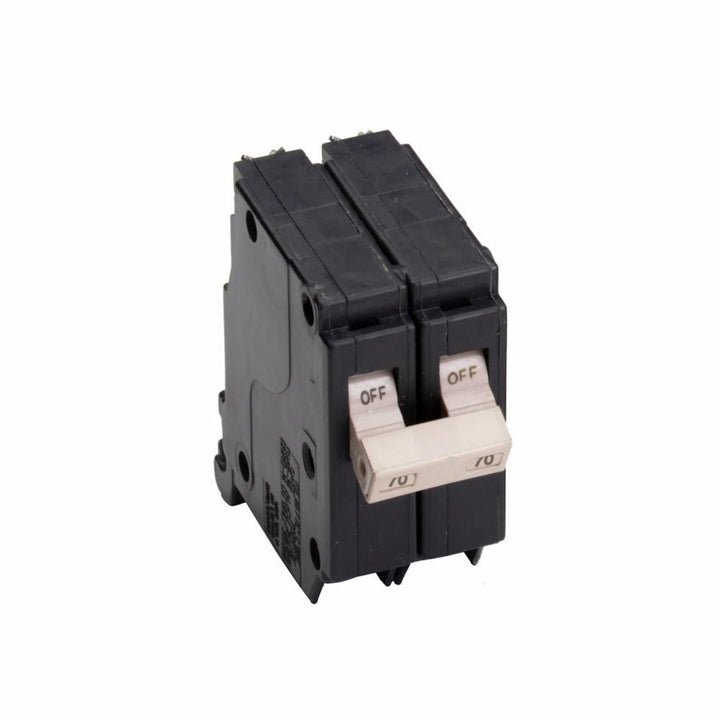

Cutler Hammer CH270 is a molded case circuit breaker designed for reliable overcurrent protection in single-phase residential and light commercial electrical systems. It features a 70A current rating and a 240V AC voltage rating, housed in a compact plug-in unit measuring 1.5" x 2.6" x 3.2" (DxHxW) and weighing 0.65 lb. The breaker provides thermal-magnetic protection with long-time and instantaneous (LI) trip functions, is UL 489 certified, and offers a 10kA interrupting capacity at 240V. It is engineered for operation in temperatures from -25°C to 70°C and is compatible with Type CH load centers, typically protecting branch circuits with copper or aluminum conductors from 14 AWG to 2 AWG.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 70A
  • Dimensions: 1.5 in (Depth) x 2.6 in (Height) x 3.2 in (Width)
  • Standards & Certification: UL 489
  • Applications: Branch circuit protection in single-phase Type CH load centers
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Breaker Type: CH
  • Wire Size: 14 AWG to 2 AWG (Copper or Aluminum)
  • Panel Type: Type CH Loadcenters
  • Family: CH Series
  • Country of Origin: Dominican Republic
  • Weight: 0.65 lb


Product Identification
  • UPC: 782113101897
  • GTIN: 00782113101897
