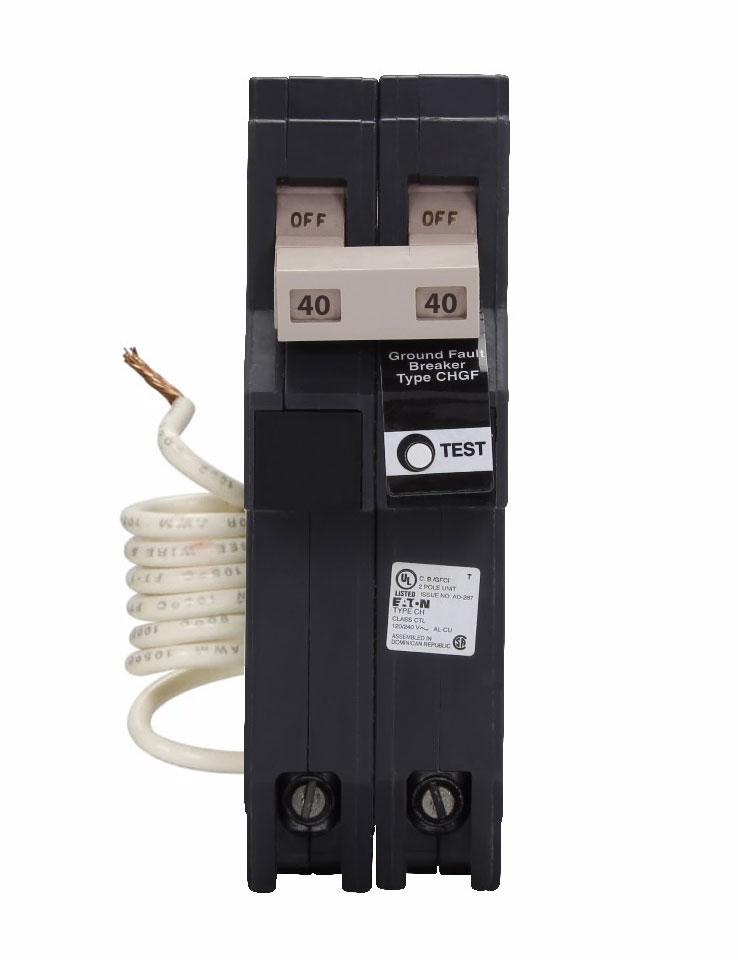

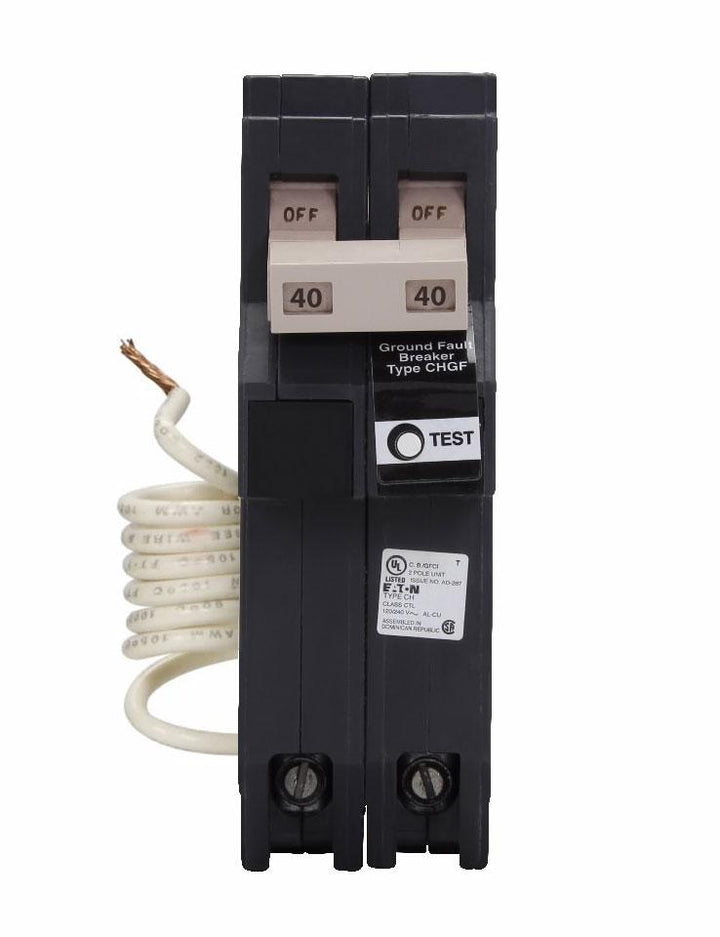

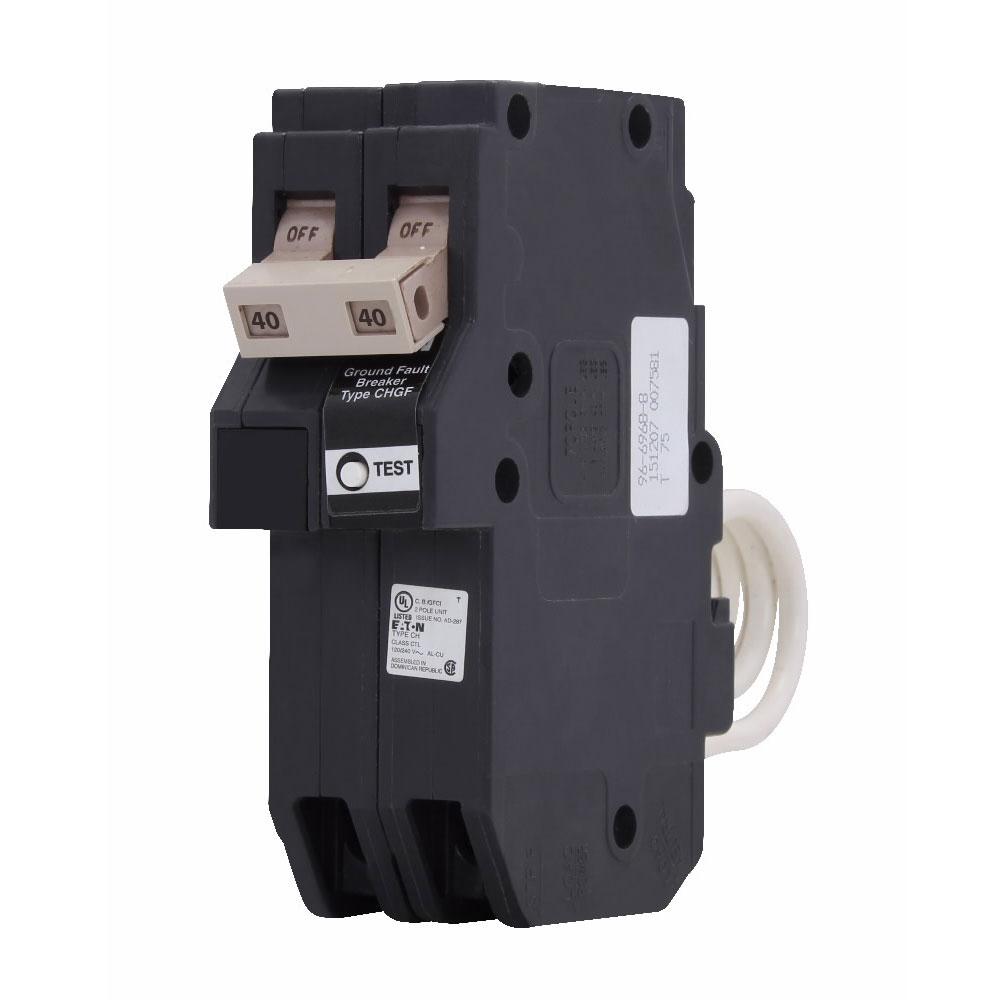

Cutler Hammer CH240GFT - 2-Pole 40A Circuit Breaker (10kA AIC, 240V)
Cutler Hammer CH240GFT - 2-Pole 40A Circuit Breaker (10kA AIC, 240V)
Cutler Hammer CH240GFT - 2-Pole 40A Circuit Breaker (10kA AIC, 240V)
Cutler Hammer CH240GFT - 2-Pole 40A Circuit Breaker (10kA AIC, 240V)

Cutler Hammer CH240GFT - 2-Pole 40A Circuit Breaker (10kA AIC, 240V)

Cutler Hammer
Price
Save $467.37
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer CH240GFT is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 40A current rating and a 240V AC voltage rating, housed within a compact plug-in configuration measuring 4.5 in (L) x 2 in (H) x 2.75 in (W) and weighing 0.7 lb. This thermal-magnetic breaker complies with UL 489 standards and offers a 10kA interrupting capacity at 240V, with an operational temperature range of -25 to 70 °C. It is engineered for industrial and commercial applications, protecting conductors from #14 to 4 AWG with its long-time and instantaneous trip functions.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 40A
  • Dimensions: 4.5 in x 2 in x 2.75 in (Length x Height x Width)
  • Standards: UL 489
  • Applications: Industrial and Commercial Electrical Protection
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: #14 to 4 AWG
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Weight: 0.7 lb
  • Family: CH Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676025720
  • GTIN: 00786676025720
