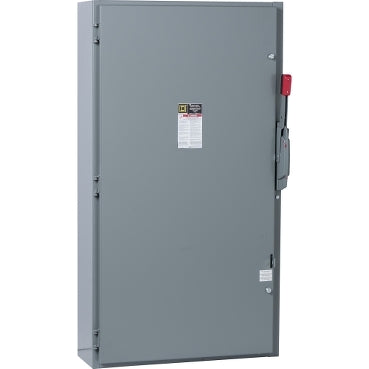

Square D CH225N - Fusible Safety Switch 400A 240V (10kA AIC)

Square D
Price
Save $-1,894.38
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D CH225N is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial power distribution. It is rated for 240V AC operation with a 400A current capacity and features a 10kA interrupting rating at 600V for robust fault protection. The switch is constructed with a NEMA 1 enclosure measuring 1276.35 mm H x 701.80 mm W x 257.30 mm D and weighs 161.004 lb, built to comply with industry standards for safety disconnects. It is engineered for use in single-phase systems, typically protecting motors and feeders in industrial and commercial applications where a fusible disconnect is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series E, CH Type
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 600V
  • Fuse Class: H, R
  • Compatible Frames: RJF
  • NEMA Rating: 1
  • Dimensions: 1276.35 mm H x 701.80 mm W x 257.30 mm D (50.25 in x 27.63 in x 10.13 in)
  • Weight: 161.004 lb
  • Standards: Industry standards for safety disconnects
  • Applications: Industrial power distribution, motor and feeder circuit protection
  • Country of Origin: Mexico


Product Identification
  • UPC: 78590118188
  • GTIN: 00785901181880
