Square D CH222N - Fusible Safety Switch 60A 240V (2-Pole, 10kA AIC)

Square D
Price
Save $504
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

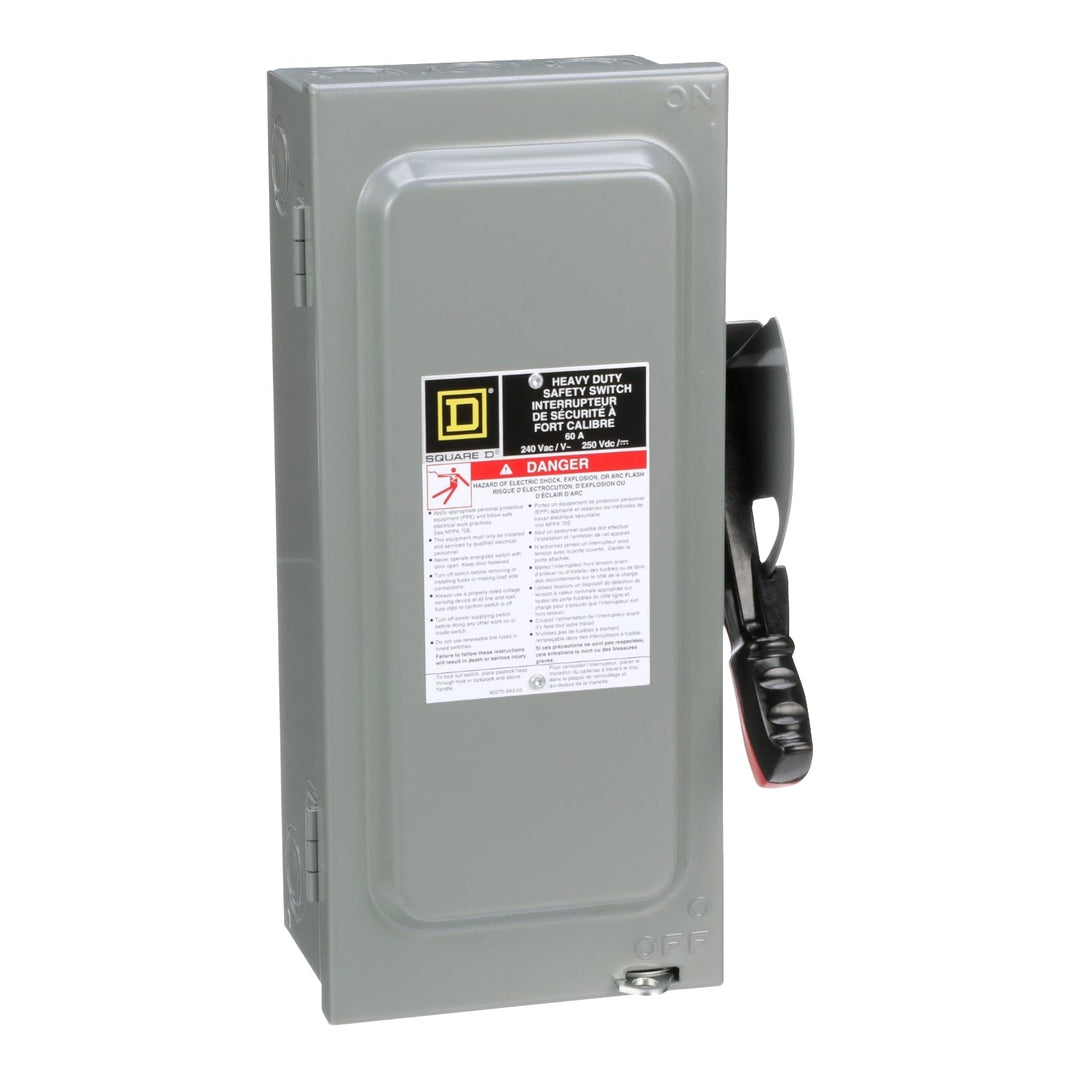

Square D CH222N is a fusible safety switch designed for providing reliable circuit protection and isolation in industrial and commercial applications. It features a 240V AC voltage rating and a 60A current rating, housed within a compact, robust enclosure measuring 370.8 mm H x 165.1 mm W x 123.95 mm D and weighing 7.91 lb. The switch is constructed for compliance with NEMA 1 standards and offers an interrupting capacity of 10kA at 600V, making it suitable for use in single-phase power distribution panels, motor control centers, and other installations requiring a secure disconnect means with Class H or R fuse protection.

Key Features & Specifications
  • Type: Fusible Safety Switch, Automatic Transfer subcategory
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 600V
  • Fuse Class: H, R
  • Compatible Frames: NSE
  • NEMA Rating: 1
  • Switch Style: Fusible
  • Dimensions: 370.8 mm H x 165.1 mm W x 123.95 mm D (14.6 in x 6.5 in x 4.88 in)
  • Weight: 7.91 lb
  • Standards: Meets applicable industry standards for safety switches
  • Applications: Industrial power distribution, motor disconnects, panelboards, and equipment requiring a fused disconnect


Product Identification
  • UPC: 78590182231
  • GTIN: 00785901822318
