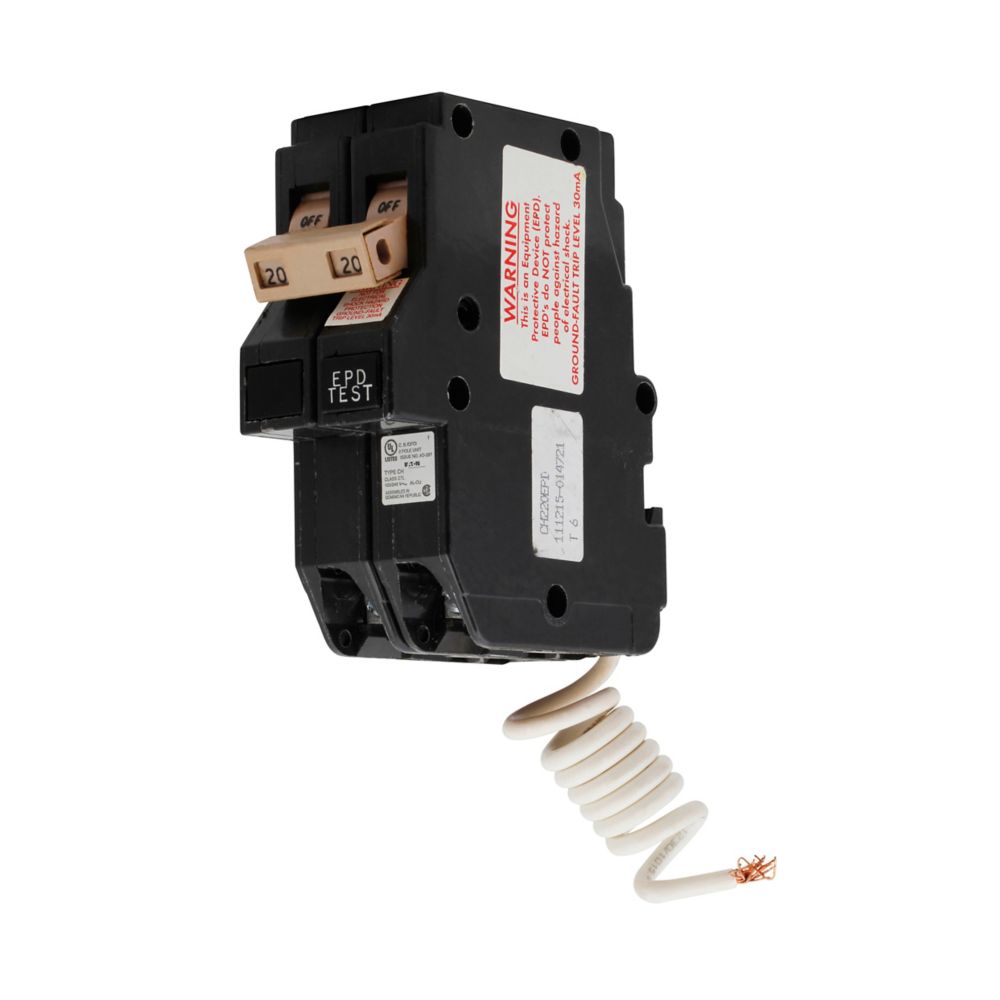

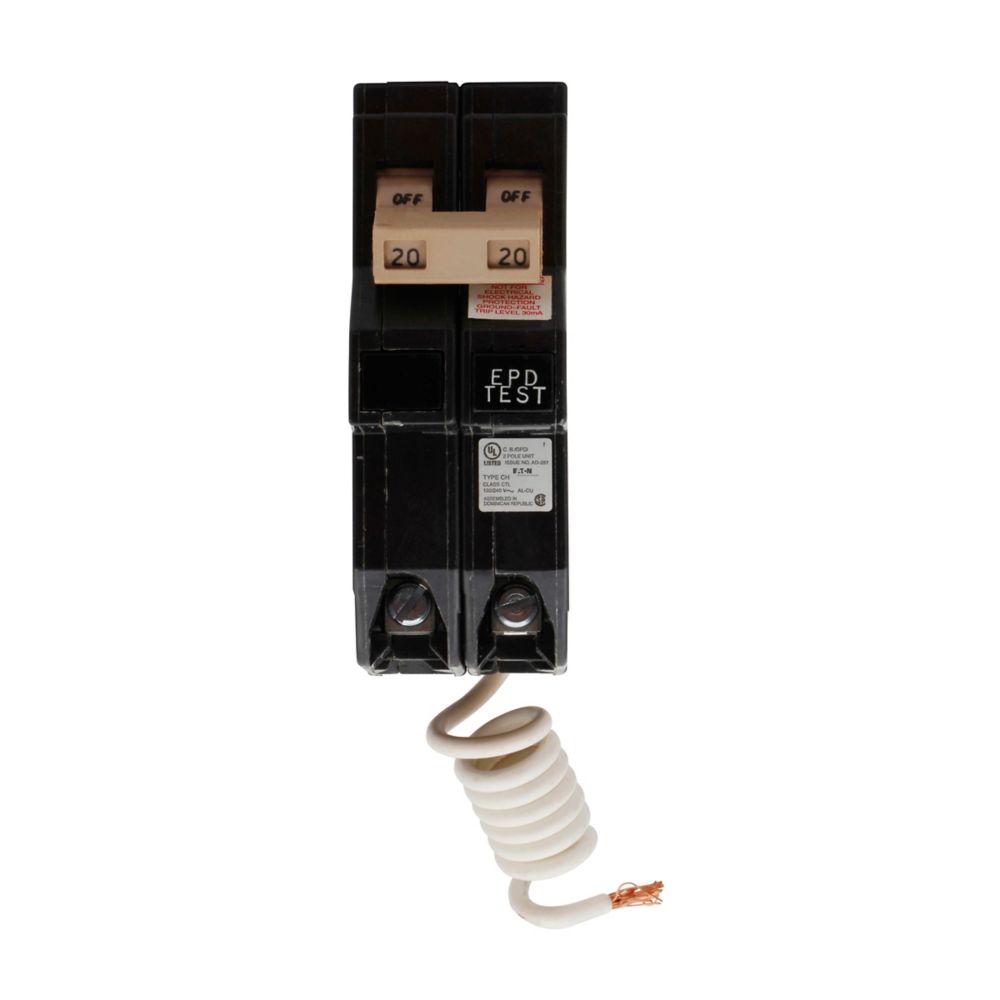

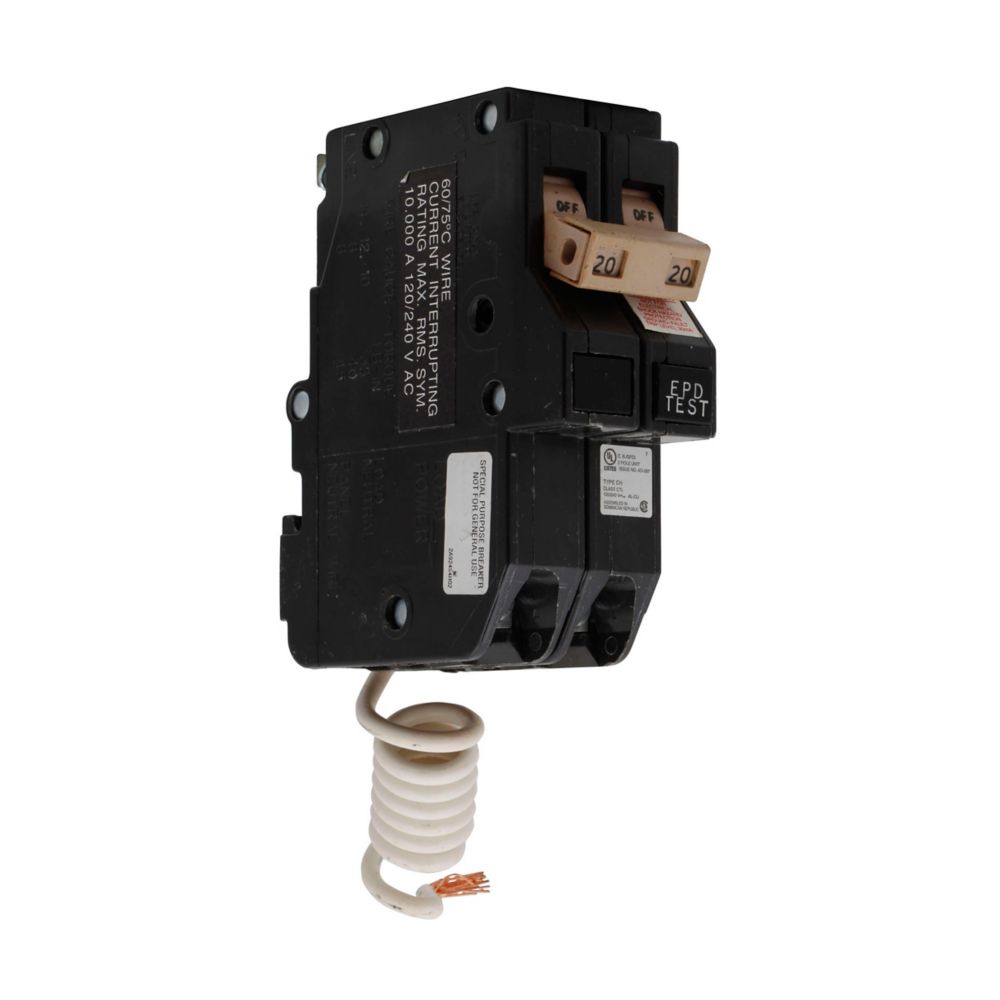

Cutler Hammer CH220EPD - 2-Pole 20A Circuit Breaker (10kA AIC)
Cutler Hammer CH220EPD - 2-Pole 20A Circuit Breaker (10kA AIC)
Cutler Hammer CH220EPD - 2-Pole 20A Circuit Breaker (10kA AIC)
Cutler Hammer CH220EPD - 2-Pole 20A Circuit Breaker (10kA AIC)
Cutler Hammer CH220EPD - 2-Pole 20A Circuit Breaker (10kA AIC)
Cutler Hammer CH220EPD - 2-Pole 20A Circuit Breaker (10kA AIC)

Cutler Hammer CH220EPD - 2-Pole 20A Circuit Breaker (10kA AIC)

Cutler Hammer
Price
Save $548.28
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer CH220EPD is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 240V AC voltage rating, housed in a compact 3" x 3" x 2" plug-in configuration. The breaker is constructed with a thermal-magnetic trip unit offering both long-time and instantaneous trip functions, ensuring protection against overloads and fault currents up to its 10kA interrupting rating at 240V. It is UL 489 certified and operates effectively across a wide temperature range from -25°C to 70°C (-13°F to 158°F). This unit is typically applied in panelboards and switchboards for protecting branch circuits, compatible with copper or aluminum conductors from #14 to 6 AWG.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Dimensions: 3 in (L) x 3 in (H) x 2 in (W) / 76.2 mm x 76.2 mm x 50.8 mm
  • Standards: UL 489
  • Applications: Industrial & Commercial Panelboards, Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: #14 to 6 AWG (Cu/Al)
  • Certification: UL 489
  • Weight: 1.8 lb


Product Identification
  • UPC: 078211391295
  • GTIN: 00782113912950
