Appleton CG7575 - Cable Gland 3/4 in Trade Size (Liquidtight)
Appleton CG7575 - Cable Gland 3/4 in Trade Size (Liquidtight)

Appleton CG7575 - Cable Gland 3/4 in Trade Size (Liquidtight)

Appleton
Price
Save $-16.81
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

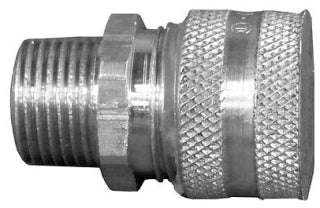

Appleton CG7575 is a cable gland and cord grip from the CG Series designed for sealing and strain relief of flexible cables. This straight liquidtight connector provides secure termination for neoprene, hypalon, and PVC jacketed power or control cords, protecting against cable tension and leakage. It features a natural aluminum body with a copper-free aluminum cap, neoprene grommet, and steel or Teflon washer for reduced friction and even pressure distribution. The connector is UL Listed and CSA Certified for rugged industrial use, with a 3/4 inch trade size and threaded hub mounting. Typical applications include terminating flexible power and control cables in industrial environments.

Key Features & Specifications
  • Type: Straight liquidtight strain relief connector
  • Trade Size: 3/4 inch
  • Cable Diameter Range: 0.75 to 0.875 inch
  • Material: Aluminum body, copper-free aluminum cap, neoprene grommet, steel/Teflon washer
  • Thread Size: 3/4 inch
  • Color: Natural aluminum with gray label
  • Application: Flexible neoprene, hypalon, PVC jacketed power/control cords
  • Certifications: UL Listed, CSA Certified
  • Mounting: Threaded hub
  • Durability: Designed for rugged industrial use
  • Dimensions: 1.38 in Dia
  • Weight: 26 lb
  • Family: CG Series


Product Identification
  • UPC: 781381191609
  • GTIN: 781381191609
