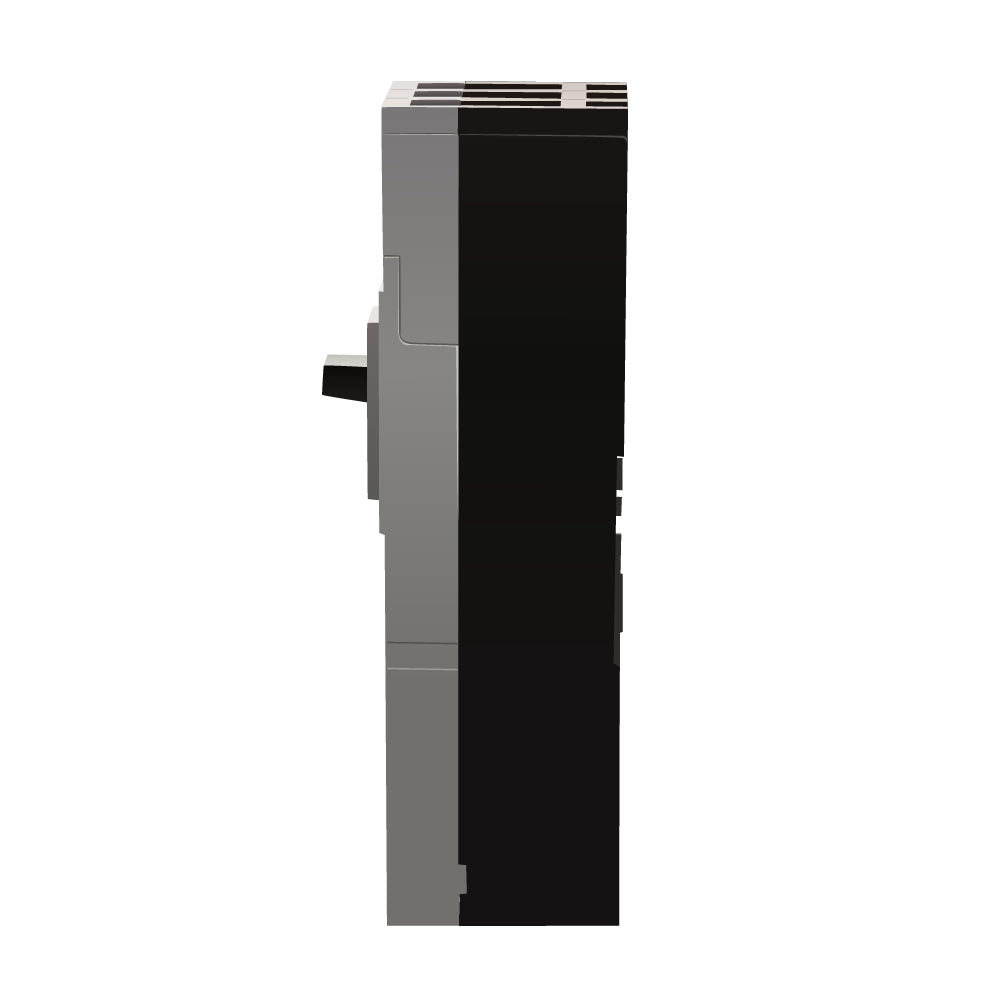

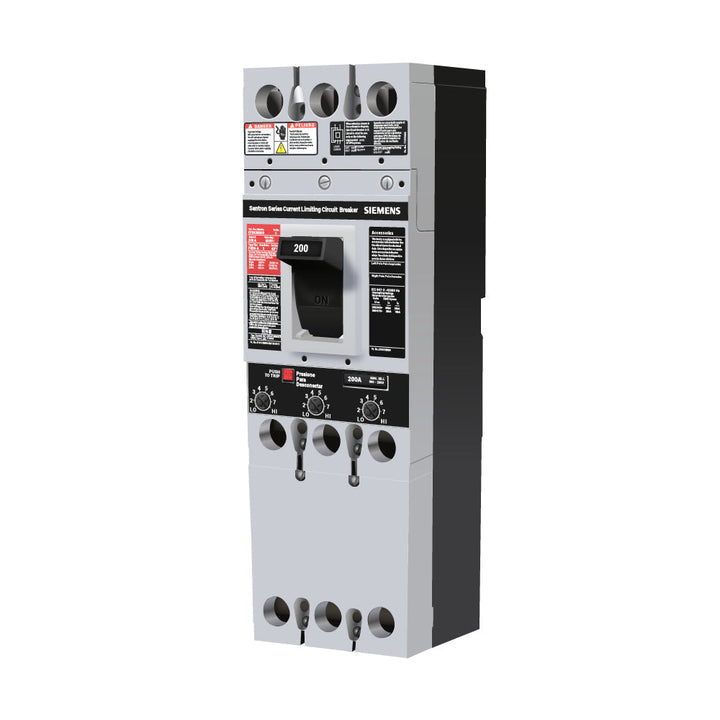

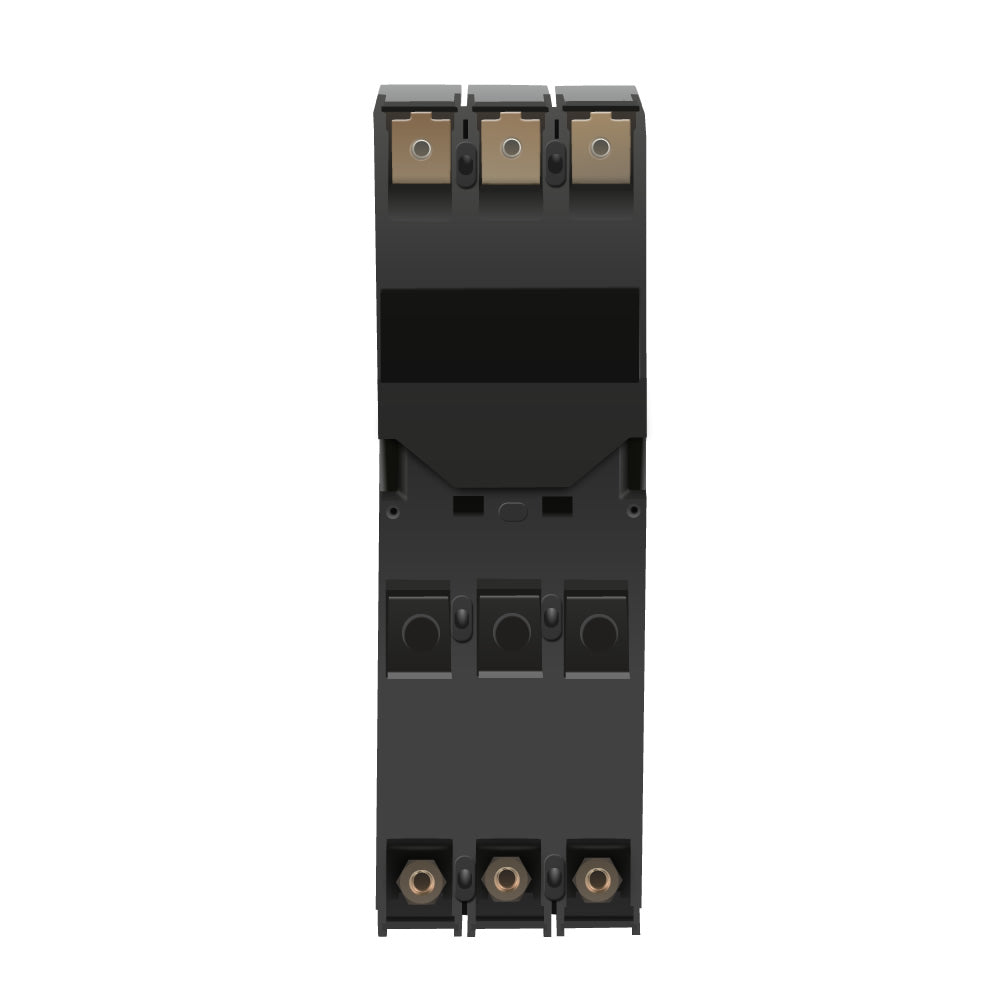

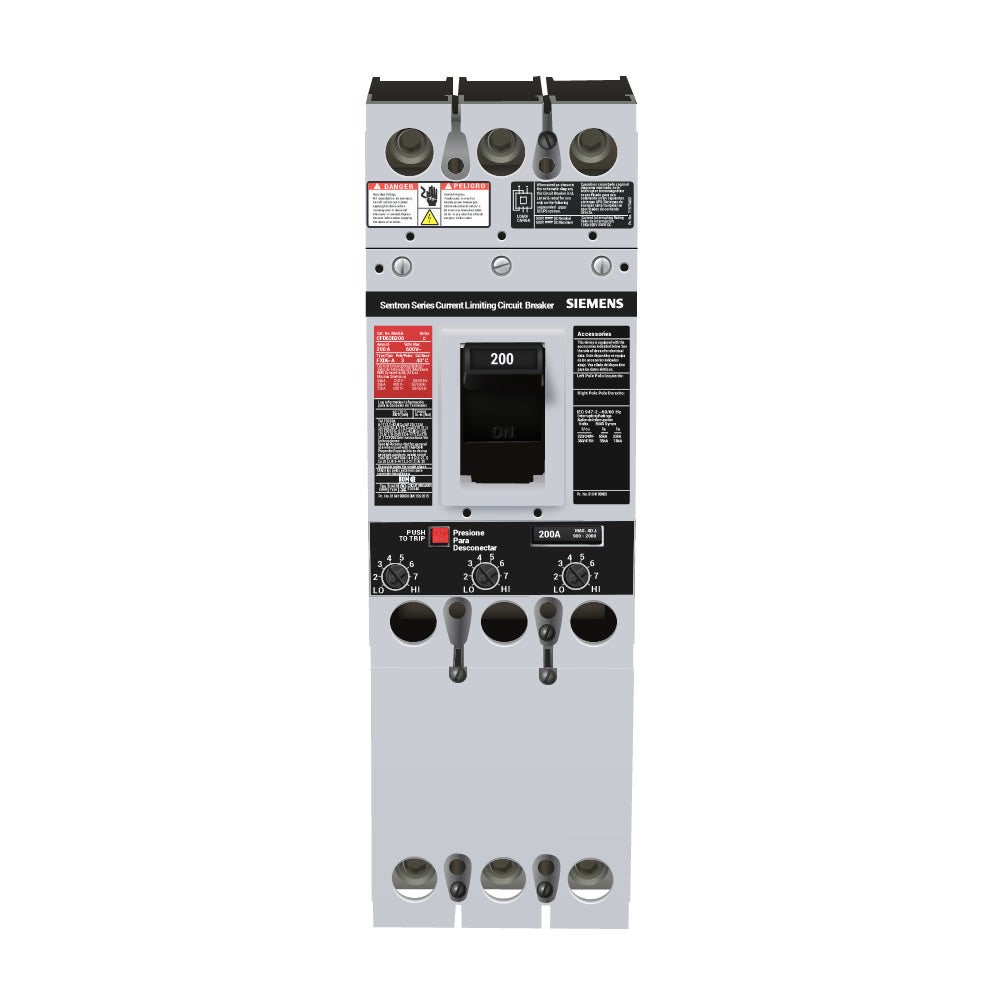

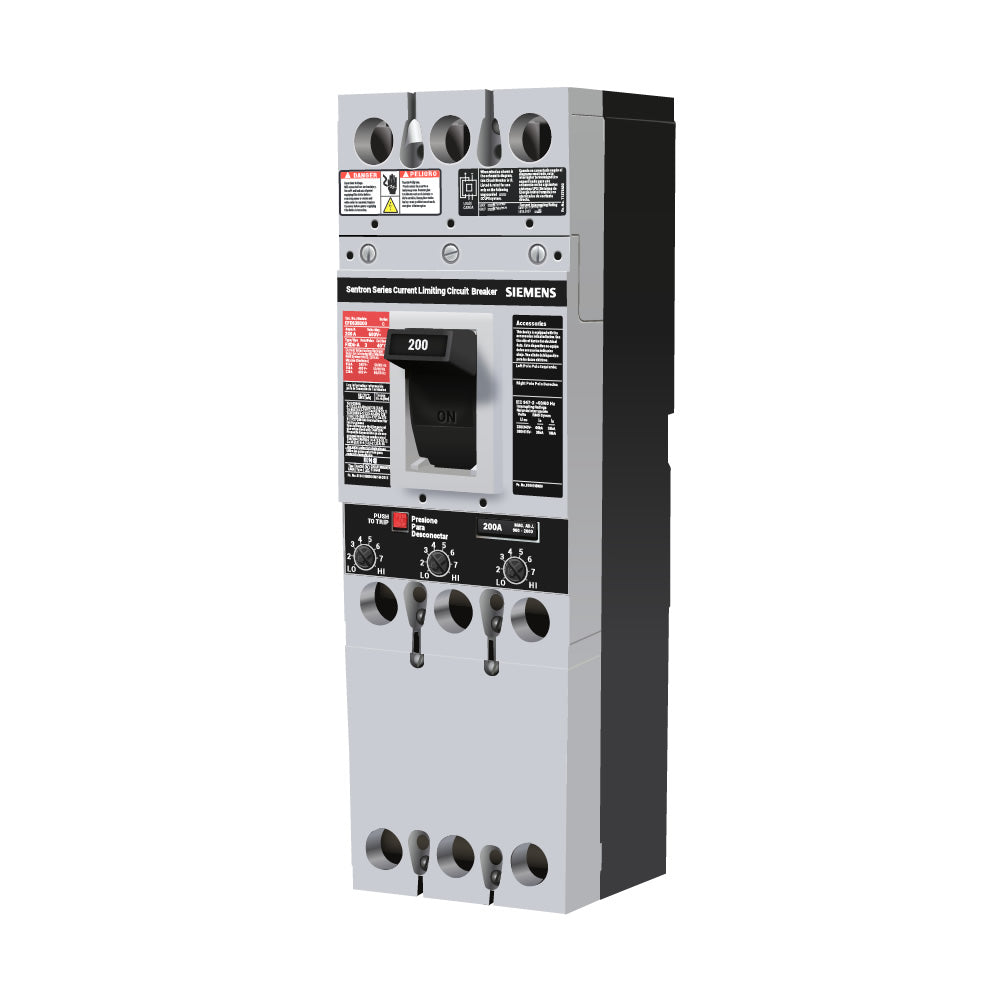

Siemens CFD63B200 - Molded Case Circuit Breaker 200A 600V 3P
Siemens CFD63B200 - Molded Case Circuit Breaker 200A 600V 3P
Siemens CFD63B200 - Molded Case Circuit Breaker 200A 600V 3P
Siemens CFD63B200 - Molded Case Circuit Breaker 200A 600V 3P
Siemens CFD63B200 - Molded Case Circuit Breaker 200A 600V 3P
Siemens CFD63B200 - Molded Case Circuit Breaker 200A 600V 3P
Siemens CFD63B200 - Molded Case Circuit Breaker 200A 600V 3P
Siemens CFD63B200 - Molded Case Circuit Breaker 200A 600V 3P

Siemens CFD63B200 - Molded Case Circuit Breaker 200A 600V 3P

Siemens
Price
Save $11,320.66
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
Siemens CFD63B200 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 200A current rating and a 600V AC voltage rating, housed within a robust FD frame with a bolt-on connection for secure installation. This thermal magnetic breaker utilizes long-time and instantaneous (LI) trip functions and is constructed to accept copper conductors from 6 AWG to 350 KCM or aluminum from 4 AWG to 350 KCM. Engineered for demanding applications, it offers an interrupting capacity of 200kA at 480V, ensuring compliance with critical protection standards for industrial switchgear, panelboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, LI (Long-time & Instantaneous) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Frame Size: FD Frame
  • Poles: 3
  • Connection: Bolt-On
  • AIC Rating: 200kA @ 480V
  • Phase: 3
  • Wire Size: 6 AWG to 350 KCM CU, 4 AWG to 350 KCM AL
  • Weight: 14.996 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643212190
  • GTIN: 00783643212190
