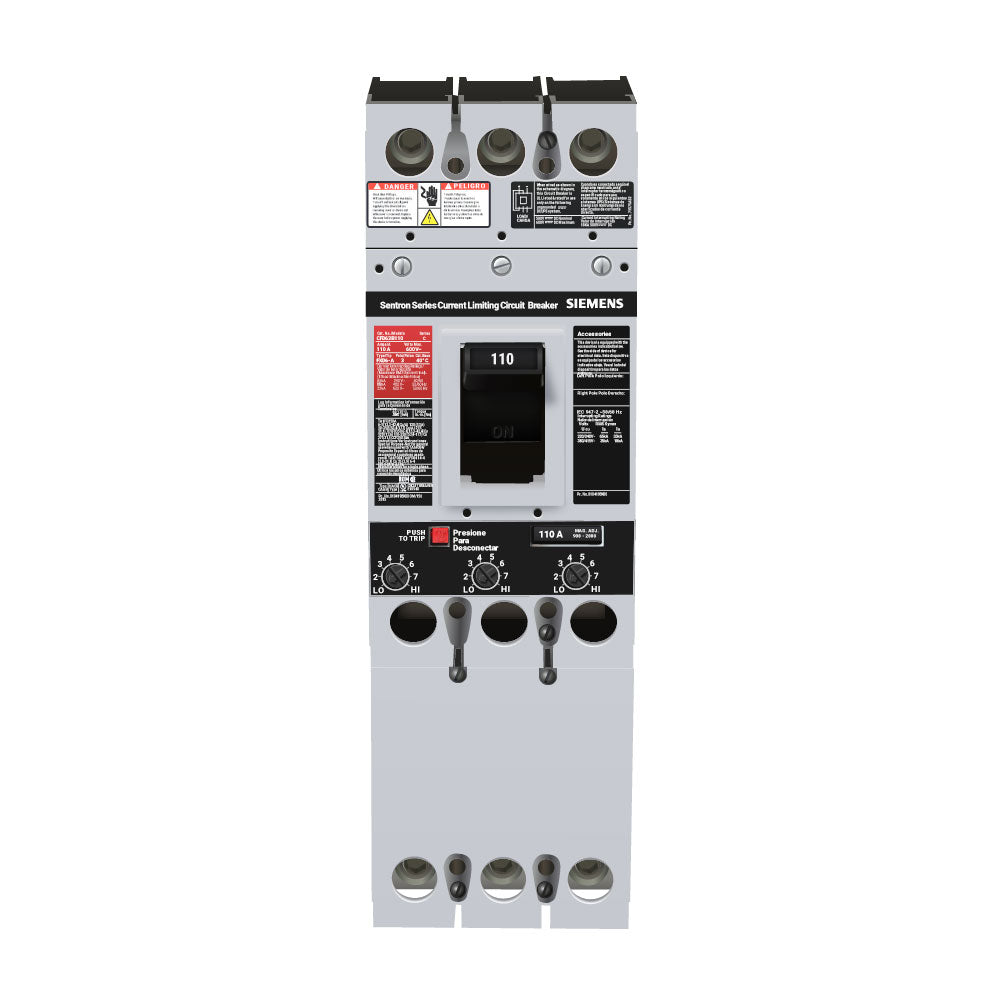

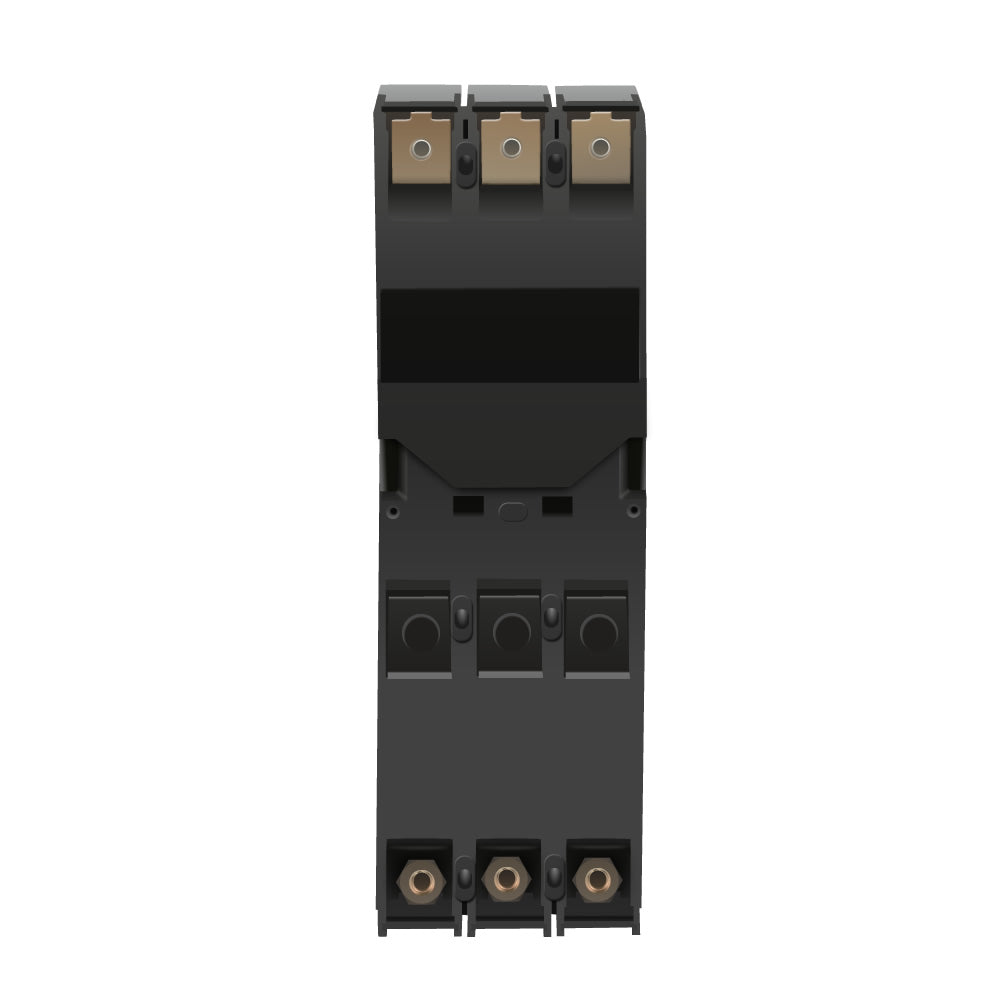

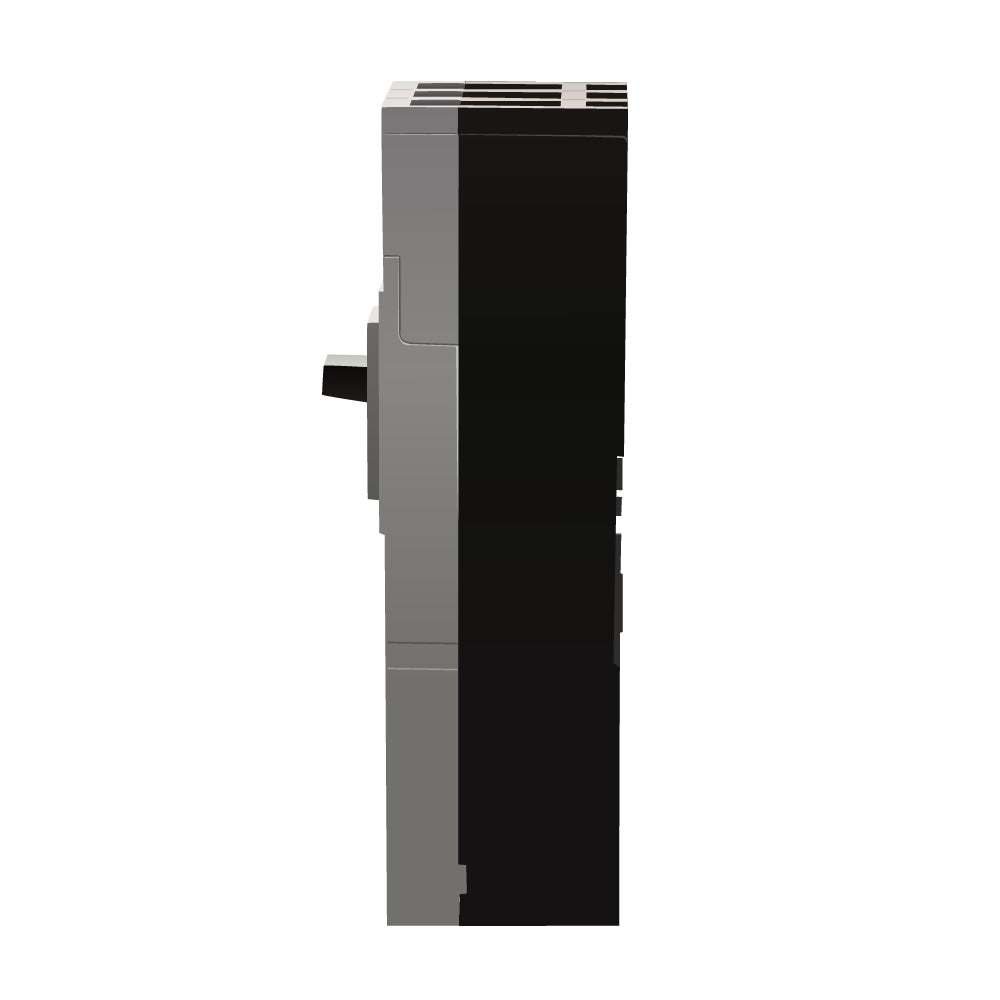

Siemens CFD63B110 - Molded Case Circuit Breaker 110A 600V 3P
Siemens CFD63B110 - Molded Case Circuit Breaker 110A 600V 3P
Siemens CFD63B110 - Molded Case Circuit Breaker 110A 600V 3P
Siemens CFD63B110 - Molded Case Circuit Breaker 110A 600V 3P
Siemens CFD63B110 - Molded Case Circuit Breaker 110A 600V 3P
Siemens CFD63B110 - Molded Case Circuit Breaker 110A 600V 3P

Siemens CFD63B110 - Molded Case Circuit Breaker 110A 600V 3P

Siemens
Price
Save $10,523.49
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens CFD63B110 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 110A continuous current rating and a 600V AC voltage rating, housed within a compact FD frame with a robust bolt-on connection for secure installation. This thermal magnetic breaker offers both long-time and instantaneous trip functions, is UL Listed, and operates effectively across a temperature range of -25 to 70 °C. Its 200kA interrupting capacity at 480V makes it suitable for protecting feeders and branch circuits in commercial and industrial panels, compatible with copper conductors from AWG 6 to 350 KCMIL and aluminum from AWG 4 to 350 KCMIL.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 110A
  • Frame Size: FD Frame
  • Poles: 3
  • Connection: Bolt-On
  • AIC Rating: 200kA @ 480V
  • Phase: 3
  • Wire Size: AWG 6 to 350 KCMIL (Cu), AWG 4 to 350 KCMIL (Al)
  • Certification: UL Listed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Weight: 13.6 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643212152
  • GTIN: 00783643212152
