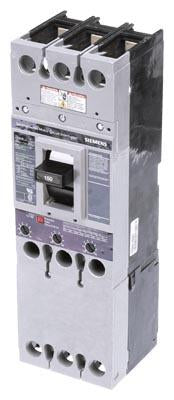

Siemens CFD63A150 - Molded Case Circuit Breaker 150A 600V 3P
Siemens CFD63A150 - Molded Case Circuit Breaker 150A 600V 3P

Siemens CFD63A150 - Molded Case Circuit Breaker 150A 600V 3P

Siemens
Price
Save $12,679.29
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens CFD63A150 is a molded case circuit breaker designed for providing instantaneous magnetic-only protection against short-circuit faults in three-phase electrical systems. It features a 150A current rating and a 600V AC voltage rating, housed within a compact FD frame with a bolt-on connection for secure installation. This breaker is constructed for industrial compliance and is rated for an interrupting capacity of 200kA at 480V, ensuring reliable performance in demanding environments. Its typical applications include protecting feeders and branch circuits in panelboards and switchboards, accommodating copper conductors from AWG 6 to 350 KCMIL and aluminum from AWG 4 to 350 KCMIL.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Magnetic-Only Protection (I - Instantaneous)
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Frame Size: FD Frame
  • Poles: 3
  • Connection: Bolt-On
  • AIC Rating: 200kA @ 480V
  • Phase: 3-Phase
  • Wire Size: AWG 6 to 350 KCMIL (Copper), AWG 4 to 350 KCMIL (Aluminum)
  • Weight: 13.6 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643212336
  • GTIN: 00783643212336
