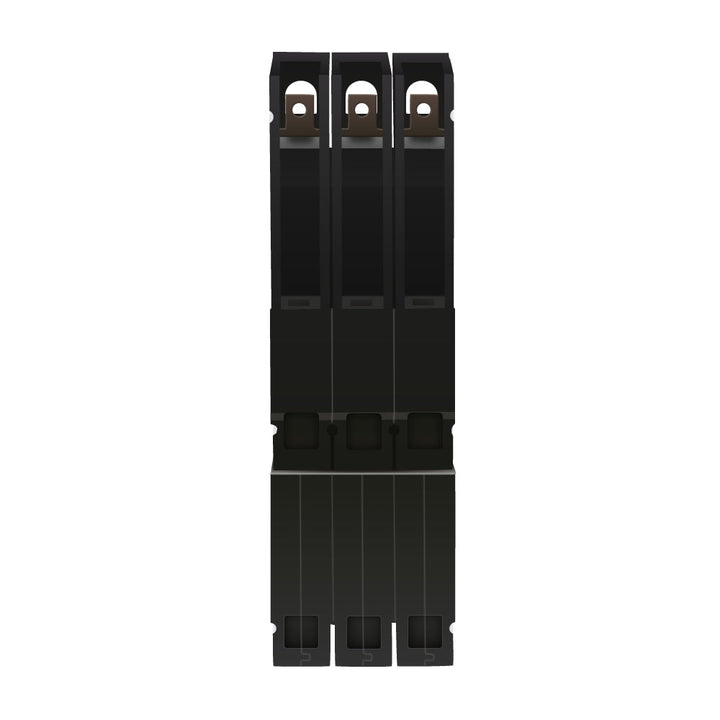

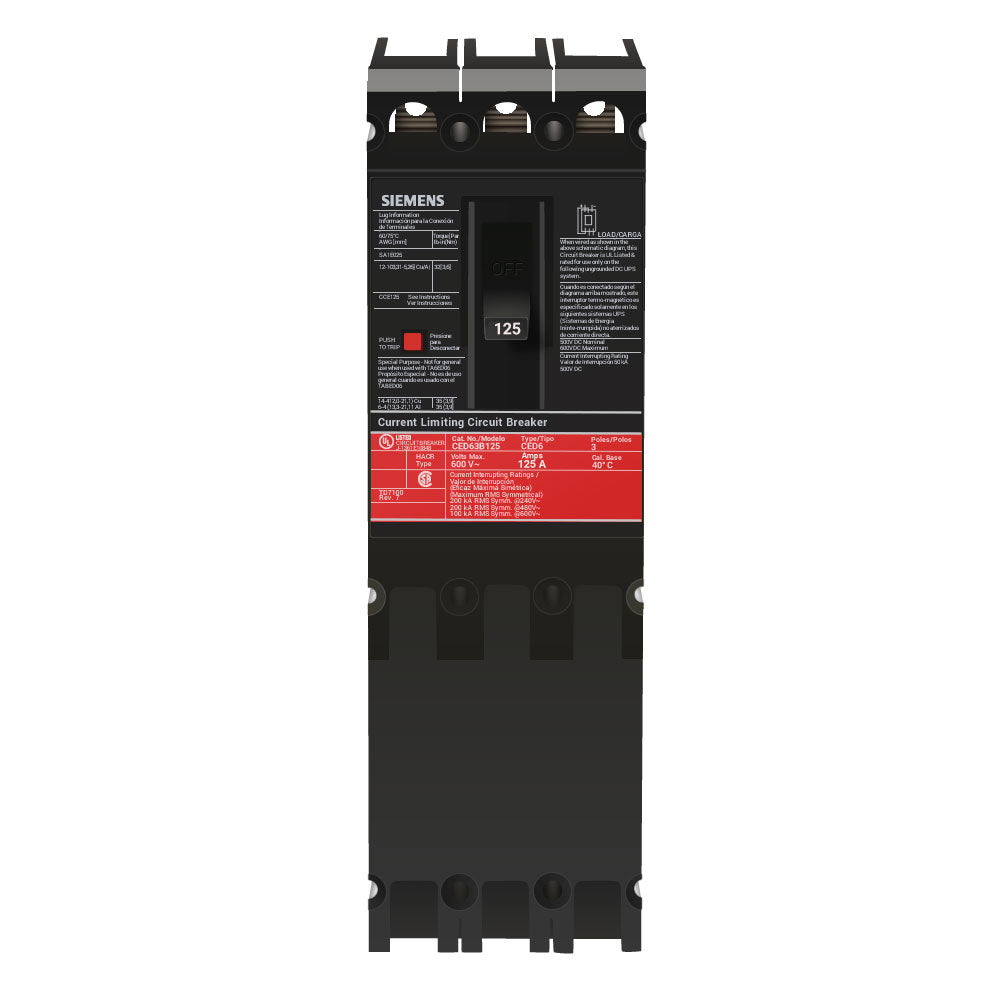

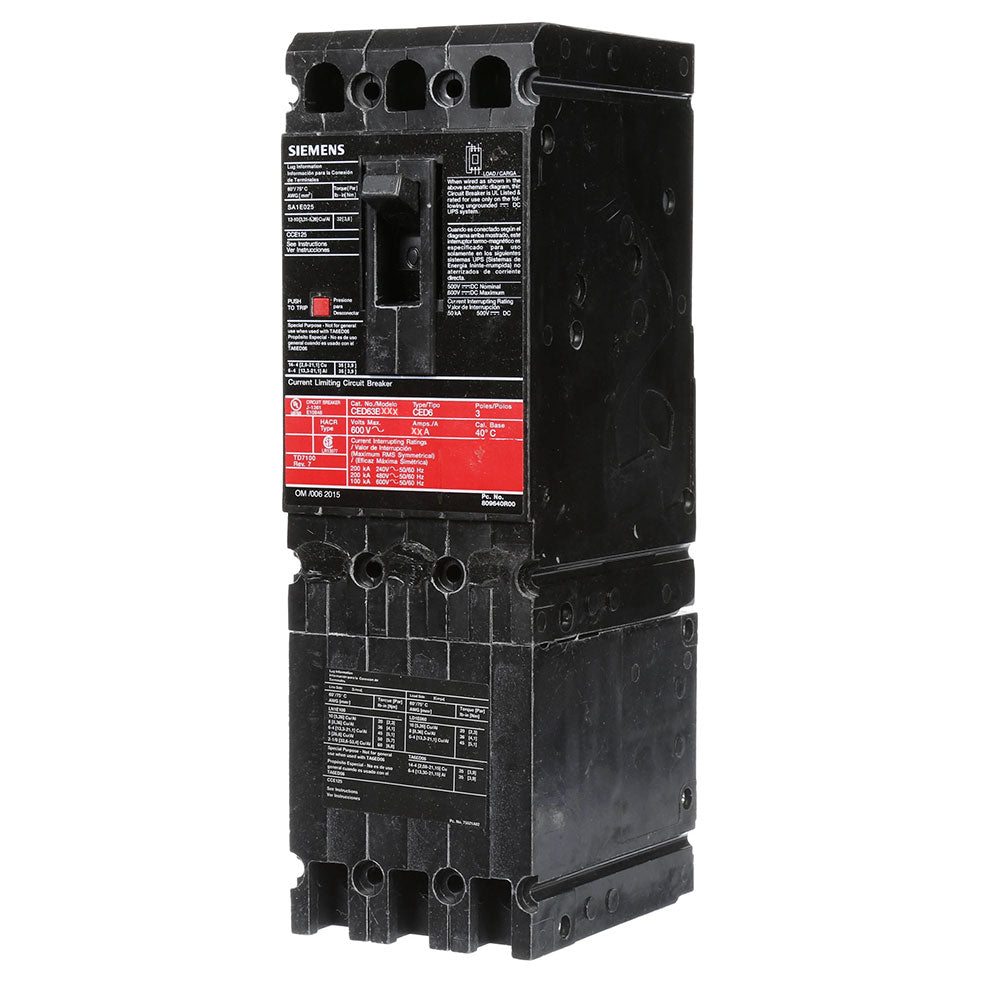

Siemens CED63B125 - Molded Case Circuit Breaker 125A 3P (200kA AIC)
Siemens CED63B125 - Molded Case Circuit Breaker 125A 3P (200kA AIC)
Siemens CED63B125 - Molded Case Circuit Breaker 125A 3P (200kA AIC)
Siemens CED63B125 - Molded Case Circuit Breaker 125A 3P (200kA AIC)
Siemens CED63B125 - Molded Case Circuit Breaker 125A 3P (200kA AIC)
Siemens CED63B125 - Molded Case Circuit Breaker 125A 3P (200kA AIC)
Siemens CED63B125 - Molded Case Circuit Breaker 125A 3P (200kA AIC)
Siemens CED63B125 - Molded Case Circuit Breaker 125A 3P (200kA AIC)

Siemens CED63B125 - Molded Case Circuit Breaker 125A 3P (200kA AIC)

Siemens
Price
Save $17,363.69
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Siemens CED63B125 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 125A continuous current rating and a 600V AC voltage rating, housed within a compact ED frame with a robust bolt-on connection for secure installation. This thermal magnetic breaker provides combined long-time and instantaneous (LI) protection functions and is constructed to operate reliably across a wide temperature range from -25°C to 70°C (-13°F to 158°F). It complies with UL and IEC standards, ensuring suitability for global industrial applications, and is commonly used to protect feeders and branch circuits in panelboards and switchgear.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Long-Time & Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Frame Size: ED Frame
  • Poles: 3
  • Connection: Bolt-On
  • Wire Size: AWG 3 to 3/0 (Copper), AWG 1 to 2/0 (Aluminum)
  • AIC Rating: 200kA at 480V
  • Phase: 3
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Certification: UL, IEC
  • Weight: 1.069 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643210776
  • GTIN: 00783643210776
