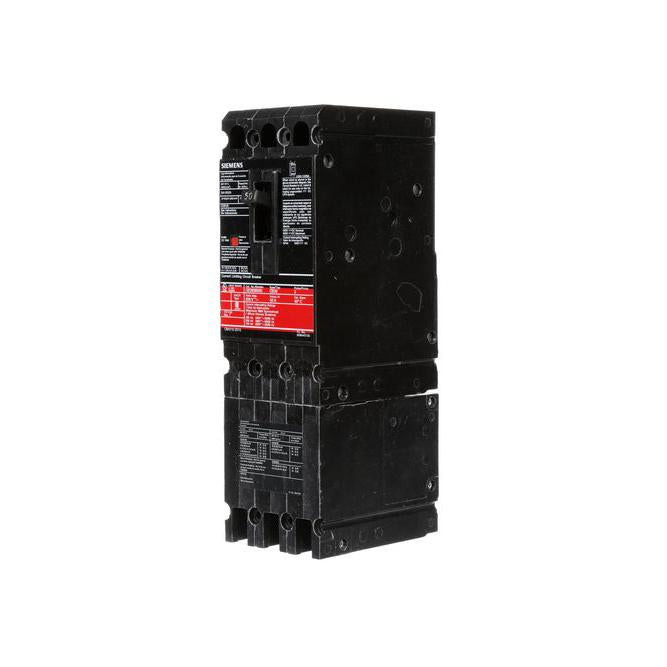

Siemens CED63B050 - Molded Case Circuit Breaker, 50A 600V 3P

Price
Regular price $780.34
Regular price $12,133.00 Sale price $780.34
Save $11,352.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens CED63B050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 50A current rating and a 600V AC voltage rating, housed within a compact ED frame with a bolt-on connection for secure installation. The breaker utilizes a thermal-magnetic trip mechanism offering both long-time and instantaneous (LI) protection functions and is constructed to operate across a wide temperature range from -25°C to 70°C (-13°F to 158°F). It complies with UL and IEC standards and offers an interrupting capacity of 200kA at 480V, making it suitable for protecting feeders and branch circuits in panelboards and switchboards where high fault currents are present.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Frame Size: ED Frame
  • Poles: 3
  • Phase: 3-Phase
  • AIC Rating: 200kA at 480V
  • Protection Functions: LI (Long-Time and Instantaneous)
  • Connection: Bolt-On
  • Wire Size: AWG 10 to AWG 1/0, Copper/Aluminum
  • Certification: UL, IEC
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Weight: 1.058 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643210707
  • GTIN: 00783643210707
