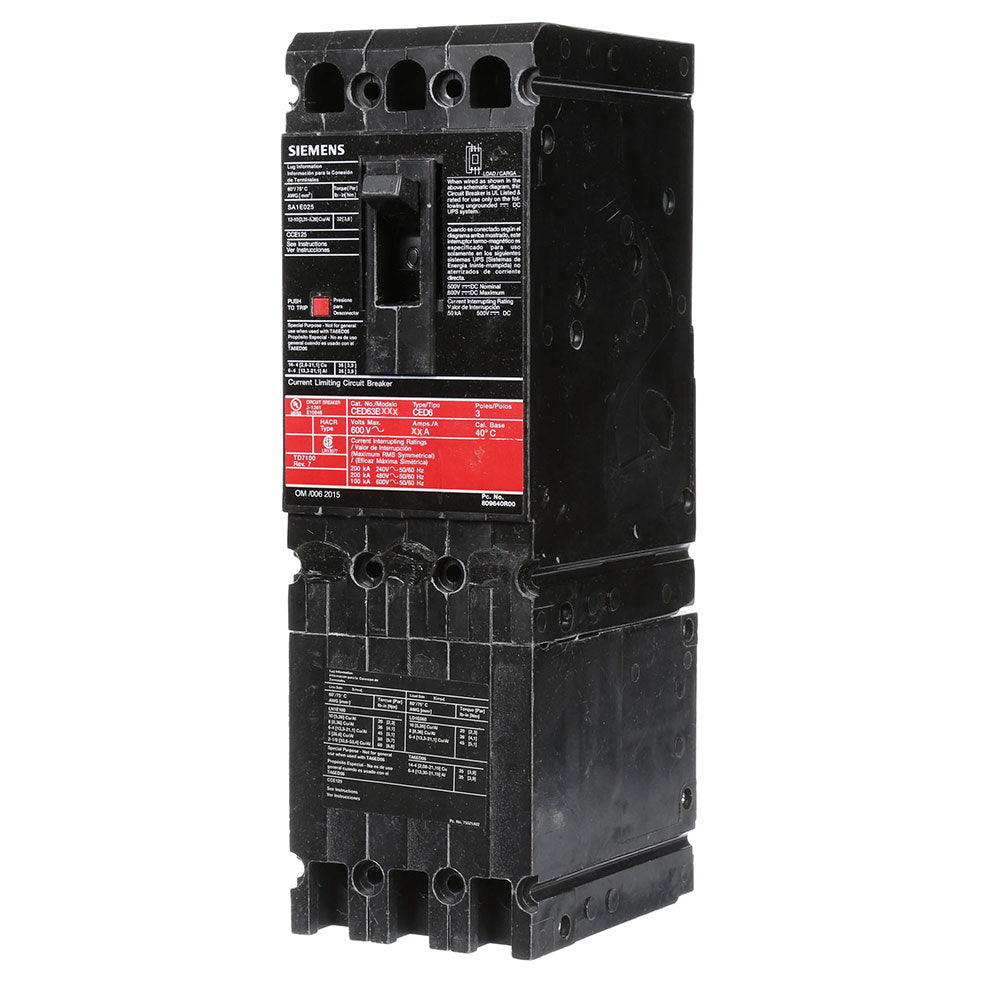

Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P

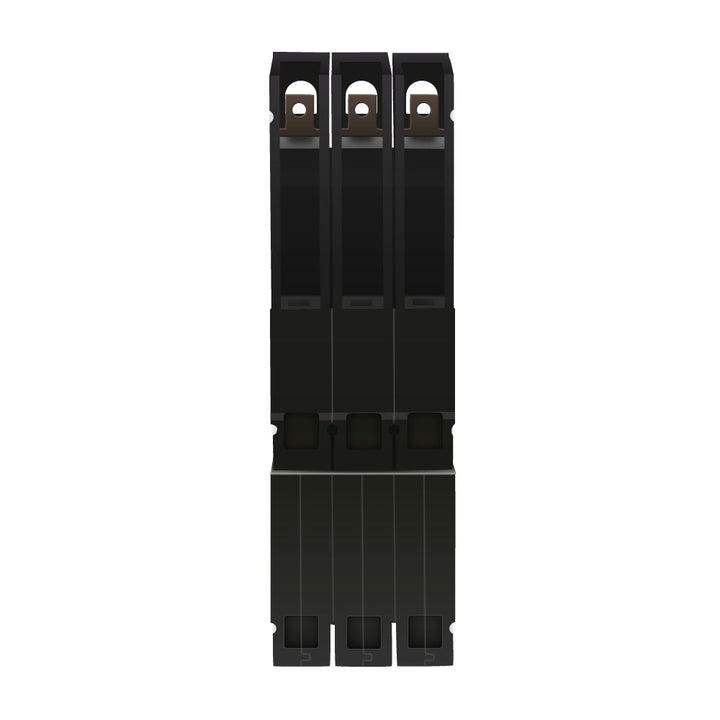

Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P

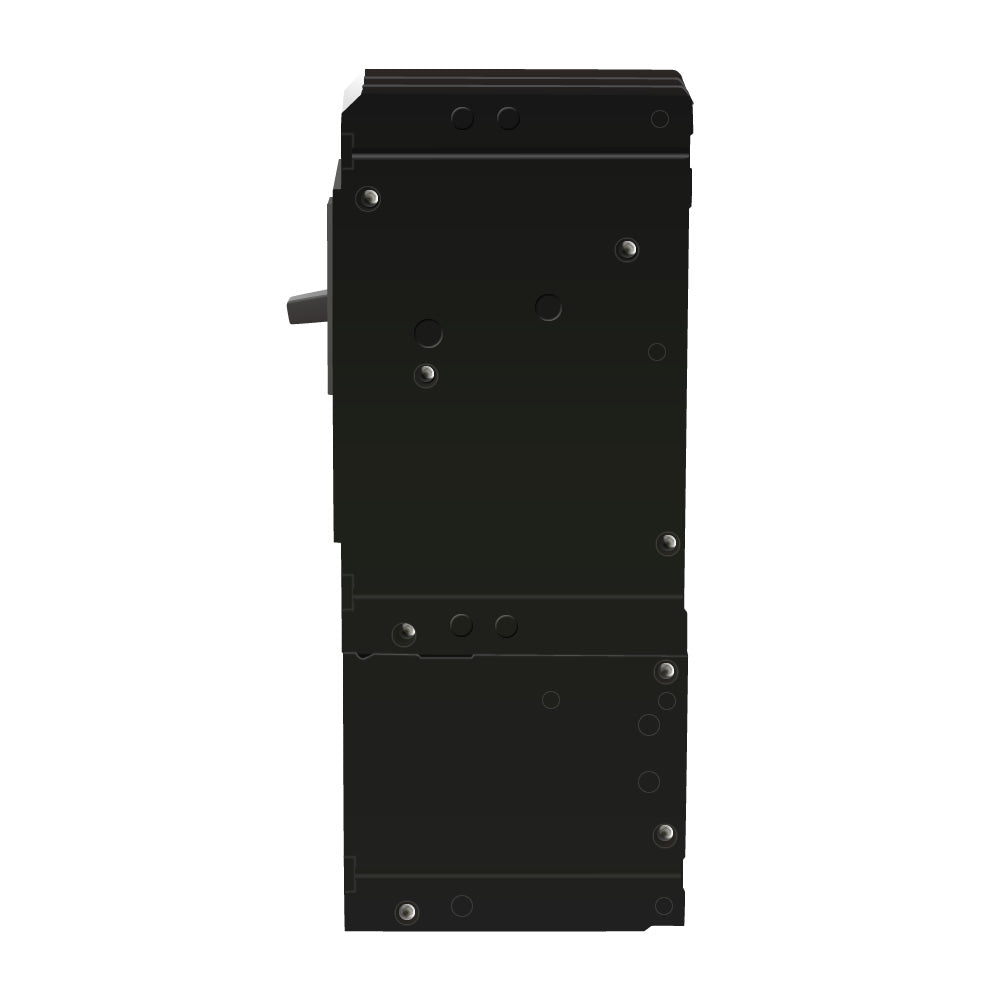

Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P
Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P

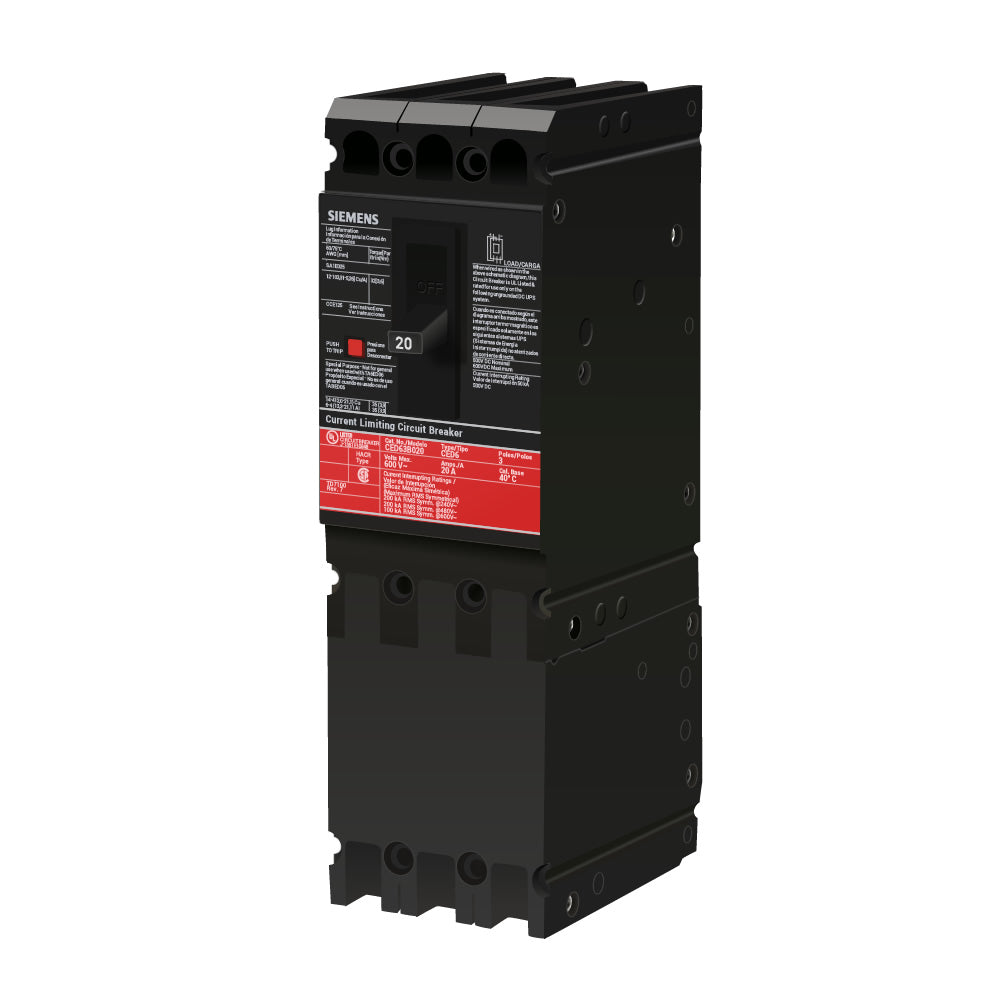

Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P
Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P
Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P
Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P
Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P
Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P

Siemens CED63B020 - Molded Case Circuit Breaker 20A 600V 3P

Siemens
Price
Save $11,423.96
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens CED63B020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 20A thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, rated for 600V AC systems and capable of interrupting up to 200kA at 480V. The breaker is constructed in a compact ED frame with a three-pole, bolt-on connection configuration, suitable for copper conductors from AWG 14 to 10 or aluminum from AWG 12 to 10, and operates within a temperature range of -25 to 70 °C. It is certified to UL and CSA standards, ensuring compliance with North American safety requirements for industrial electrical equipment. Typical applications include integration into panelboards, switchboards, and motor control centers where robust circuit protection is essential.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Frame Size: ED Frame
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 480V
  • Protection Functions: LI (Long-Time and Instantaneous)
  • Connection: Bolt-On
  • Wire Size: AWG 14 to AWG 10 (Cu), AWG 12 to AWG 10 (Al)
  • Certification: UL, CSA
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Weight: 5.75 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643210677
  • GTIN: 00783643210677
