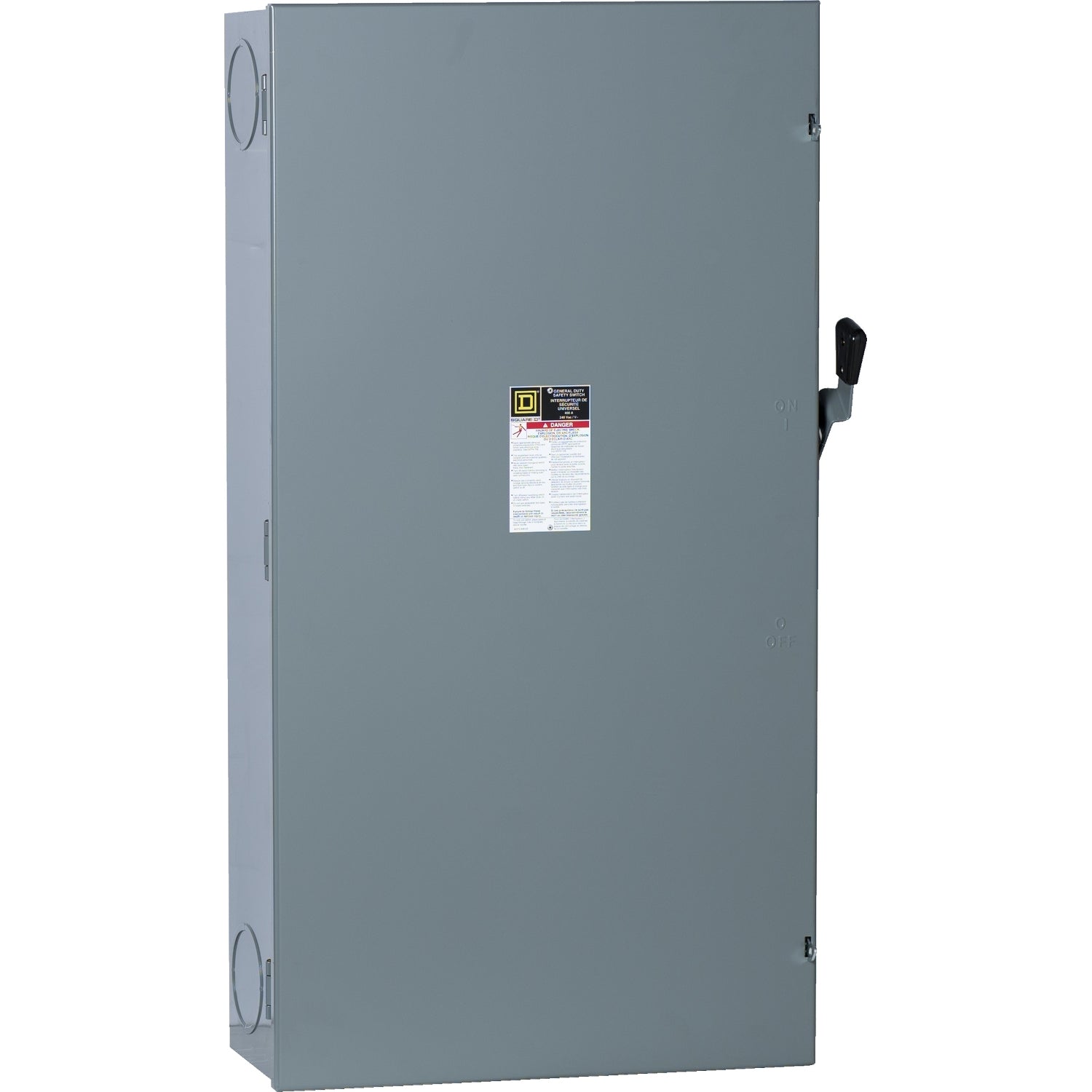

Square D CD225N - Fusible Safety Switch 400A 240V (100kA AIC)

Square D
Price
Save $177.96
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D CD225N is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial power distribution. It is rated for 400A at 240V AC with a 100kA interrupting capacity, housed in a robust NEMA 1 enclosure measuring 1146.05 mm H x 631.95 mm W x 225.55 mm D and weighing 106 lb. The switch is CSA certified and engineered for use with H, K, J, or R class fuses, accepting conductors from AWG 1/0 to 750 kcmil. Its two-pole, single-phase configuration makes it suitable for protecting motors, feeders, and branch circuits in manufacturing and commercial facilities.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Configuration: Single Phase, 2 Poles
  • AIC Rating: 100kA @ 240V
  • Fuse Class: H, K, J, R
  • Wire Size: AWG 1/0 to 750 kcmil (Copper or Aluminum)
  • Enclosure: NEMA 1
  • Dimensions: 1146.05 mm H x 631.95 mm W x 225.55 mm D (45.12 in x 24.88 in x 8.88 in)
  • Weight: 106 lb
  • Standards: CSA Certified
  • Compatible Frames: RGF
  • Country of Origin: Mexico


Product Identification
  • UPC: 078590118200
