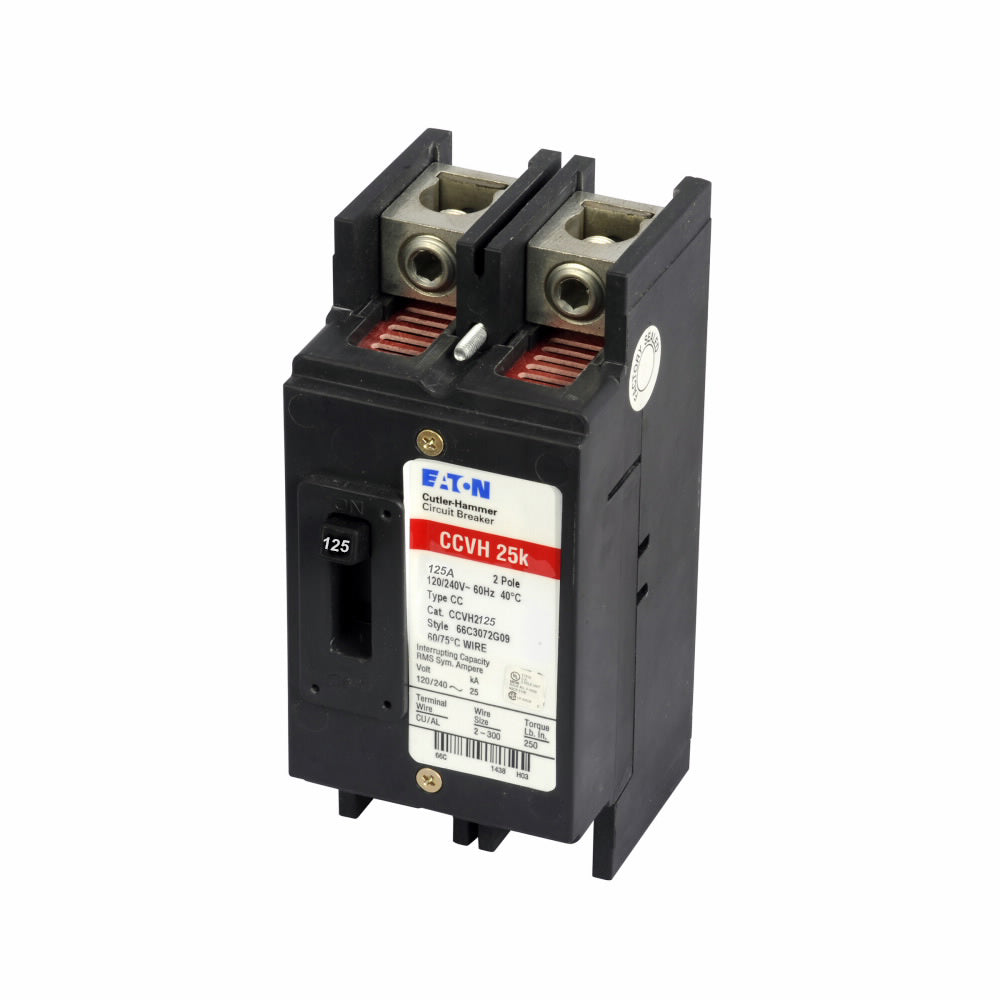

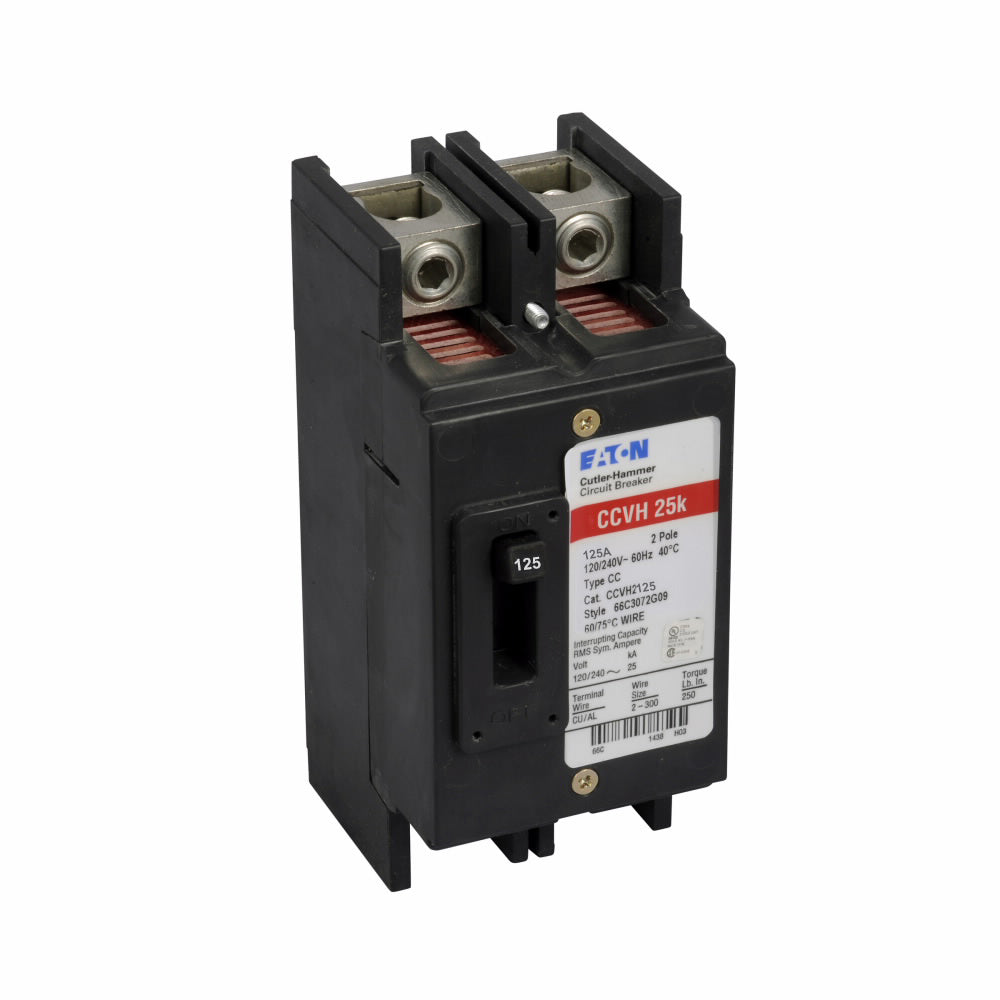

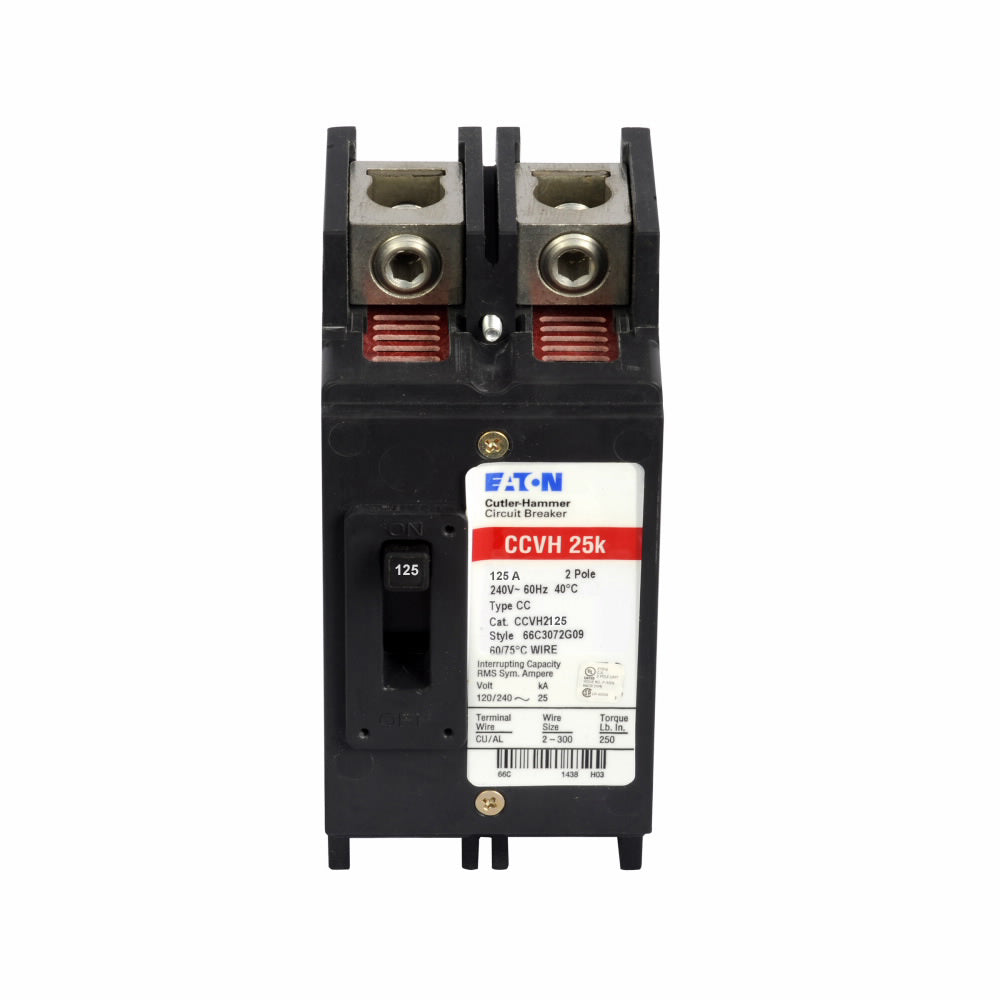

The Cutler Hammer CCVH2125 is a molded case circuit breaker designed to provide reliable overcurrent protection for single-phase 240VAC commercial and industrial branch circuits. It features a 125A continuous current rating and a 25kA interrupting capacity at 240V, utilizing a thermal-magnetic trip unit with both long-time and instantaneous protection functions. The compact, two-pole feed-thru device measures 8" x 5.5" x 4.5" (LxHxW), weighs 2.83 lb, and accepts conductors from 2/0 AWG to 300 kcmil for copper or aluminum wiring. Certified to UL 489 standards, this breaker is engineered for demanding applications such as tenant metering and main distribution panels, ensuring system safety and compliance.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 125A
  • Dimensions: 8 in (L) x 5.5 in (H) x 4.5 in (W)
  • Standards: UL 489
  • Applications: Tenant Main, Commercial/Industrial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Poles: 2
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: CCVH
  • Trip Type: Thermal-Magnetic
  • Phase: 1
  • AIC rating: 25kA @ 240V
  • Wire Size: 2/0 AWG - 300 kcmil Cu/Al
  • Certification: UL 489
  • Weight: 2.83 lb


Product Identification
  • UPC: 786685368429
  • GTIN: 00786685368429
