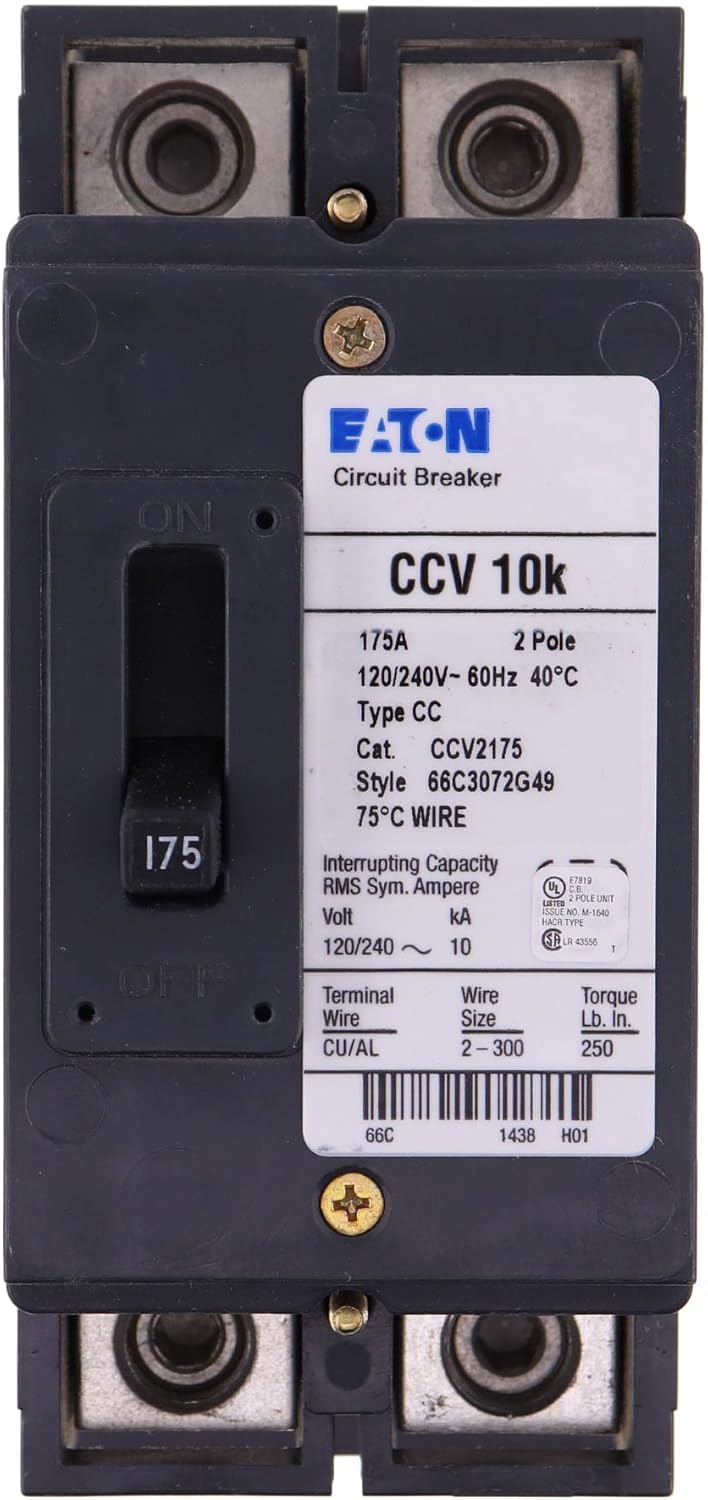

Cutler Hammer CCV2175 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical distribution systems. It features a 175A current rating and a 240V AC voltage rating, housed within a compact, durable enclosure measuring 8" x 5.5" x 4.5" (L x H x W) and weighing 2.5 lb. The breaker is UL 489 certified and utilizes a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions to ensure compliance with industry safety standards. Its feed-thru connection and 10kA interrupting rating at 240V make it suitable for tenant main panel applications and other commercial electrical service entrances.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 175A
  • Dimensions: 8 in x 5.5 in x 4.5 in (Length/Depth x Height x Width)
  • Standards: UL 489
  • Applications: Tenant Main Panels, Commercial Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Poles: 2
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • AIC rating: 10kA@240V
  • Weight: 2.5 lb
  • Family: Tenant Main
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786685368511
  • GTIN: 00786685368511
