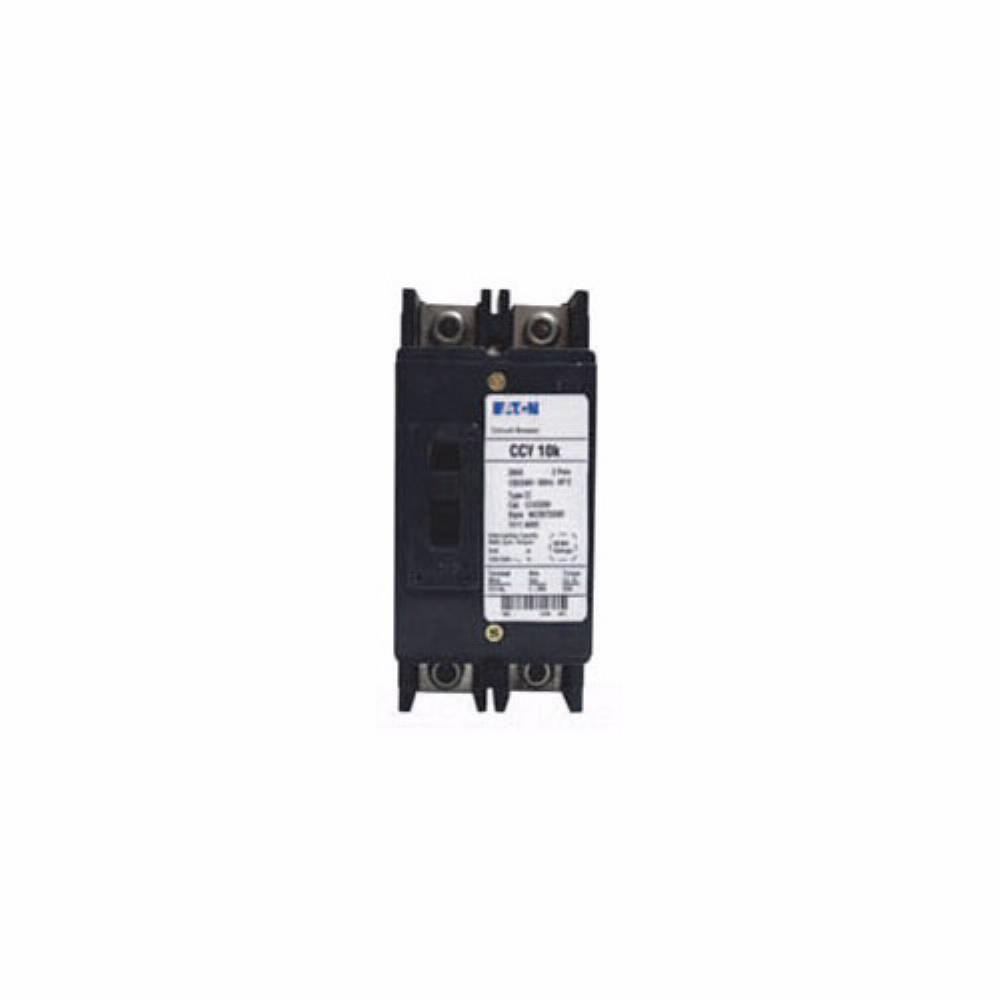

Cutler Hammer CCV2100 - 100A Molded Case Breaker (10kA AIC)
Cutler Hammer CCV2100 - 100A Molded Case Breaker (10kA AIC)

Cutler Hammer CCV2100 - 100A Molded Case Breaker (10kA AIC)

Cutler Hammer
Price
Save $1,056.51
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler Hammer CCV2100 is a molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for single-phase 240VAC electrical systems. It features a 100A current rating and a 10kA interrupting capacity at 240V, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection. This two-pole, feed-thru style breaker is constructed within a compact 7.7" x 5.4" x 4.5" frame and is certified to UL 489 standards for safety and performance. It is engineered for tenant main and other commercial applications, accommodating conductor sizes from 2 AWG to 300 KCMIL for both aluminum and copper wiring.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker (MCCB), Thermal Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 7.7 in (L) x 5.4 in (H) x 4.5 in (W)
  • Standards: UL 489 Listed
  • Applications: Tenant Main, Commercial Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Phase: 1
  • Amperage: 100A
  • AIC rating: 10kA @ 240V
  • Connection: Feed-Thru
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Wire Size: 2 AWG - 300 KCMIL (Aluminum/Copper)
  • Certification: UL 489
  • Weight: 3 lb


Product Identification
  • UPC: 786685368337
  • GTIN: 00786685368337
