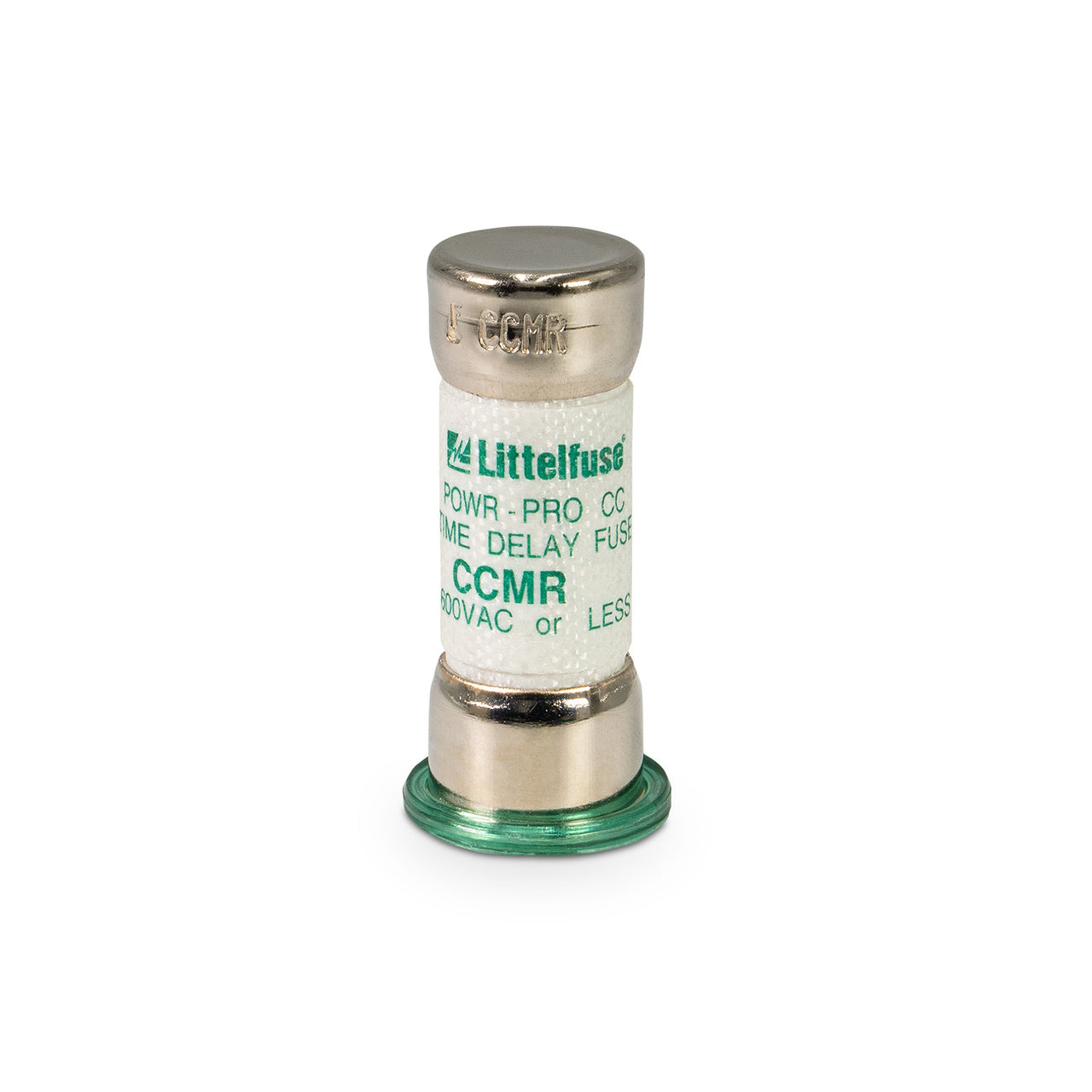

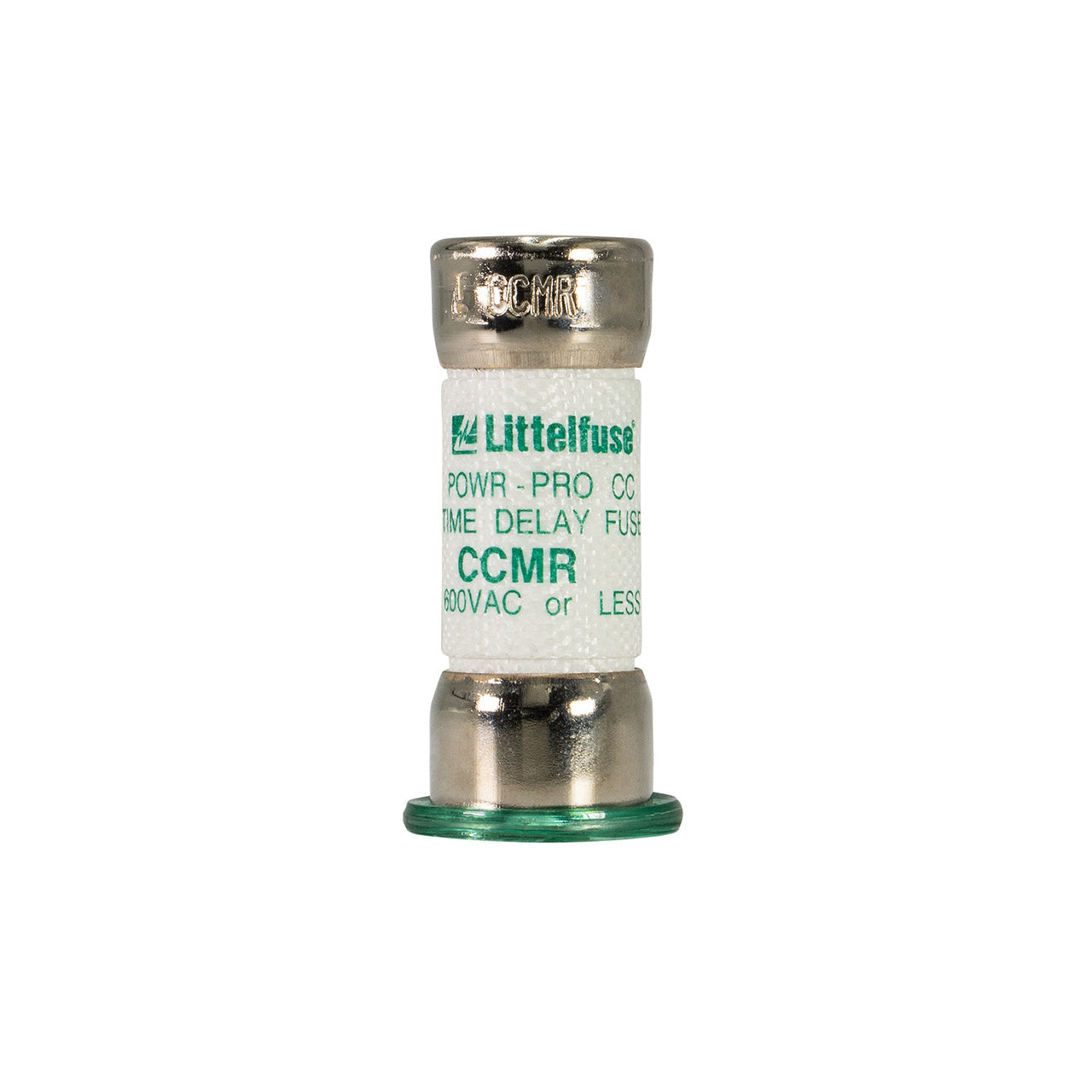

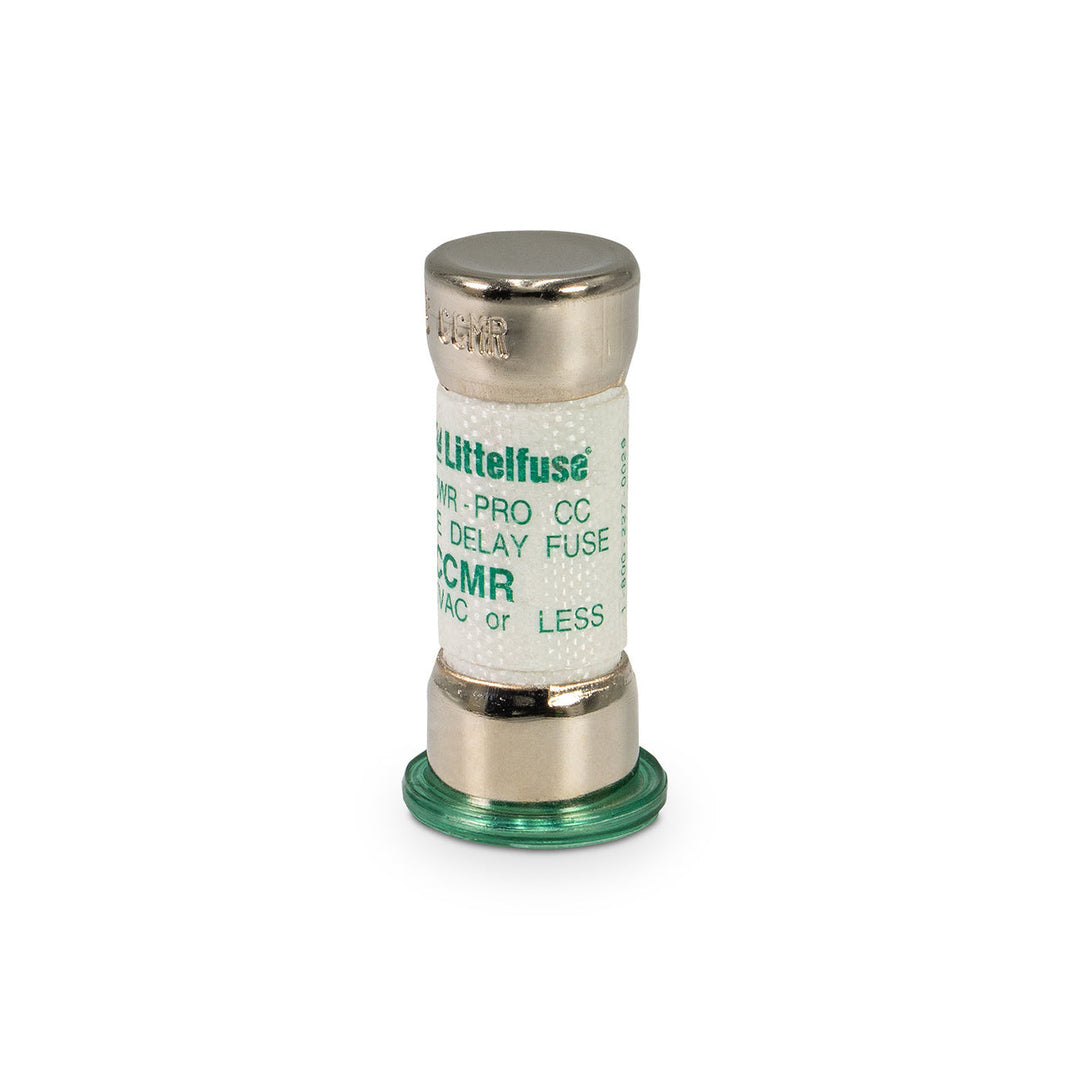

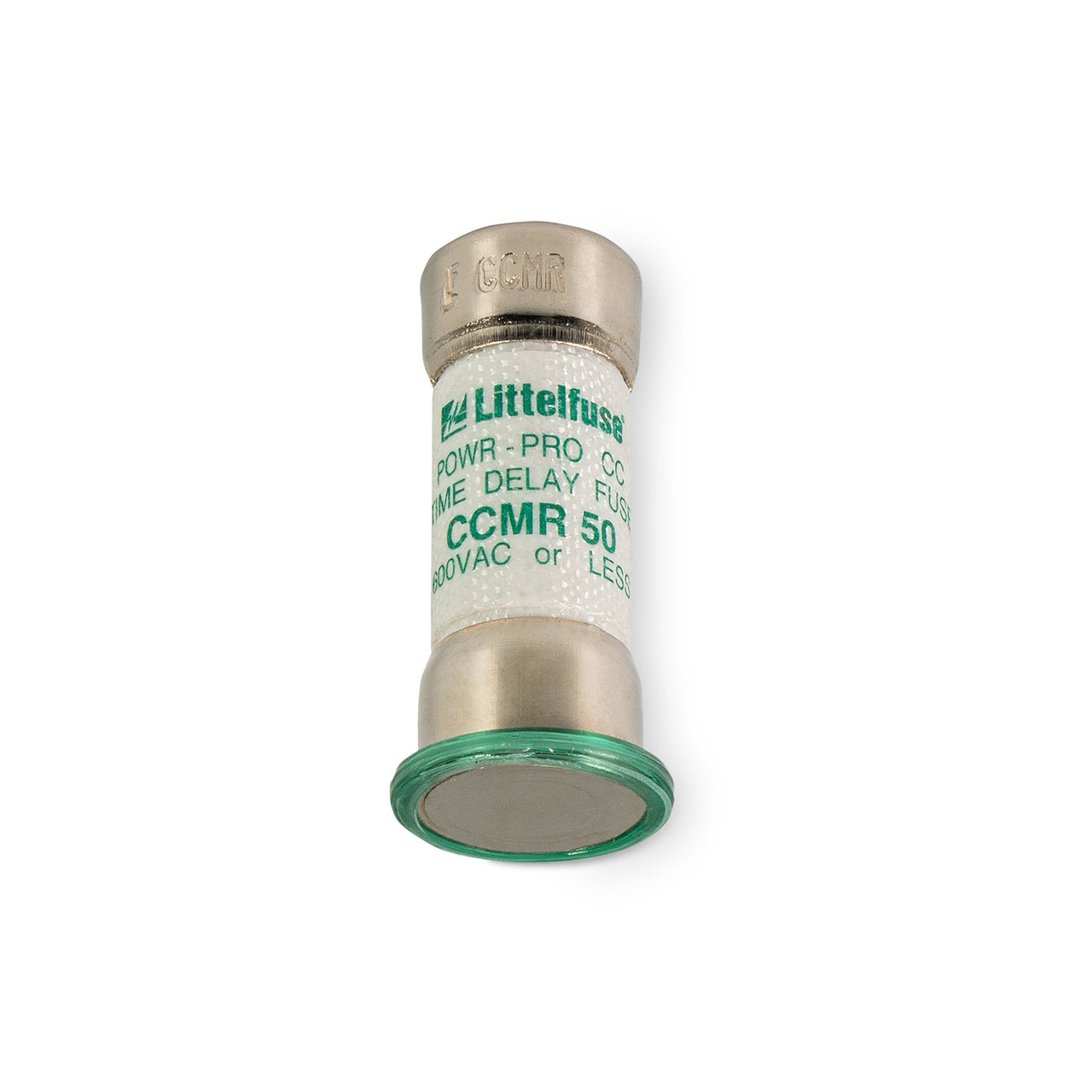

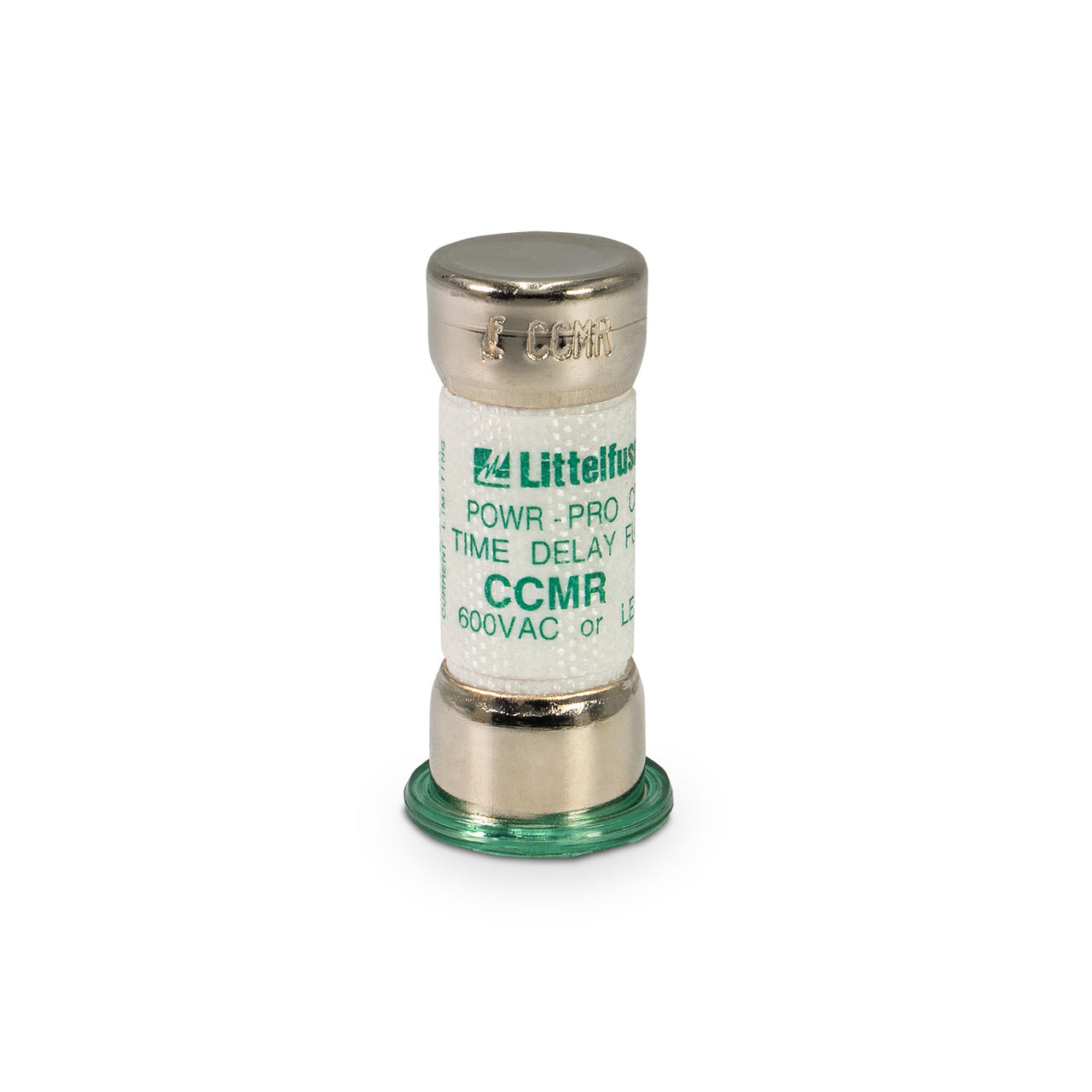

Littelfuse CCMR-060 is a low-voltage current-limiting fuse from the Powr-Gard family, designed for circuit protection in industrial applications. Rated for 600V AC/DC systems with a 60A current capacity, it features a ferrule connection and single-barrel construction with a compact 0.41-inch diameter. This Class CC/CD fuse meets industry standards with a 200kA interrupting rating at 600V, providing reliable short-circuit protection. Its robust design is suitable for motor control centers, industrial control panels, and power distribution systems requiring high fault current interruption.
Key Features & Specifications
Type: CCMR series current-limiting fuse with ferrule termination
Voltage Rating: 600V AC/DC
Current Rating: 60A
Dimensions: 0.41" diameter
Standards: UL/CSA recognized
Applications: Motor controls, industrial power distribution
Class Rating: CC/CD
Connection: Ferrule
Barrels: 1
AIC rating: 200kA@600V
Weight: 2 lb
Product Identification
UPC: 07945801710
GTIN: 00079458017106
Same-day Shipping Available
Same-day Delivery Availabile
24/7 Customer Support
Littelfuse CCMR-060 - Class CC/CD Fuse 60A 600V (200kA AIC)
