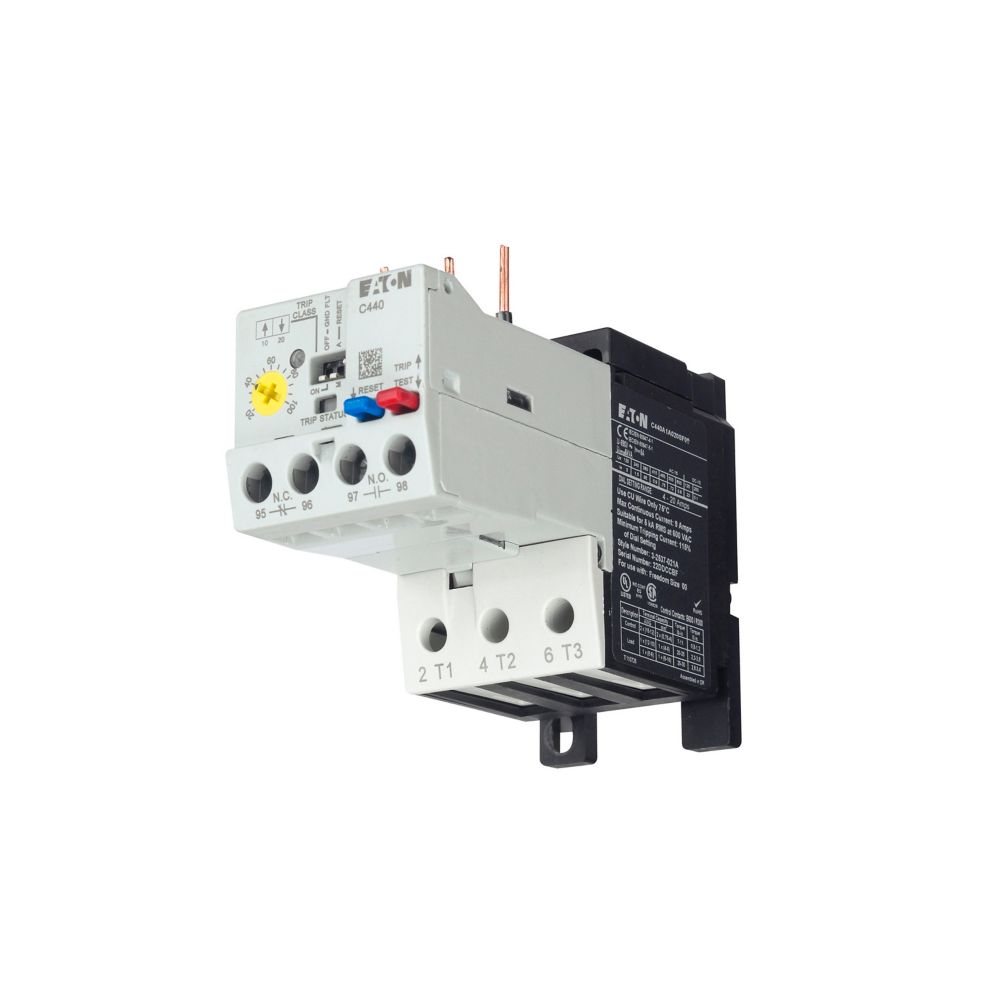

Eaton C440A1A020SF2 - Overload Relay 4-20A Solid State
Eaton C440A1A020SF2 - Overload Relay 4-20A Solid State

Eaton C440A1A020SF2 - Overload Relay 4-20A Solid State

Eaton
Price
Save $-18.84
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton C440A1A020SF2 is an electronic overload relay designed for motor protection with a solid-state relay style. It offers an adjustable current range from 4 to 20 amps and supports selectable trip classes 10, 20, and 30, with manual or automatic reset and phase loss protection. The device measures 4.32 inches in length, 3.8 inches in height, and 1.8 inches in width, weighing 0.87 lb, and mounts directly to Eaton AN19GNO and CN15GN3 starters and contactors. It is UL Listed, CSA Certified, and CE Marked for reliable performance. This overload relay is suitable for industrial motor control applications requiring precise current monitoring and protection.

Key Features & Specifications
  • Type: Overload Relay
  • Relay Style: Solid State
  • Amperage Minimum: 4
  • Amperage Maximum: 20
  • Dimensions: 4.32 in x 3.8 in x 1.8 in (Length/Depth x Height x Width)
  • Weight: 0.87 lb
  • Certification: UL Listed, CSA Certified, CE Marked
  • Country of Origin: Dominican Republic
  • Current Range: 4 to 20 Amps
  • Frame Size: 45mm, NEMA Size 2
  • Trip Classes: 10, 20, 30 selectable
  • Reset Type: Manual or Automatic
  • Mounting: Direct mount to AN19GNO or CN15GN3
  • Auxiliary Contacts: 1 Normally Open, 1 Normally Closed
  • Phase Loss Protection: Selectable ON/OFF


Product Identification
  • UPC: 786685411897
