C1FC10WE Hammond Power Solutions Commercial Encapsulated Distribution Transformer

C1FC10WE HPS Fortress Commercial Encapsulated Distribution Transformer

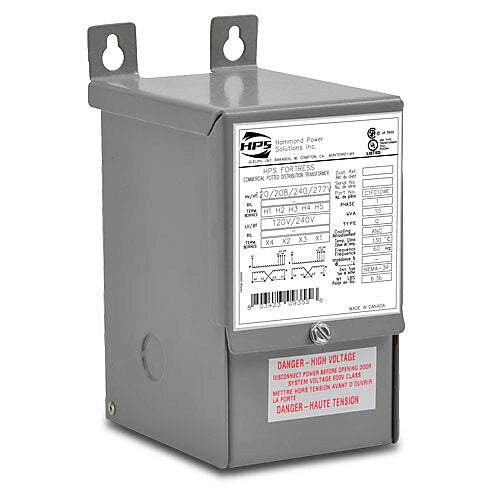

The C1FC10WE from Hammond Power Solutions is a 100 VA transformer for commercial single-phase power conversion. It accepts verified primary voltages of 120, 208, 240, and 277 V AC and delivers a 120/240 V AC secondary at 60 Hz.

For identification, look for the HPS Fortress name, the NQ0 case, and the exact C1FC10WE catalog number. This wall-mounted unit uses a Type 3R design and pigtail connections.

Common Applications

• Commercial transformer installations in offices and shopping facilities
• Power conversion needs for school and sports-complex electrical systems
• Lighting circuits within manufacturer-supported Fortress applications

Key Features

• Easy identification: The exact part is tied to the 100 VA, four-voltage primary configuration.
• Encapsulated assembly: Resin and electrical-grade silica sand protect the internal core and coil.
• Compact wall format: The catalog identifies an NQ0 case and wall mounting.
• Verified approvals: The applicable manufacturer range carries UL file E50394 and CSA file LR3902.

Specifications

• Capacity: 0.10 kVA, equivalent to 100 VA
• Number of Phases: One
• Input Voltage Options: 120/208/240/277 V AC
• Output Voltage: 120/240 V AC
• Line Frequency: 60 Hz
• Enclosure Type: Type 3R / NEMA 3R
• Housing Code: NQ0
• Installation: Wall mount
• Terminal Format: Pigtail
• Insulation: 130 deg C system with 80 deg C rise
• Electrostatic Shield: None
• Factory Fuse: None

Product Identification

• Exact Part: C1FC10WE
• Manufacturer Name: Hammond Power Solutions Inc.
• Family Name: HPS Fortress
• Manufacturer Case Dimensions: Approximately 3.69 W x 5.06 D x 7.19 H in
• Maximum Drawing Dimensions: 3.75 W x 5.25 D x 7.25 H in
• Manufacturer Catalog Weight: Approximately 7 lb
• UPC Code: 803423093556
• GTIN Code: 00803423093556
• UL Record: E50394
• CSA Record: LR3902

FAQ

What does C1FC10WE identify?

It identifies the 100 VA version of an HPS Fortress commercial encapsulated distribution transformer.

Can the primary use more than one voltage?

Yes. The documented primary selections are 120, 208, 240, and 277 V AC.

What is the rated output?

The transformer provides a 120/240 V AC secondary with a 60 Hz rating.

Is C1FC10WE intended for wall installation?

Yes. The manufacturer table assigns wall mounting to this exact catalog number.

What identifiers can help confirm the exact item?

Use catalog number C1FC10WE with UPC 803423093556 or GTIN 00803423093556 to check the item.
