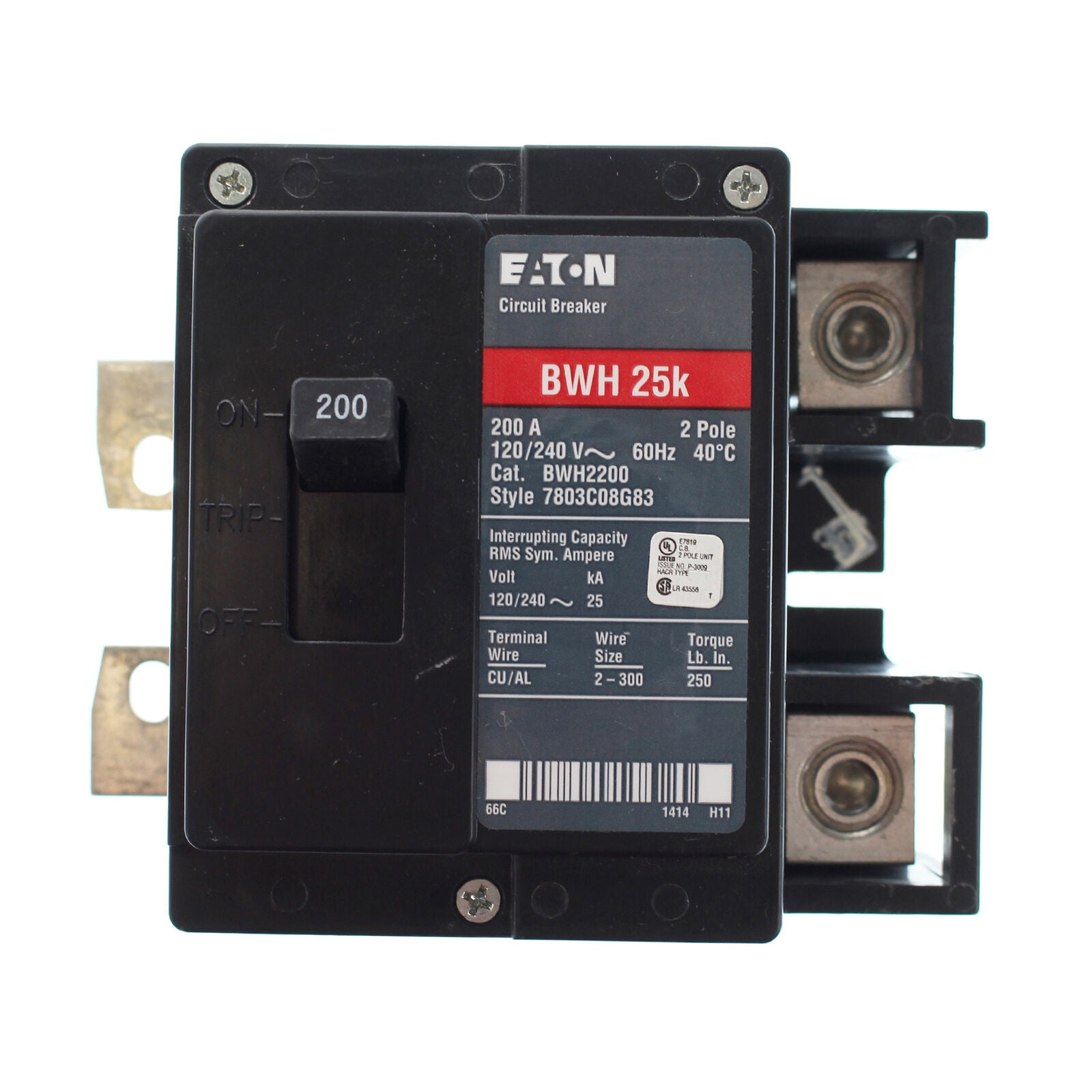

Cutler Hammer BWH2200 - Molded Case Circuit Breaker (200A, 240V)
Cutler Hammer BWH2200 - Molded Case Circuit Breaker (200A, 240V)

Cutler Hammer BWH2200 - Molded Case Circuit Breaker (200A, 240V)

Cutler Hammer
Price
Save $1,999.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BWH2200 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 200A current rating and a 240V AC voltage rating, with a 25kA interrupting capacity at that voltage for robust fault protection. The breaker is constructed with a compact, bolt-on design measuring 6.25 x 5.25 x 5.25 inches and weighing 2.75 lb, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous (LI) functions. It complies with UL 489 and Federal Specification W-C375 standards, ensuring safety and reliability. This unit is typically applied in panelboards and switchboards for main or branch circuit protection, compatible with copper or aluminum conductors from AWG 2 to 300 kcmil and rated for operation from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 6.25 in (L) x 5.25 in (H) x 5.25 in (W)
  • Standards: UL 489, Federal Specification W-C375
  • Applications: Industrial/Commercial Panelboards & Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 25kA @ 240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time & Instantaneous Trip (LI)
  • Wire Size: AWG 2 to 300 kcmil, Cu/Al
  • Certification: UL 489, Federal Specifications Classification W-C375
  • Family: BWH Series
  • Country of Origin: Dominican Republic
  • Weight: 2.75 lb


Product Identification
  • UPC: 786676460606
  • GTIN: 00786676460606
