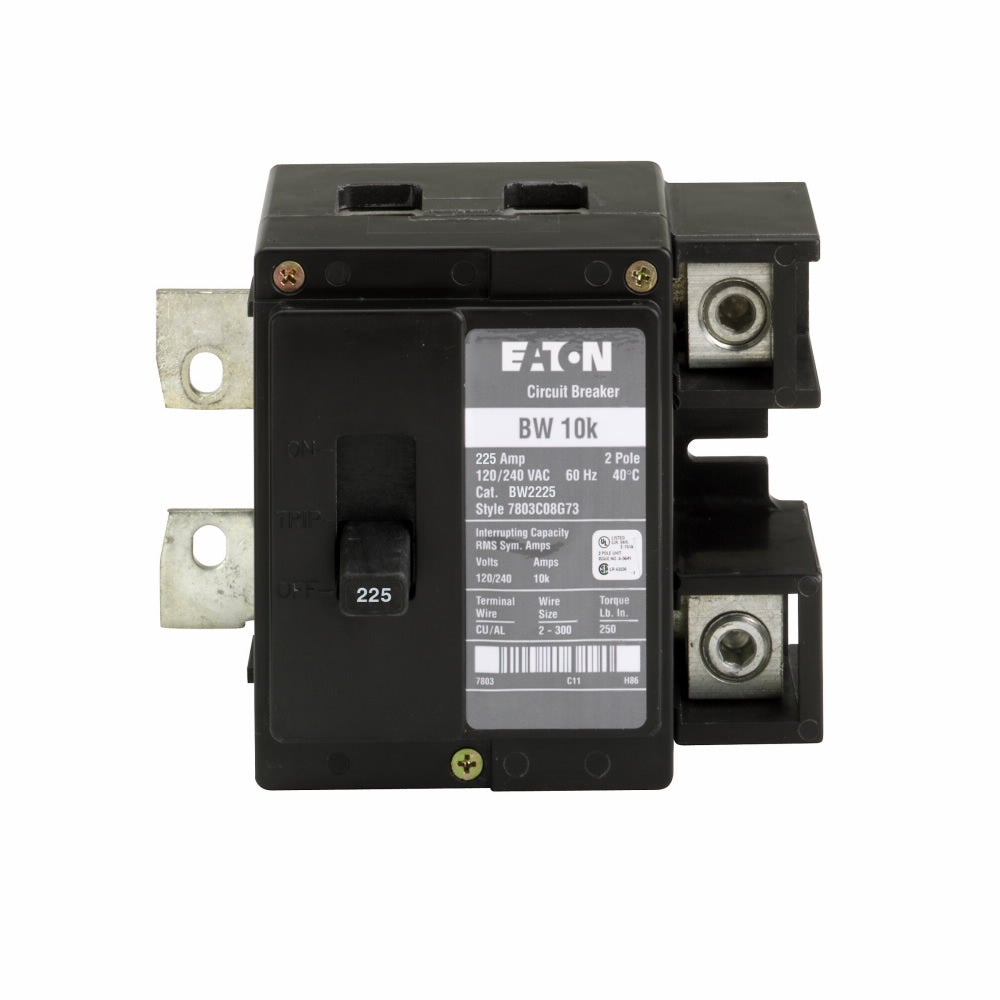

Cutler Hammer BW2225 - Molded Case 225A 2-Pole Breaker
Cutler Hammer BW2225 - Molded Case 225A 2-Pole Breaker

Cutler Hammer BW2225 - Molded Case 225A 2-Pole Breaker

Cutler Hammer
Price
Save $859.50
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BW2225 is a 2-pole molded case circuit breaker from the BW Series, designed for thermal magnetic overcurrent protection in single-phase applications. It is rated for 225A continuous current at 240VAC with a 10kA interrupting capacity, utilizing a bolt-on connection and accommodating wire sizes from #2 AWG to 300 kcmil copper or aluminum. The unit measures 6.25 inches in depth, 5 inches in height, and 5.25 inches in width, weighing 2.75 lb, and is constructed for operation within a temperature range of -13°F to 158°F (-25°C to 70°C). It is UL 489 certified and manufactured in the Dominican Republic, providing long-time and instantaneous trip functions for reliable circuit protection. This breaker is suitable for industrial panelboards and distribution equipment requiring a compact, high-amperage thermal magnetic solution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BW Series
  • Voltage Rating: 240V
  • Current Rating: 225A
  • Dimensions: 6.25 in x 5 in x 5.25 in (Length/Depth x Height x Width)
  • Standards: UL 489
  • Applications: Industrial panelboards, distribution equipment
  • Poles: 2
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Wire Size: #2 AWG to 300 kcmil CU/AL
  • AIC Rating: 10kA@240V
  • Phase: 1
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Functions: Long Time and Instantaneous Trip
  • Weight: 2.75 lb


Product Identification
  • UPC: 786679122556
  • GTIN: 00786679122556
