Eaton BRP120AF - 1-Pole Circuit Breaker 20A 120V (10kA AIC)

Eaton
Price
Save $483.31
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

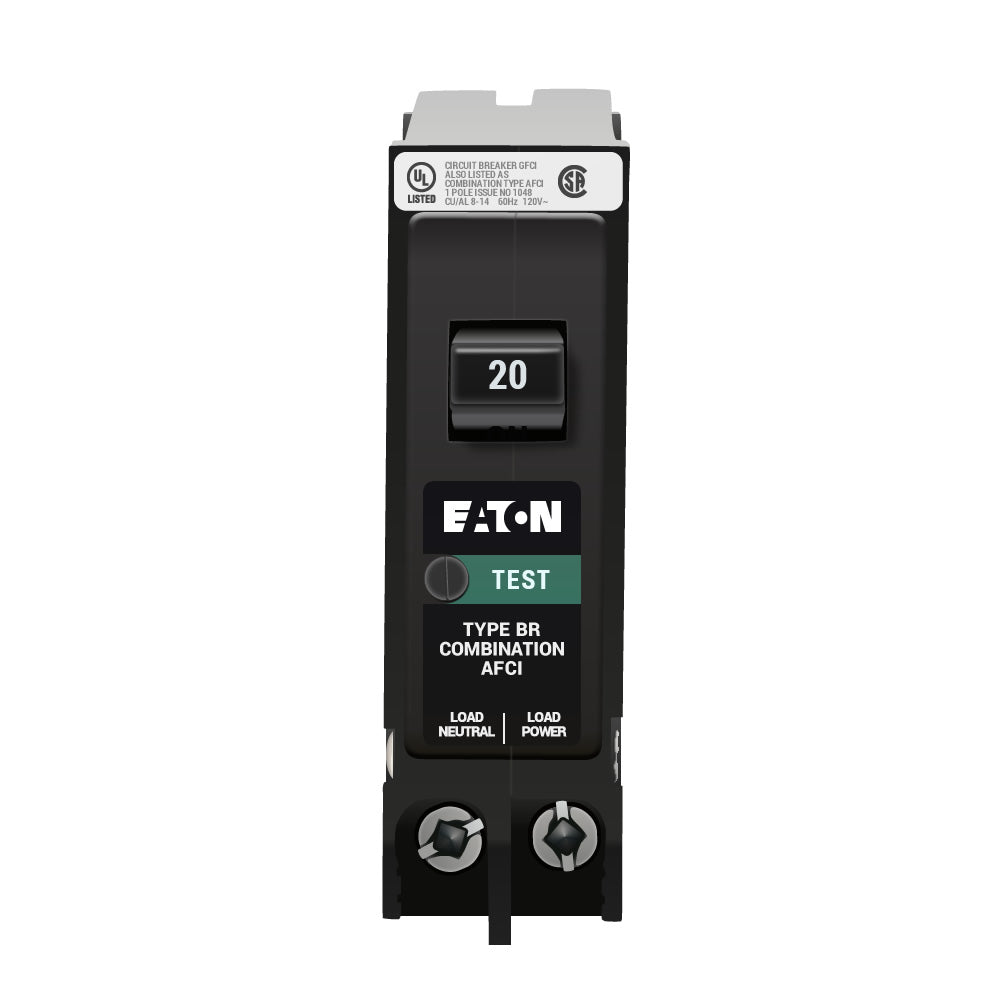

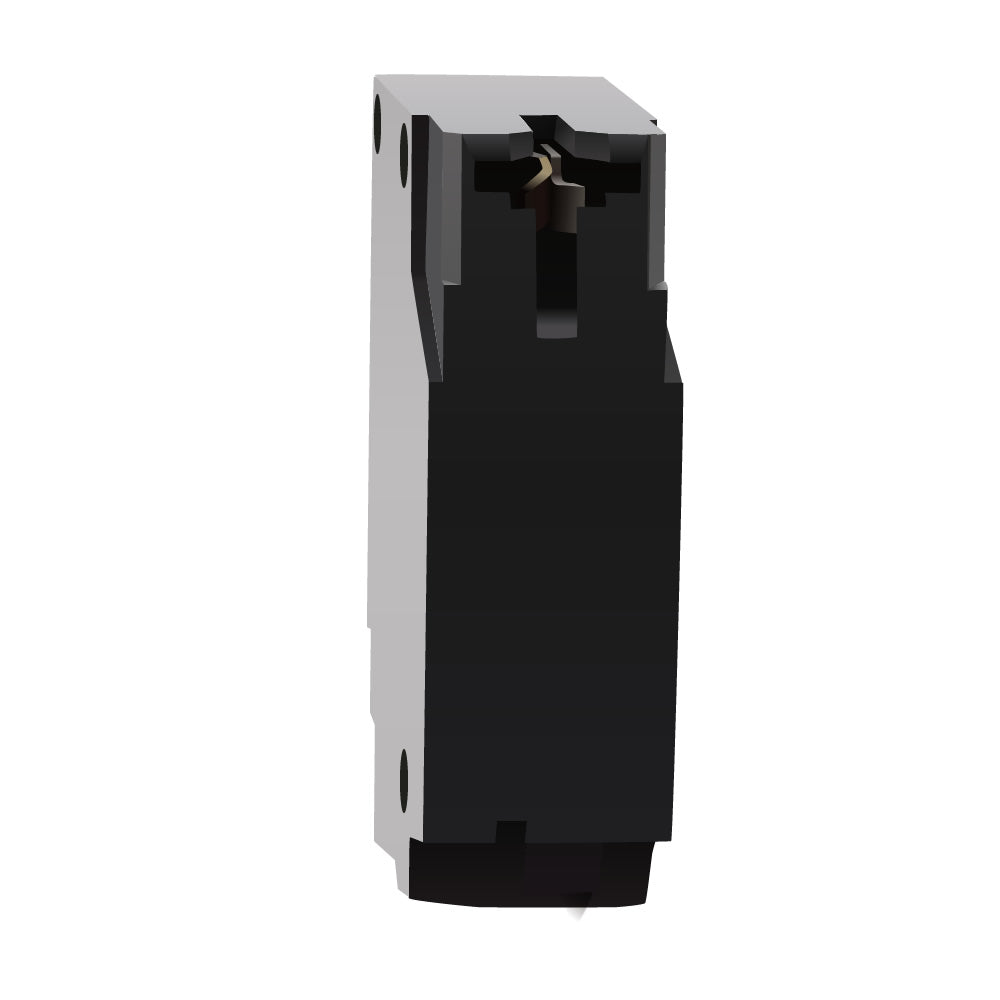

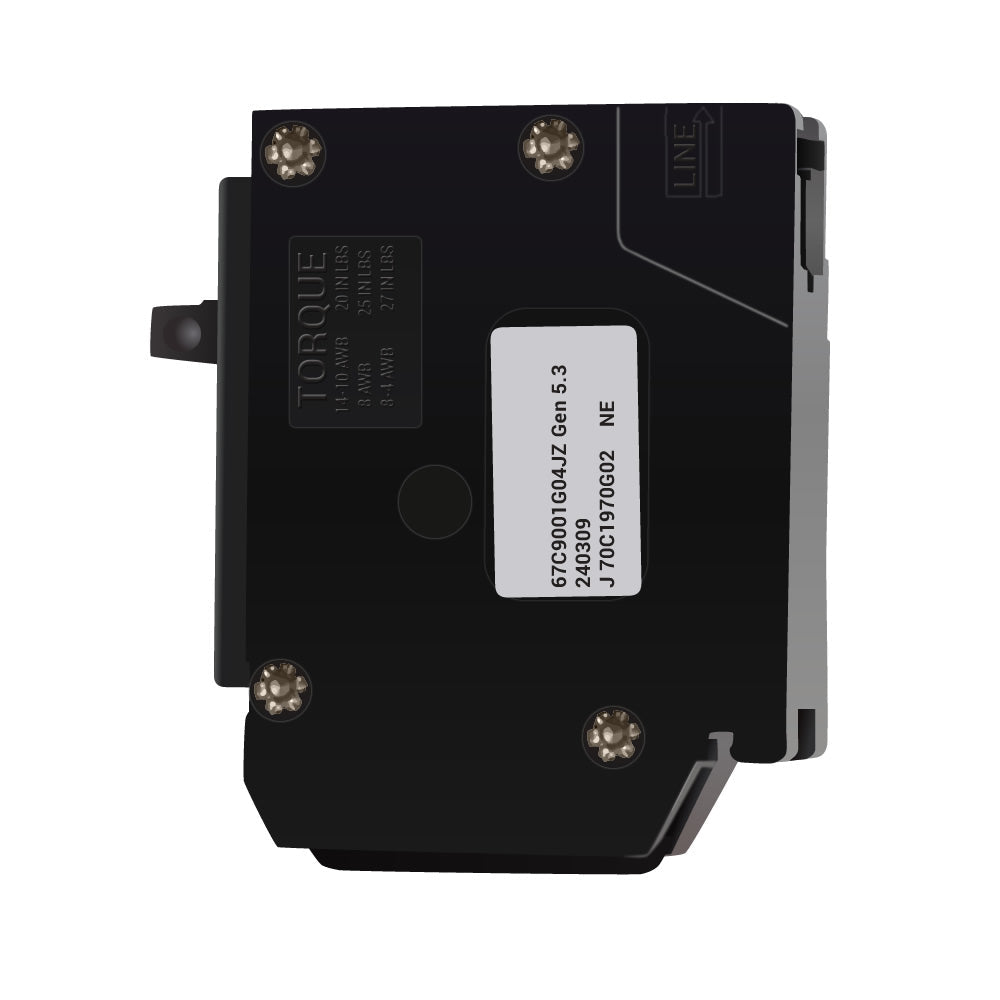

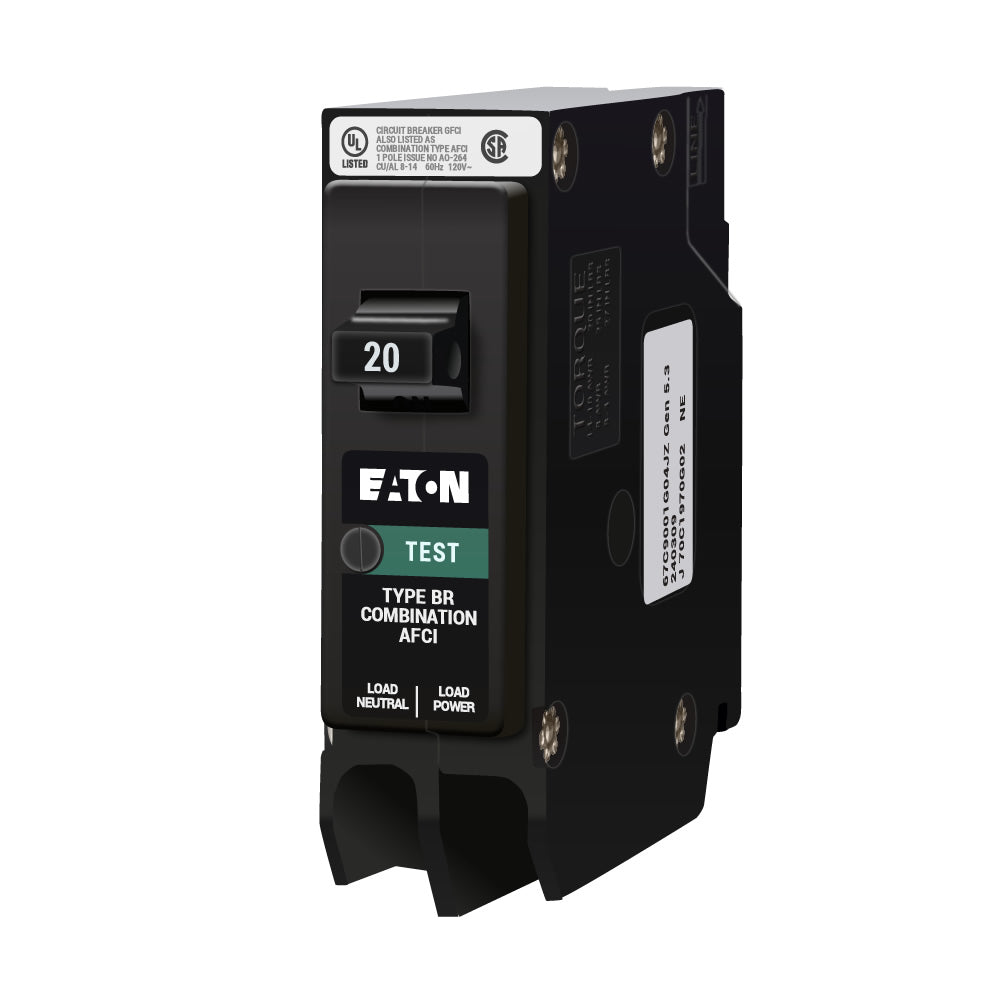

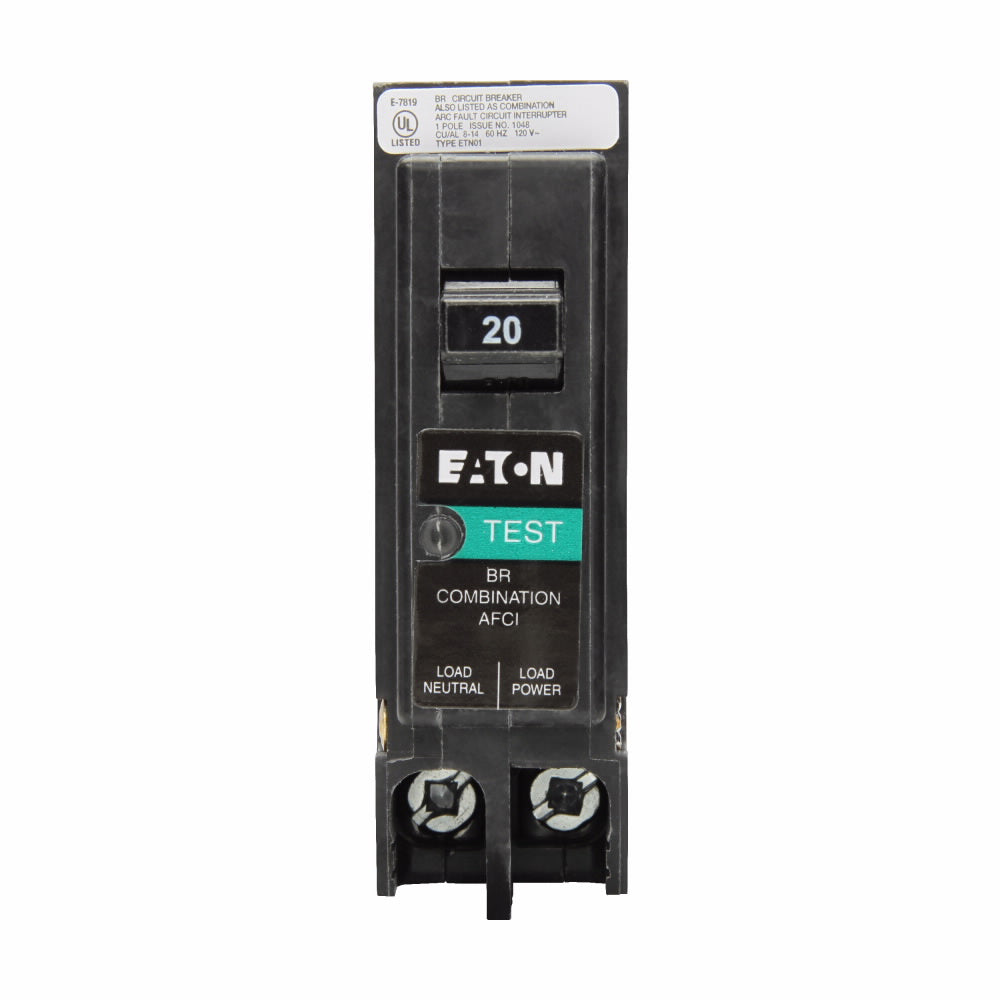

Eaton BRP120AF is a single-pole, plug-in molded case circuit breaker designed to provide reliable overcurrent protection for 120V AC branch circuits in residential and light commercial Type BR loadcenters. It features a 20A current rating with a 10kA interrupting capacity and utilizes a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection against overloads and short circuits. The compact unit measures 3-1/2 inches by 1-1/8 inches, weighs 0.45 lb, and features plug-on terminals compatible with #14 to #8 AWG copper or aluminum wire. This UL-listed breaker is manufactured in the United States to meet industry safety standards for electrical distribution equipment.

Key Features & Specifications
  • Type: Single-pole (1P), plug-in, molded case circuit breaker with thermal-magnetic protection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 3-1/2 in H x 1-1/8 in W
  • Standards: UL Listed
  • Applications: Overcurrent protection in Type BR loadcenters for residential/light commercial branch circuits
  • Breaker Type: BR Series
  • AIC Rating: 10kA @ 120V
  • Connection: Plug-On terminal
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Phase: 1
  • Wire Size: #14-8 AWG Cu/Al
  • Certification: UL Listed
  • Weight: 0.45 lb
  • Country of Origin: United States


Product Identification
  • UPC: 786689041021
  • GTIN: 00786689041021
