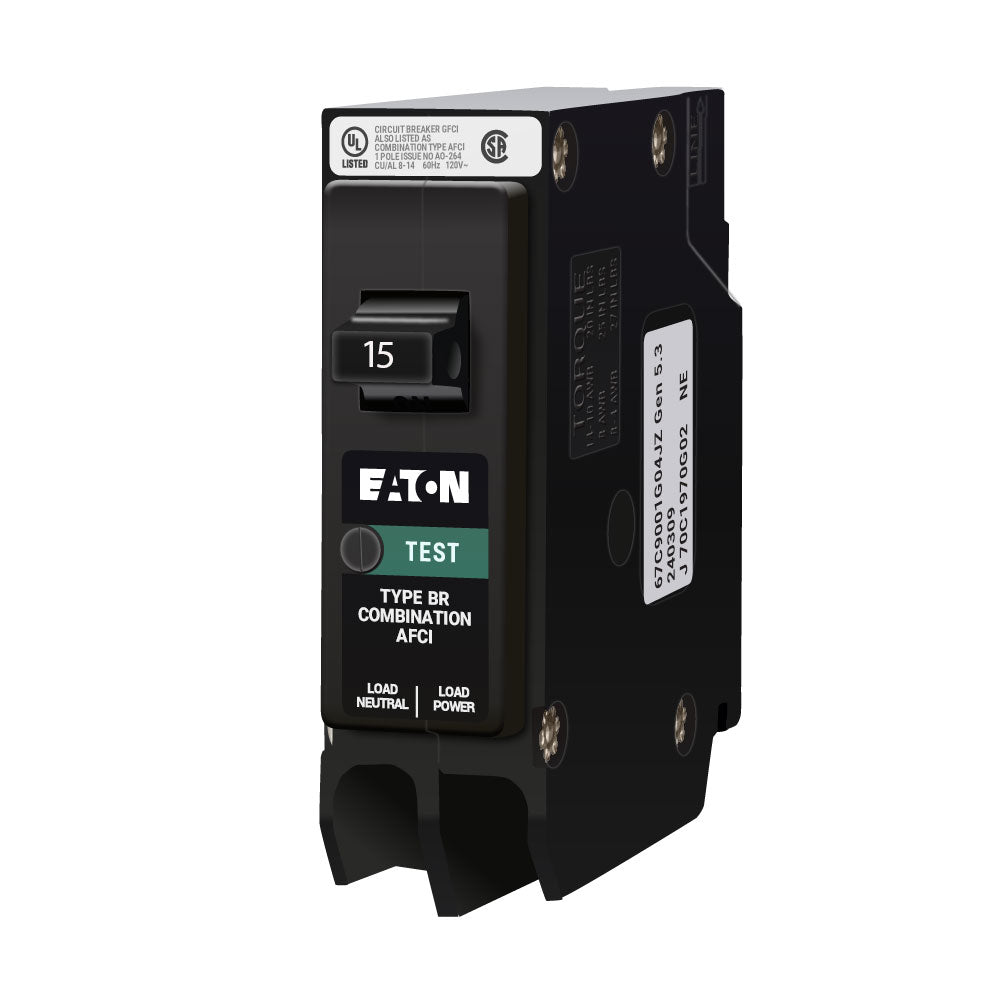

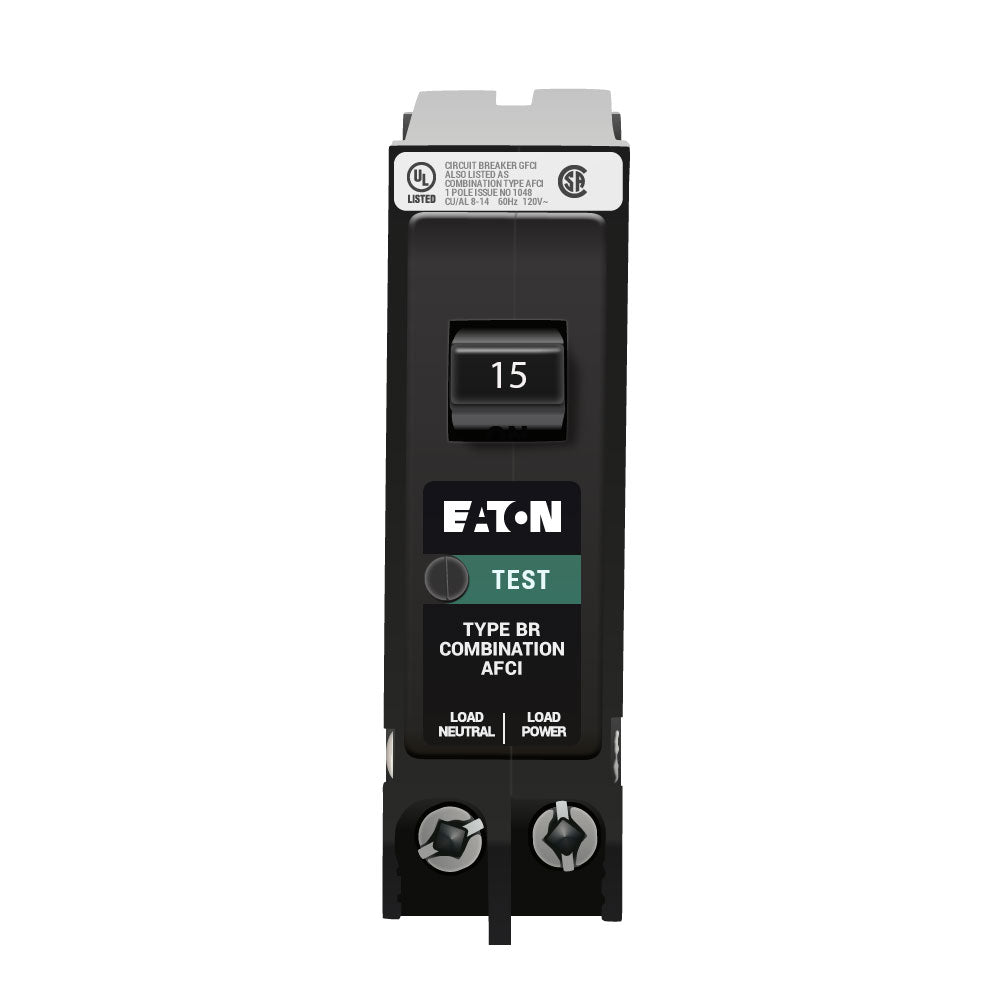

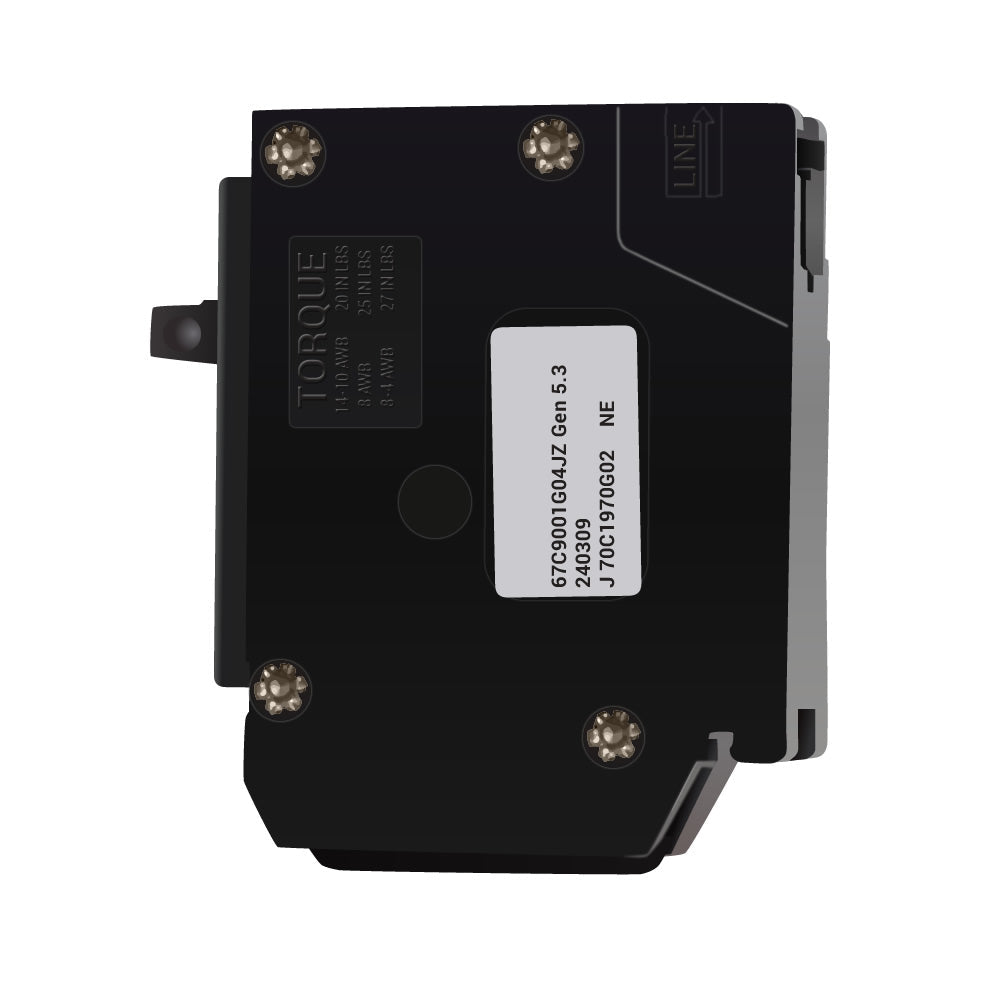

Eaton BRP115AF is a 1-pole, 15A Type BR combination arc fault circuit interrupter (AFCI) designed to protect branch circuits from parallel and series arcing faults. This thermal-magnetic molded case breaker is rated for 120V AC with a 10kA interrupting capacity at 120V, providing long time and instantaneous trip functions for overload and short circuit protection. The unit measures 2.56 inches by 1.1 inches, weighs 0.45 lb, and features plug-on terminal connections accepting #14-8 AWG copper or aluminum wire. It is UL Listed and certified for use in Eaton Type BR loadcenters, meeting residential and light commercial safety standards. Typical applications include protecting bedroom, living room, and other general-purpose circuits in Type BR panelboards.

Key Features & Specifications
  • Type: Combination Arc Fault Circuit Interrupter (AFCI), thermal-magnetic, molded case
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Dimensions: 2.56 in x 1.1 in
  • Standards: UL Listed
  • Applications: Branch circuit protection in Type BR loadcenters for residential and light commercial
  • Switch Type: Toggle
  • Configuration: 1-pole
  • Coil Voltage Maximum: N/A
  • Temp Rating: N/A
  • Shipping Dimensions: N/A
  • Phase: 1
  • Voltage: 120V
  • Amperage: 15A
  • AIC rating: 10kA@120V
  • Connection: Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: Type BR
  • Trip Type: AFCI Combination circuit breaker
  • Panel Type: Type BR Loadcenters
  • Breaker Type: Combination Arc Fault Circuit Interrupter
  • Control Voltage Minimum: N/A
  • Control Voltage Maximum: N/A
  • MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Metal Type: N/A
  • Panel Style: N/A
  • Bus Type: N/A
  • Fuse Class: N/A
  • Insulation Temperature: N/A
  • Inductance: N/A
  • Impedance: N/A
  • Barrels: N/A
  • Class Rating: N/A
  • Diameter: N/A
  • Velocity: N/A
  • Clip Center: N/A
  • Clas: N/A
  • Mounting: Plug-On
  • Hz: 60 Hz (typical)
  • Coil Material: N/A
  • Horse Power: N/A
  • Aux Contacts: N/A
  • CPT: N/A
  • Full Load Amps: N/A
  • Dist Voltage: N/A
  • Bucket Size: N/A
  • Bucket Style: N/A
  • Bucket Type: N/A
  • Full Load Amp Maximum: N/A
  • Full Load Amp Minimum: N/A
  • Enclosure: N/A
  • Relay Style: N/A
  • Coil Voltage Minimum: N/A
  • Wire: #14-8 AWG Cu/Al
  • Amperage Maximum: 15A
  • Amperage Minimum: N/A
  • Nema Rating: N/A
  • Switch Style: Toggle
  • Wire Size: #14-8 AWG Cu/Al
  • Certification: UL
  • Circuit Breaker Mounting Style: Plug-On
  • Terminal Connection: Plug-On
  • Frequency Rating: 60 Hz
  • Phase Connection: 1-pole
  • Standards: UL Listed
  • Compatible Frames: Type BR
  • Installation Type: Plug-In
  • Item QTY: 1
  • Nema Starter Size: N/A
  • Breaker Frame: Type BR
  • Current Rating: 15A
  • Reverse Standoff Voltage: N/A
  • Watts: N/A
  • Peak Pulse Current: N/A
  • Breakdown Voltage (MIN VBR@IT ) (V): N/A
  • Breakdown Voltage (VBR@IT) (V): N/A
  • Polarity: N/A
  • Operating Temperature Maximum Celsius: N/A
  • Max Clamp Voltage: N/A
  • On-State Current: N/A


Product Identification
  • UPC: 786689041014
  • GTIN: 00786689041014
