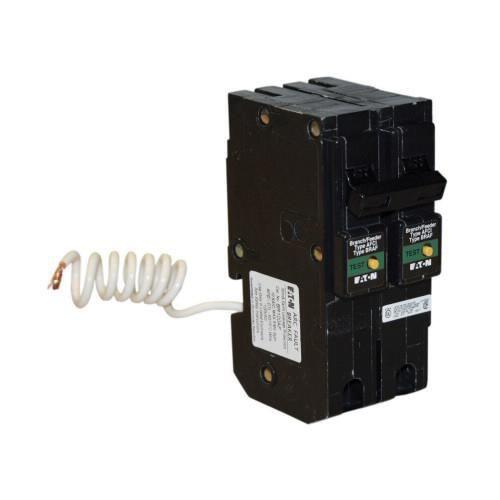

Eaton BRL220CAF - 20A 2-Pole AFCI Breaker 120V
Eaton BRL220CAF - 20A 2-Pole AFCI Breaker 120V

Eaton BRL220CAF - 20A 2-Pole AFCI Breaker 120V

Cutler Hammer
Price
Save $1,096.92
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton BRL220CAF is a 20A, 2-pole molded case circuit breaker from the BR Series, designed to provide thermal-magnetic overcurrent and arc fault protection for branch circuits. It operates at 120V with a 10kA interrupting capacity, supporting wire sizes from #14 to 4 AWG copper or aluminum via a plug-in connection. The unit measures 6 in x 1.25 in x 2.5 in (Length/Depth x Height x Width), weighs 0.45 lb, and features long time and instantaneous trip functions. It is UL 1699 listed and meets Federal Specifications Classification W-C375, with an operating temperature range of -13°F to 158°F (-25°C to 70°C). This breaker is suitable for single-phase residential or light commercial panelboards requiring arc fault circuit interruption.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic, Arc Fault
  • Voltage Rating: 120V
  • Current Rating: 20A
  • Dimensions: 6 in x 1.25 in x 2.5 in (Length/Depth x Height x Width)
  • Standards: UL 1699, Federal Specifications Classification W-C375
  • Applications: Branch circuit protection in residential and light commercial panels
  • Switch Type: Toggle
  • Configuration: 2-Pole
  • Coil Voltage Maximum: N/A
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Shipping Dimensions: 6 in x 1.25 in x 2.5 in
  • Phase: 1
  • Voltage: 120V
  • Amperage: 20A
  • AIC rating: 10kA@120V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: BR
  • Trip Type: Thermal Magnetic
  • Panel Type: BR Loadcenter
  • Breaker Type: Arc Fault Circuit Interrupter (AFCI)
  • Control Voltage Minimum: N/A
  • Control Voltage Maximum: N/A
  • MCM Size: N/A
  • Metal Type: N/A
  • Panel Style: N/A
  • Bus Type: N/A
  • Fuse Class: N/A
  • Insulation Temperature: N/A
  • Inductance: N/A
  • Impedance: N/A
  • Barrels: N/A
  • Class Rating: N/A
  • Diameter: N/A
  • Velocity: N/A
  • Clip Center: N/A
  • Clas: N/A
  • Mounting: Plug-In
  • Hz: 60 Hz
  • Coil Material: N/A
  • Horse Power: N/A
  • Aux Contacts: N/A
  • CPT: N/A
  • Full Load Amps: N/A
  • Dist Voltage: N/A
  • Bucket Size: N/A
  • Bucket Style: N/A
  • Bucket Type: N/A
  • Full Load Amp Maximum: N/A
  • Full Load Amp Minimum: N/A
  • Enclosure: N/A
  • Relay Style: N/A
  • Coil Voltage Minimum: N/A
  • Wire: #14 to 4 AWG CU/AL
  • Amperage Maximum: 20A
  • Amperage Minimum: N/A
  • Nema Rating: N/A
  • Switch Style: Toggle
  • Wire Size: #14 to 4 AWG CU/AL
  • Certification: UL 1699, Federal Specifications Classification W-C375
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Plug-In
  • Frequency Rating: 60 Hz
  • Phase Connection: Single Phase
  • Standards: UL 1699, Federal Specifications Classification W-C375
  • Compatible Frames: BR Loadcenters
  • Installation Type: Plug-In
  • Item QTY: 1
  • Nema Starter Size: N/A
  • Breaker Frame: BR
  • Current Rating: 20A
  • Reverse Standoff Voltage: N/A
  • Watts: N/A
  • Peak Pulse Current: N/A
  • Breakdown Voltage (MIN VBR@IT ) (V): N/A
  • Breakdown Voltage (VBR@IT) (V): N/A
  • Polarity: N/A
  • Operating Temperature Maximum Celsius: 70 °C
  • Max Clamp Voltage: N/A
  • On-State Current: N/A


Product Identification
  • UPC: 78668549516
  • GTIN: 00786685495163
