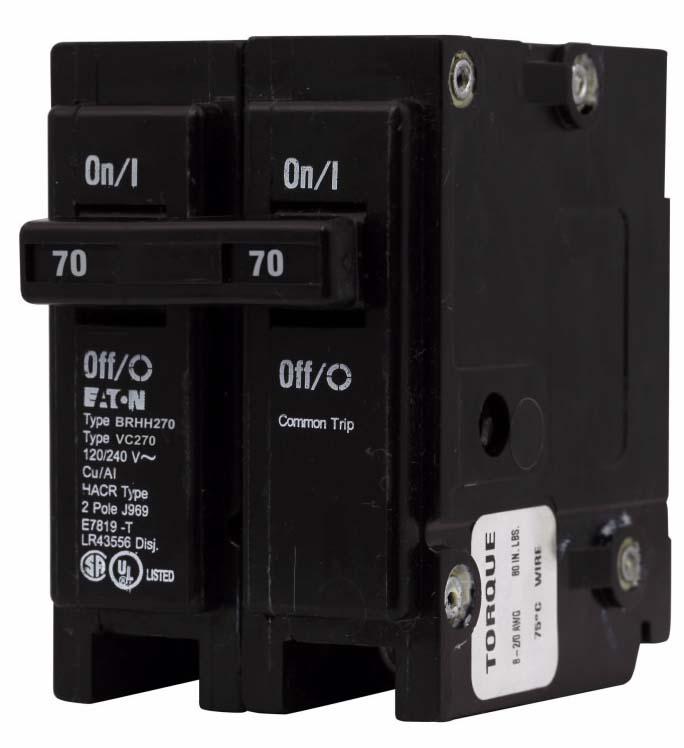

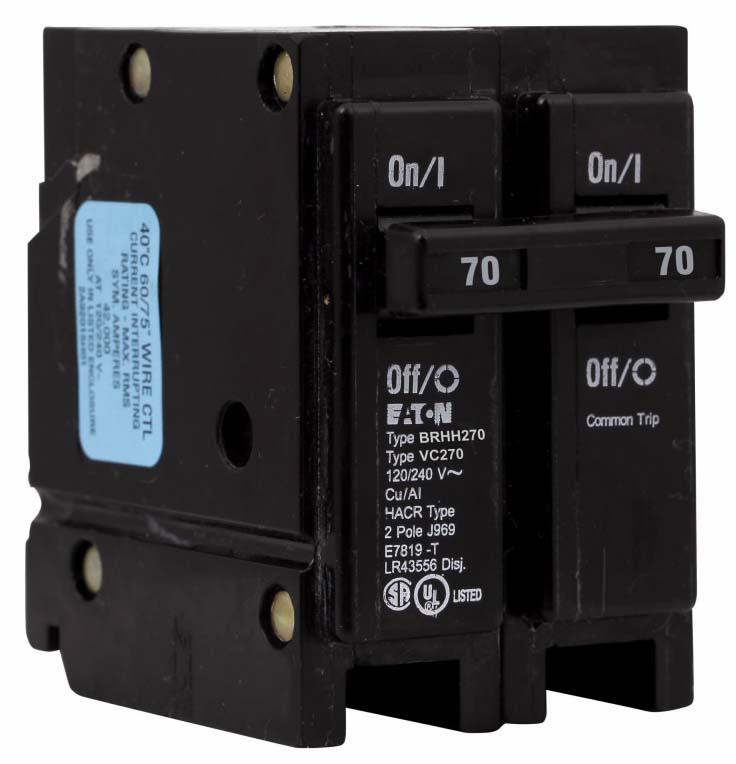

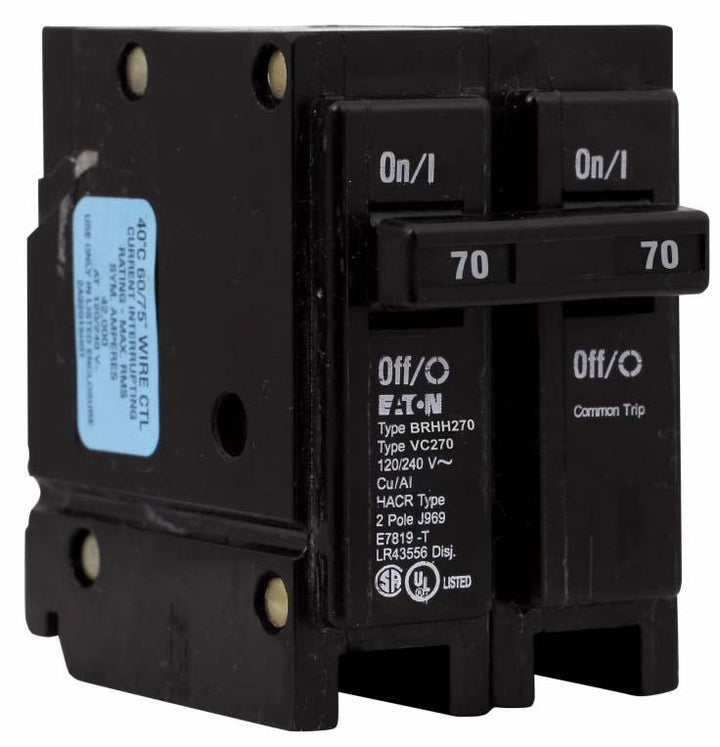

Cutler Hammer BRHH270 - 70A Thermal Magnetic Breaker (42kA AIC)
Cutler Hammer BRHH270 - 70A Thermal Magnetic Breaker (42kA AIC)
Cutler Hammer BRHH270 - 70A Thermal Magnetic Breaker (42kA AIC)
Cutler Hammer BRHH270 - 70A Thermal Magnetic Breaker (42kA AIC)
Cutler Hammer BRHH270 - 70A Thermal Magnetic Breaker (42kA AIC)
Cutler Hammer BRHH270 - 70A Thermal Magnetic Breaker (42kA AIC)

Cutler Hammer BRHH270 - 70A Thermal Magnetic Breaker (42kA AIC)

Cutler Hammer
Price
Save $506
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

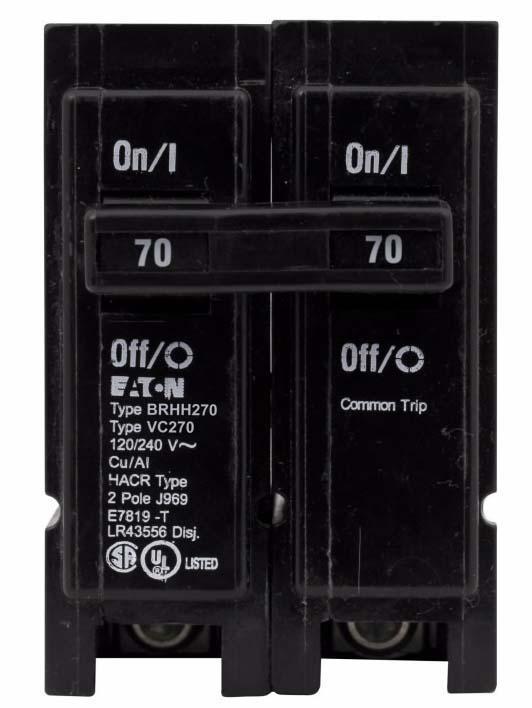

Cutler Hammer BRHH270 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 70A current rating and a 240V AC voltage rating for single-phase applications, with a high interrupting capacity of 42kA. The compact, plug-in unit measures 2.5" x 3" x 2" and is constructed with a thermal-magnetic trip mechanism for both long-time and instantaneous protection. It complies with UL 489 and Federal Specification W-C376 standards, ensuring robust performance. This breaker is typically applied in panelboards and switchboards to protect feeders and branch circuits, accepting copper or aluminum conductors from AWG 4 to 1/0.

Key Features & Specifications
  • Type: BRHH Series, Molded Case, Thermal-Magnetic, Plug-In
  • Voltage Rating: 240V AC
  • Current Rating: 70A
  • Dimensions: 2.5 in (D) x 3 in (H) x 2 in (W)
  • Standards: UL 489, Federal Specification W-C376
  • Applications: Industrial/Commercial Panelboards & Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • AIC Rating: 42kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: BR
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: AWG 4 to AWG 1/0, Cu/Al
  • Certification: UL 489
  • Weight: 0.6 lb
  • Country of Origin: United States


Product Identification
  • UPC: 786676382700
  • GTIN: 00786676382700
