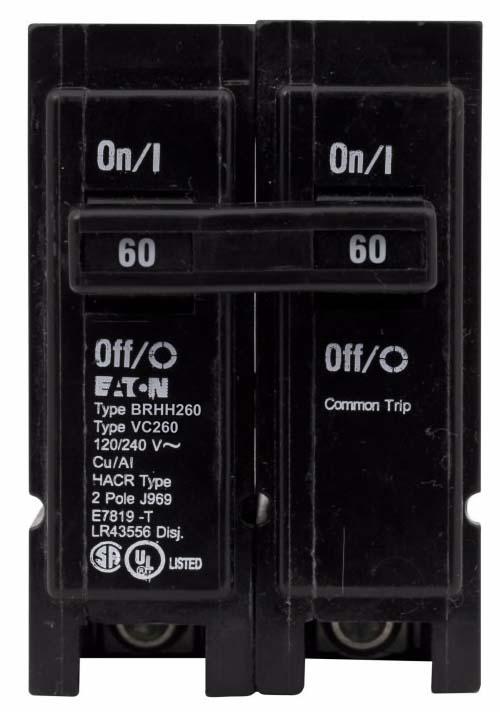

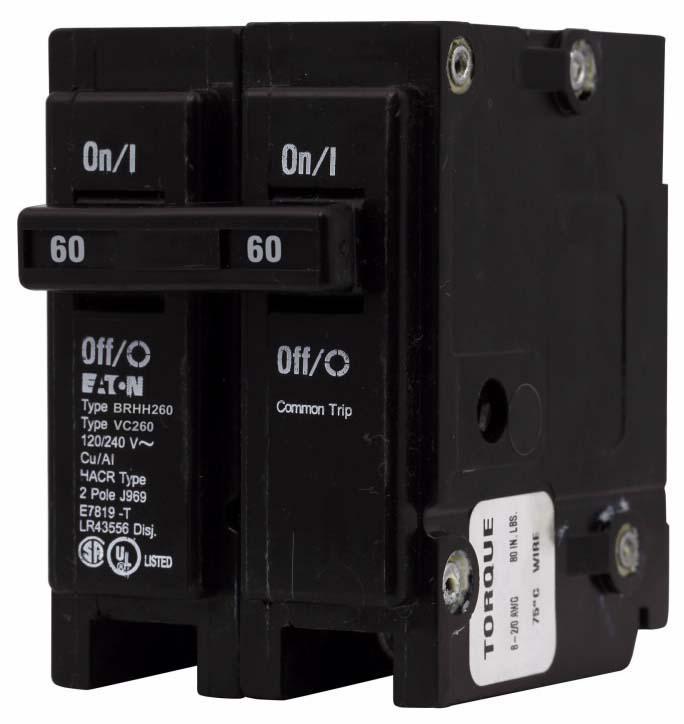

Cutler Hammer BRHH260 - Molded Case 60A 2-Pole 240V Breaker
Cutler Hammer BRHH260 - Molded Case 60A 2-Pole 240V Breaker
Cutler Hammer BRHH260 - Molded Case 60A 2-Pole 240V Breaker
Cutler Hammer BRHH260 - Molded Case 60A 2-Pole 240V Breaker
Cutler Hammer BRHH260 - Molded Case 60A 2-Pole 240V Breaker
Cutler Hammer BRHH260 - Molded Case 60A 2-Pole 240V Breaker

Cutler Hammer BRHH260 - Molded Case 60A 2-Pole 240V Breaker

Cutler Hammer
Price
Save $481.75
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BRHH260 is a 2-pole, 60A molded case circuit breaker from the BR Series, designed for thermal-magnetic overcurrent protection in residential and light commercial applications. It operates at 240V with a high interrupting capacity of 42kA at 240V, supporting wire sizes from AWG 4 to AWG 1/0 (Cu/Al) via plug-in connections. The breaker measures 2.4 in x 2.75 in x 2 in (Length/Depth x Height x Width), weighs 0.8 lb, and features long time and instantaneous trip functions for coordinated protection. It is UL 490 listed and meets Federal Specifications Classification W-C376, with an operating temperature range of -13°F to 158°F (-25°C to 70°C). This single-phase unit is commonly used in load centers and panelboards for branch circuit protection in industrial and commercial environments.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic, Plug-In
  • Voltage Rating: 240V
  • Current Rating: 60A
  • Dimensions: 2.4 in x 2.75 in x 2 in (Length/Depth x Height x Width)
  • Standards: UL 490, Federal Specifications Classification W-C376
  • Applications: Branch circuit protection in load centers and panelboards
  • Switch Type: Breaker
  • Configuration: 2-Pole
  • Coil Voltage Maximum: N/A
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Shipping Dimensions: N/A
  • Phase: 1
  • Voltage: 240V
  • Amperage: 60A
  • AIC rating: 42kA@240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: BR
  • Trip Type: Thermal Magnetic
  • Panel Type: Load Center
  • Breaker Type: Molded Case
  • Control Voltage Minimum: N/A
  • Control Voltage Maximum: N/A
  • MCM Size: N/A
  • Metal Type: N/A
  • Panel Style: N/A
  • Bus Type: N/A
  • Fuse Class: N/A
  • Insulation Temperature: N/A
  • Inductance: N/A
  • Impedance: N/A
  • Barrels: N/A
  • Class Rating: N/A
  • Diameter: N/A
  • Velocity: N/A
  • Clip Center: N/A
  • Clas: N/A
  • Mounting: Plug-In
  • Hz: 60
  • Coil Material: N/A
  • Horse Power: N/A
  • Aux Contacts: N/A
  • CPT: N/A
  • Full Load Amps: N/A
  • Dist Voltage: N/A
  • Bucket Size: N/A
  • Bucket Style: N/A
  • Bucket Type: N/A
  • Full Load Amp Maximum: N/A
  • Full Load Amp Minimum: N/A
  • Enclosure: N/A
  • Relay Style: N/A
  • Coil Voltage Minimum: N/A
  • Wire: Cu/Al
  • Amperage Maximum: 60A
  • Amperage Minimum: N/A
  • Nema Rating: N/A
  • Switch Style: Breaker
  • Wire Size: AWG 4 to AWG 1/0
  • Certification: UL 490, Federal Specifications Classification W-C376
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Plug-In
  • Frequency Rating: 60 Hz
  • Phase Connection: 1-Phase
  • Standards: UL 490, Federal Specifications Classification W-C376
  • Compatible Frames: BR Series
  • Installation Type: Plug-In
  • Item QTY: 1
  • Nema Starter Size: N/A
  • Breaker Frame: BR
  • Current Rating: 60A
  • Reverse Standoff Voltage: N/A
  • Watts: N/A
  • Peak Pulse Current: N/A
  • Breakdown Voltage (MIN VBR@IT ) (V): N/A
  • Breakdown Voltage (VBR@IT) (V): N/A
  • Polarity: N/A
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: N/A
  • On-State Current: N/A


Product Identification
  • UPC: 786676382601
  • GTIN: 00786676382601
