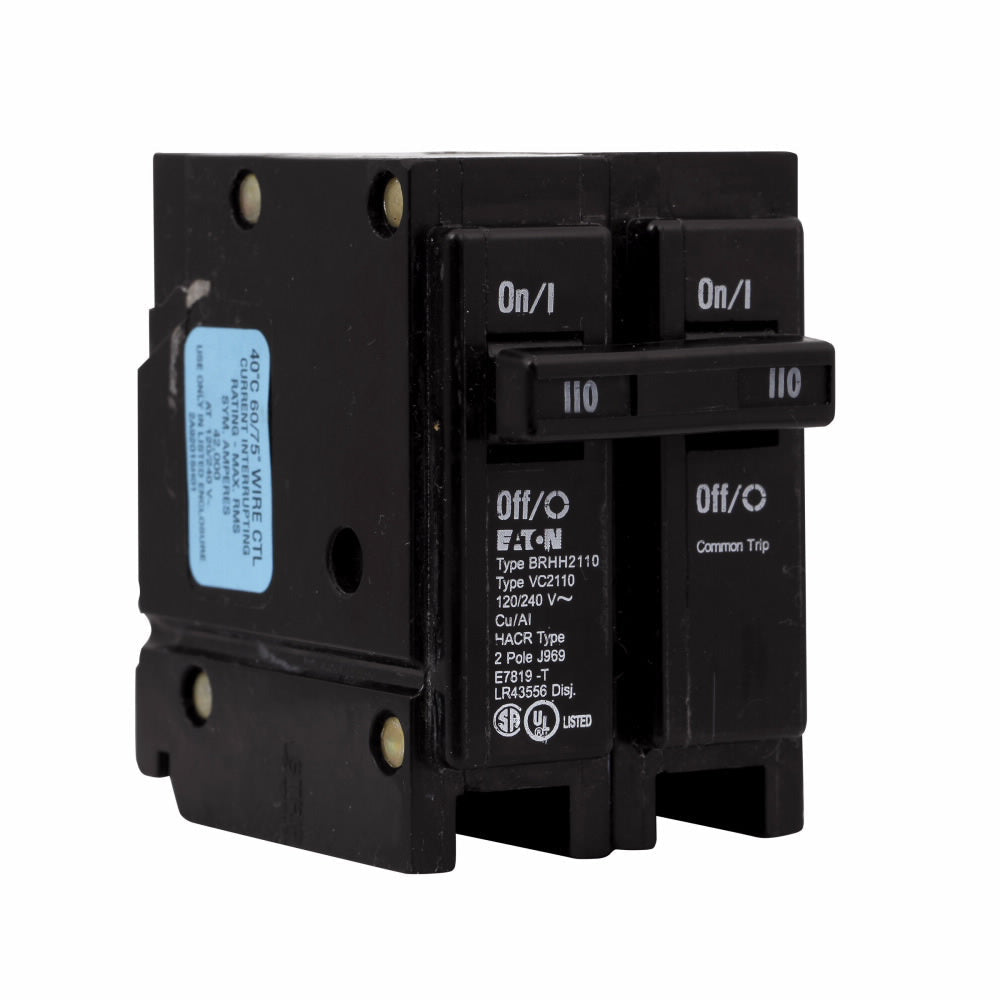

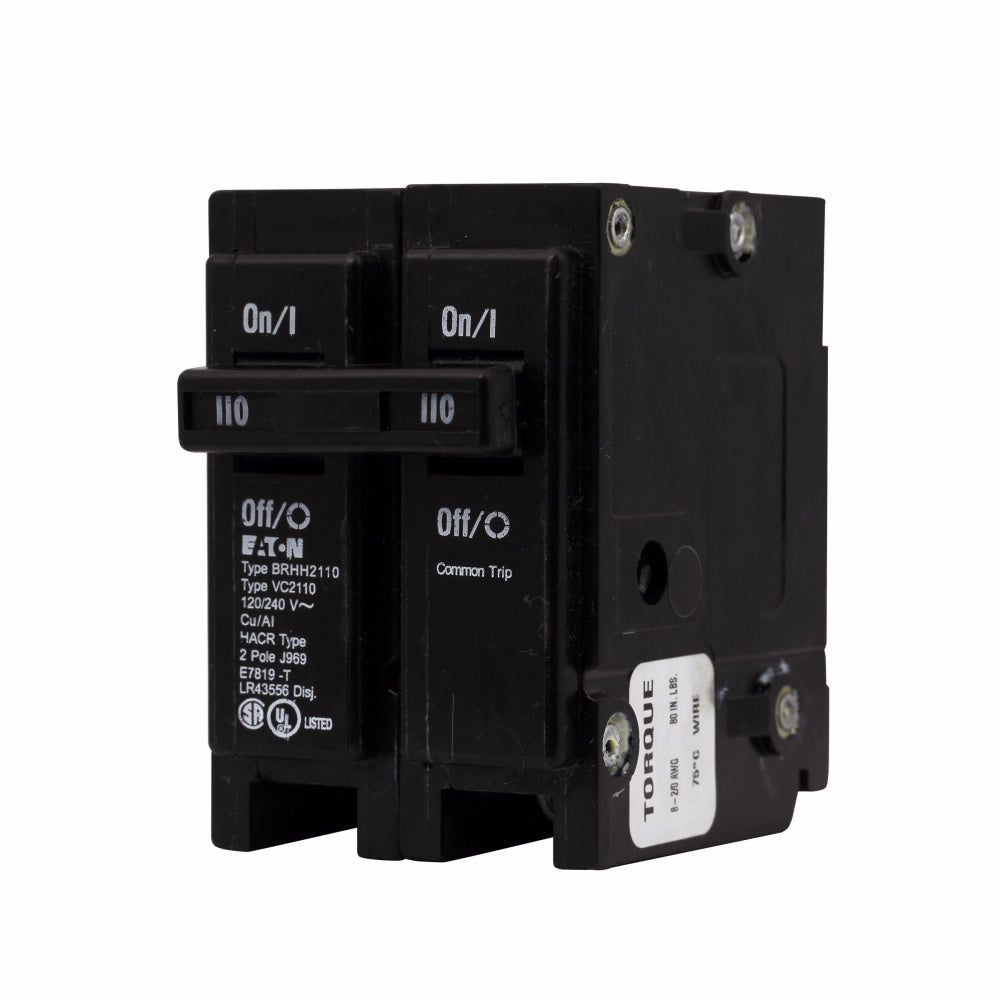

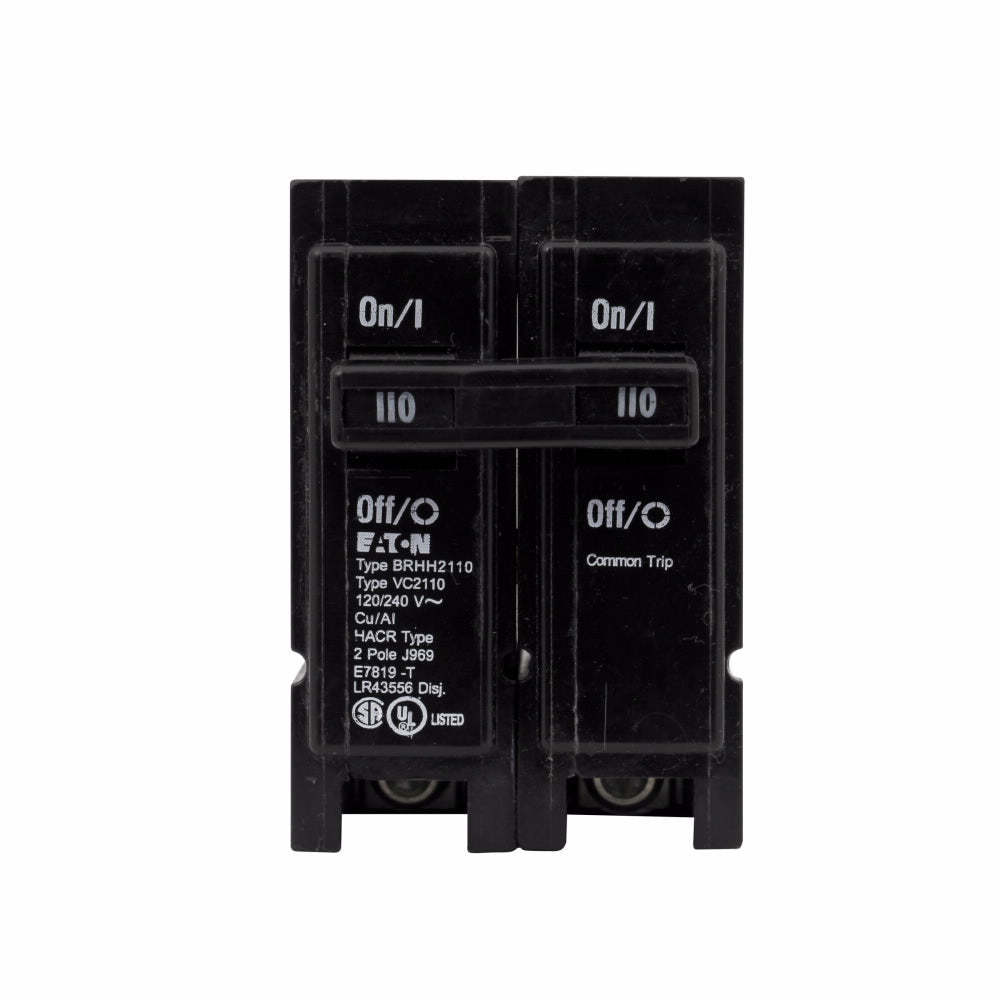

Cutler Hammer BRHH2110 - Molded Case 110A 240V 2-Pole

Price
Regular price $218.90
Regular price $1,267.00 Sale price $218.90
Save $1,048.10
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Cutler Hammer BRHH2110 is a 2-pole molded case circuit breaker designed for overcurrent protection in residential and light commercial load centers. This 110A, 240V unit provides LI (Long-Time and Instantaneous) trip functions through a thermal magnetic mechanism, with a high 42kA interrupting capacity at 240VAC. The plug-in connection accommodates AWG 4 to AWG 1/0 copper or aluminum wire, and the compact 3 in x 3 in x 2 in enclosure weighs 0.6 lb. It complies with UL 490 and Federal Specifications Classification W-C376 standards. This BR Series breaker is suited for 1-phase panelboards requiring reliable branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker
  • Voltage Rating: 240V
  • Current Rating: 110A
  • Dimensions: 3 in x 3 in x 2 in (Length/Depth x Height x Width)
  • Standards: UL 490, Federal Specifications Classification W-C376
  • Applications: Branch circuit protection in residential and light commercial load centers
  • Switch Type: Thermal Magnetic
  • Configuration: 2-Pole
  • Phase: 1
  • AIC rating: 42kA@240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: BRHH
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Wire Size: AWG 4 to AWG 1/0, Cu/Al
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Plug-In
  • Frequency Rating: 60 Hz
  • Phase Connection: 1-Phase
  • Installation Type: Plug-In
  • Item QTY: 1
  • Breaker Frame: BRHH
  • Current Rating: 110A
  • Weight: 0.6 lb
  • Country of Origin: Dominican Republic
  • Family: BR Series
  • Type: BRHH


Product Identification
  • UPC: 786676002950
  • GTIN: 00786676002950
