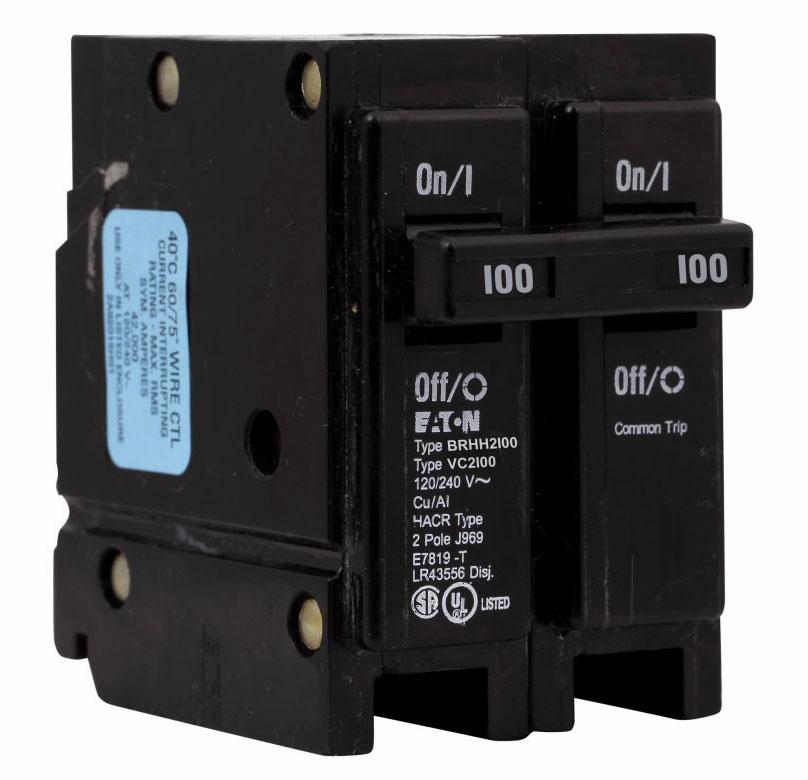

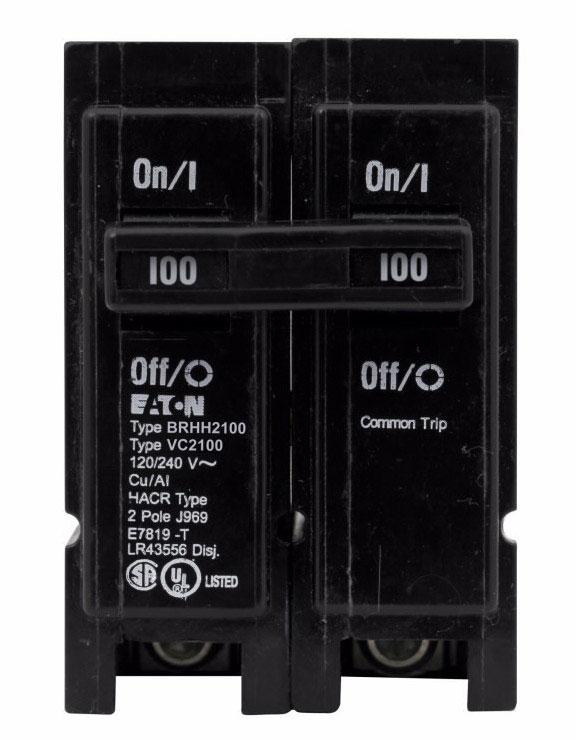

Cutler Hammer BRHH2100 - Molded Case 100A 240V 2-Pole
Cutler Hammer BRHH2100 - Molded Case 100A 240V 2-Pole
Cutler Hammer BRHH2100 - Molded Case 100A 240V 2-Pole
Cutler Hammer BRHH2100 - Molded Case 100A 240V 2-Pole
Cutler Hammer BRHH2100 - Molded Case 100A 240V 2-Pole
Cutler Hammer BRHH2100 - Molded Case 100A 240V 2-Pole

Cutler Hammer BRHH2100 - Molded Case 100A 240V 2-Pole

Cutler Hammer
Price
Save $1,119.47
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BRHH2100 is a 2-pole molded case circuit breaker from the BR Series, designed for thermal-magnetic overcurrent protection in residential and light commercial power distribution. Rated for 100A at 240V with a 42kA interrupting capacity, this plug-in breaker provides LI (Long-Time and Instantaneous Trip) functions and accepts AWG 4 to AWG 1/0 copper or aluminum wire. Measuring 2.5 in x 3 in x 2 in and weighing 0.6 lb, it features a compact construction suitable for panelboard installation within an operating temperature range of -13°F to 158°F (-25°C to 70°C). Compliant with UL 490 and Federal Specifications Classification W-C376, this single-phase breaker is manufactured in the Dominican Republic for industrial and commercial branch circuit protection.

Key Features & Specifications
  • Type: Molded Case
  • Voltage Rating: 240V
  • Current Rating: 100A
  • Poles: 2
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • AIC rating: 42kA@240V
  • Phase: 1
  • Wire Size: AWG 4 to AWG 1/0, Cu/Al
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Dimensions: 2.5 in x 3 in x 2 in (Length/Depth x Height x Width)
  • Weight: 0.6 lb
  • Certification: UL 490, Federal Specifications Classification W-C376
  • Family: BR Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676376952
  • GTIN: 00786676376952
