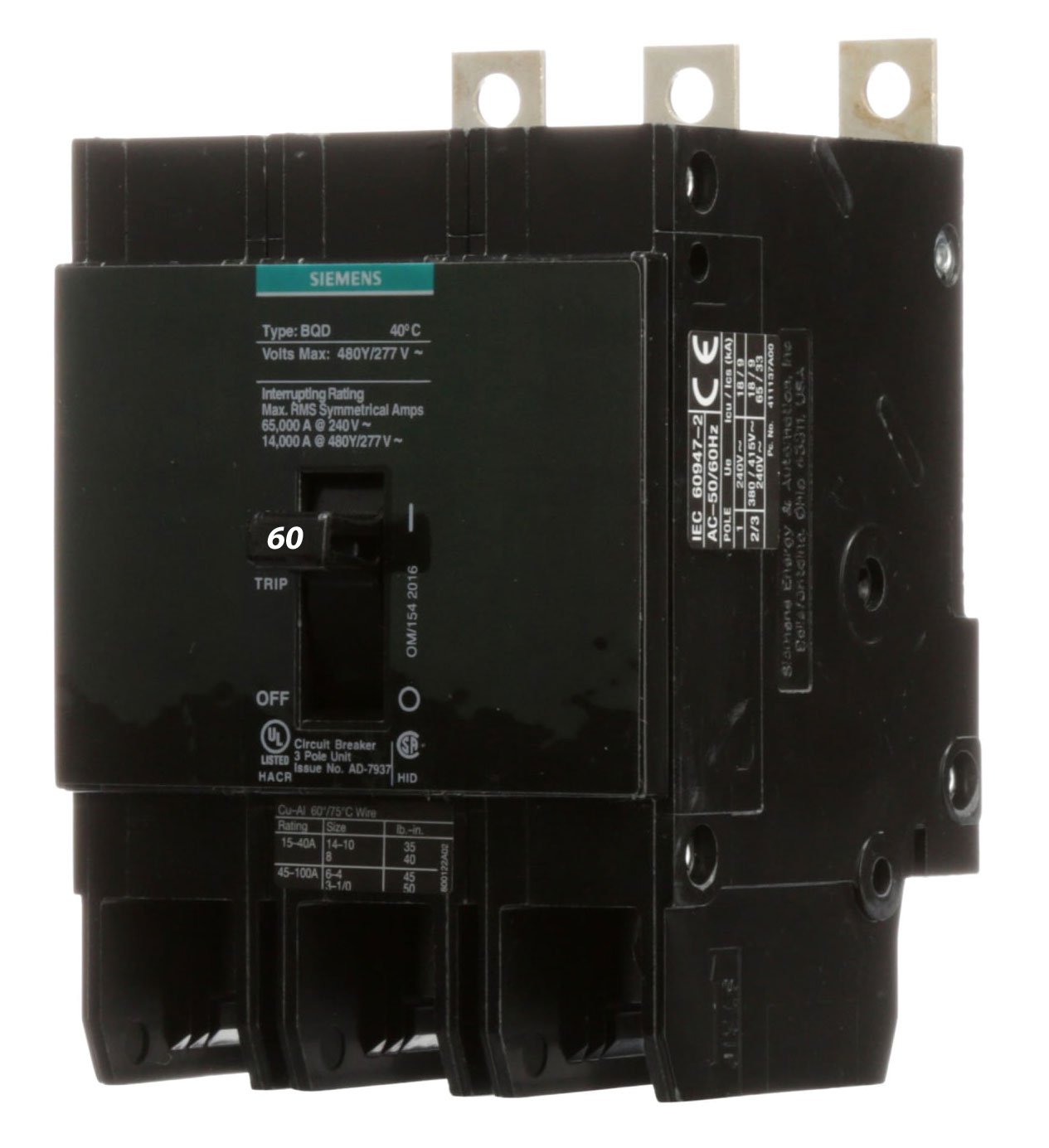

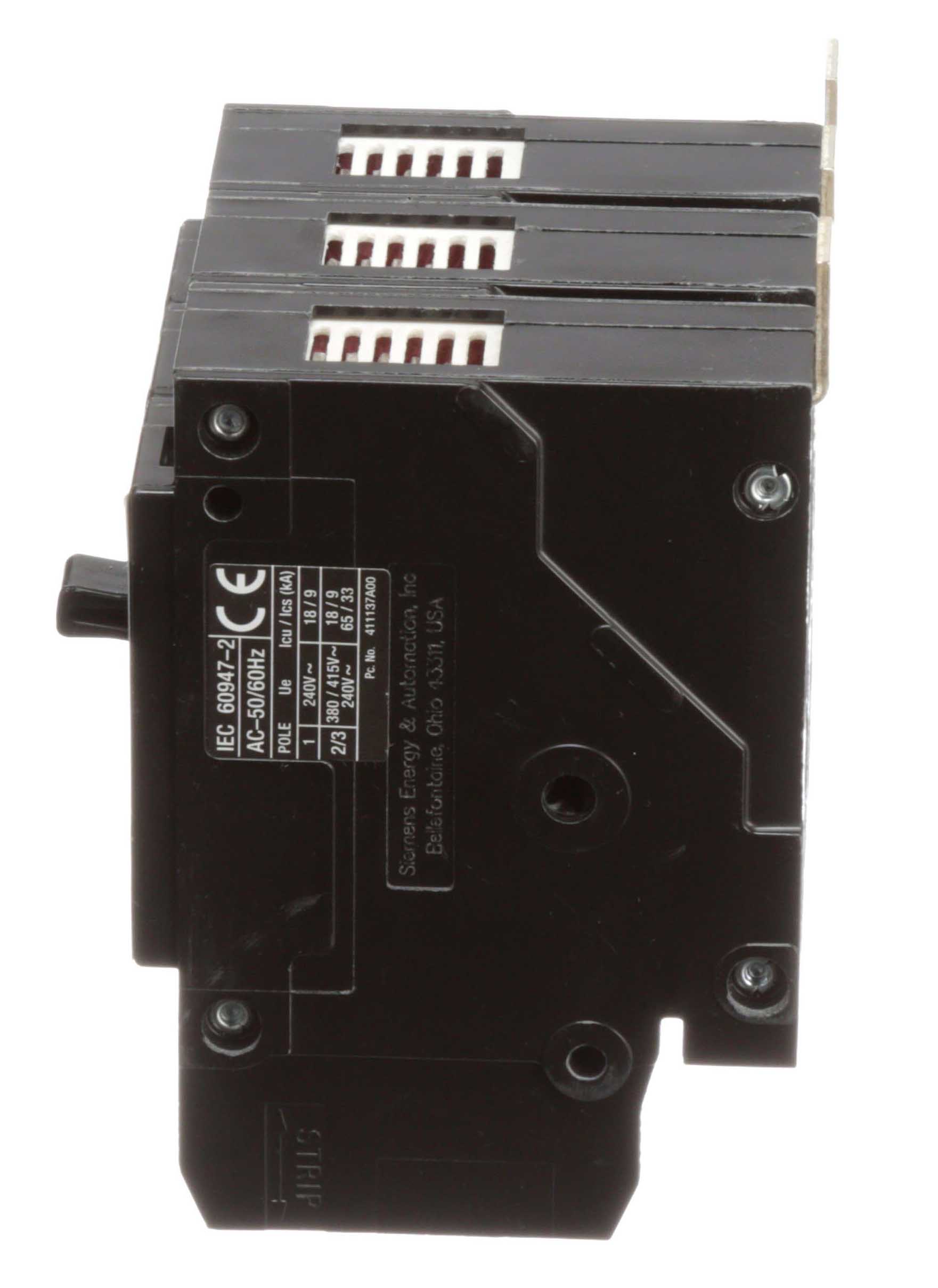

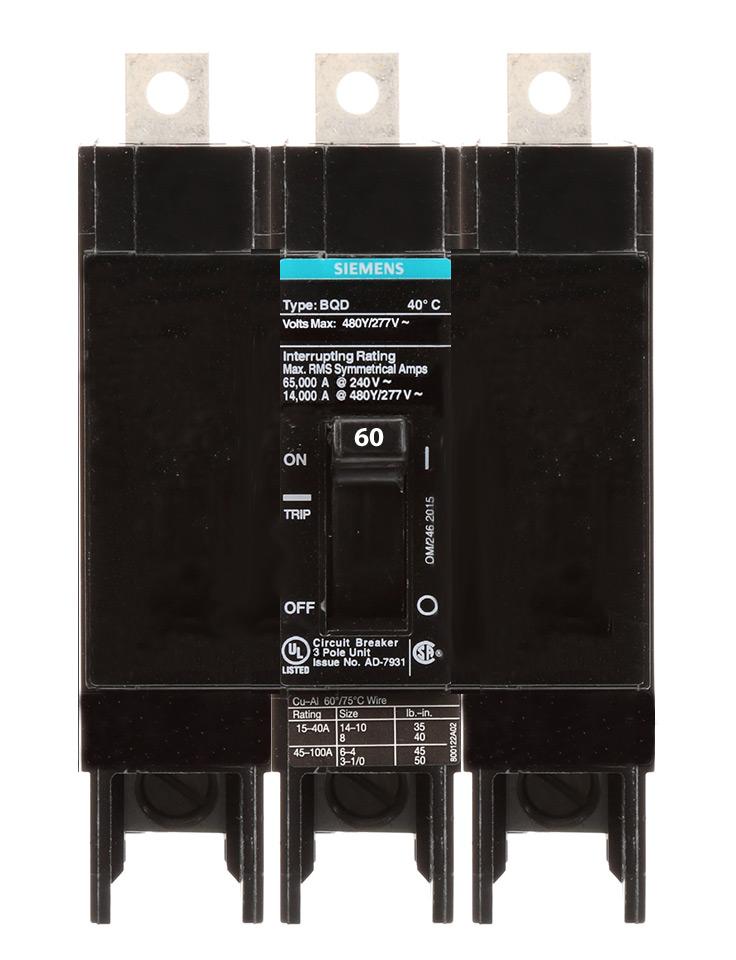

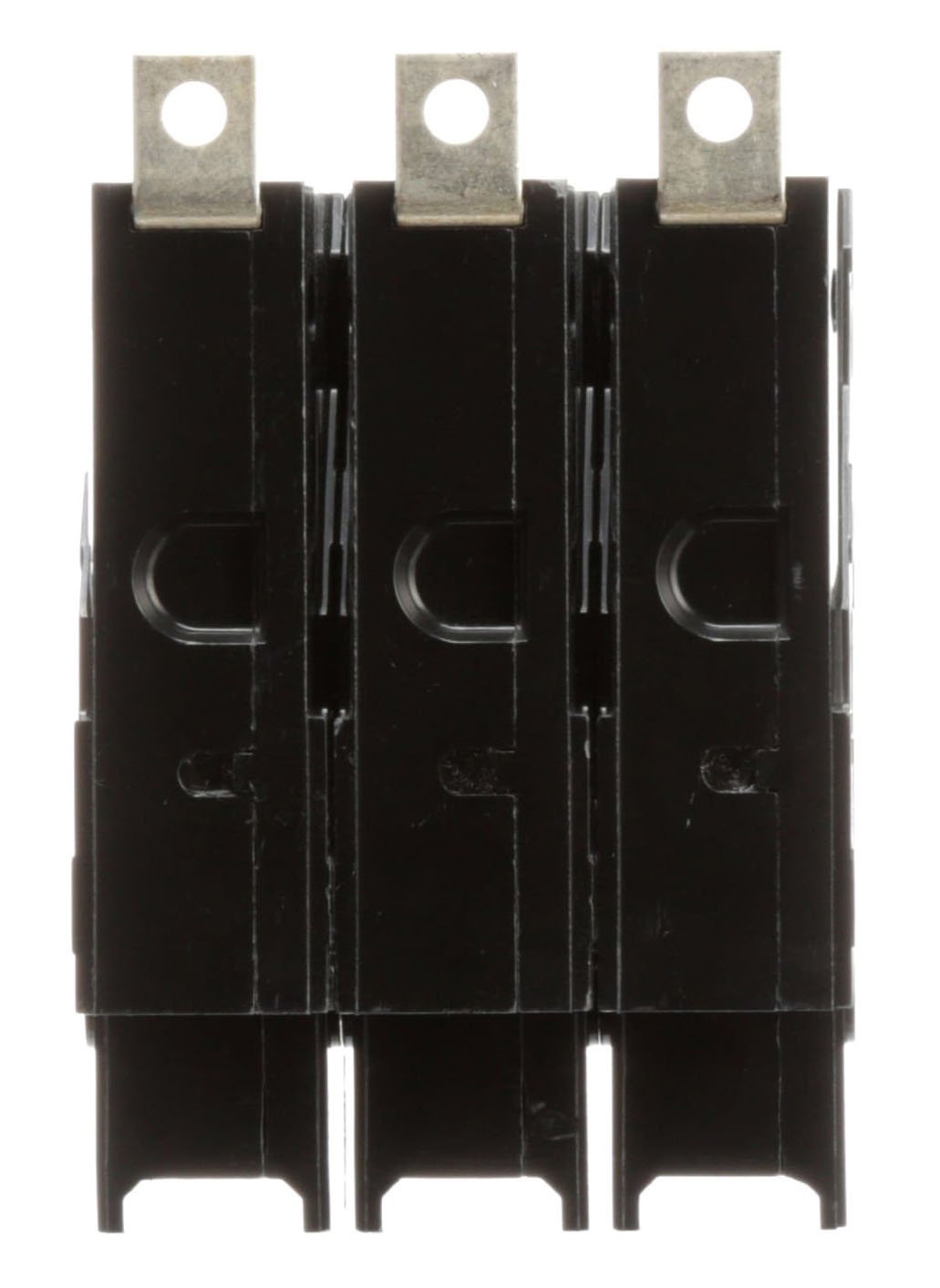

Siemens BQD360 - Molded Case Breaker 60A 480V 3P (14kA AIC)

Price
Regular price $162.46
Regular price $1,352.00 Sale price $162.46
Save $1,189.54
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQD360 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 60A current rating and a 480V voltage rating, housed within a compact 3" x 4.49" x 4.49" frame with a bolt-on connection and lug terminals. The breaker is constructed with thermal-magnetic trip technology for both long-time and instantaneous protection, is certified to CSA-C22.2 and UL 534 standards, and offers a 14kA interrupting capacity at 480V. Its design is compatible with Siemens P1 panelboards, making it suitable for a range of commercial and industrial power distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 60A
  • Frame Size: 100A/BQD
  • Poles: 3
  • Phase: 3
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size / Wire Range: Min. 6 AWG (Al) / 8 AWG (Cu), Max. 1/0 AWG
  • Dimensions: 3 in x 4.49 in x 4.49 in
  • Weight: 1.94 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Protection Functions: Long Time and Instantaneous Trip
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • Standards & Certification: CSA-C22.2, UL 534
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277427
  • GTIN: 00783643277427
  • Family: BQD Series
