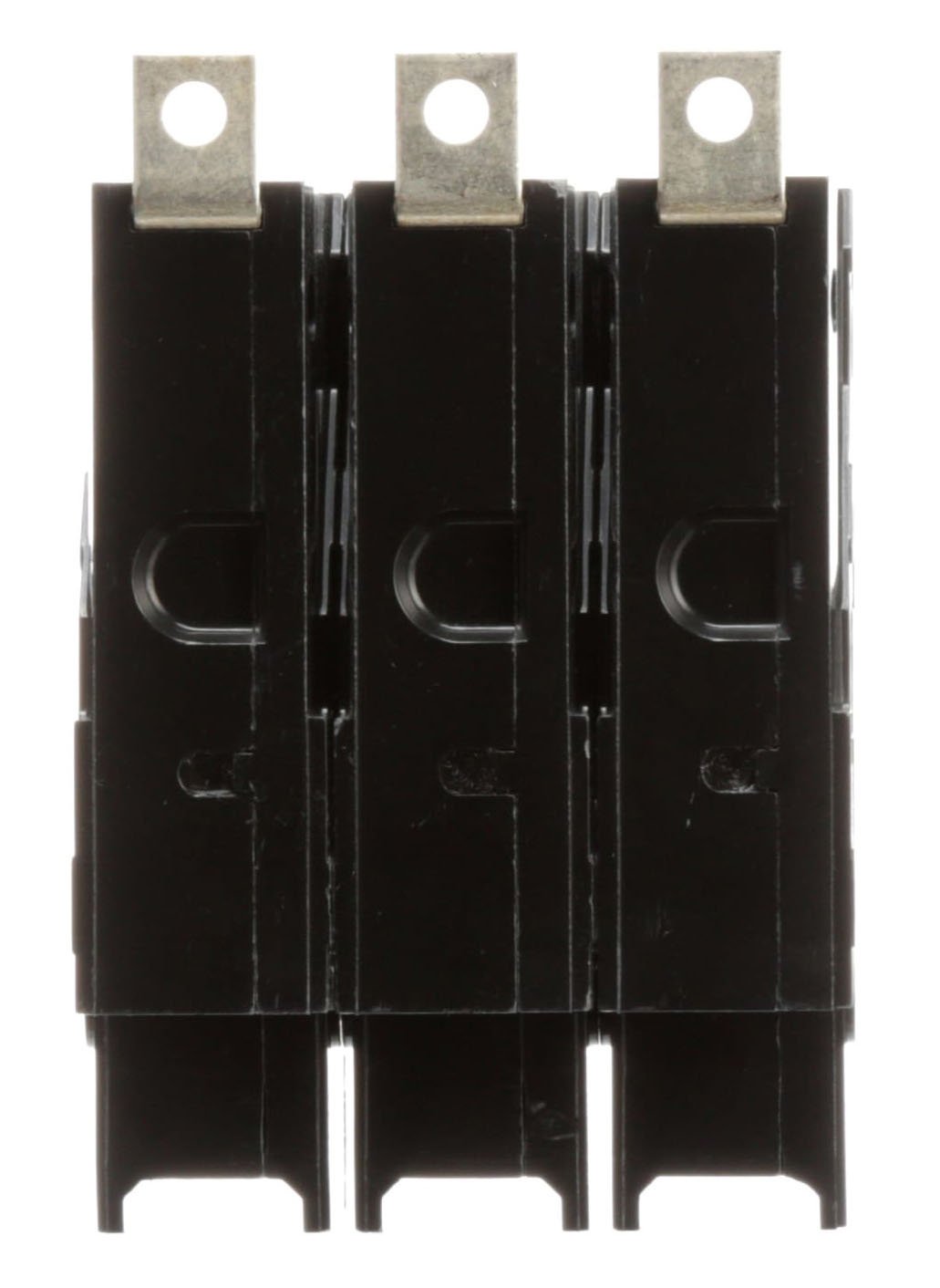

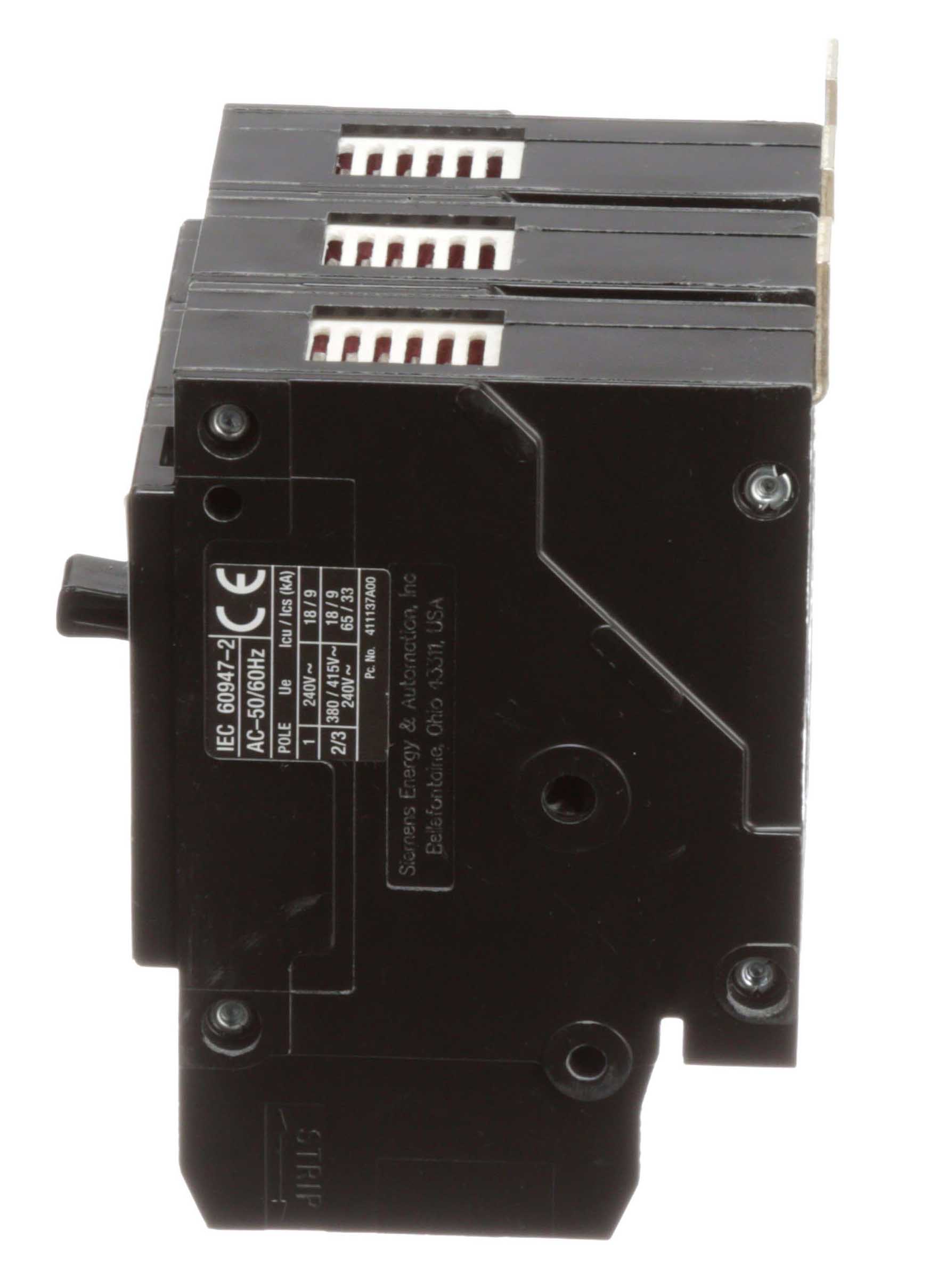

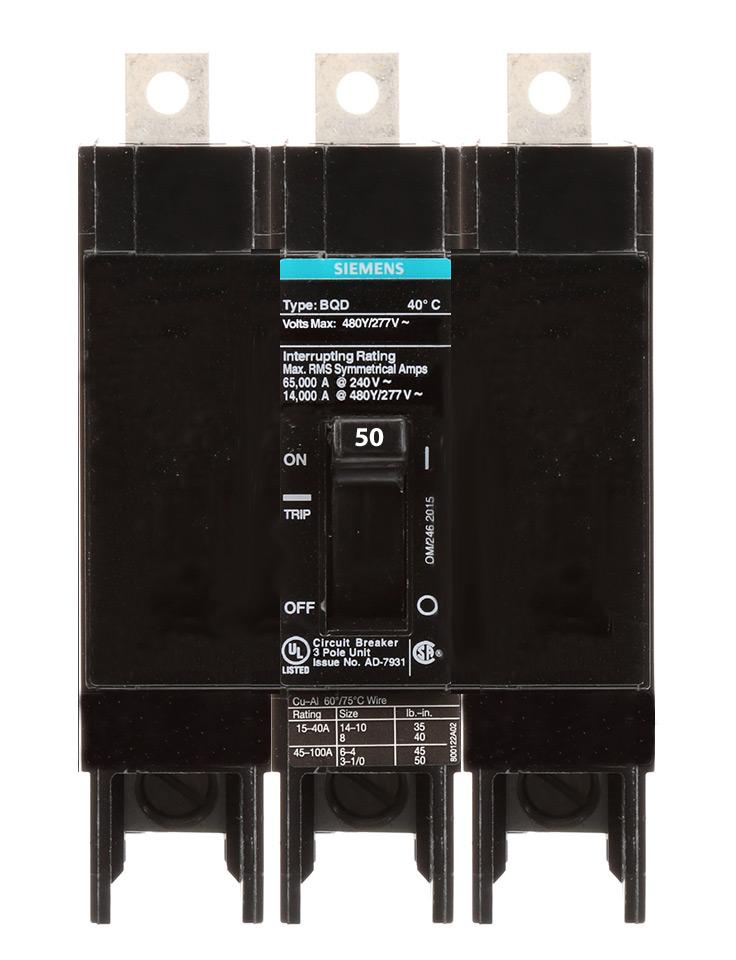

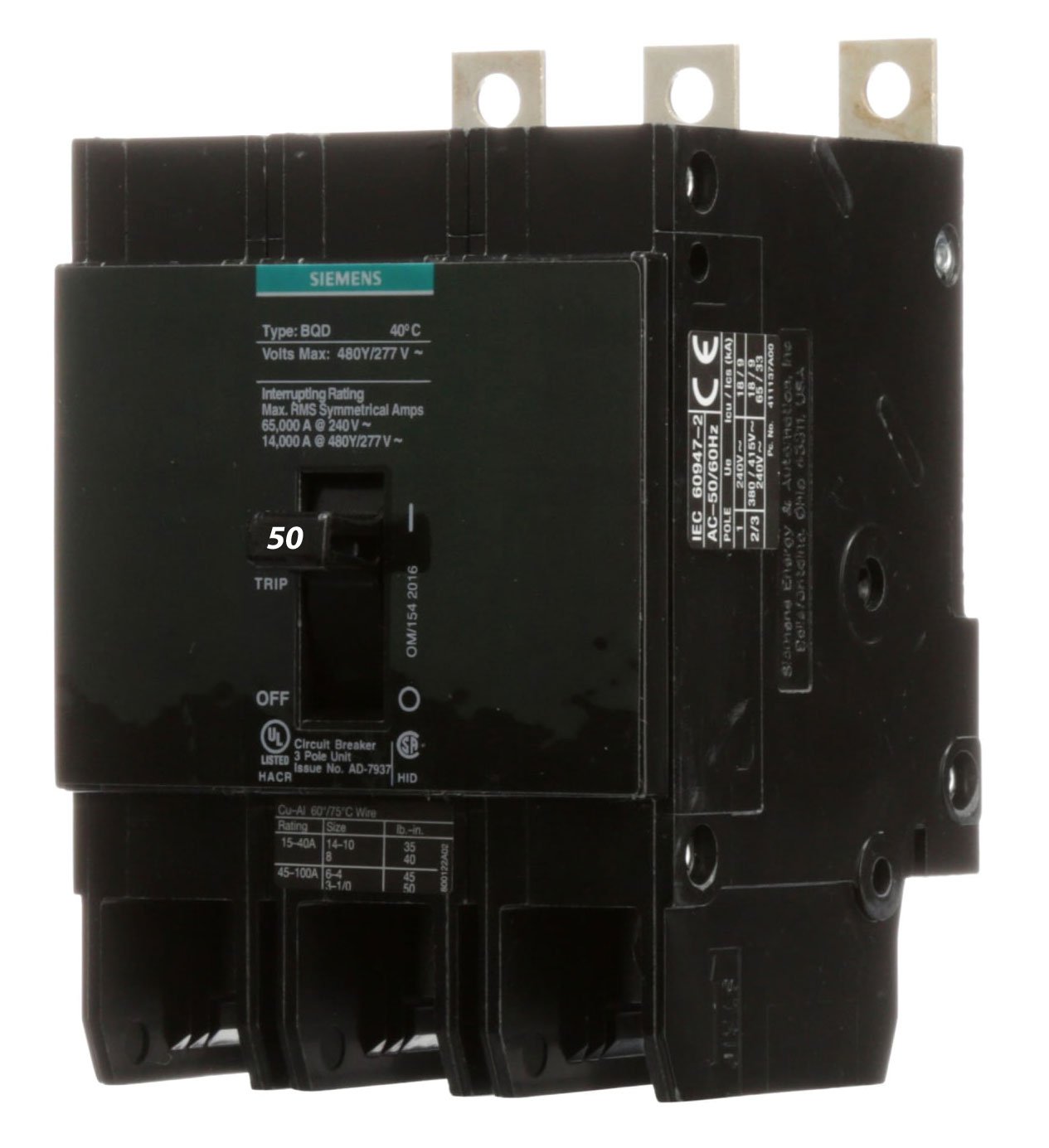

Siemens BQD350 - Molded Case Circuit Breaker 50A 480V 3P

Price
Regular price $173.44
Regular price $1,352.00 Sale price $173.44
Save $1,178.56
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQD350 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 50A current rating and a 480V voltage rating, housed within a compact 100A frame with dimensions of 3 in x 4.49 in x 4.49 in and a weight of 1.349 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous protection, is constructed for bolt-on connection with lug terminals, and complies with CSA-C22.2 and UL 532 standards. It is typically applied in industrial power distribution, specifically within Siemens P1 panelboards, where its 14kA interrupting rating at 480V ensures system safety.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 50A
  • Dimensions: 3 in H x 4.49 in W x 4.49 in D
  • Weight: 1.349 lb
  • Standards: CSA-C22.2, UL 532
  • Applications: Industrial Power Distribution, Siemens P1 Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Frame Size: 100A/BQD
  • Breaker Type: Standard
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • AIC Rating: 14kA @ 480V
  • Panel Type: Siemens P1 Panelboards
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • MCM Size: Min. 6 AWG (Al) / 8 AWG (Cu); Max. 1/0 AWG
  • Certification: CSA-C22.2, UL 532
  • Family: BQD Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277410
  • GTIN: 00783643277410
