Siemens
Price
Save $1,634.40
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

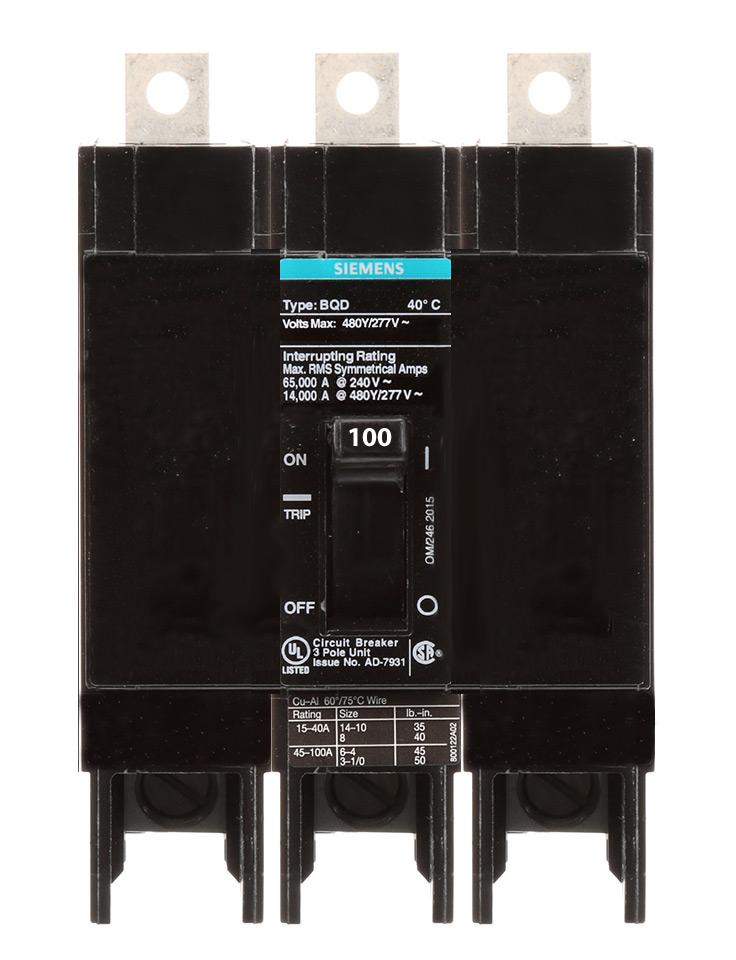

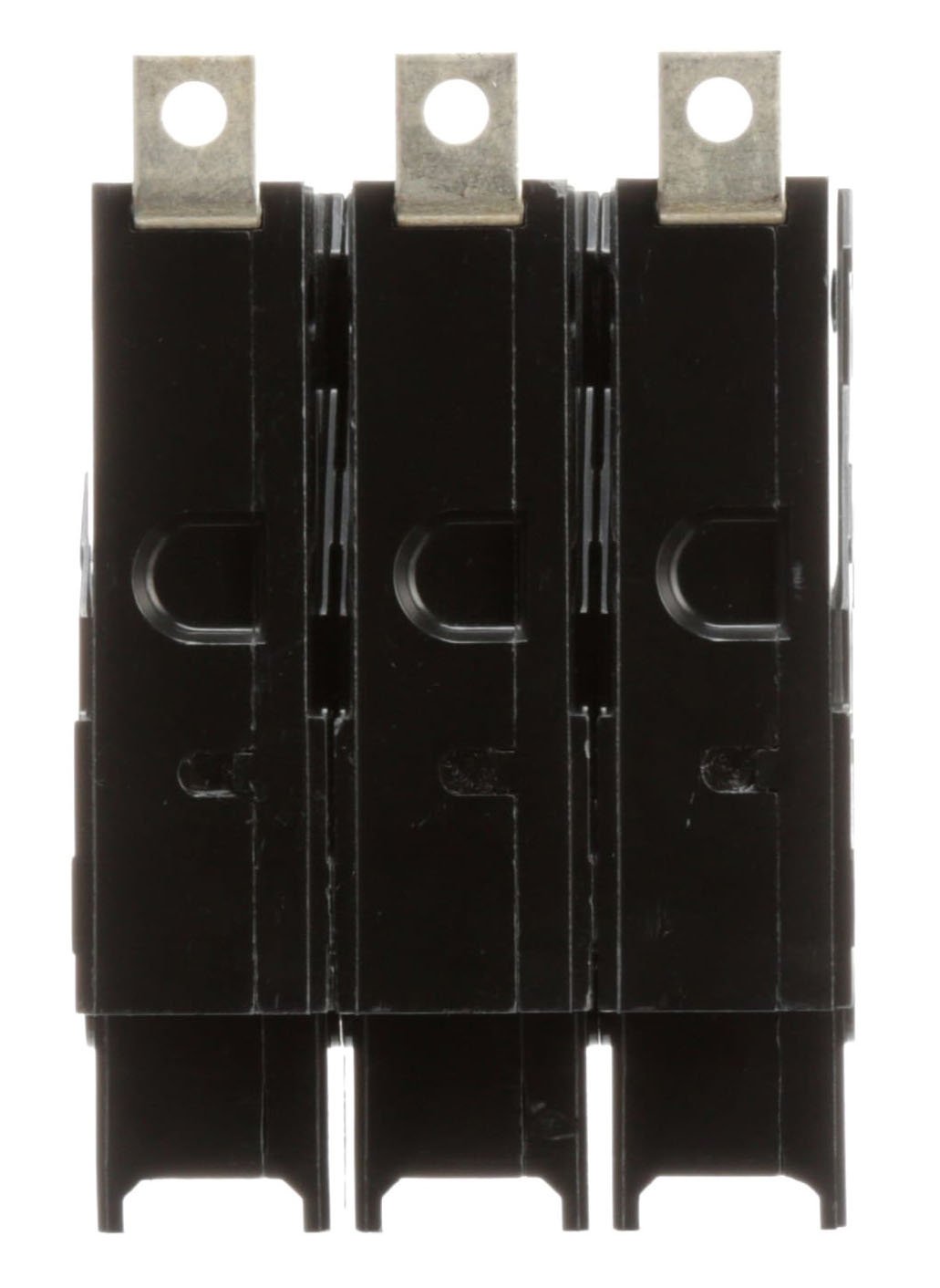

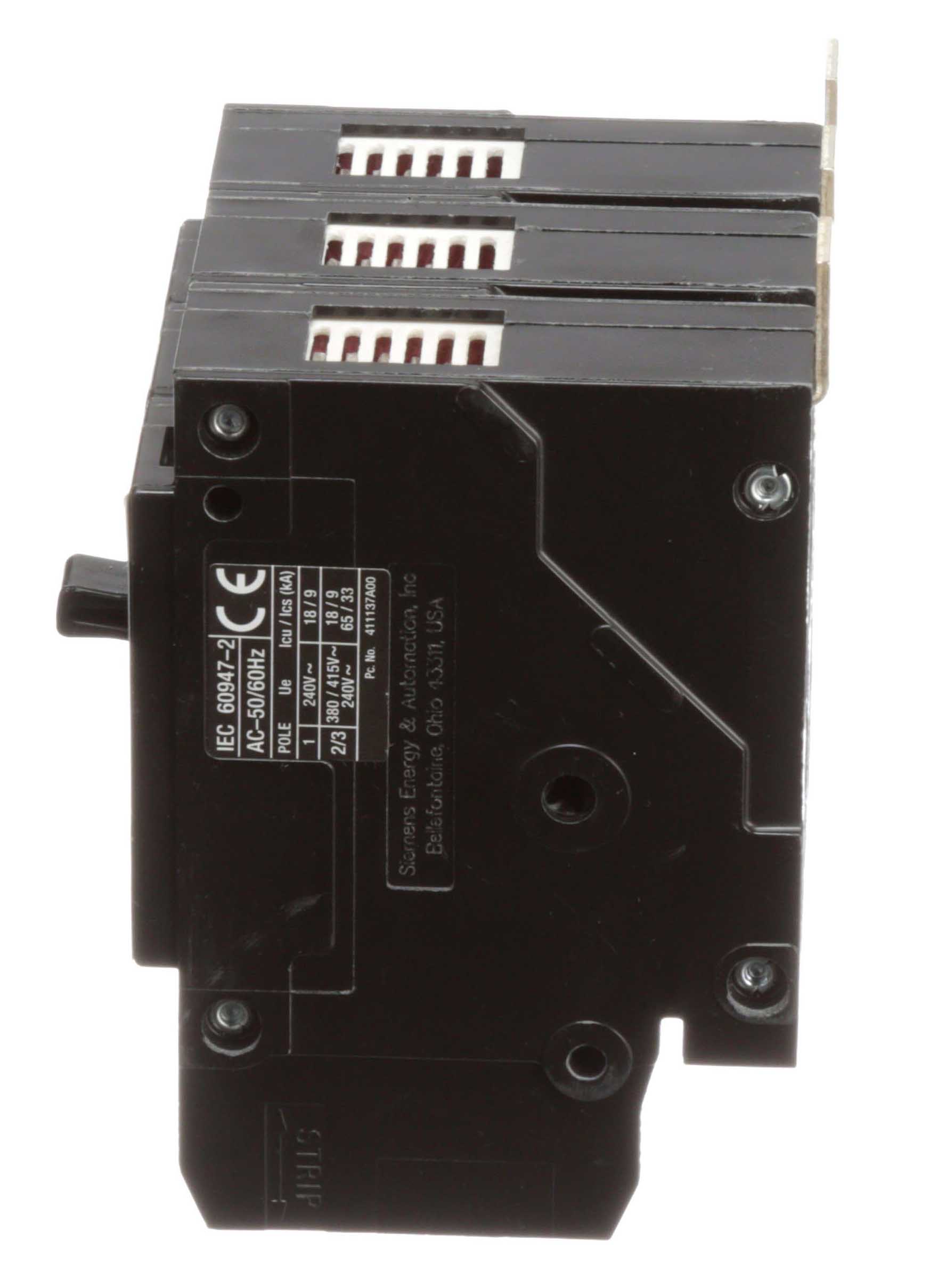

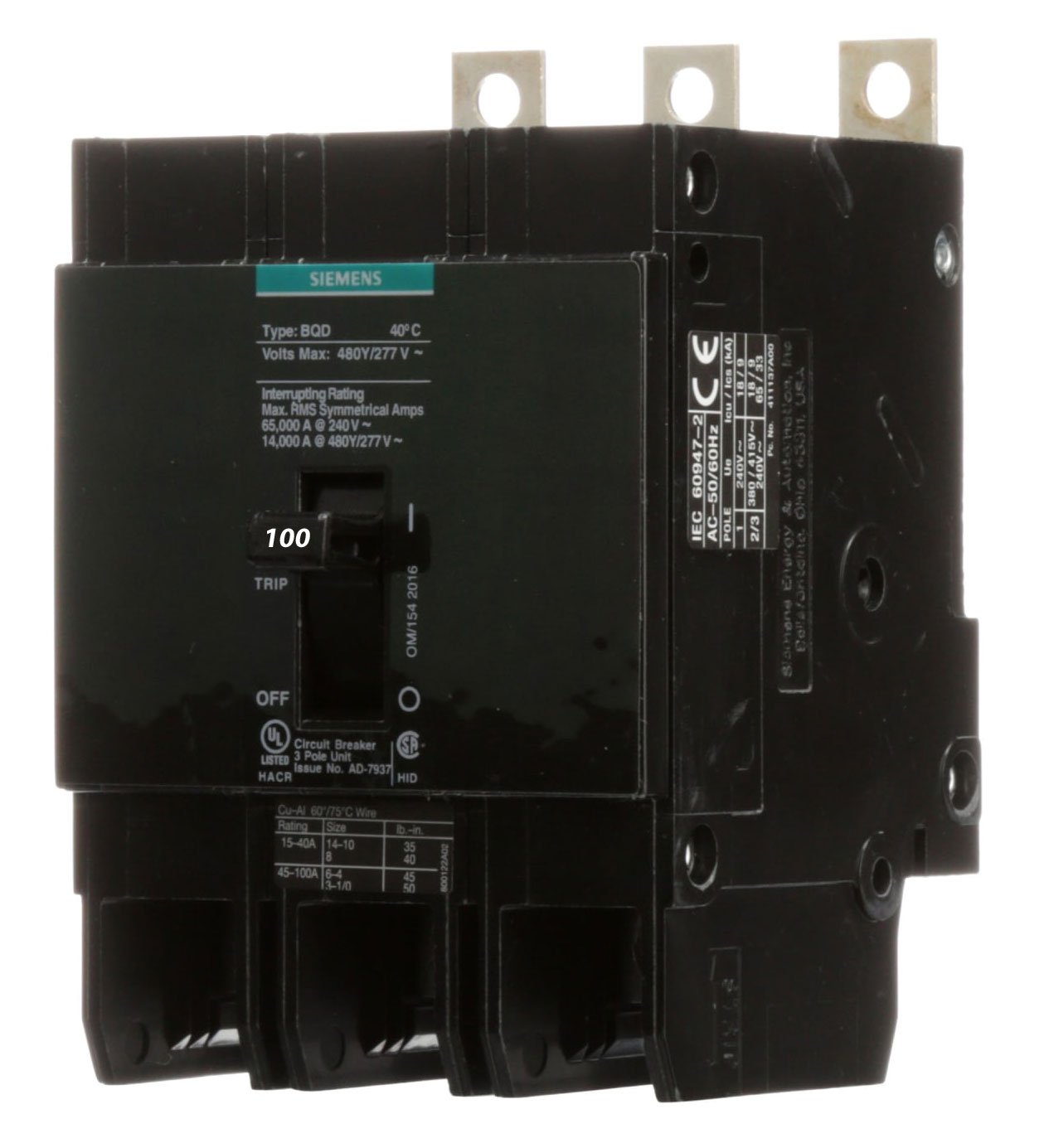

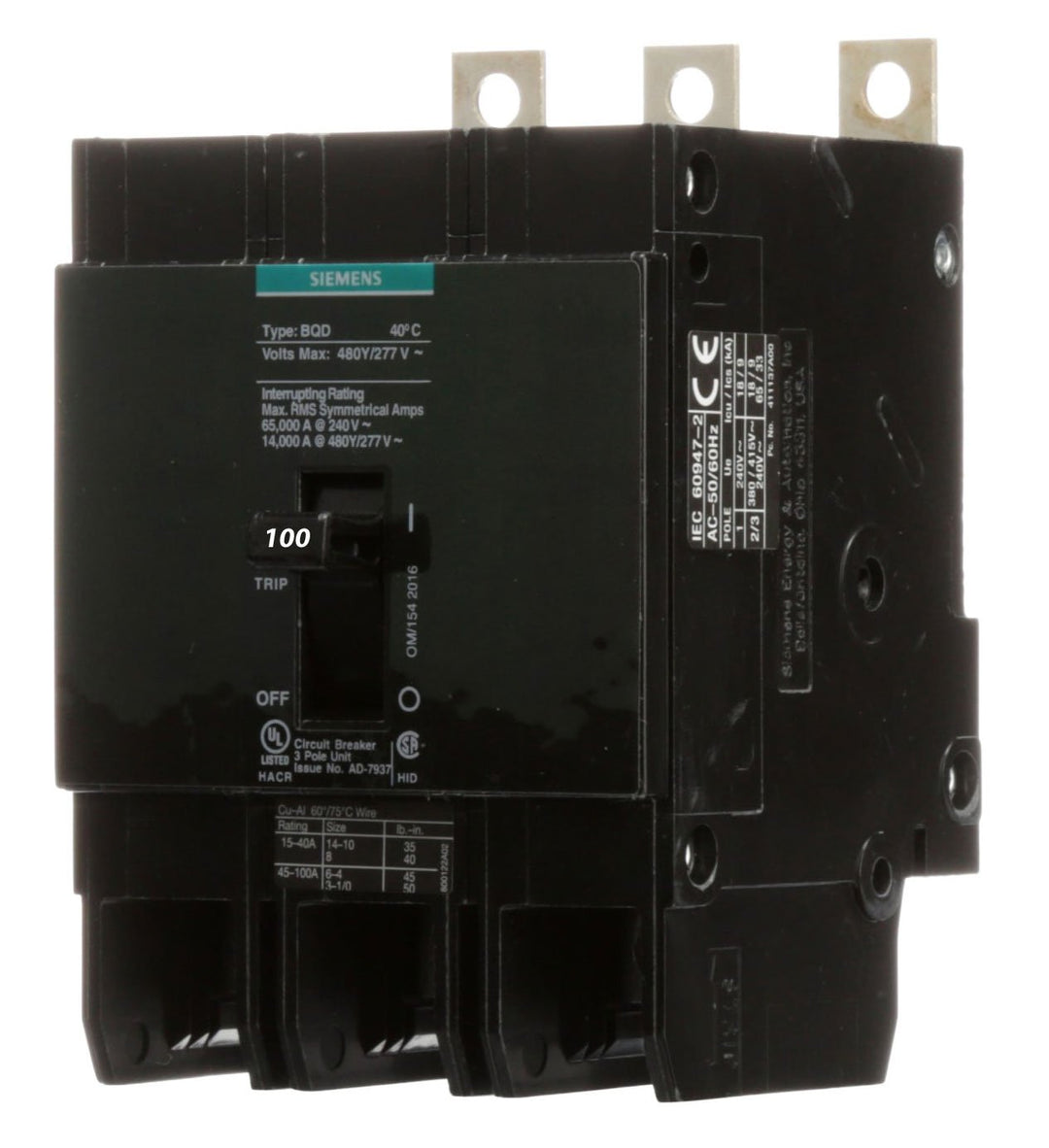

Siemens BQD3100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 480V AC voltage rating, housed within a compact, robust frame measuring 3" x 4.49" and weighing 1.92 lb with bolt-on lug connections. This thermal-magnetic breaker is certified to CSA-C22.2 and UL 519 standards, offers a 14kA interrupting capacity at 480V, and operates reliably across a temperature range of -25°C to 70°C. It is engineered for integration into Siemens P1 panelboards to safeguard commercial and industrial equipment.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Frame Size: 100A/BQD
  • AIC Rating: 14kA @ 480V
  • Poles: 3
  • Phase: 3-Phase
  • Connection: Bolt-on, Lug Terminal
  • Wire Size Range: Minimum 6 AWG (Al) / 8 AWG (Cu), Maximum 1/0 AWG
  • Dimensions: 3 in x 4.49 in
  • Weight: 1.92 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: CSA-C22.2, UL 519
  • Compatible Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277465
  • GTIN: 00783643277465
