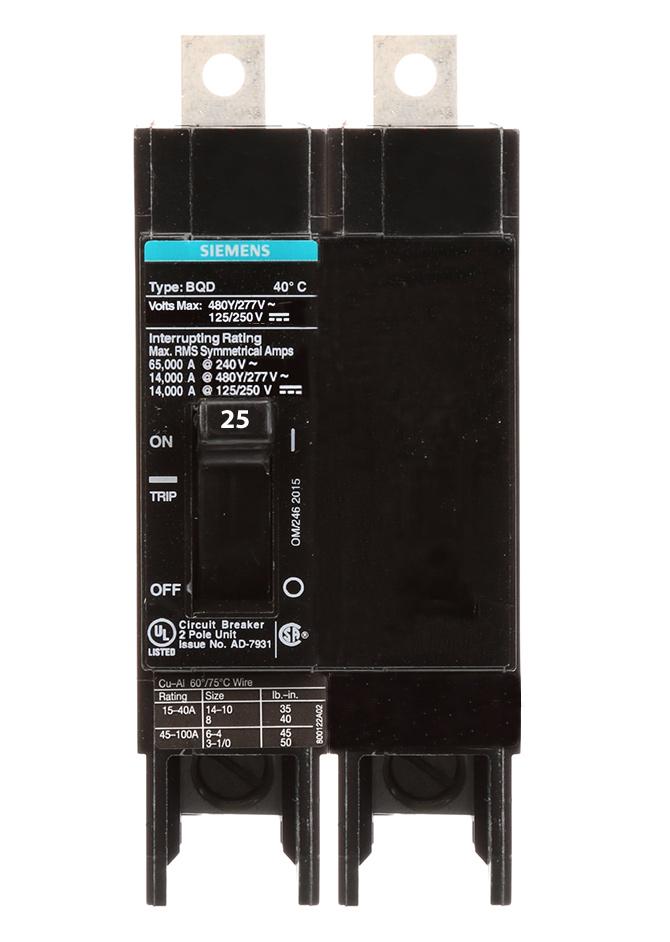

Siemens BQD225 - Molded Case Circuit Breaker, 25A 480V 2-Pole
Siemens BQD225 - Molded Case Circuit Breaker, 25A 480V 2-Pole
Siemens BQD225 - Molded Case Circuit Breaker, 25A 480V 2-Pole
Siemens BQD225 - Molded Case Circuit Breaker, 25A 480V 2-Pole
Siemens BQD225 - Molded Case Circuit Breaker, 25A 480V 2-Pole
Siemens BQD225 - Molded Case Circuit Breaker, 25A 480V 2-Pole
Siemens BQD225 - Molded Case Circuit Breaker, 25A 480V 2-Pole
Siemens BQD225 - Molded Case Circuit Breaker, 25A 480V 2-Pole

Siemens BQD225 - Molded Case Circuit Breaker, 25A 480V 2-Pole

Siemens
Price
Save $619.08
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQD225 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 25A current rating and a 480V AC voltage rating, housed within a compact 2" x 4.49" x 4.49" (50.8mm x 114mm x 114mm) bolt-on frame with a weight of 1.049 lb. This thermal magnetic breaker is constructed for compliance with UL 508 and CSA C22.2 standards and is engineered for an ambient temperature range of -25°C to 70°C. Its typical application is within Siemens P1 panelboards for safeguarding single-phase branch circuits, offering a 14kA interrupting capacity at 480V.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection, Standard Breaker
  • Voltage Rating: 480V AC
  • Current Rating: 25A
  • Dimensions: 2 in H x 4.49 in W x 4.49 in D (50.8mm x 114mm x 114mm)
  • Standards: UL 508, CSA C22.2
  • Applications: Siemens P1 Panelboards, Industrial/Commercial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Temp Rating: -25°C to 70°C
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 100A/BQD
  • Breaker Type: Standard
  • Terminal Connection: Lug
  • MCM Size: Wire Range 6 AWG (Max) to 12 AWG Al / 14 AWG Cu (Min)
  • Weight: 1.049 lb


Product Identification
  • UPC: 783643277236
  • GTIN: 00783643277236
