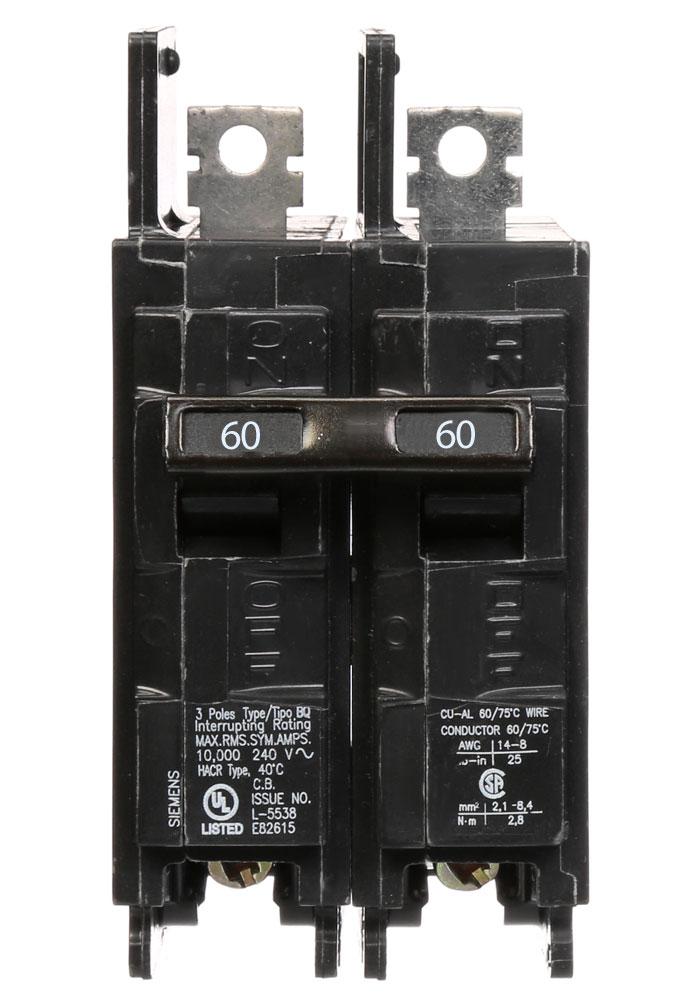

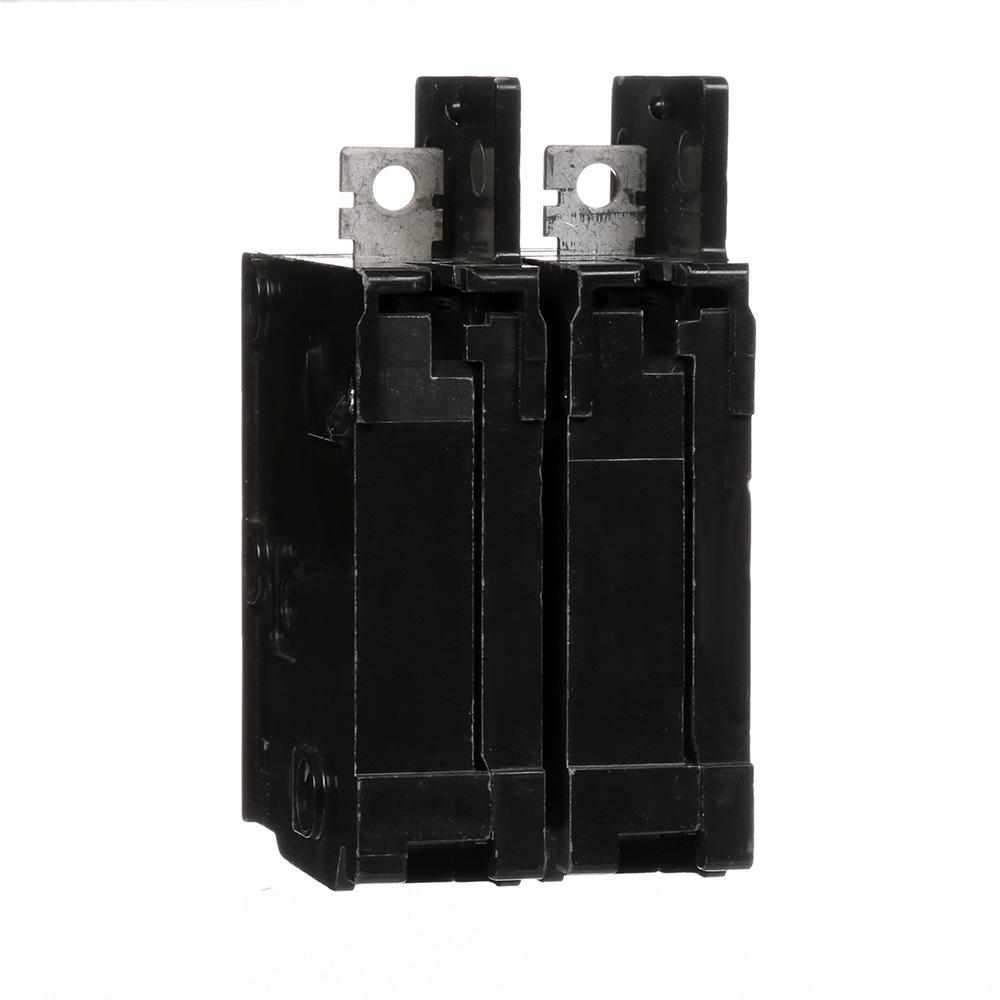

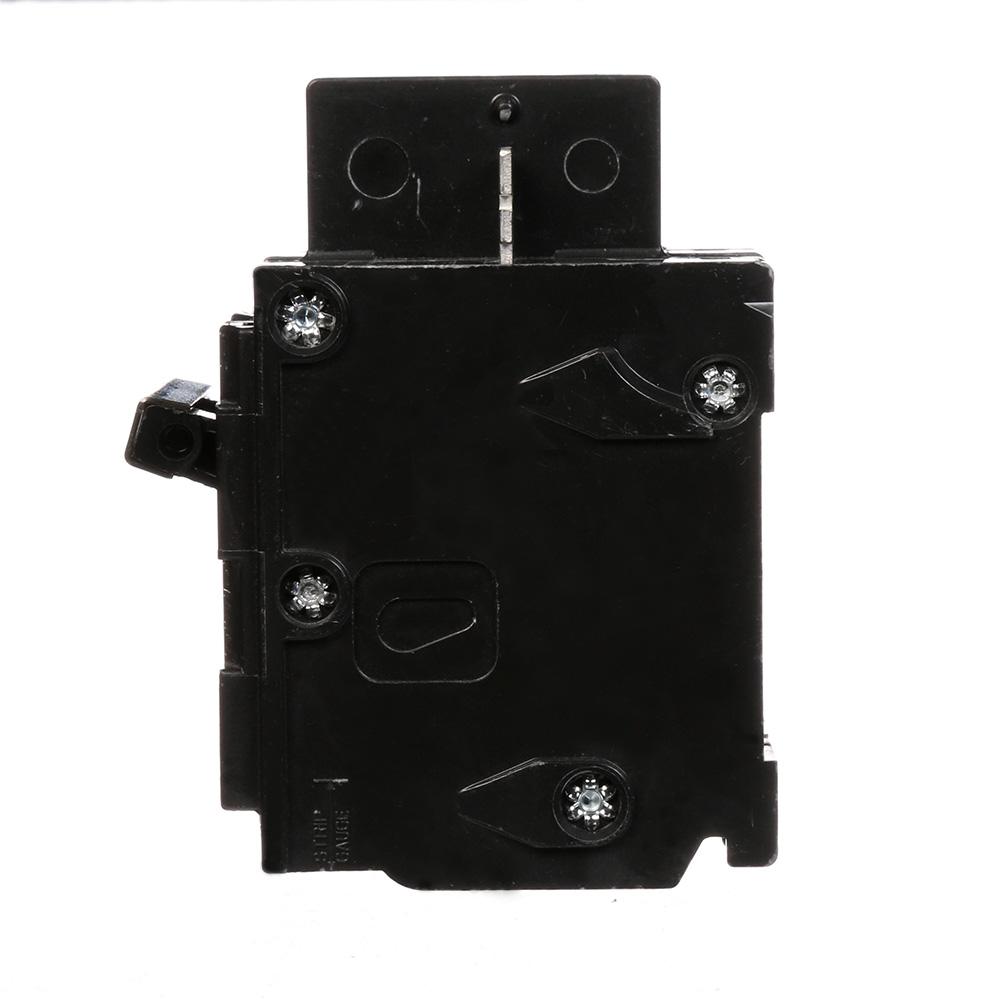

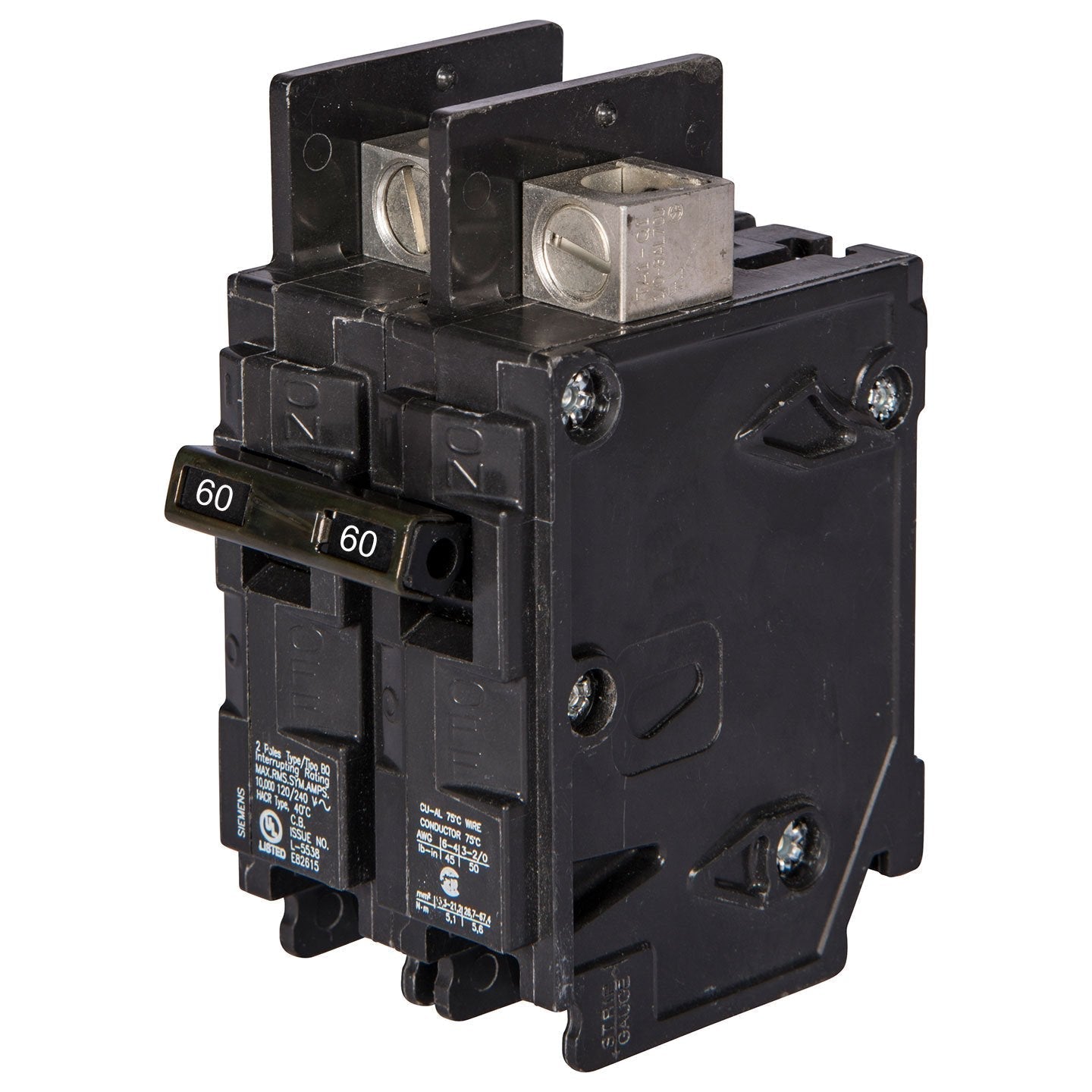

Siemens BQ2B060 - Molded Case Circuit Breaker, 60A 2-Pole

Price
Regular price $35.17
Regular price $224.00 Sale price $35.17
Save $188.83
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQ2B060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 60A current rating and a 120/240V voltage rating, housed within a compact, bolt-on frame measuring 3.937 x 2.756 x 1.969 inches and weighing 0.705 lb. The breaker utilizes a thermal-magnetic trip mechanism for long-time and instantaneous (LI) protection, is constructed for operation from -25°C to 70°C, and complies with UL, CSA, and HACR standards. This certified component is typically applied within Siemens panelboards for commercial and industrial branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 60A
  • Frame Size: 125A/BQ
  • Poles: 2
  • Connection: Bolt-on with Lug Terminal
  • AIC Rating: 10kA @ 240V
  • Phase: 1
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Standards & Certification: UL Listed, CSA, HACR Rated
  • Panel Type: Siemens Panelboards
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 3.937" x 2.756" x 1.969" (100mm x 70mm x 50mm)
  • Weight: 0.705 lb
  • MCM Size / Wire Range: Minimum 12 AWG (Al) / 14 AWG (Cu), Maximum 6 AWG
  • Country of Origin: Mexico
  • Family: BQ Series


Product Identification
  • UPC: 783643102453
  • GTIN: 00783643102453
