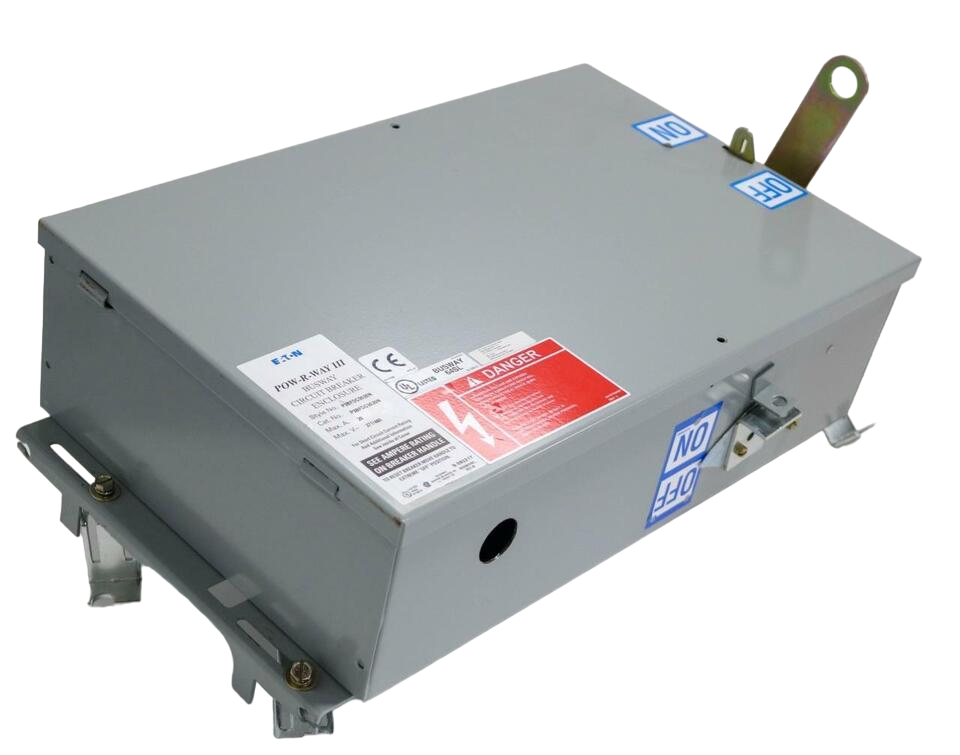

Eaton BPEHB3040GN - Breaker Type 40A 480V Bus Plug
Eaton BPEHB3040GN - Breaker Type 40A 480V Bus Plug

Eaton BPEHB3040GN - Breaker Type 40A 480V Bus Plug

Cutler Hammer
Price
Save $-1,304.82
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton BPEHB3040GN is a breaker-type bus plug designed for primary overcurrent protection in power distribution systems. This unit operates at a voltage rating of 480V with a 40A current capacity and a 14kA interrupting rating at 480V, supporting a three-phase, four-wire configuration. Constructed with a standard design and weighing 40 lb, it features a plug-in mounting type compatible with EHB frames and Pow-R-Way III busway systems. The bus plug complies with Eaton's standards for durability and electrical performance in industrial environments. Typical applications include modular busway power distribution for manufacturing facilities and commercial buildings.

Key Features & Specifications
  • Type: Breaker Type
  • Manufacturer: Eaton
  • Model: BPEHB3040GN
  • Family: Standard Design
  • Weight: 40 lb
  • Wire: 4
  • Voltage Rating: 480V
  • Compatible Frames: EHB
  • AIC rating: 14kA@480V
  • Phase: 3
  • Current Rating: 40A
  • Amperage: 40 A
  • Voltage: 600 V
  • Poles: 4
  • Mounting Type: Plug-in
  • Compatible Series: Pow-R-Way III
  • Configuration: Four-wire with ground
  • Application: Busway power distribution
